Rear Power Window Motor Test

Remove the rear door panel (see FRONT DOOR WEATHERSTRIP REPLACEMENT ).
Disconnect the 6P connector from the power window motor.

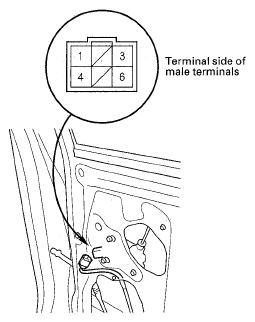

Fig 1: Identifying Power Window Motor 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

Fig 2: Battery Power Terminals Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
