Without the HDS

  1. Turn the ignition switch ON (II).
  2. Move the driver's (passenger's) power window all the way down by using the driver's (passenger's) power window DOWN switch.
  3. Open the driver's (passenger's) door.
    NOTE: Steps 4-7 must be done within 5 seconds of each other.

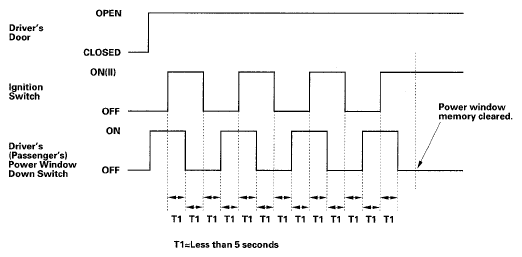

    Fig 1: Driver's (Passenger's) Power Window Driving Pattern
    G05462746Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Turn the ignition switch OFF.
  5. Push and hold the driver's (passenger's) power window DOWN switch.
  6. Turn the ignition switch ON (II).
  7. Release the driver's (passenger's) power window DOWN switch.
  8. Repeat step 4-7 three more times.
  9. Wait 1 second.
  10. Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 1.
  11. Move the driver's (passenger's) power window all the way down by using the driver's (passenger's) power window DOWN switch.
  12. Pull up and hold the driver's (passenger's) power window UP switch until the power window reaches the fully closed position, then continue to hold the switch for 1 second.
  13. Confirm that the power window control unit is reset by using the driver's (passenger's) power window AUTO UP and AUTO DOWN function.

    If the power window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps. If it still does not work, go to B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
