Alternator Removal and Installation: Installation

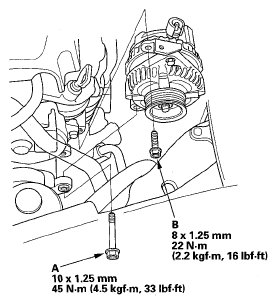

Install the alternator, then tighten the mounting bolt (A) and alternator bracket mounting bolt (B).

Fig 1: Alternator Bracket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

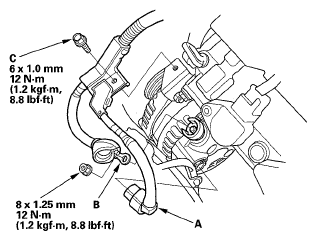

Connect the alternator connector (A) and the BLK wire (B) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.

Fig 2: Alternator Connector And BLK Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (C) securing the harness bracket.
Install the drive belt (see DRIVE BELT INSPECTION ).

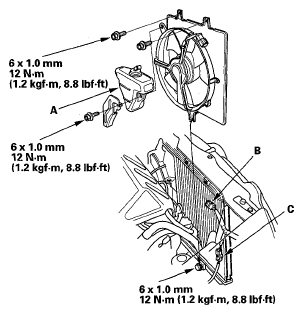

Install the A/C condenser fan shroud assembly.

Fig 3: A/C Condenser Fan Shroud Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir (A), and connect the A/C condenser fan motor connector (B) and the A/C compressor clutch connector (C).
Connect the negative cable to the battery.
Enter the anti-theft codes for the audio system and the navigation system (if equipped).
Set the clock (on vehicles without navigation).
