Component Location Index

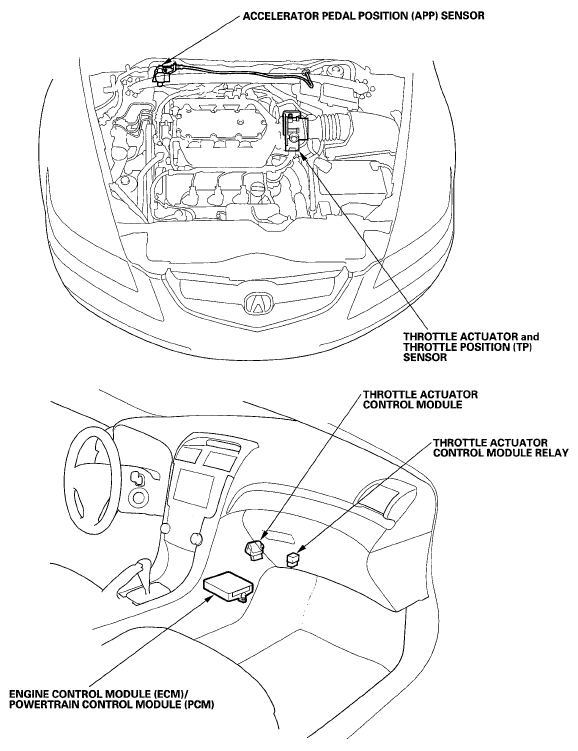

Fig 1: Electronic Throttle Control System Component Location Index
G05458146Courtesy of AMERICAN HONDA MOTOR CO., INC.
