Throttle Actuator Control Module Replacement

  1. Remove the glove box and panel (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the throttle actuator control module 16P connector (A).

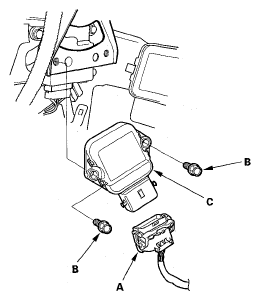

    Fig 1: Identifying Throttle Actuator Control Module 16P Connector
    G05458213Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B), and the throttle actuator control module (C).
  4. Install the parts in the reverse order of removal.
