Master Switch Test/Replacement

Carefully pry out the master switch (A).

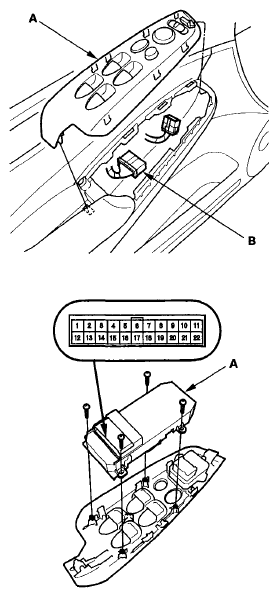

Fig 1: Identifying Master Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 22P connector (B) from the power window master switch.
Check for continuity between the terminals in each switch position according to the tables.
Driver's Switch

The driver's switch is combined with the control unit, so you cannot isolate the switch to test it. Instead, run the master switch input test procedures (see MASTER SWITCH INPUT TEST ). If the tests are normal, the driver's switch must be faulty. Replace the switch.

Front Passenger's Switch

Fig 2: Front Passenger's Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Left Rear Switch

Fig 3: Left Rear Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right Rear Switch

Fig 4: Right Rear Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and replace the switch.
Install the switch in the reverse order of removal.
