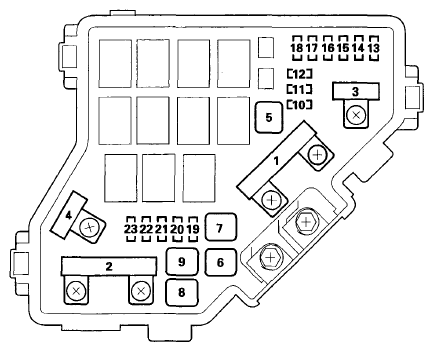

| 1 |
100 A (BAT) |
Battery, Power distribution |
| 70 A (EPS) |
EPS control unit |
| 2 |
50 A (IG) |
Ignition switch |
80 A (OPTION)
60 A (OPTION) |
No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box) |
| 3 |
30 A (ABS MTR) |
ABS modulator-control unit , VSA modulator-control unit |
30A
40 A (ABS FSR) |
ABS modulator-control unit , VSA modulator-control unit |
| 4 |
50 A (H/L) |
No. 18, No. 19, No. 20, and No. 21 fuses (in the under-dash fuse/relay box) |
| 40 A (P/W) |
No. 24, No. 25, No. 26, No. 30, No. 32, and No. 33 fuses (in the under-dash fuse/relay box) |
| 5 |
- |
Not used |
| 6 |
20 A |
A/C condenser fan motor (via A/C condenser fan relay) |
| 7 |
20 A |
Radiator fan motor (via radiator fan relay) |
| 8 |
30 A |
Rear window defogger (via rear window defogger relay) |
| 9 |
40 A |
Blower motor (via blower motor relay) |
| 10 |
10A |
Hazard lights |
| 11 |
15A |
A/F sensor (Sensor 1), ECM/PCM |
| 12 |
15A |
Brake lights, ECM/PCM, Horn, MICU |
| 13 |
- |
Not used |
| 14 |
- |
Not used |
| 15 |
7.5 A |
A/C condenser fan relay |
| 16 |
- |
Not used |
| 17 |
15A |
Stereo amplifier |
| 18 |
15A |
ECM/PCM, Ignition coils |
| 19 |
15A |
CKP sensor, CMP sensor B, ECM/PCM, ETCS control relay, Injectors, PGM-FI main relay 1 (Fl MAIN), PGM-FI main relay 2 (FUEL PUMP) |
| 20 |
7.5 A |
A/C compressor clutch (via A/C compressor clutch relay) |
| 21 |
15A |
ECM/PCM (via ETCS control relay) |
| 22 |
7.5 A |
Ceiling lights. Courtesy light, Mao lights, Trunk lights |
| 23 |
10A |
Audio unit . Data link connector, Gauge control module (tach), Gauge control module (speedo), Hazard warning switch, Immobilizer-keyless control unit, MICU, HandsFreeLink control unit , Navigation unit |
