M/T model

Disconnect the clutch interlock switch 2P connector

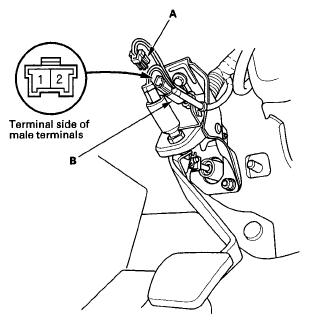

Fig 1: Identifying Clutch Interlock Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch interlock switch (B).
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).

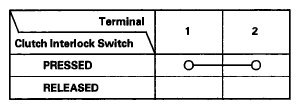

  Fig 2: Clutch Interlock Switch Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
