Connecting Rod Journal Code Location

3. The connecting rod journal codes are stamped on the crankshaft in either location.

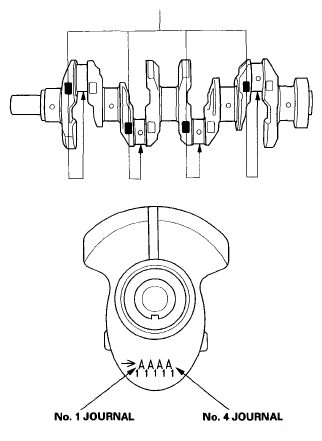

Fig 1: Identifying Connecting Rod Journal Code Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Use the big end bore codes and rod journal codes to select the appropriate replacement bearings from the following table.
NOTE:
- Color code is on the edge of the bearing.
- When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

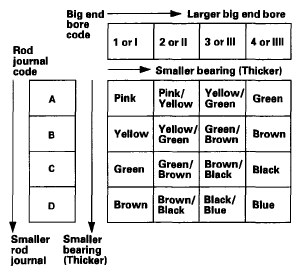

  Fig 2: Identifying Big End Bore Codes And Rod Journal Codes
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
