Catalytic Converter Removal/Installation

  1. Remove the A/F sensor (sensor 1) (see A/F SENSOR REPLACEMENT ).
  2. Remove the secondary HO2S (sensor 2) (see SECONDARY HO2S REPLACEMENT ).
  3. Remove the catalytic converter (A).

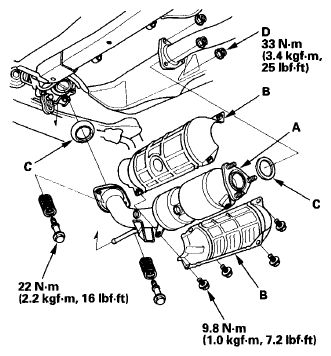

    Fig 1: Identifying Catalytic Converter, Cover And Gaskets
    G06265867
  4. Remove the converter cover (B).
  5. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
