ECM/PCM Electrical Connections

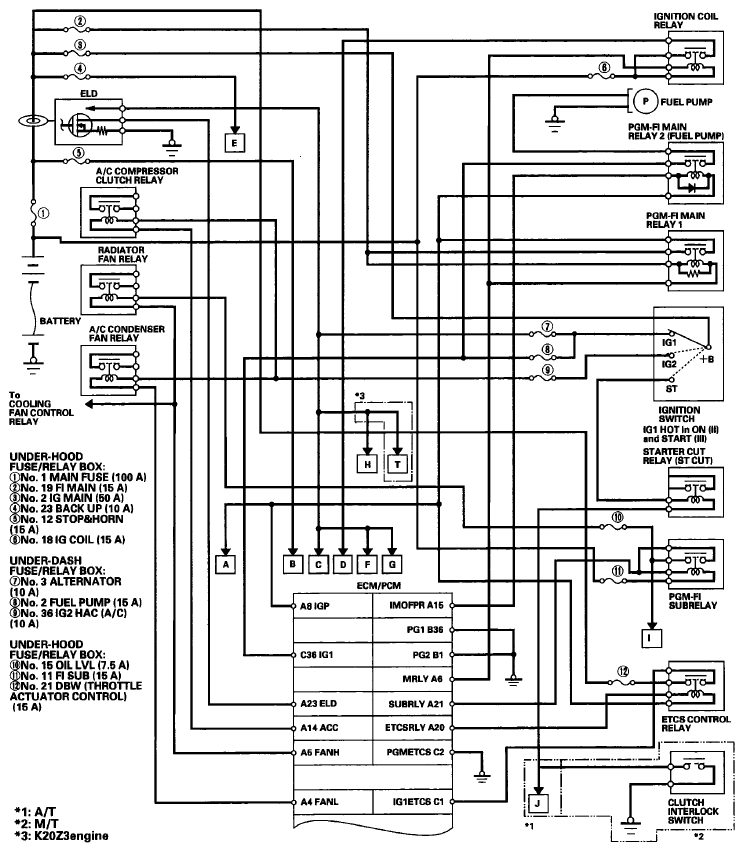

Fig 1: ECM/PCM Electrical Connections - Circuit Diagram (1 Of 5)
G06265745

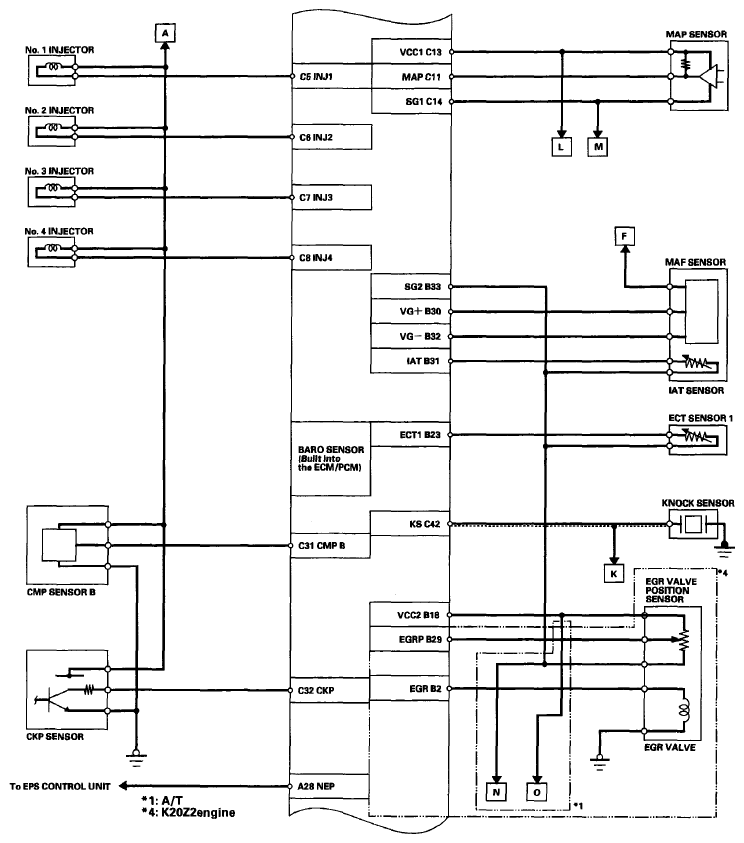

Fig 2: ECM/PCM Electrical Connections - Circuit Diagram (2 Of 5)
G06265746

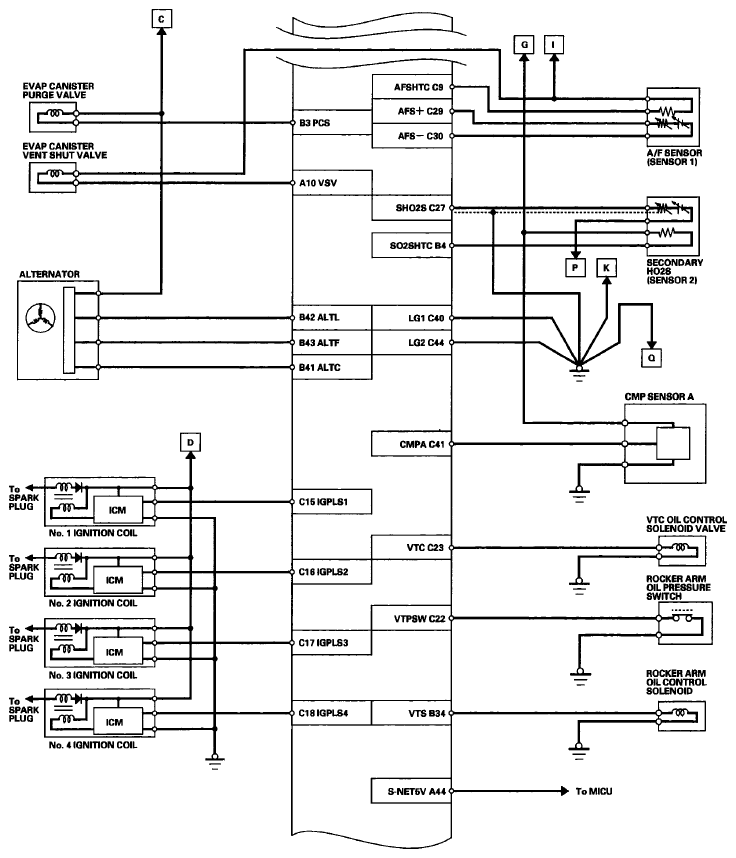

Fig 3: ECM/PCM Electrical Connections - Circuit Diagram (3 Of 5)
G06265747

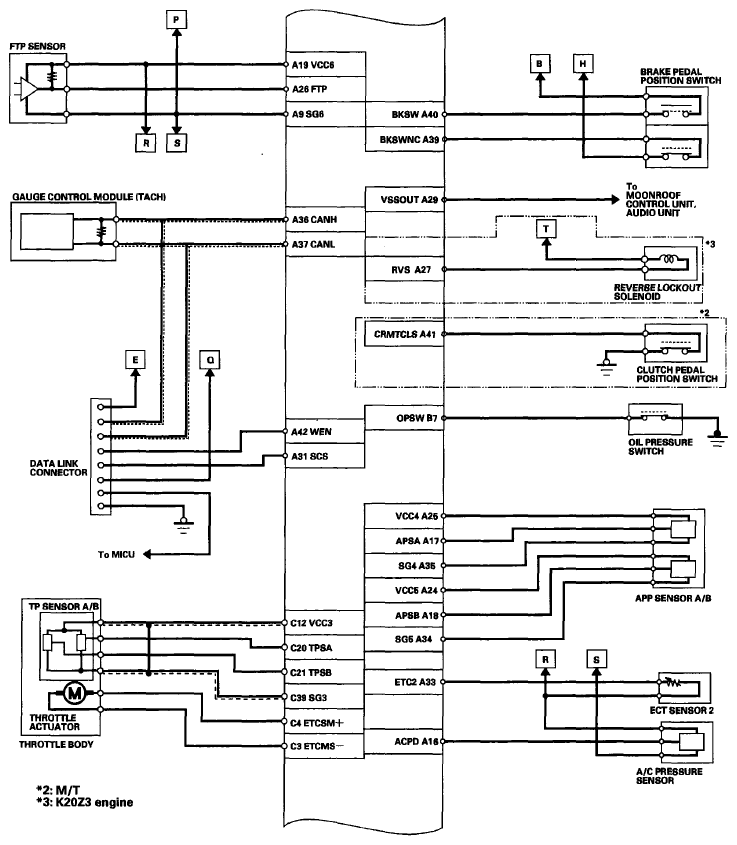

Fig 4: ECM/PCM Electrical Connections - Circuit Diagram (4 Of 5)
G06265748

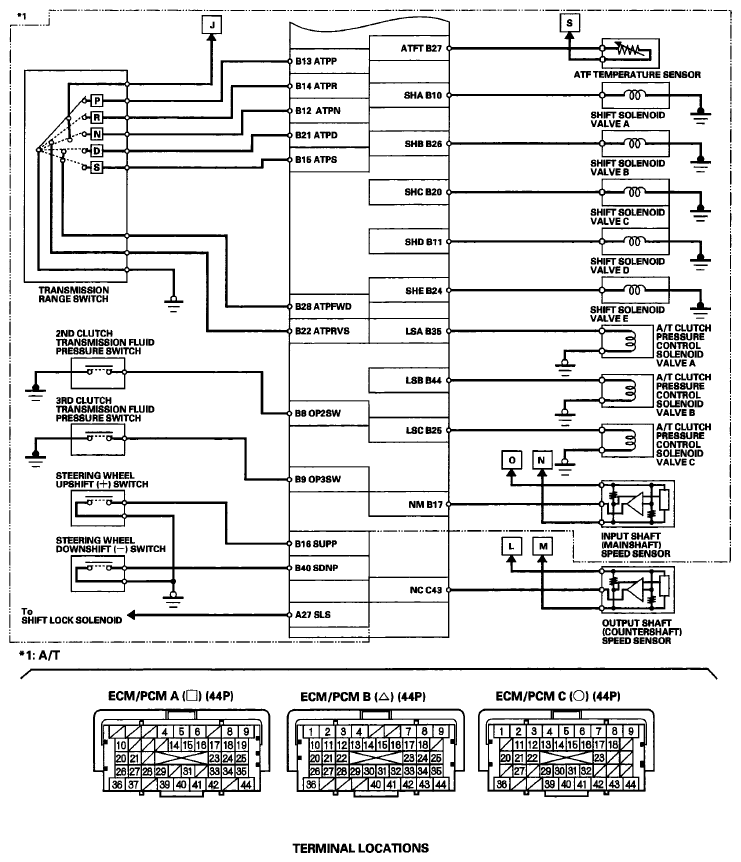

Fig 5: ECM/PCM Electrical Connections - Circuit Diagram (5 Of 5)
G06265749
