Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

Fig 1: Identifying Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.

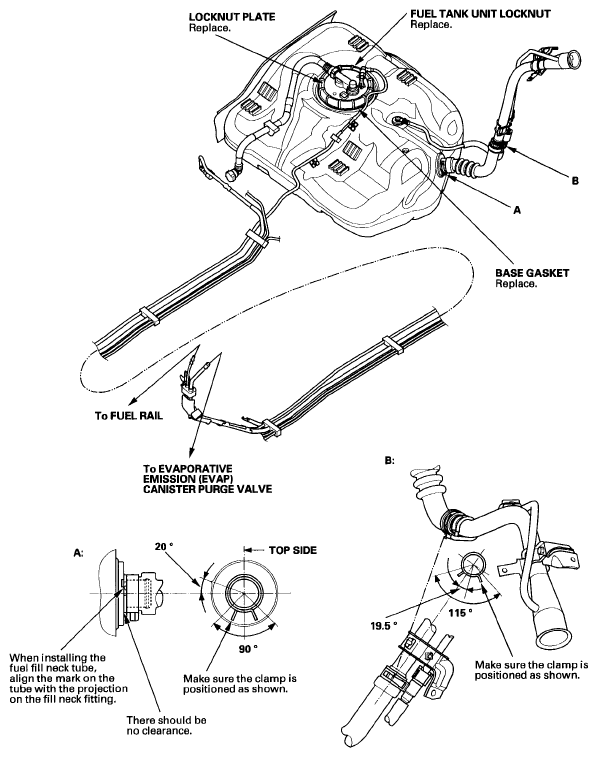

Check all clamps, and make sure they are properly positioned.

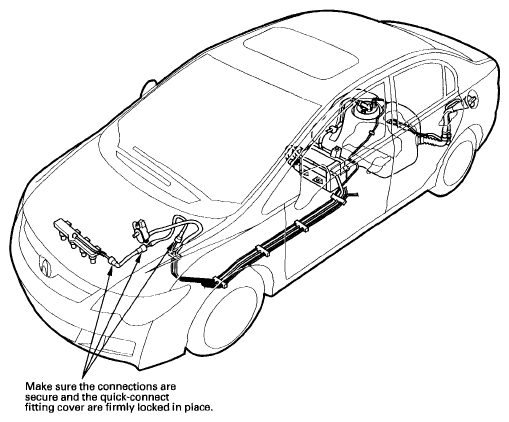

Fig 2: Identifying Quick-Connect Fitting Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
