Fuel Tank Unit Removal/Installation: Installation

Install a new base gasket (A), and locknut plate (B) to the fuel tank (C).

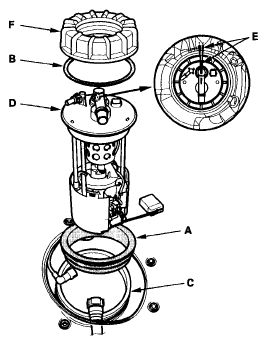

Fig 1: Identifying Base Gasket And Fuel Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the fuel tank unit (D) into the fuel tank. Be careful not to bend the fuel gauge sending unit.
Align the marks (E) on the fuel tank and the fuel tank unit, then tighten a new locknut (F) by hand.
NOTE:
- After tightening, make sure the marks are aligned. Check the circumference of the base gasket visually or by hand and be sure that the gasket is not pinched.
- Do not coat the base gasket or the locknut plate with oil.
Using the tool, tighten the fuel tank unit locknut (A).
NOTE: After installation, check the base gasket visually or by hand to be sure the gasket is not pinched.

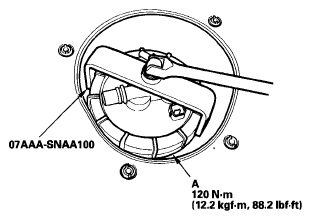

Fig 2: Tightening Fuel Tank Unit Locknut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
