Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor/IAT sensor connector (A).

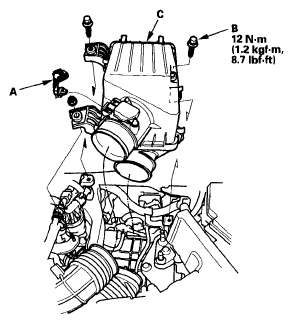

    Fig 1: MAF Sensor/IAT Sensor Connector With Torque Specifications
    G06264763Courtesy of AMERICAN HONDA MOTOR CO., INC.

    * : This illustration shows K20Z2 engine.

  2. Remove the bolts (B).
  3. Remove the air cleaner (C).
  4. Install the parts in the reverse order of removal.
