CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. K20Z2 engine: Remove the EGR valve (see EGR VALVE REPLACEMENT ).
  3. Disconnect the CMP sensor B connector (A).

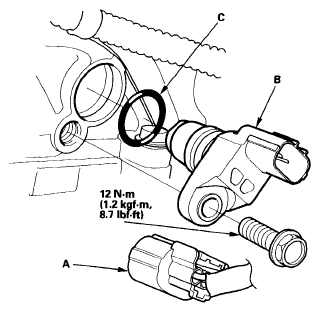

    Fig 1: CMP Sensor B Connector With Torque Specifications
    G06264632Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove CMP sensor B (B).
  5. Install the parts in the reverse order of removal with a new O-ring (C).
