MAP Sensor Replacement

  1. Disconnect the MAP sensor connector (A).

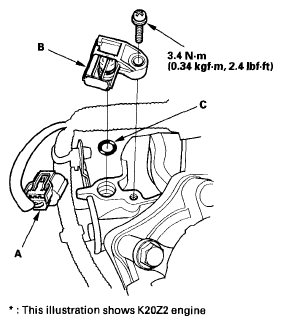

    Fig 1: MAP Sensor Connector With Torque Specifications
    G06264636Courtesy of AMERICAN HONDA MOTOR CO., INC.

    * : This illustration shows K20Z2 engine

  2. Remove the MAP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
