CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect CMP sensor A (A) 3P connector.

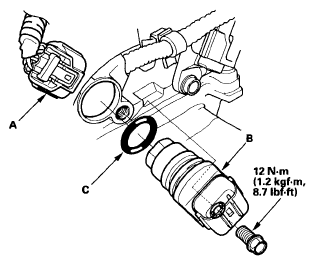

    Fig 1: CMP Sensor And O-Ring With Torque Specifications
    G06264675Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.
  4. Install the parts in the reverse order of removal with a new O-ring (C).
