Rocker Arm Oil Control Valve Removal/Installation

Remove the cowl cover and under-cowl panel (see COWL COVER REPLACEMENT ).
Disconnect the rocker arm oil control valve connector (A) and the rocker arm oil pressure switch connector (B).

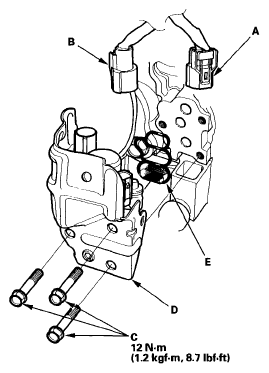

Fig 1: Rocker Arm Oil Control Valve And Rocker Arm Oil Pressure Switch Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C).
Remove the rocker arm oil control valve (D).
Install the parts in the reverse order of removal with a new solenoid valve filter (E).
