Ignition Coil Removal/Installation

  1. Remove the under-cowl panel (see WIPER MOTOR REPLACEMENT ).
  2. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

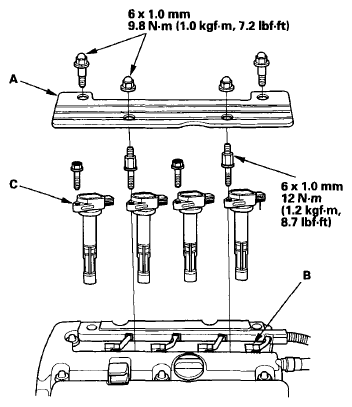

    Fig 1: Ignition Coil Cover And Ignition Coil Connectors With Torque Specifications
    G06265423Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the ignition coils in the reverse order of removal.
