Alternator Removal and Installation: Installation

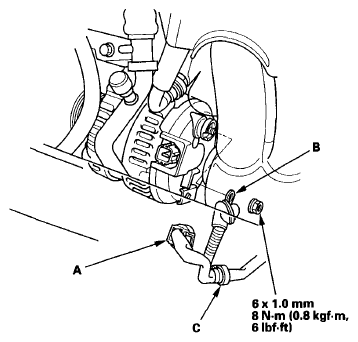

Connector the alternator connector (A), BLK wire (B) and harness clamp (C) to the alternator.

Fig 1: Alternator Connector, BLK Wire And Harness Clamp To Alternator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

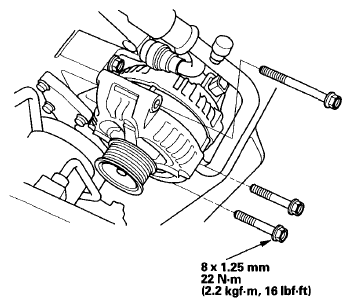

Tighten the three bolts securing the alternator.

Fig 2: Bolts Securing Alternator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

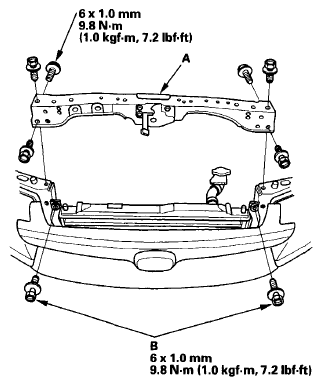

Install the bulkhead (A), then install the A/C condenser bracket mounting bolts (B).

Fig 3: Bulkhead And A/C Condenser Bracket Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply body paint to the bulkhead mounting bolts.

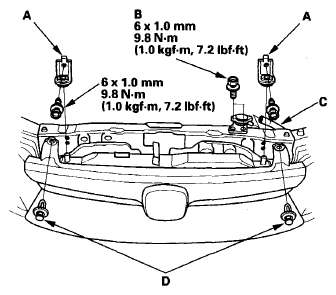

Install the radiator upper brackets (A), radiator cap base mounting bolts (B), reservoir hose (C), and clips (D).

Fig 4: Radiator Upper Brackets, Radiator Cap Base Mounting Bolts, Reservoir Hose And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

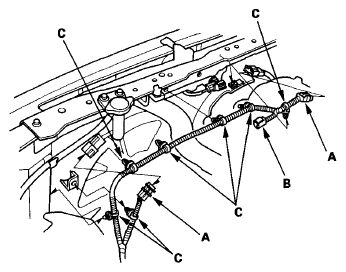

Connect the fan motor connectors (A) and hood switch connector (B), then install the harness clamps (C).

Fig 5: Identifying Fan Motor Connectors And Hood Switch Connector With Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front grill cover (see FRONT GRILLE COVER REPLACEMENT ).
Install the drive belt (see DRIVE BELT INSPECTION ).
Connect the positive cable to the battery first, then connect the negative cable.
Enter the anti-theft code for the audio unit or navigation system, then enter the audio preset.
Set the clock.
