Component Location Index

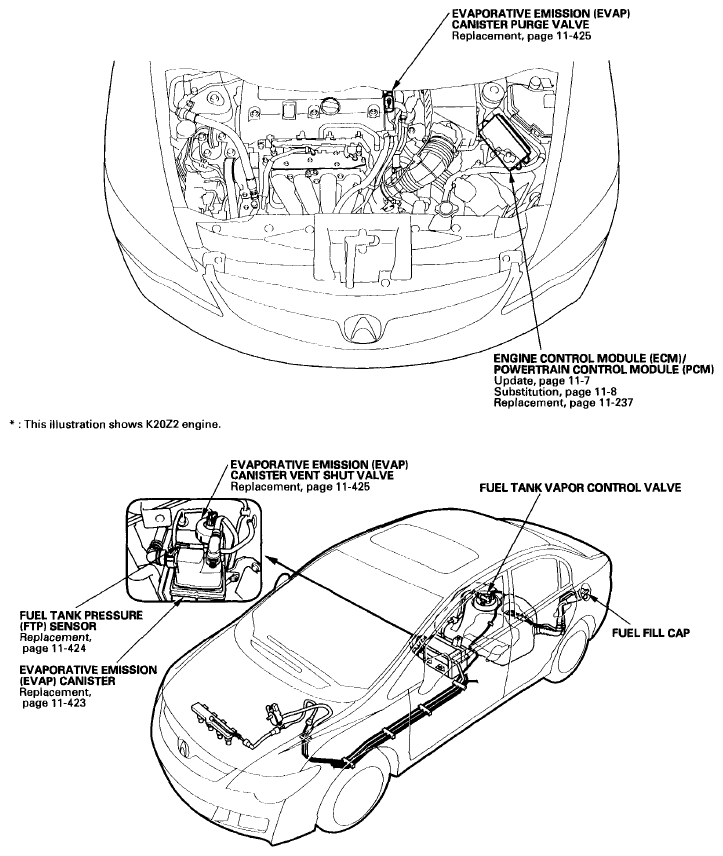

Fig 1: Identifying EVAP System Component Location Index
G06265874Courtesy of AMERICAN HONDA MOTOR CO., INC.
