FTP Sensor Replacement

Remove the cover (see step 1 on ).
Disconnect the FTP sensor connector (A).

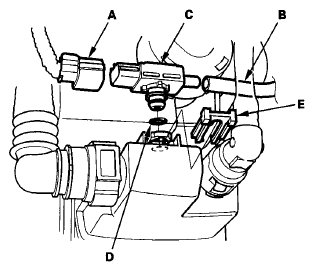

Fig 1: Identifying FTP Sensor Connector And Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (B), and then remove the FTP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D) and retainer (E).
