Installation (K20Z3 engine)

  1. Install the accelerator pedal module.
    NOTE: Make sure the tab (A) is secure.

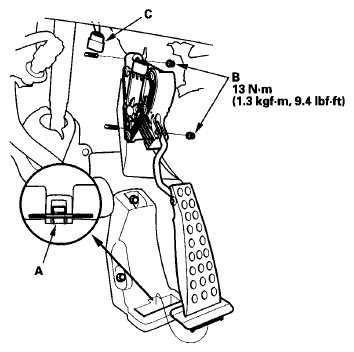

    Fig 1: Accelerator Pedal Module Connector With Torque Specifications
    G06265865Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the nuts (B), then connect the accelerator pedal module connector (C).
    NOTE: Make sure that the accelerator pedal module is secure.
