Removal/Installation (K20Z2 engine)

  1. Disconnect the APP sensor connector (A).

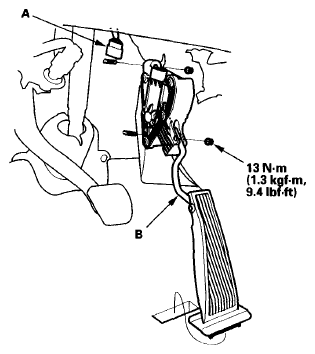

    Fig 1: APP Sensor Connector And Accelerator Pedal Module With Torque Specifications
    G06265863Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the accelerator pedal module (B).
    NOTE: APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  3. Install the parts in the reverse order of removal.
