Fuel Pressure Regulator Replacement

  1. Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL/INSTALLATION  ).
  2. Remove the bracket (A).

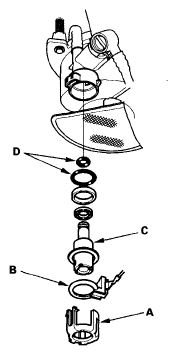

    Fig 1: Identifying Fuel Pressure Regulator And Bracket With Ground Ring
    G06264749Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the ground ring (B).
  4. Remove the fuel pressure regulator (C).
  5. Install the parts in the reverse order of removal with new O-rings (D) and a new bracket (A). When installing the fuel tank unit, align the marks on the unit and the fuel tank (see FUEL TANK UNIT REMOVAL/INSTALLATION  ).
    NOTE: Coat the O-rings with clean engine oil; do not use any other oil. Do not pinch the O-rings during installation.
