Fuel Tank Unit Removal/Installation: Removal

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Remove the fuel fill cap.
Remove the rear seat cushion (see SEAT CUSHION ).
Remove the rear floor upper cross-member (A).

Fig 1: Identifying Rear Floor Upper Cross-Member
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the access panel (A) from the floor.

Fig 2: Identifying Access Panel And Fuel Tank Unit 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fittings (C) from the fuel tank unit.
Using the special tool, loosen the locknut (A).

Fig 3: Loosening Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

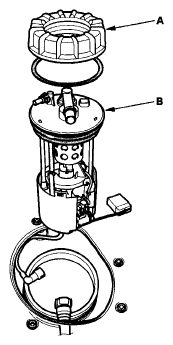

Remove the locknut (A) and the fuel tank unit (B).

Fig 4: Identifying Locknut And Fuel Tank Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
