Shift Lock Solenoid Replacement
- Remove the shift lever assembly (see SHIFT LEVER REMOVAL
).
- Remove the shift lock solenoid connector.
- Release the shift lock solenoid lock (A), then remove the shift lock solenoid (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

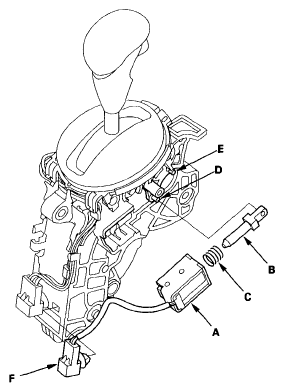

- Replace the shift lock solenoid (A), solenoid plunger (B), and plunger spring (C) assembly.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Apply silicone grease to the tip (D) of the shift lock stop (E), and install the new shift lock solenoid assembly by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop.
- Route the shift lock solenoid harness in the guide, and install the connector (F) on the bracket base.
- Install the shift lever assembly (see SHIFT LEVER INSTALLATION
).
