Hydraulic Controls: Accumulator

The accumulators are located in the regulator valve body and the servo body. The regulator valve body contains the 1st and 3rd accumulators, and the servo body contains the 2nd, 4th, and 5th accumulators.

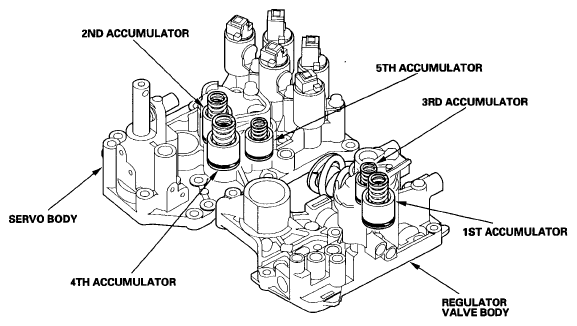

Fig 1: Identifying Accumulators, Regulator Valve Body And Servo Body
G06264868Courtesy of AMERICAN HONDA MOTOR CO., INC.
