Transmission Mount Replacement

  1. Loosen the upper torque rod mounting bolt (A).
    Fig 1: Identifying Upper Torque Rod Mounting Bolt
    G06264297Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Remove the engine control module (ECM)/powertrain control module (PCM) cover, then remove the three bolts securing the ECM/PCM.
  4. Remove the under hood fuse/relay box from the ECM/PCM bracket.
  5. Remove the ECM/PCM bracket.
  6. Support the transmission with a jack and wood block under the transmission.
  7. A/T model: Remove the transmission mount stiffener (A).

    M/T

    Fig 2: Transmission Mount Stiffener And Bolts (M/T) With Torque Specifications
    G06264298Courtesy of AMERICAN HONDA MOTOR CO., INC.

    A/T

    Fig 3: Transmission Mount Stiffener And Bolts (A/T) With Torque Specifications
    G06264299Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the transmission mount (B).
  9. Install the transmission mount with the new mounting bolts (C).
  10. A/T model: Install the transmission mount stiffener.
  11. Loosely tighten the new bolt and nuts (D).
  12. Raise the vehicle on the lift to full height.
  13. Remove the splash shield.
  14. Loosen the lower torque rod mounting bolt (A).
    Fig 4: Identifying Lower Torque Rod Mounting Bolt
    G06264300Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. M/T model: Loosen the front mount mounting bolt (A).
    Fig 5: Identifying Front Mount Mounting Bolt
    G06264301Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Lower the vehicle on the lift.
  17. Tighten the transmission mounting bolt and nuts.

    M/T

    Fig 6: Transmission Mounting Bolt And Nuts (M/T) With Torque Specifications
    G06264302Courtesy of AMERICAN HONDA MOTOR CO., INC.

    A/T

    Fig 7: Transmission Mounting Bolt And Nuts (A/T) With Torque Specifications
    G06264303Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Raise the vehicle on the lift to full height.
  19. Tighten the lower torque rod mounting bolt.

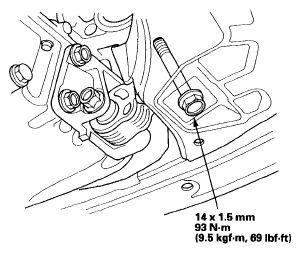

    Fig 8: Lower Torque Rod Mounting Bolt With Torque Specifications
    G06264304Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Lower the vehicle on the lift.
  21. Tighten the upper torque rod mounting bolt.
    Fig 9: Upper Torque Rod Mounting Bolt With Torque Specifications
    G06264305Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Install the ECM/PCM bracket.
  23. Install the under-hood fuse/relay box to the ECM/PCM bracket.
  24. Install the ECM/PCM, then install the ECM/PCM cover.
  25. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  26. M/T model: Raise the vehicle on the lift to full height, and tighten the front mount mounting bolt.

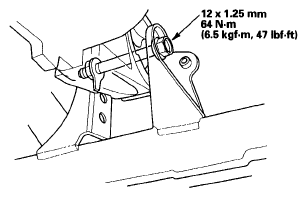

    Fig 10: Front Mount Mounting Bolt With Torque Specifications
    G06264306Courtesy of AMERICAN HONDA MOTOR CO., INC.
  27. Install the splash shield.
