DTC P0706: Open in Transmission Range Switch Circuit: Notes

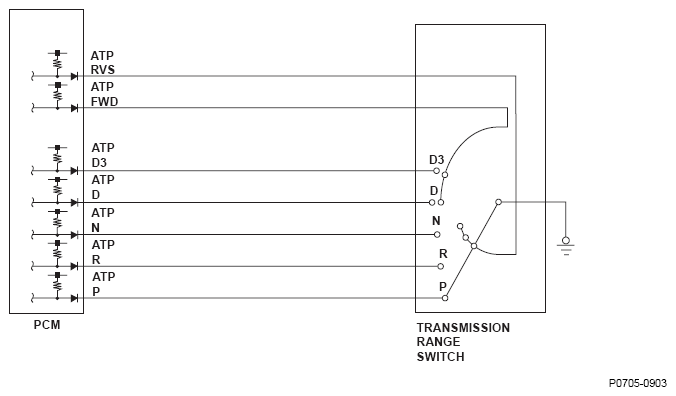

Fig 1: Transmission Range Switch - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Transmission range switch contact point input matrix

Shift lever position	Input per switch
	P	R	N	D	D3	FWD	RVS
P	O	X	X	X	X	X	O
R	X	O	X	X	X	X	O
N	X	X	O	X	X	X	O
D	X	X	X	O	X	O	X
D3	X	X	X	X	O	O	X
O: Closed X: Open
