Power Seat Adjustment Switch Test/Replacement

Remove the power seat adjustment switch knobs (A) and recline cover from the driver's power seat (see FRONT SEAT CUSHION COVER REPLACEMENT ), then remove the two screws and the power seat adjustment switch (B).

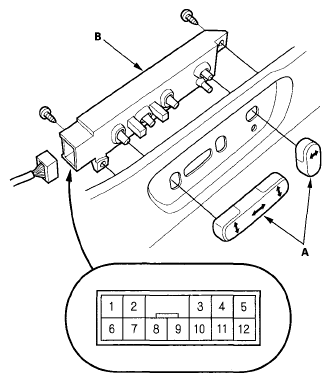

Fig 1: Identifying Power Seat Adjustment Switch Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each switch position according to the table.

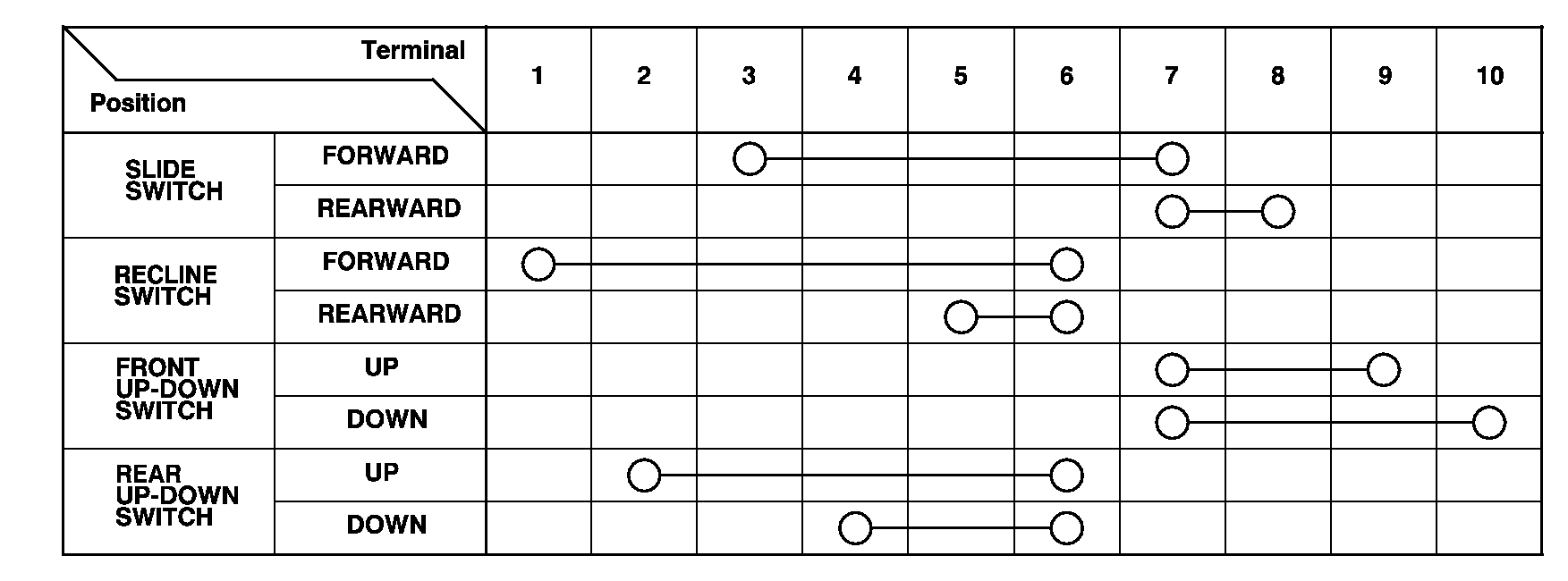

Fig 2: Continuity Terminals Position Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
