Power Tilt/Telescopic Steering Control Unit Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control system first using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ) and the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ), then remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnected the 16P connector (A) and the 8P connector (B) from the power tilt/telescopic steering control unit (C).

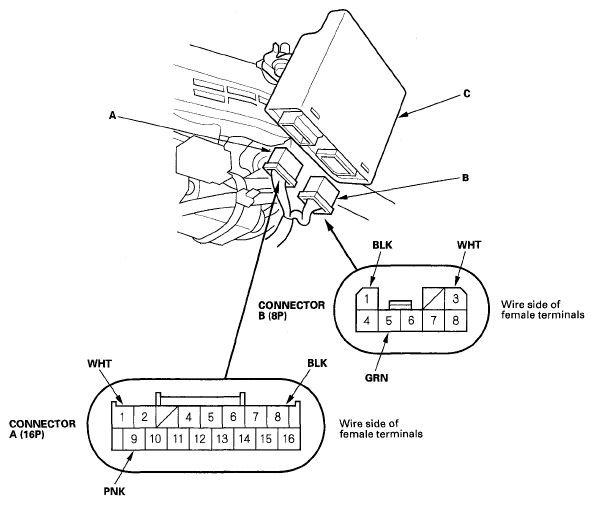

    Fig 1: Identifying 16P Connector And 8P Connector
    G06160970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Reconnect the connectors to the power tilt/telescopic steering control unit, and do these input tests at the connectors.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace it.
    POSSIBLE CAUSE RESULT REFERENCE

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    A8 BLK Under all conditions Measure the voltage to ground:
    There should be less than 0.1 V.
    • Poor ground(G501)
    • An open in the wire
    B1 BLK
    A1 WHT Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 15 (40 A) fuse in the under-hood fuse/relay box
    • Blown No. 7 (10 A) fuse in the driver's under-dash fuse/relay box
    • An open in the wire
    A9 PNK Ignition switch ON (II) Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 21 (10 A) fuse in the driver's under-dash fuse/relay box
    • An open in the wire
    B3 WHT Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
    • Blown No. 26 (20 A) fuse in the driver's under-dash fuse/relay box
    • An open in the wire
    B5 GRN Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
    • Blown No. 25 (20 A) fuse in the driver's under-dash fuse/relay box
    • An open in the wire
