Under-hood Fuse/Relay Box

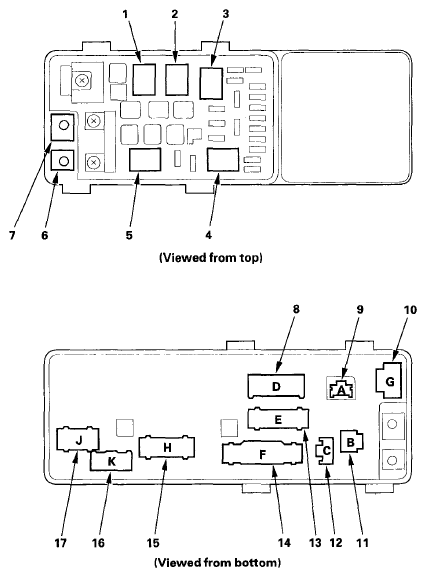

UNDER-HOOD FUSE/RELAY BOX REFERENCE CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A/C compressor clutch relay | 2 | 4 | |
| A (ELD) | 9 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| B | 11 | 1 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Blower motor relay | 1 | 4 | |
| C | 12 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| D | 8 | 9 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| E | 13 | 16 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| F | 14 | 20 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Fog lights relay | 4 | 4 | |
| G | 10 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| H | 15 | 14 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| J | 17 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| K | 16 | 5 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Rear window defogger relay | 3 | 4 | |
| Windshield wiper relay | 5 | 4 | |
| T1 | 7 | Starter cable (see CONNECTOR TO HARNESS INDEX ) | |
| T101 | 6 | Engine wire harness (see ENGINE WIRE HARNESS (FRONT BRANCH) ) |
