Auxiliary Under-dash Fuse/Relay Box

AUXILIARY UNDER-DASH FUSE/RELAY BOX REFERENCE CHART

Fuse Number	Amps	Wire Color	Component(s) or Circuit(s) Protected
31	7.5 A	BLU	Ignition switch (ST)
31	7.5 A	LT BLU	PCM (STS)
32	7.5 A	RED	Starter cut relay 1
32	7.5 A	PNK	PCM (STRLD)

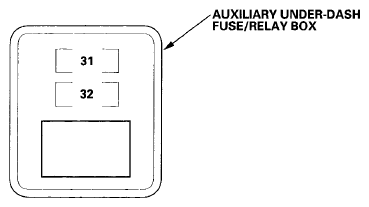

Fig 1: Identifying Auxiliary Under-Dash Fuse/Relay Box Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
