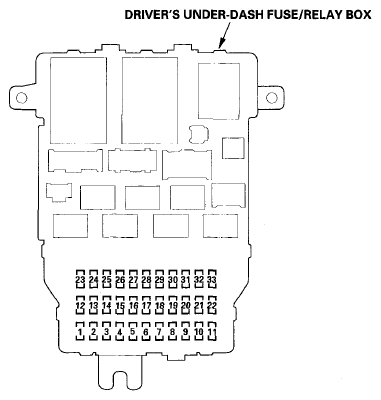

Driver's Under-dash Fuse/Relay Box
DRIVER'S UNDER-DASH FUSE/RELAY BOX REFERENCE CHART
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| 1 | 15A | Throttle actuator control module relay (in the passenger's under-dash fuse/relay box) |
| 2 | 15A | Ignition coil relay |
| Ignition coils (via ignition coil relay) | ||
| 3 | 10A | Daytime running lights control unit (USA models). Daytime running lights control relay (Canada models) |
| 4 | 15A | Front A/F sensor (bank 2, sensor 1), Front SHO2S (bank 2, sensor 2), Rear A/F sensor (bank 1, sensor 1), Rear SHO2S (bank 1, sensor 2) |
| 5 | 7.5 A | AcuraLink control unit (XM receiver), Audio unit, Navigation unit, XM receiver unit, HandsFreeLink control unit, Navigation display unit |
| 6 | 7.5 A | Keyless access control unit, Footwell lights, Courtesy lights, Door inner handle lights. Door outer handle lights, Trunk lights, Individual map lights, Vanity mirror lights, Driver's MPCS unit, Front passenger's MPCS unit, Left and right rear power window switches, Driver's outer handle touch sensor, Front passenger's outer handle touch sensor |
| 7 | 10A | Combination switch control unit, Gauge control module, Immobilizer control unit-receiver, Imoes unit, Driver's MPCS unit, Front passenger's MPCS unit, Power seat control unit, Power tilt/telescopic steering control unit, Navigation display unit. Navigation unit, Keyless access control unit. Ignition key light, Adaptive cruise control unit |
| MICU | ||
| 8 | 20 A | MICU |
| 9 | 20 A | Accessory power socket relays |
| 10 | 7.5 A | ODS unit, Passenger's airbag cutoff indicator, SRS unit |
| 11 | 15A | Adaptive front lighting control unit. Power rear sunshade control unit, Windshield washer motor, Under-hood fuse/relay box |
| 12 | 15A | Rear seat heater (via seat heater relay) (Canada models) |
| 13 | 20 A | Front passenger's power seat (recline and rear up/down motors) |
| 14 | 20 A | Driver's lumbar support motor, Power seat control unit (VMP1) |
| 15 | 7.5 A | TPMS control unit |
| 16 | 20 A | Power seat control unit (VMP2) |
| 17 | 20 A | L Front passenger's lumbar support motor. Front passenger's power seat (slide and front up/down motors) |
| 18 | 15A | Alternator, ELD, Engine mount control solenoid, EVAP canister purge valve, PCM, PCM (via brake pedal position switch), Steering angle sensor, VSA modulator-control unit |
| 19 | 20 A | PCM, Keyless access control unit, Fuel pump (via PGM-FI main relay 2) |
| 20 | 15A | Mass airflow (MAF) sensor/intake air temperature (IAT) sensor, PCM |
| 21 | 10A | Seat ventilation, Automatic dimming inside mirror, Combination switch control unit, Driver's MPCS unit. Gauge control module, Imoes unit, Power seat control unit, Power tilt/telescopic steering control unit, Shift lock solenoid, Seat belt tension reducer solenoid, TPMS control unit |
| AcuraLink control unit (XM receiver), Daytime running lights control unit (USA models), Navigation unit, Power steering control unit, Seat belt tension reducers, XM receiver unit, Under-hood fuse/relay box (control block) | ||
| 22 | 10A | SRS unit |
| 23 | 7.5 A | Radiator fan control (RFC) unit relay |
| A/F sensor relay | ||
| 24 | 20 A | Left rear power window switch |
| 25 | 20 A | Power tilt/telescopic steering control unit |
| 26 | 20 A | Power tilt/telescopic steering control unit |
| 27 | 30 A | Driver's MPCS unit |
| 28 | 20 A | Moonroof motor/control unit |
| 29 | 7.5 A | Adaptive front lighting control unit, Headlight leveling control unit (Without AFS) Power steering control unit, SH-AWD control unit, Adaptive cruise control (ACC) unit, Millimeter wave radar unit, Adaptive cruise control (ACC) relay |
| 30 | 7.5 A | A/C compressor clutch relay, Blower motor relay, Climate control unit, In-car temperature sensor, Rear seat heater relay (Canada models), Rear window defogger relay, Seat heater relay |
| 31 | 7.5 A | E-pretensioner unit |
| 32 | 10A | AcuraLink control unit (XM receiver), Active noise cancellation unit, Audio unit, HandsFreeLink control unit, Navigation display unit, Key interlock solenoid, Microphone, Navigation unit, Shift lock solenoid, Keyless access control unit, XM receiver unit, Interface dial |
| Accessory power socket relay, MICU |
