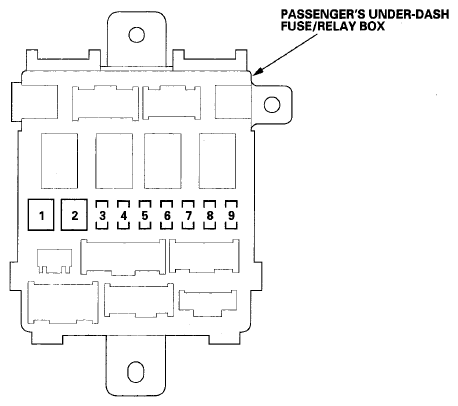

Passenger's Under-dash Fuse/Relay Box
PASSENGER'S UNDER-DASH FUSE/RELAY BOX REFERENCE CHART
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| 1 | 30 A | SH-AWD control unit (via SH-AWD relay) |
| 2 | 30 A | Audio amplifier |
| 3 | 30 A | Front passenger's MPCS unit |
| 4 | 30 A | E-pretensioner unit |
| 5 | 20 A | Right rear power window switch |
| 6 | 20 A | Seat ventilation control units (with seat ventilation), Seat heater (via seat heater relay) |
| 7 | 7.5 A | Audio unit, AFS OFF/VSA OFF switch, Cable reel, Climate control unit, Console box light, Coin pocket light, Dash lights brightness controller, Navigation display unit, Hazard warning switch/passenger's airbag cutoff indicator, Glove box light, A/T gear position panel light |
| 8 | 30 A | E-pretensioner unit |
| 9 | 7.5 A | Climate control unit (via control motor relay). Control motor relay |
