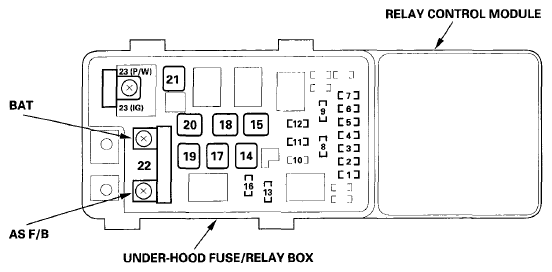

| 1 |
15A |
Left headlight (HID unit) |
| 2 |
30 A |
Relay control module. Rear window defogger coil |
| 3 |
10A |
Left headlight (High beam) |
| 4 |
15A |
Front parking lights, Dash light, License plate lights, Roof console lights, Taillights, Rear door ashtray lights. Seat heater switches light, Seat ventilation switch lights, No. 7 (7.5 A) fuse in the passenger's under-dash fuse/relay box |
| 5 |
10A |
Right headlight (High beam) |
| 6 |
15A |
Right headlight (HID unit) |
| 7 |
7.5 A |
Relay control module |
| 8 |
15A |
PGM-FI main relay 1, Data link connector |
| Via PGM-FI main relay 1: PGM-FI main relay 2, CKP sensor A/B, CMP sensor, Injectors, PCM, Throttle actuator control relay |
| 9 |
30 A |
Windshield wiper motor (via windshield wiper motor relay) |
| 10 |
30 A |
Headlight washer motor (via headlight washer relay) |
| 11 |
10A |
Fog lights |
| 12 |
7.5 A |
A/C compressor clutch |
| 13 |
15A |
Brake lights, High mount brake light, Adaptive cruise control unit (via adaptive cruise control relay) |
| Horns (via relay control module) |
| 14 |
40 A |
Rear window defogger, Noise condenser (via driver's under-dash fuse/relay box) |
| 15 |
40 A |
No. 5, No. 6, No. 7, No. 8 and No. 9 fuses in the driver's under-dash fuse/relay box |
| 16 |
15A |
Turn signal/hazard relay, MICU |
| 17 |
30 A |
VSA modulator-control unit |
| 18 |
40 A |
VSA modulator-control unit |
| 19 |
40 A |
No. 1, No. 2, No. 3 and No. 4 fuse in the driver's under-dash fuse/relay box |
| 20 |
40 A |
No. 12, No. 13, No. 14, No. 15, No. 16 and No. 17 fuse in the driver's under-dash fuse/relay box |
| 21 |
40 A |
Blower motor |
| 22 |
120 A (BAT) |
Battery, Power distribution |
| 70 A (AS F/B) |
Passenger's under-dash fuse/relay box |
| 23 |
50 A (IG) |
Ignition switch (BAT), Starter motor (via starter cut relay 1, 2) |
| 50 A (P/W) |
No. 24, No. 25, No. 26, No. 27 and No. 28 fuse in the driver's under-dash fuse/relay box. Power windows |
