Alternator Removal and Installation: Installation

Install the alternator.

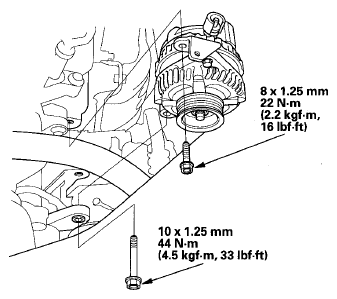

Fig 1: Alternator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator connector (A) and the BLK wire (B) to the alternator.

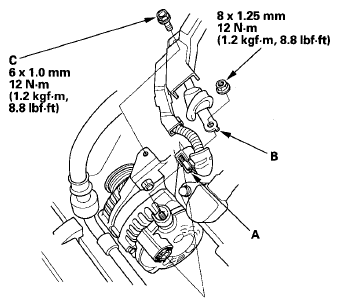

Fig 2: Locating Alternator Connector & BLK Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (C) securing the harness holder.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the A/C condenser fan shroud (A), and tighten the bolts.

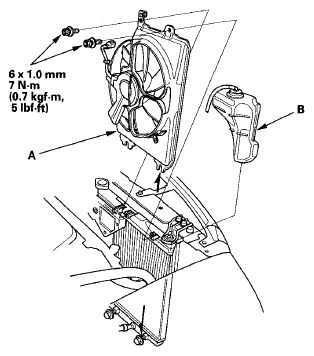

Fig 3: Locating A/C Condenser Fan Shroud & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir (B).
Install the RFC unit (see RFC UNIT REPLACEMENT ).
Raise the vehicle on the lift to full height.
Tighten the two bolts (A) securing the A/C condenser fan shroud.

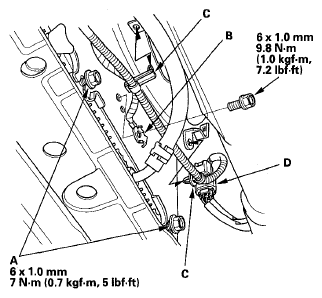

Fig 4: Locating Bolts Securing A/C Condenser Fan Shroud With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ground cable (B), the harness clamps (C), and the connector (D) to the A/C condenser fan shroud.
Install the splash shield.

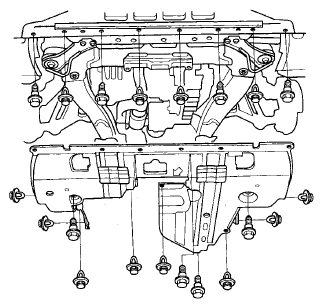

Fig 5: Identifying Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle on the lift.
Install the upper grille cover (see UPPER GRILLE COVER REPLACEMENT ).
Do the battery terminal reconnection procedure (see RECONNECTION ).
