Engine Compartment

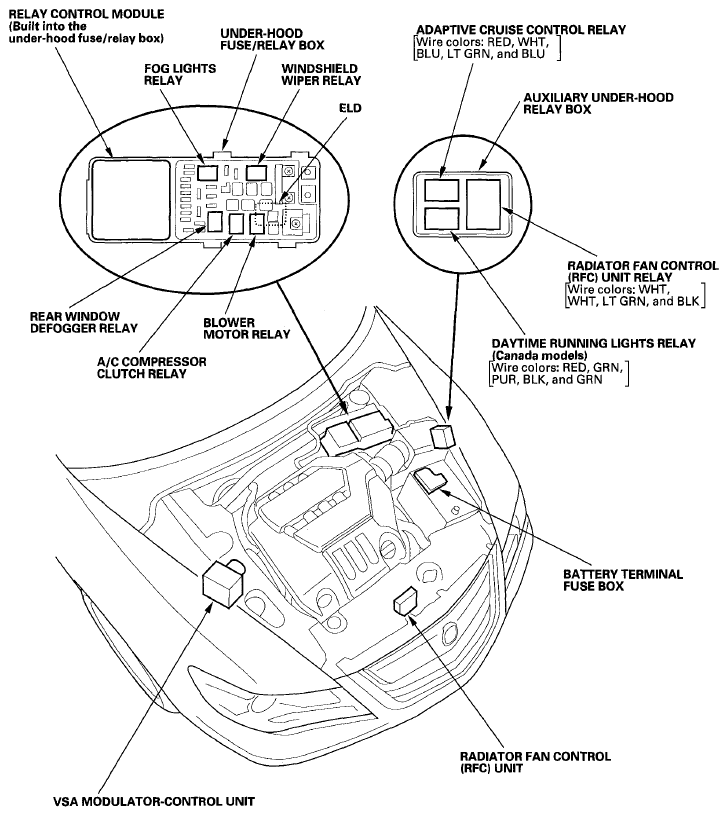

Fig 1: Identifying Relay And Control Unit Locations - Engine Compartment
G06162644Courtesy of AMERICAN HONDA MOTOR CO., INC.
