Ignition Coil Removal/Installation: Rear

  1. Disconnect the ignition coil connectors (A), then remove the rear ignition coils (B).

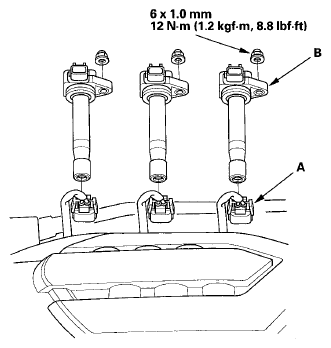

    Fig 1: Locating Ignition Coil Connectors And Rear Ignition Coils With Torque Specifications
    G06163225Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the rear ignition coils in the reverse order of removal.
