DTC P1743: Problem in Shift Control System; Shift Valve E Stuck OFF: Notes

Fig 1: Shift Control System; Shift Valve E - Operation Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Gear Position VS Shift Status Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

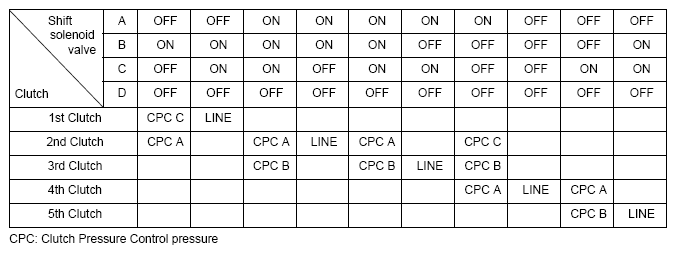

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve Output (D Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
