Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, or deterioration. Replace any damaged parts.

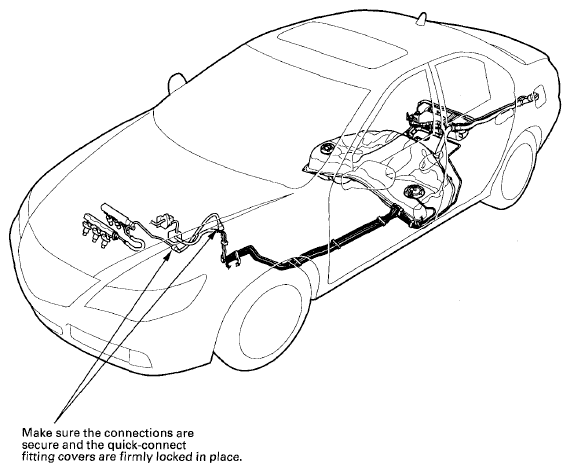

Fig 1: Checking Fuel System Lines, Hoses, And Fuel Filter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

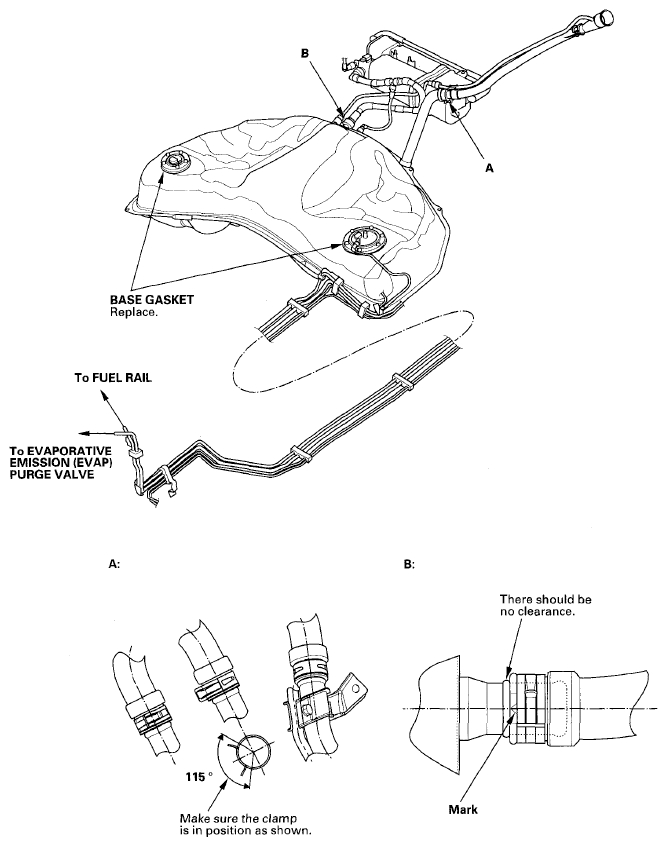

Fig 2: Identifying Fuel System Lines Clamps Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
