Fuel Pressure Regulator Replacement

NOTE: If the fuel tank is full, drain the fuel (see FUEL TANK DRAINING ).

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
Remove the fuel pressure regulator (A).

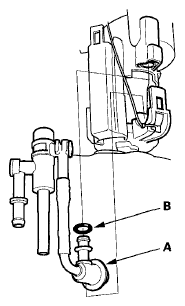

Fig 1: Locating Fuel Pressure Regulator And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new O-ring (B).
NOTE:
- Coat the O-rings with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
