Fuel Tank Replacement
- Drain the fuel tank (see
FUEL TANK DRAINING ).
- Reinstall the fuel tank unit and the secondary fuel gauge sending unit without connecting the fuel tank unit 5P connector, the secondary fuel gauge sending unit 5P connector and the quick -connect fitting.
- Remove the propeller shaft (see
PROPELLER SHAFT REMOVAL
).
- Remove the rear differential (see
REAR DIFFERENTIAL REMOVAL
).
- Lift the vehicle, and support it with jackstands.

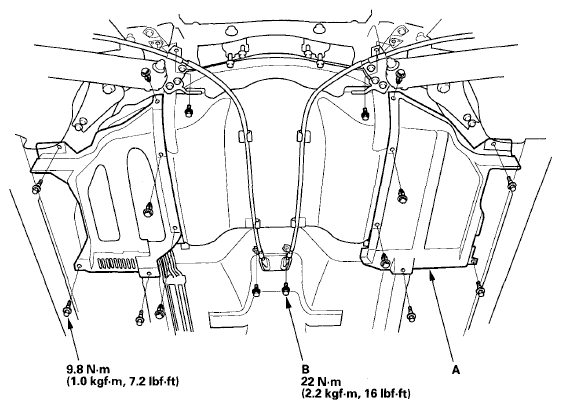

- Remove the fuel tank covers (A) and parking brake cable bolts (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

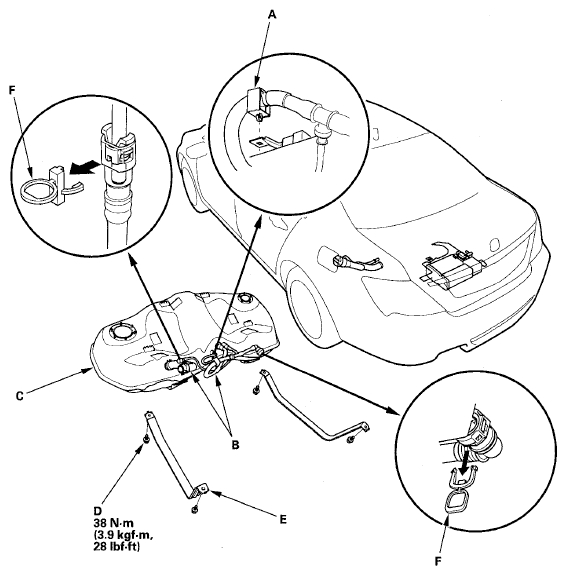

- Remove the clip (A) from the EVAP canister bracket.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the hoses (B). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
- Place a jack or other support under the tank (C).
- Remove the strap bolts (D), and the straps (E).
- Remove the fuel tank. If it sticks to the undercoat on its mount, carefully pry it off the mount.
- Install the parts in the reverse order of removal.
NOTE:
- The new fuel vent hose and the fuel vent return hose have ring pulls (F) at the connectors. When you connect the hoses and confirm that the connections a re secure, remove the ring pulls by pulling them down.
- Before connecting the fuel fill pipe and the quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
