Air Cleaner Removal/Installation

  1. Remove the battery trim (see UPPER FENDER TRIM REPLACEMENT ), and the left upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
  2. Disconnect the MAF sensor/IAT sensor connector.
  3. Remove the bolts (A) and the air cleaner (B).

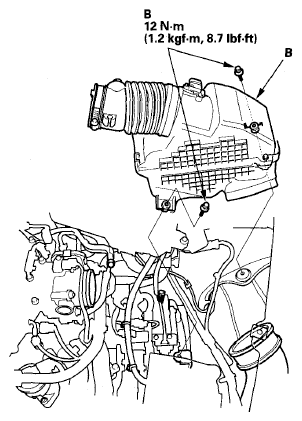

    Fig 1: Bolts & Air Cleaner With Torque Specifications
    G06164182Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
