IMT Actuator Replacement

  1. Remove the engine cover (see REMOVAL ).
  2. Disconnect the IMT actuator 5P connector (A).

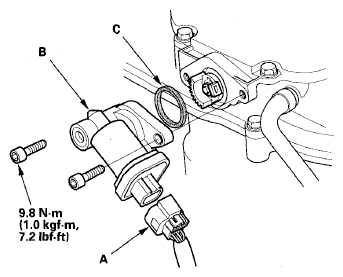

    Fig 1: IMT Actuator 5P Connector, IMT Actuator Bolt & O-Ring With Torque Specifications
    G06164186Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the IMT actuator (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
