Intake Air Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION  ).
  3. Remove the intake air duct (A) and the tube (B).
    Fig 1: Identifying Intake Air Duct & Tube
    G06164184Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts and the intake air resonator (A).

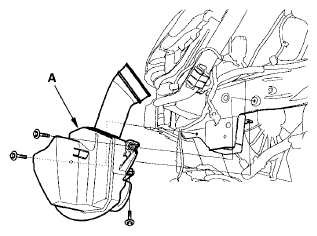

    Fig 2: Identifying Intake Air Resonator & Bolts
    G06164185Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
