Rocker Arm Oil Control Solenoid Test

  1. Disconnect the rocker arm oil control solenoid connector.
  2. Measure the resistance between the rocker arm oil control solenoid 1P connector terminal (A) and body ground.
    • If the resistance is as specified, go to step  3.
    • If the resistance is not as specified, replace the rocker arm oil control solenoid.

      Resistance: 14-30 Ω

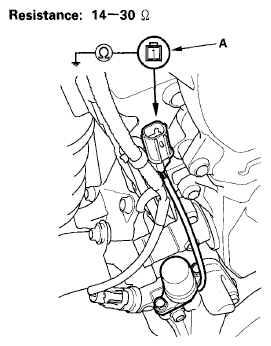

      Fig 1: Measuring Resistance Between Rocker Arm Oil Control Solenoid 1P Connector Terminal & Body Ground
      G06164041Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker arm oil control solenoid/oil filter assembly (A) from the oil pump, and check the rocker arm oil control solenoid filter (B) for a restriction. If there is a restriction, replace the rocker arm oil control solenoid filter, the engine oil filter, and the engine oil.

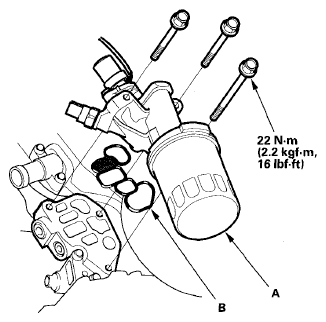

    Fig 2: Oil Filter Assembly & Check Rocker Arm Oil Control Solenoid Filter With Torque Specifications
    G06164042Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the filter is not restricted, remove the rocker arm oil control solenoid (A) and push the valve (B) with your finger to check its movement. If the valve moves freely, it is normal, check the engine oil pressure (see OIL PRESSURE TEST ). If the valve binds or sticks, replace the rocker arm oil control solenoid assembly.

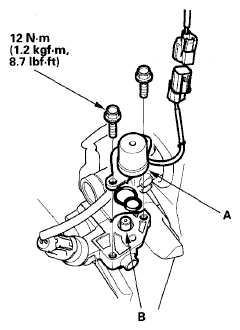

    Fig 3: Rocker Arm Oil Control Solenoid & Push Valve With Torque Specifications
    G06164043Courtesy of AMERICAN HONDA MOTOR CO., INC.
