Driver's Under-dash Fuse/Relay Box

TERMINAL REFERENCE CHART

Socket Ref Terminal Connects to Notes
A 1 - Not used
Accessory relay 4 4   (1)
B 2 2 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
C 3 5 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
D 11 16 Left side wire harness

E 10 20 Left side wire harness

F 9 33 Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
Front accessory power socket relay 4 4   (2)
G 8 13 Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
H (optional connector) 7 12
K (MICU service check connector) 6 3
M 13 4 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
N 14 16 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
P 15 20 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
PGM-FI main relay 2 (FUEL PUMP) 12 4
Q 17 20 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
R 16 24 Dashboard wire harness (View of driver's side) (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) )
Starter cut relay 1 5 4
(1) With keyless access system
(2) Without keyless access system

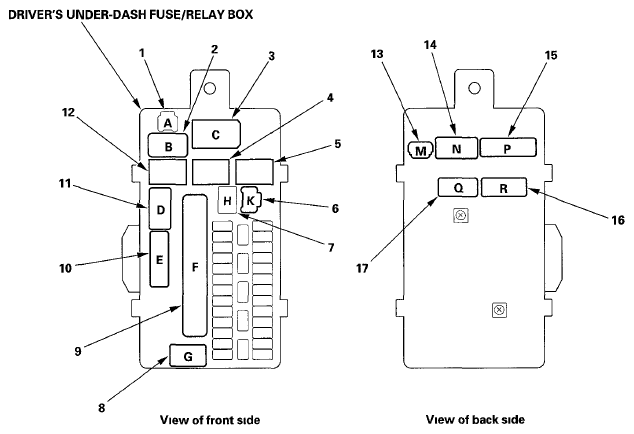

Fig 1: Identifying Driver's Under-Dash Fuse/Relay Box Harness Connectors Terminals
G05988808Courtesy of AMERICAN HONDA MOTOR CO., INC.
