Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

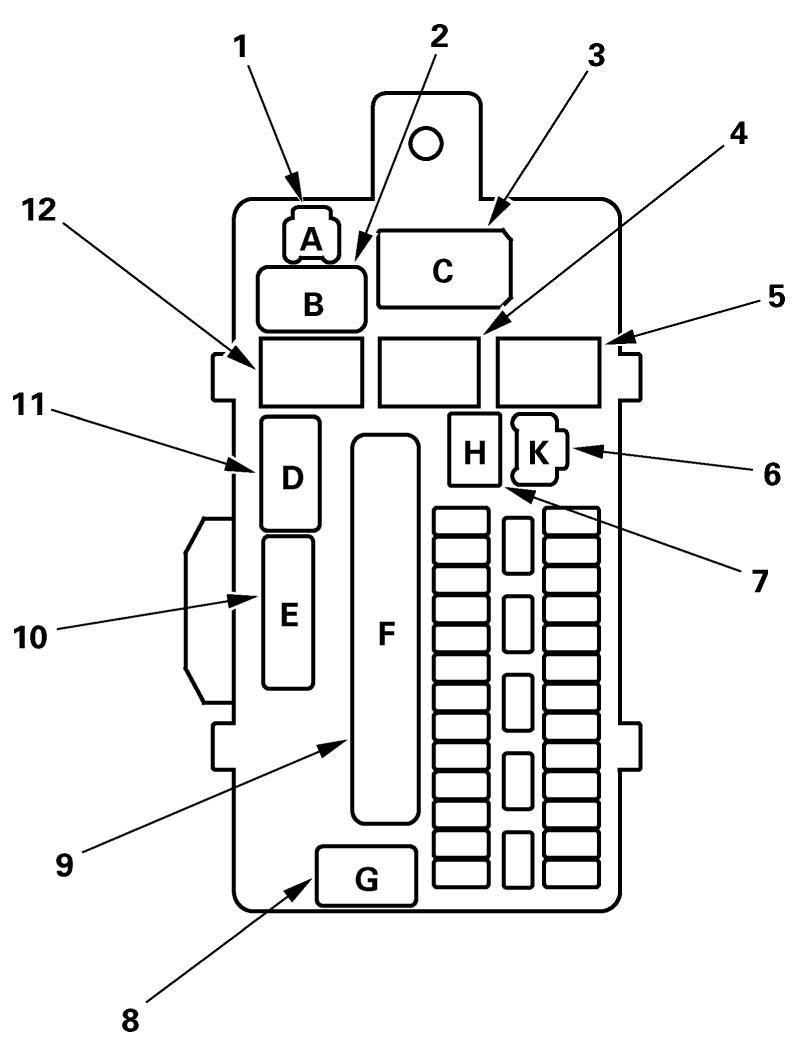

Fig 1: Driver's Under-Dash Fuse/Relay Box

G00472727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

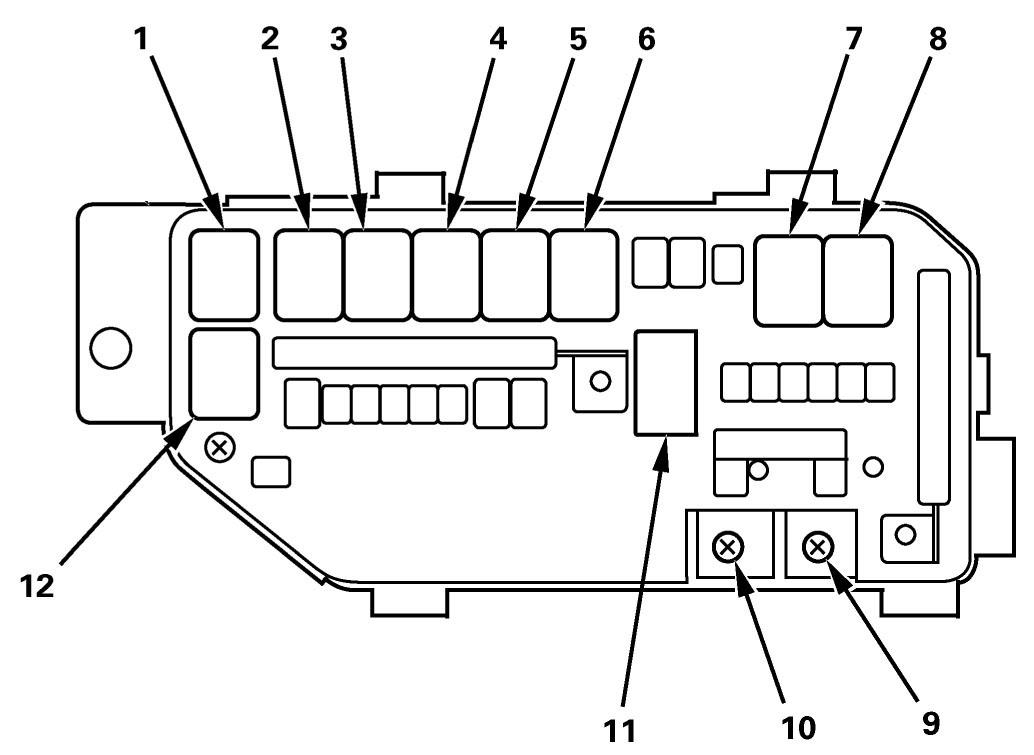

Fig 2: Under-Hood Fuse/Relay Box

G00472728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

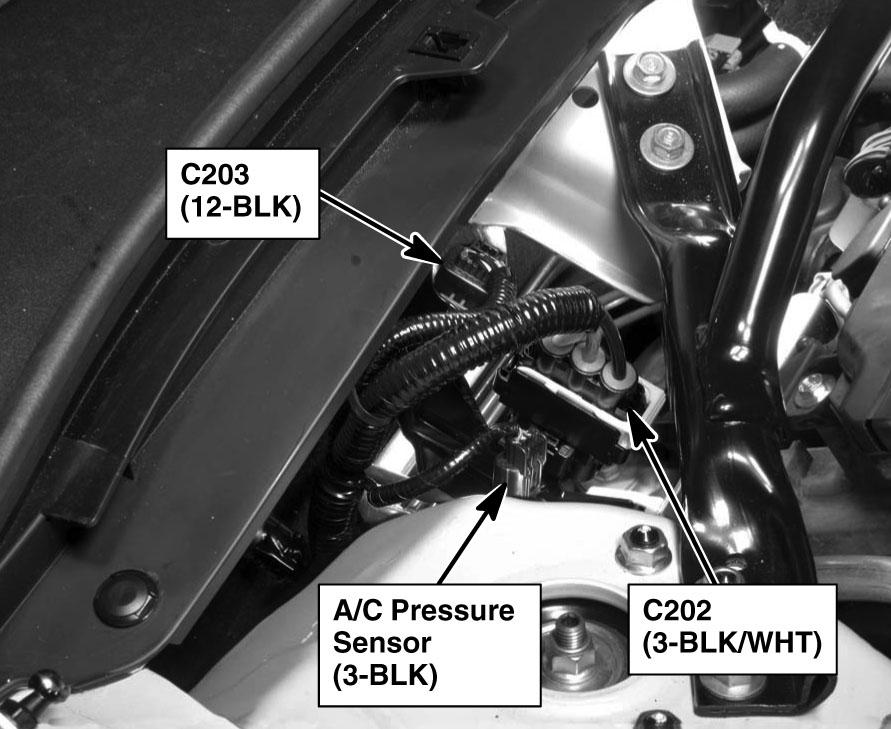

Fig 3: Right Rear Of Engine Compartment

G00472729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

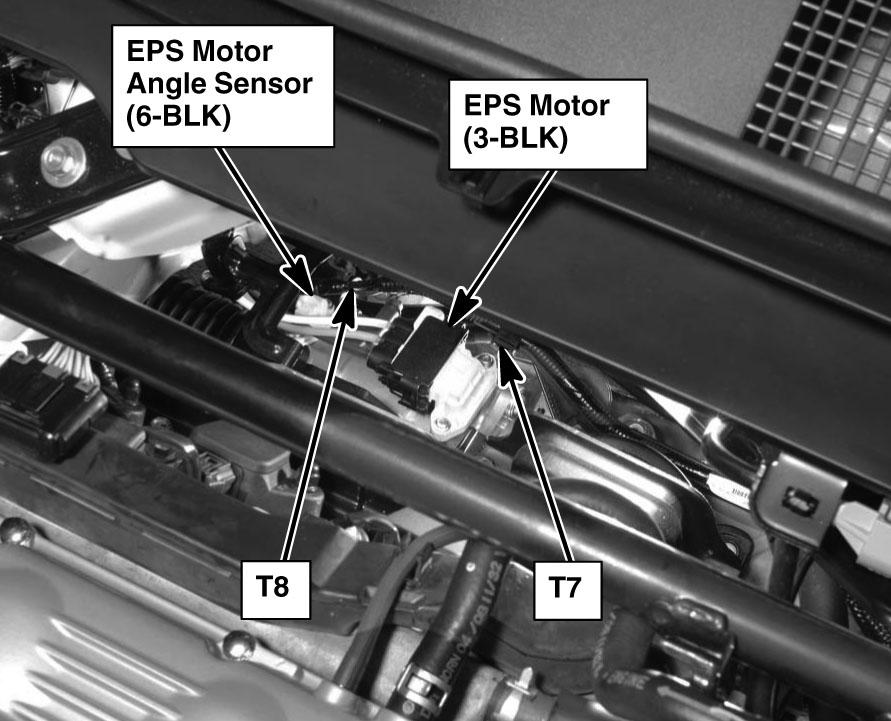

Fig 4: Right Rear Of Engine Compartment

G00472730

Courtesy of AMERICAN HONDA MOTOR CO., INC.

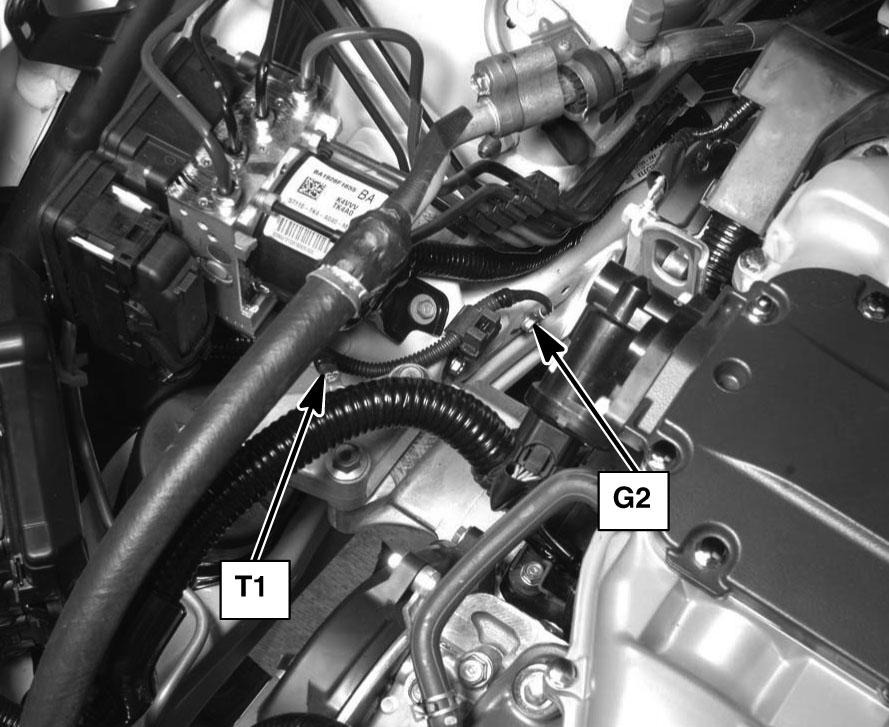

Fig 5: Right Side Of Engine Compartment

G00472731

Courtesy of AMERICAN HONDA MOTOR CO., INC.

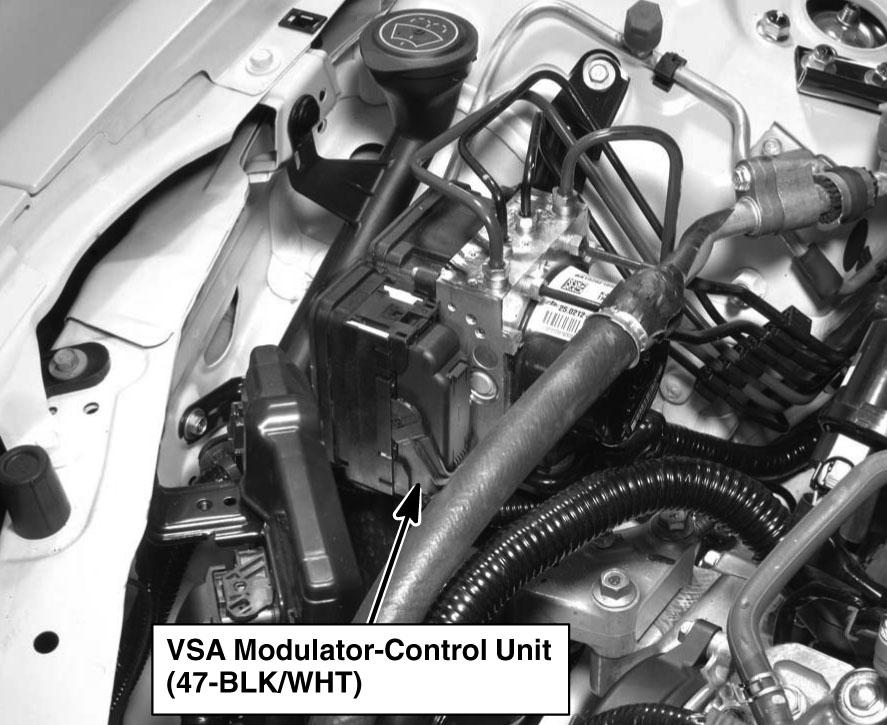

Fig 6: Right Side Of Engine Compartment

G00472732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

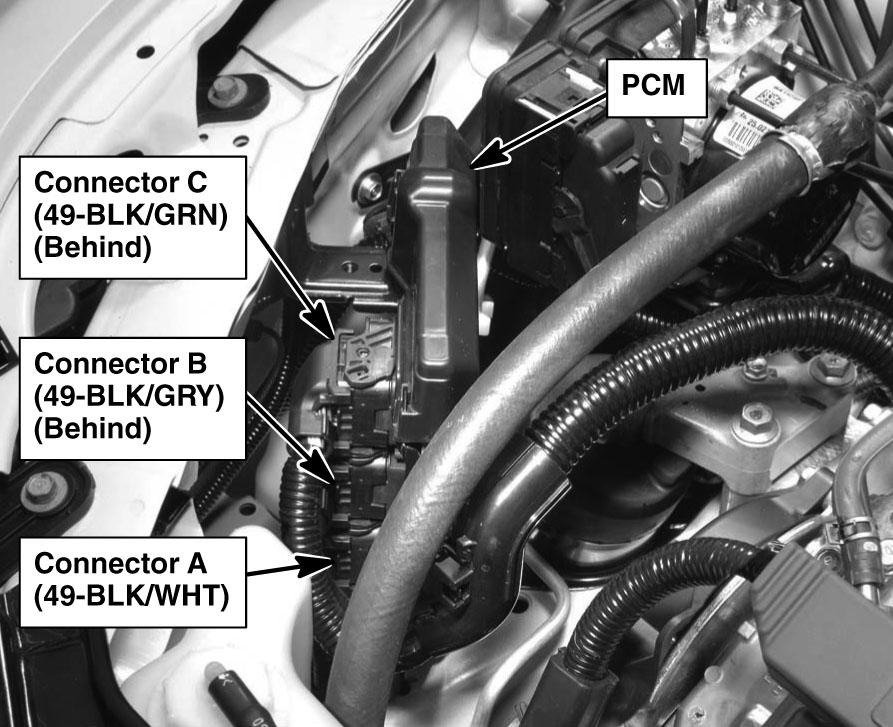

Fig 7: Right Side Of Engine Compartment

G00472733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

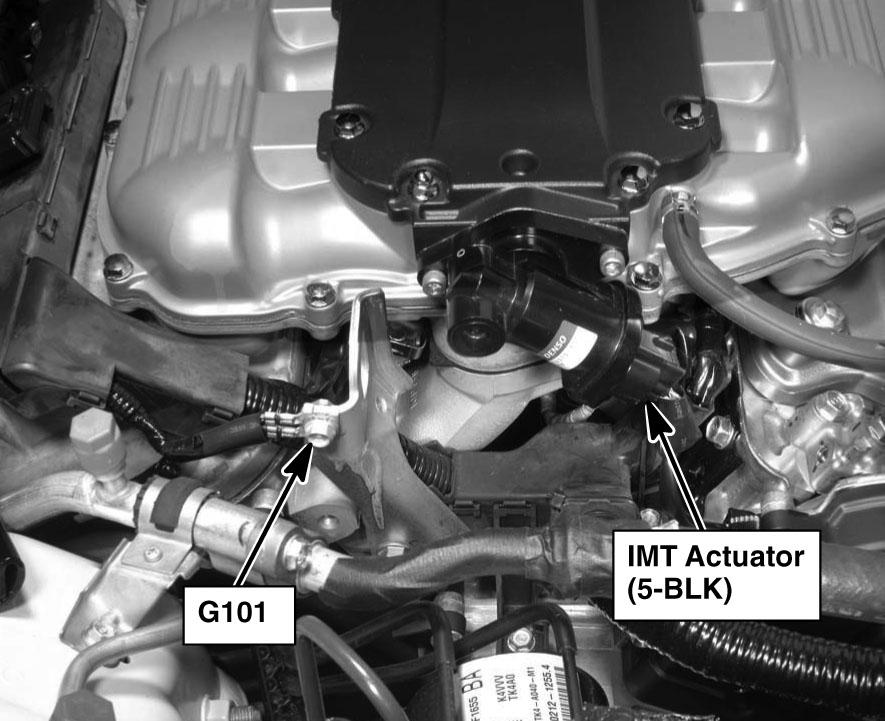

Fig 8: Front Of Engine

G00472734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

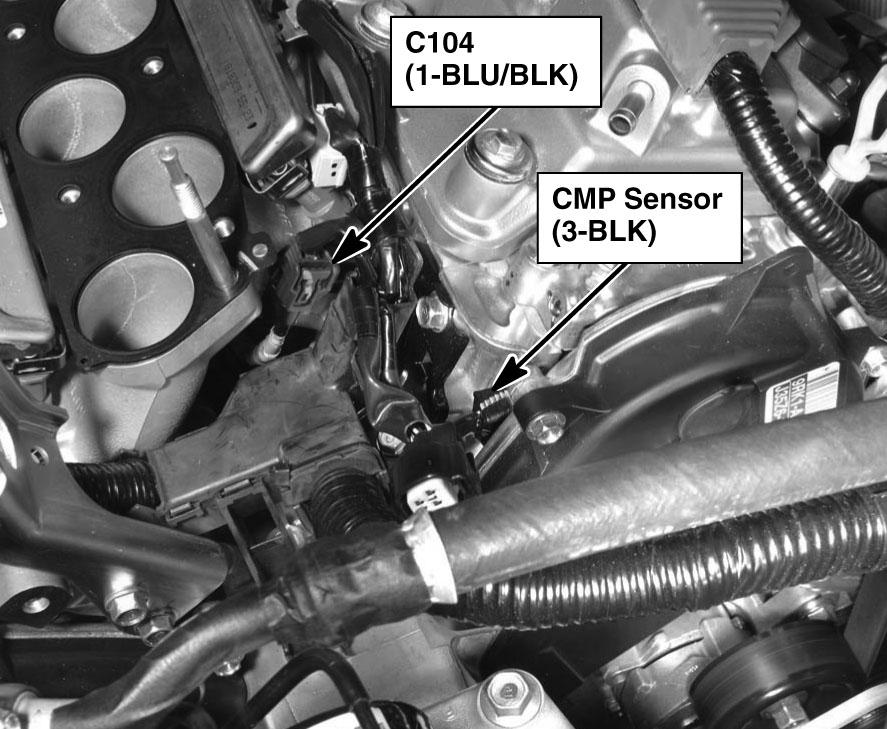

Fig 9: Front Of Engine

G00472735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

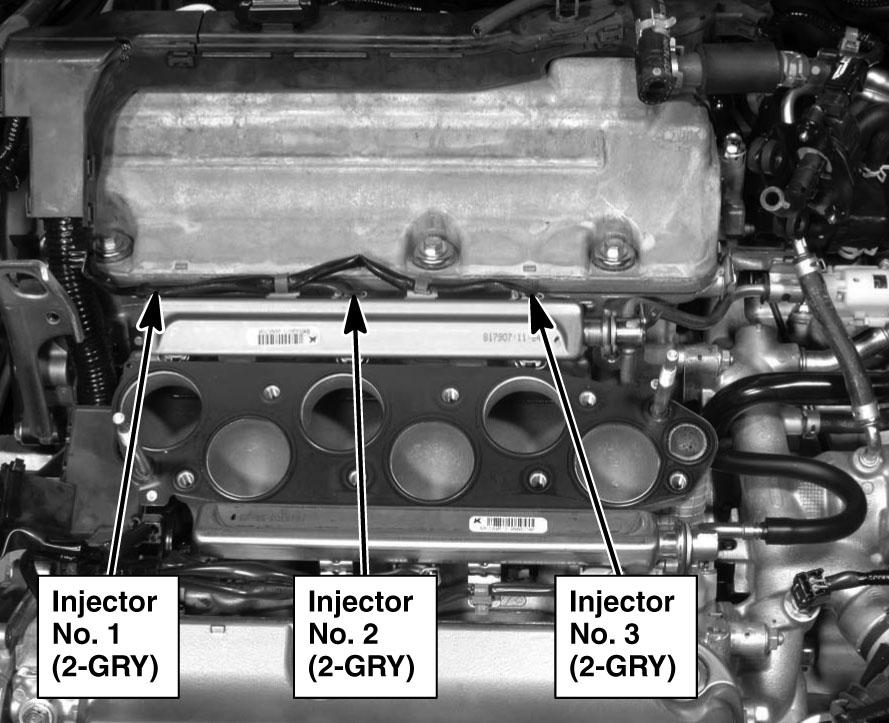

Fig 10: Top Of Engine

G00472736

Courtesy of AMERICAN HONDA MOTOR CO., INC.

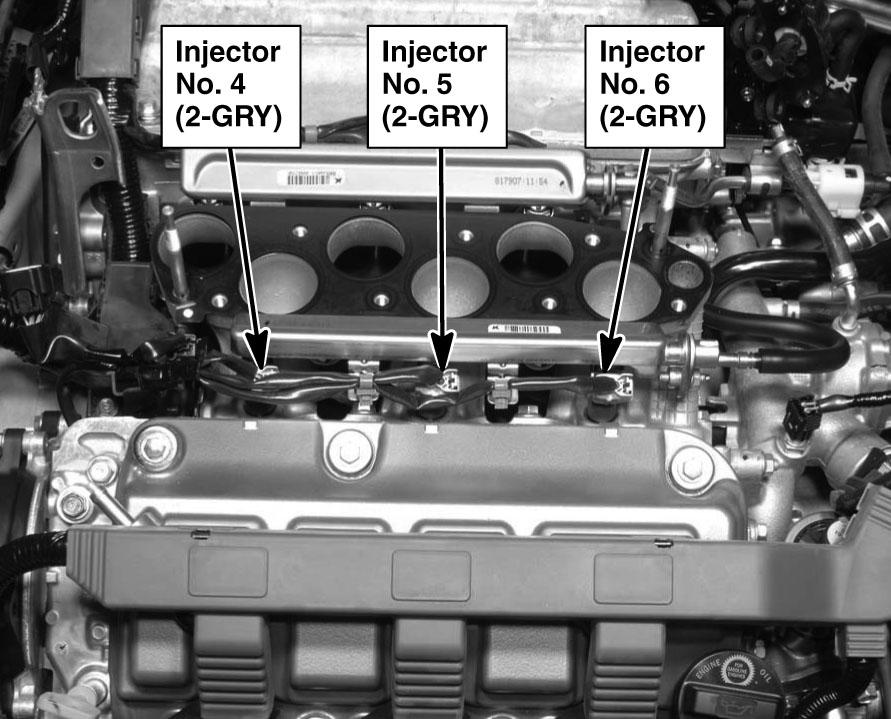

Fig 11: Top Of Engine

G00472737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

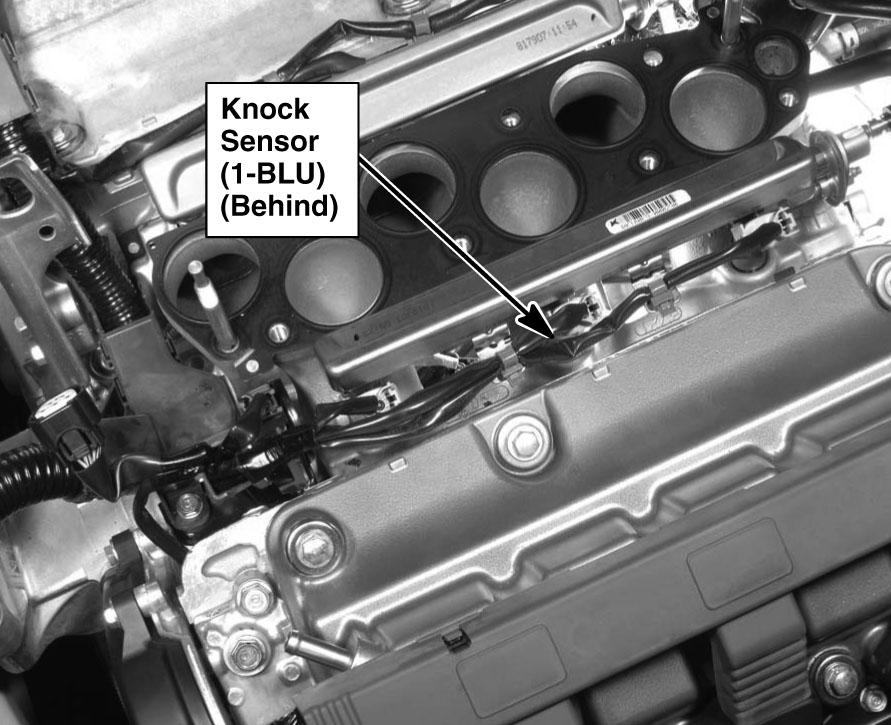

Fig 12: Top Of Engine

G00472738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

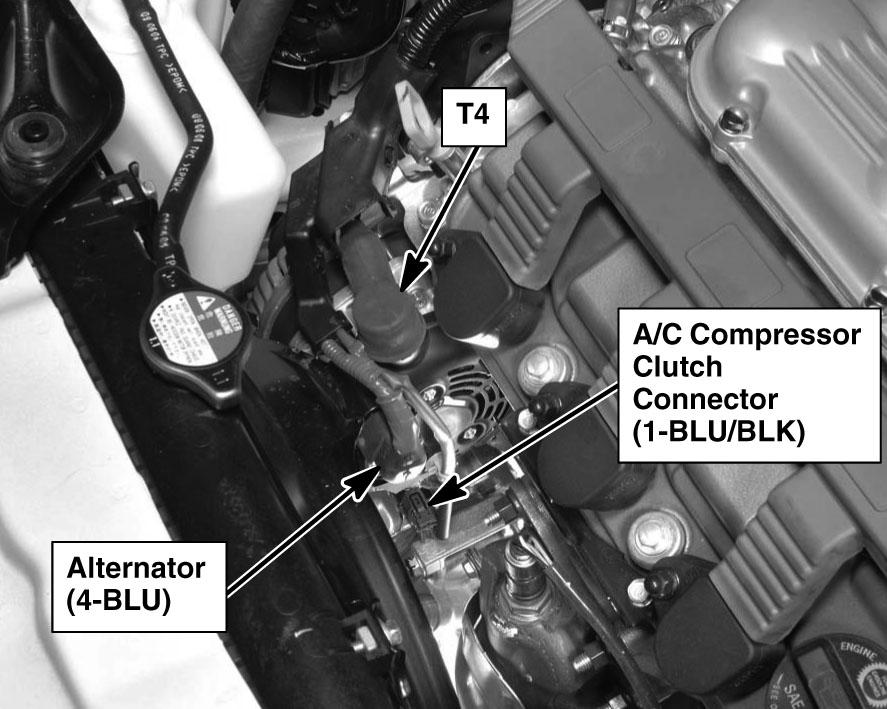

Fig 13: Left Front Of Engine

G00472739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

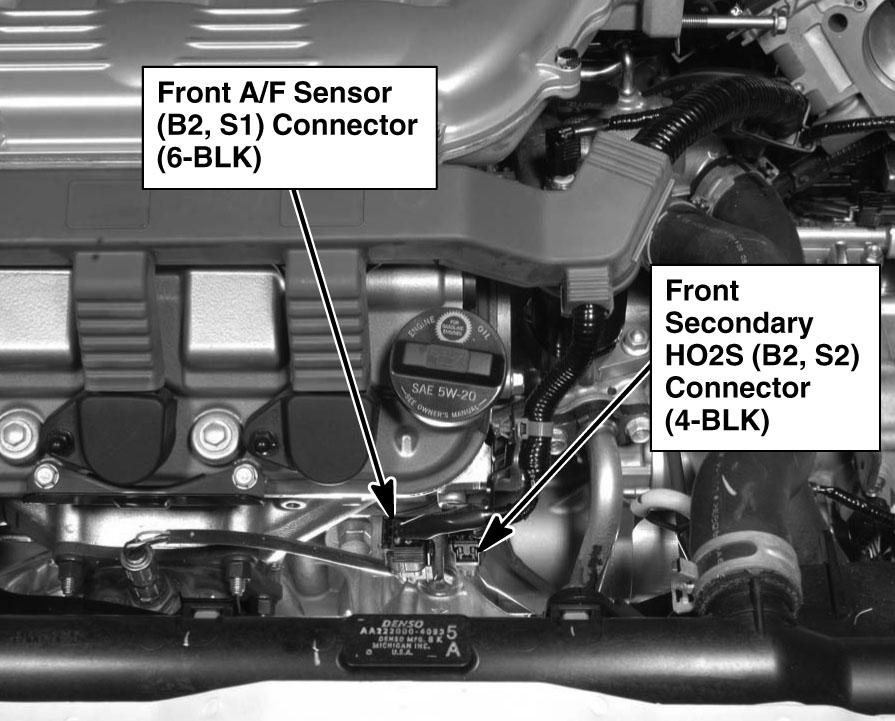

Fig 14: Left Rear Of Engine

G00472740

Courtesy of AMERICAN HONDA MOTOR CO., INC.

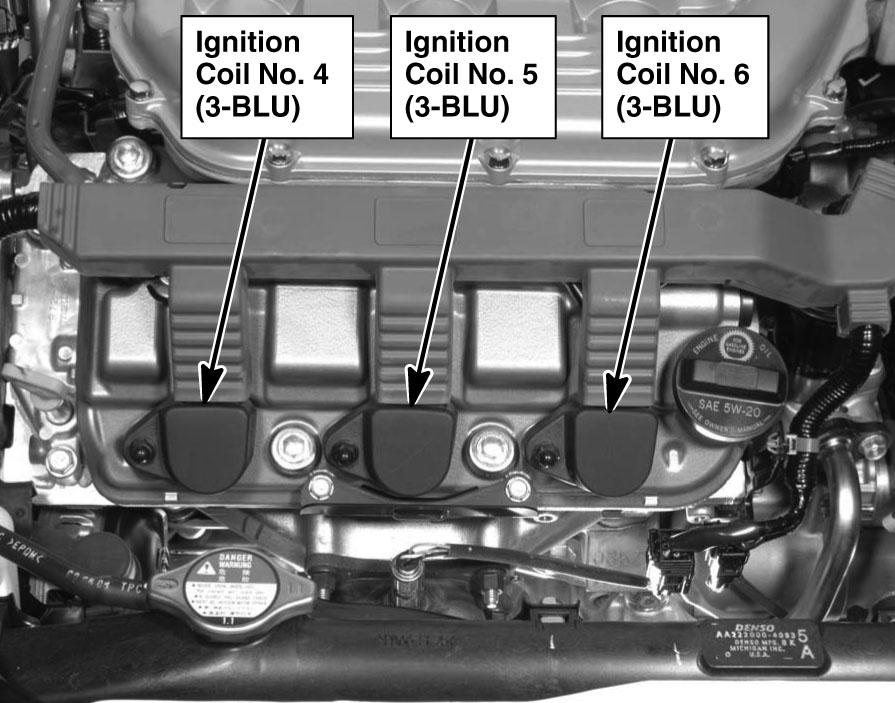

Fig 15: Left Side Of Engine

G00472741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

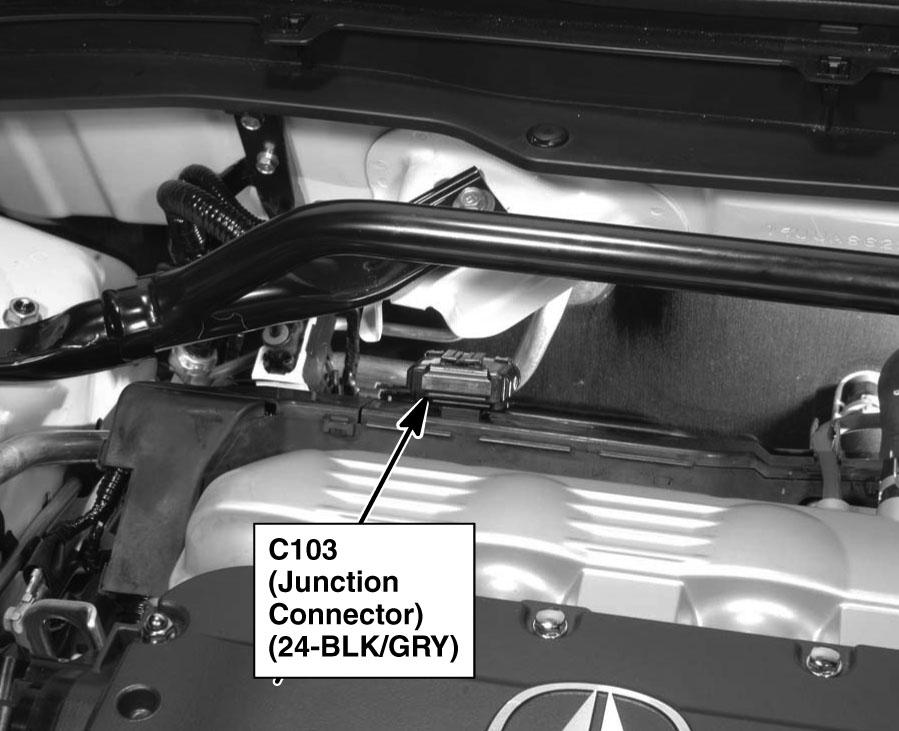

Fig 16: Right Front Of Engine

G00472742

Courtesy of AMERICAN HONDA MOTOR CO., INC.

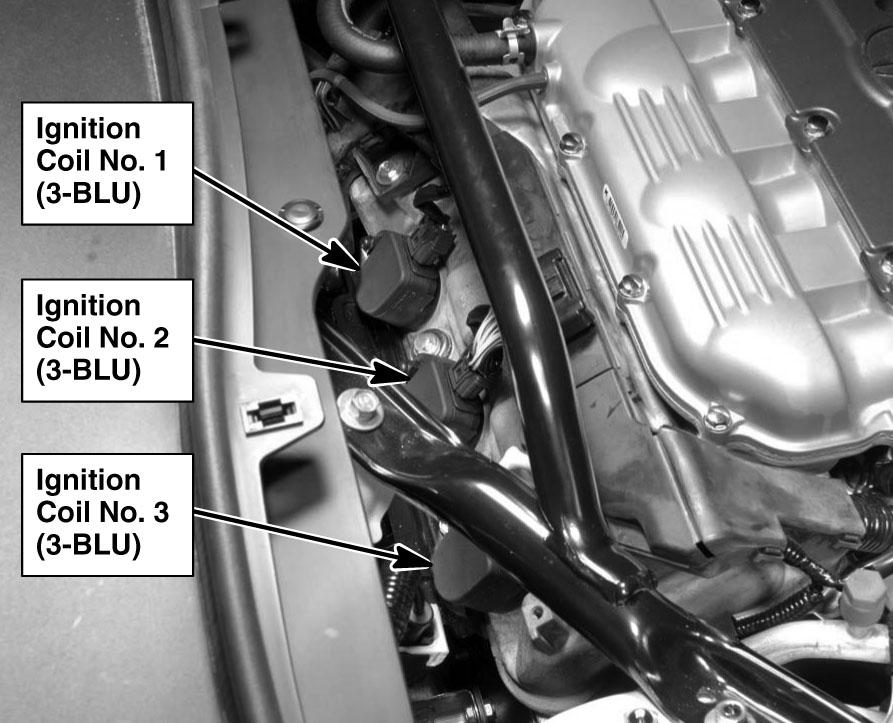

Fig 17: Right Side Of Engine

G00472743

Courtesy of AMERICAN HONDA MOTOR CO., INC.

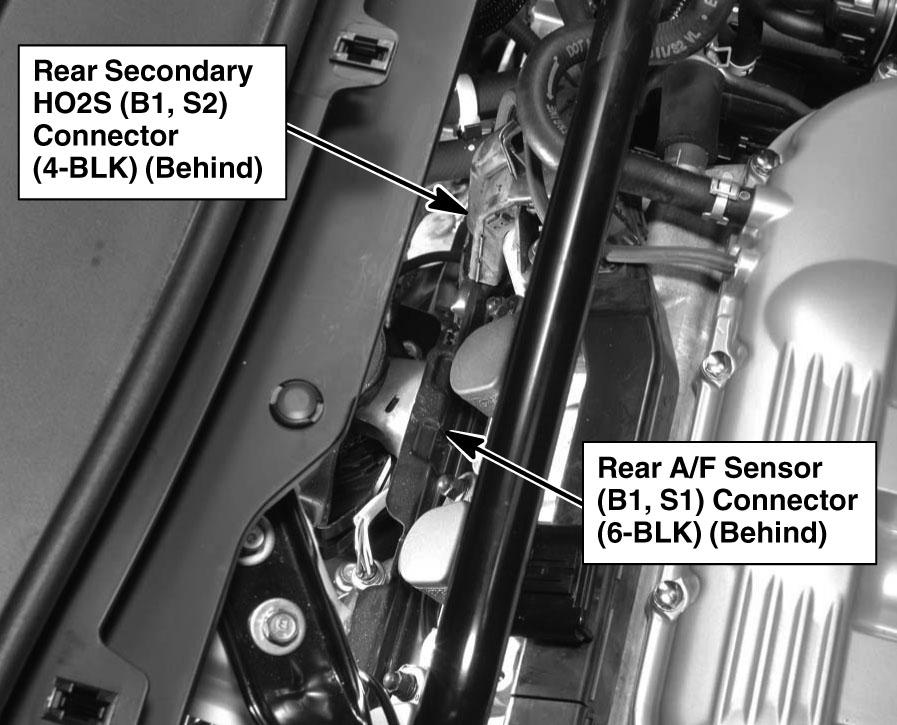

Fig 18: Right Side Of Engine

G00472744

Courtesy of AMERICAN HONDA MOTOR CO., INC.

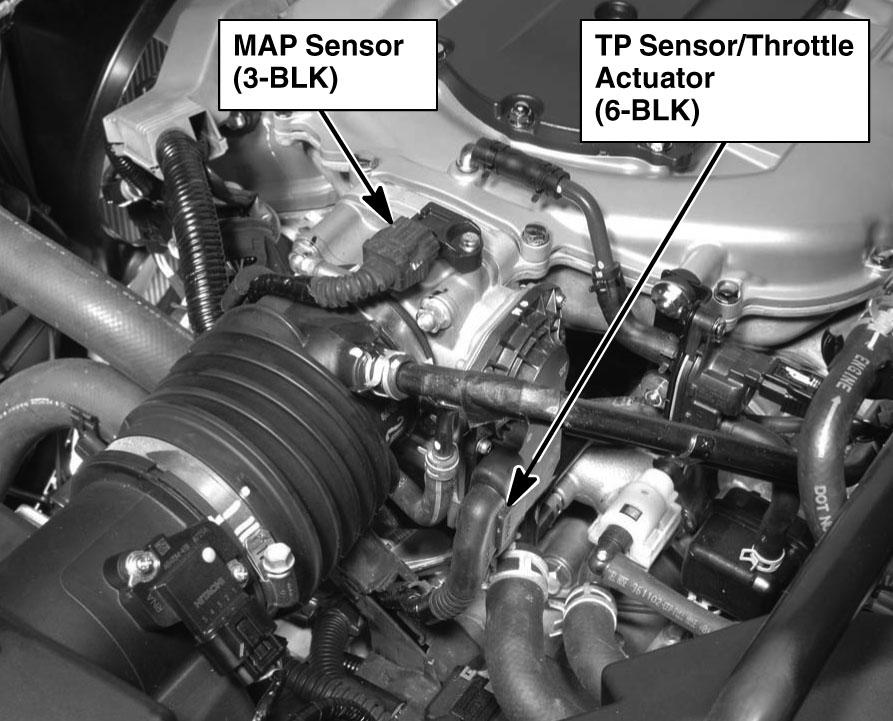

Fig 19: Rear Of Engine

G00472745

Courtesy of AMERICAN HONDA MOTOR CO., INC.

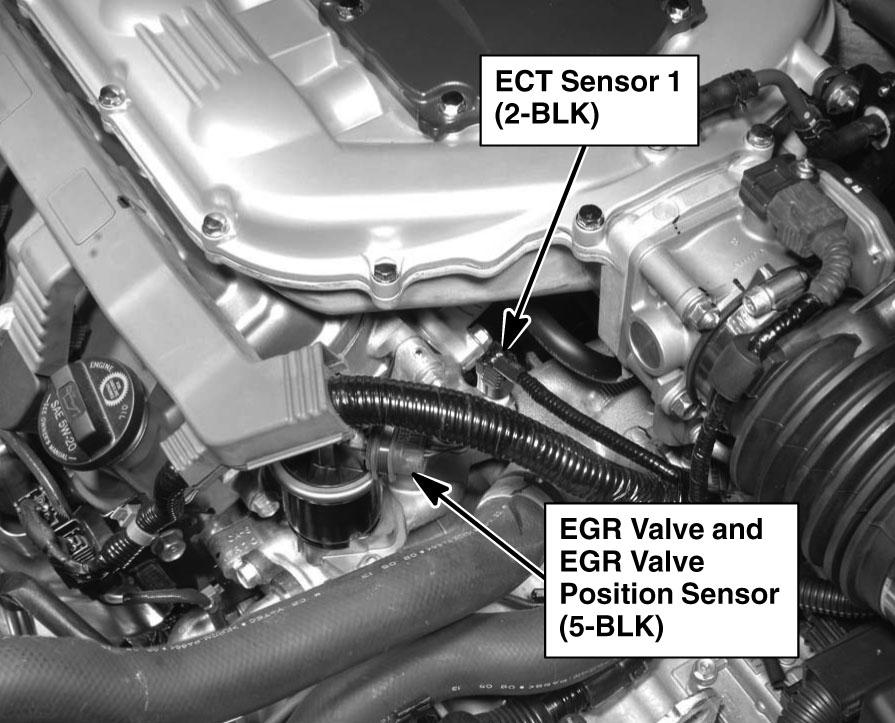

Fig 20: Left Rear Of Engine

G00472746

Courtesy of AMERICAN HONDA MOTOR CO., INC.

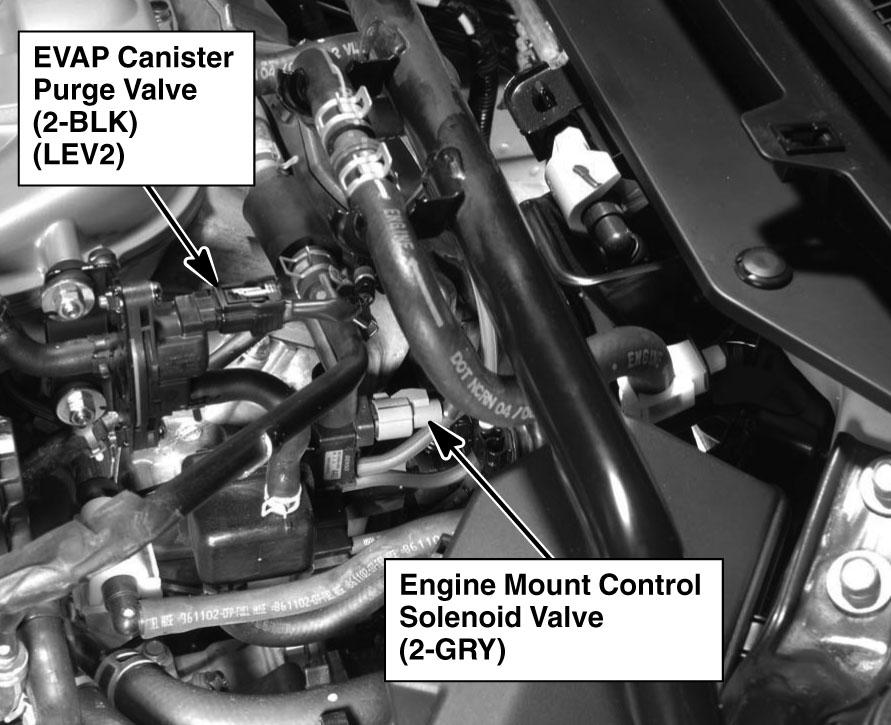

Fig 21: Right Rear Of Engine

G00472747

Courtesy of AMERICAN HONDA MOTOR CO., INC.

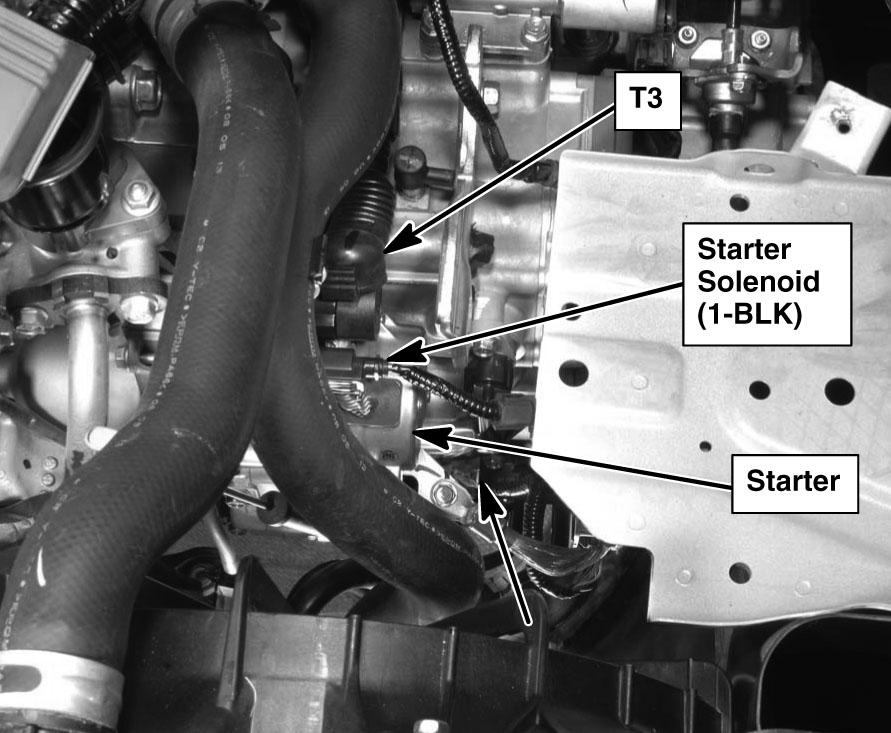

Fig 22: Left Rear Of Engine

G00472748

Courtesy of AMERICAN HONDA MOTOR CO., INC.

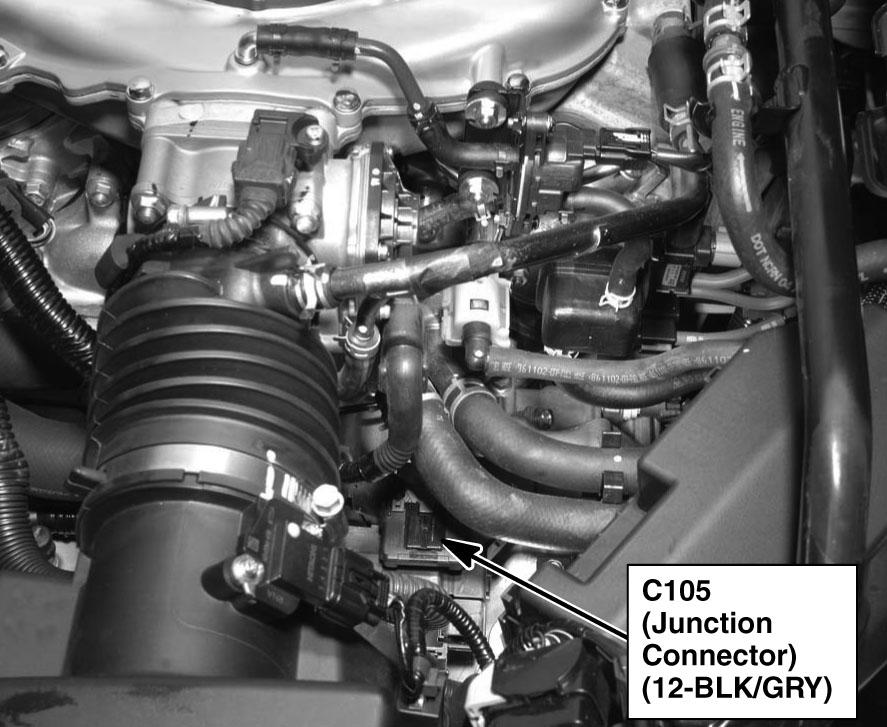

Fig 23: Rear Of Engine

G00472749

Courtesy of AMERICAN HONDA MOTOR CO., INC.

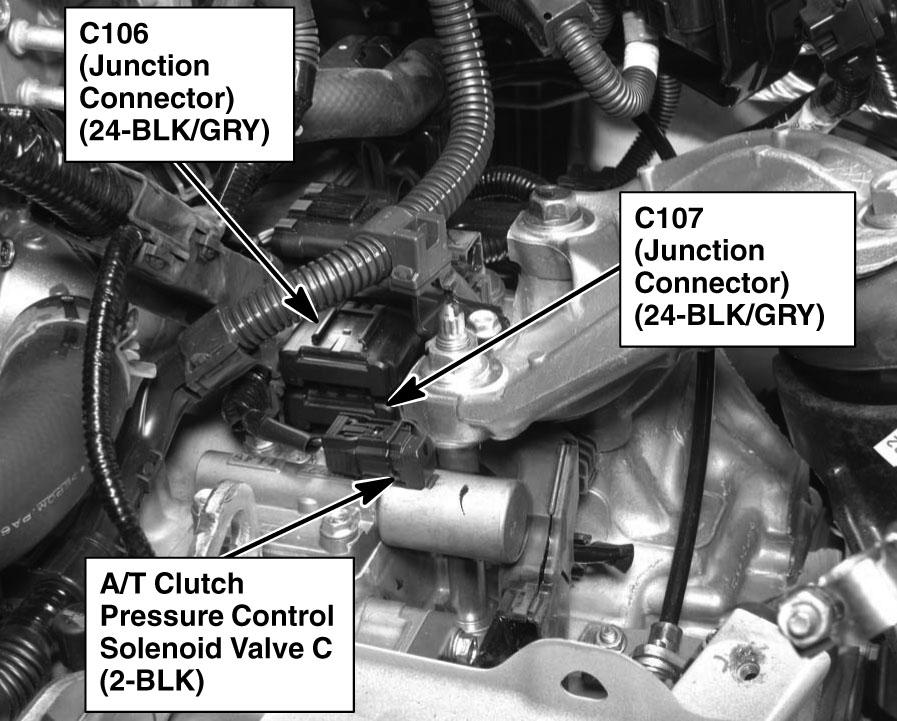

Fig 24: Top Of Transmission

G00472750

Courtesy of AMERICAN HONDA MOTOR CO., INC.

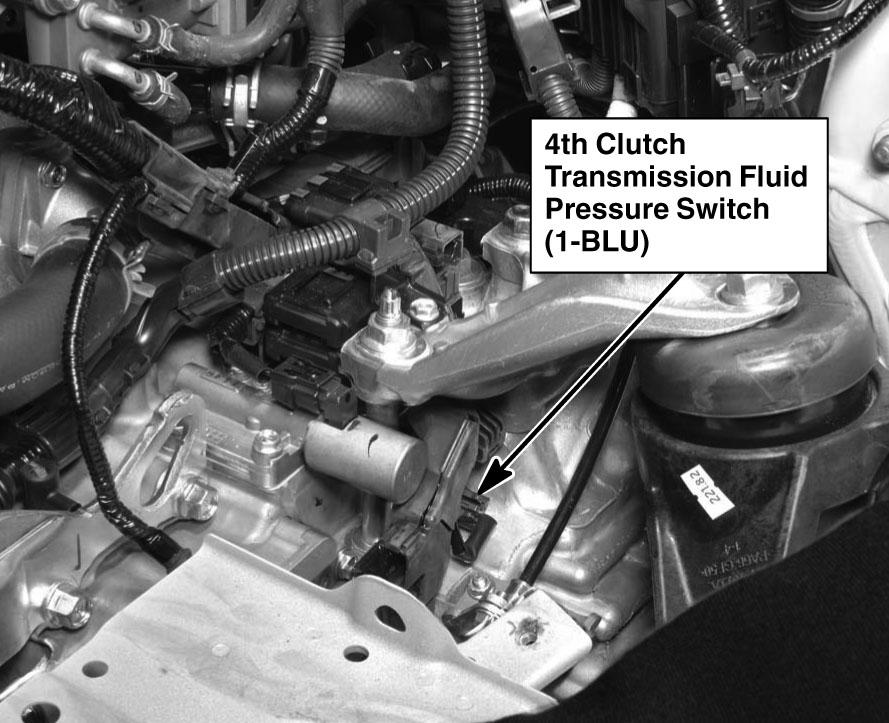

Fig 25: Transmission Housing

G00472751

Courtesy of AMERICAN HONDA MOTOR CO., INC.

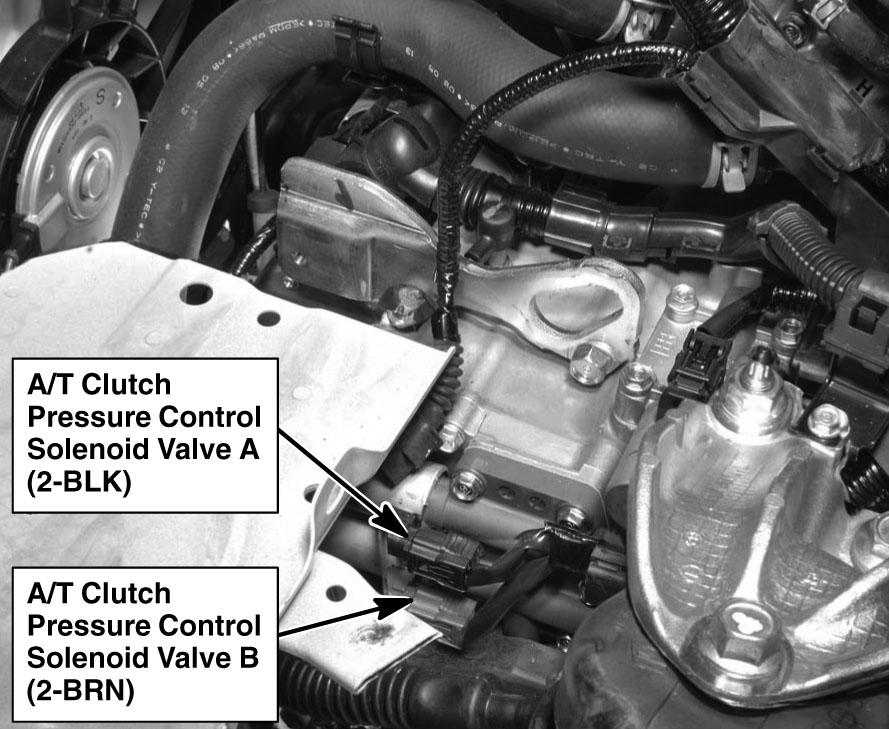

Fig 26: Transmission Housing

G00472752

Courtesy of AMERICAN HONDA MOTOR CO., INC.

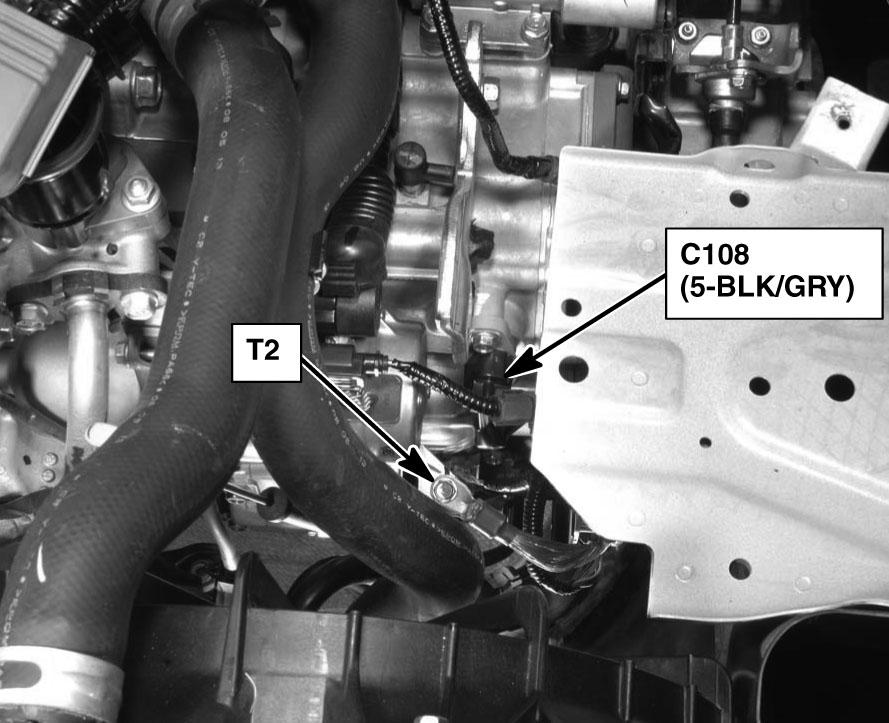

Fig 27: Transmission Housing

G00472753

Courtesy of AMERICAN HONDA MOTOR CO., INC.

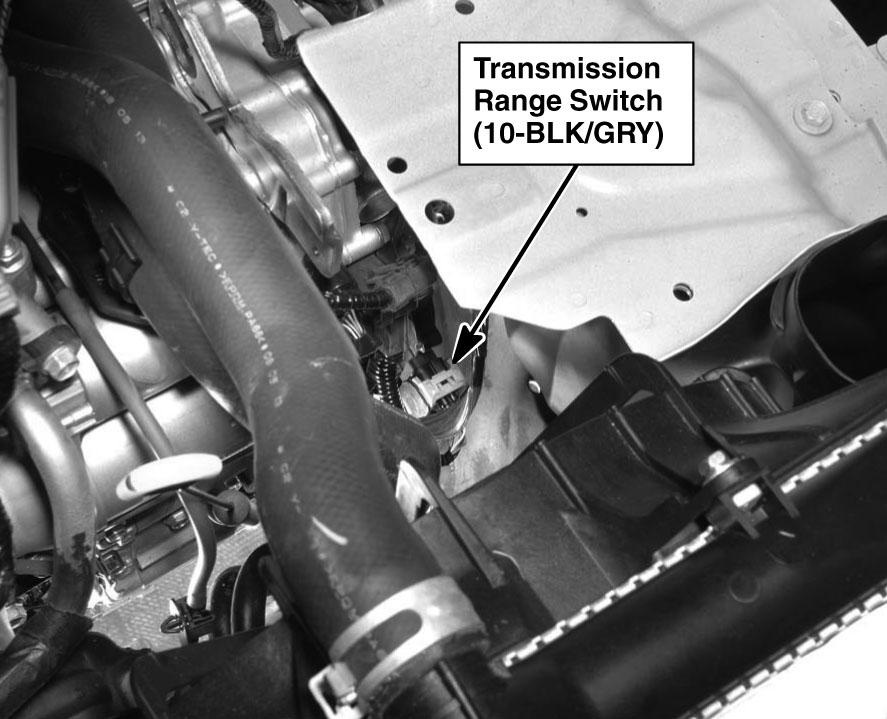

Fig 28: Transmission Housing

G00472754

Courtesy of AMERICAN HONDA MOTOR CO., INC.

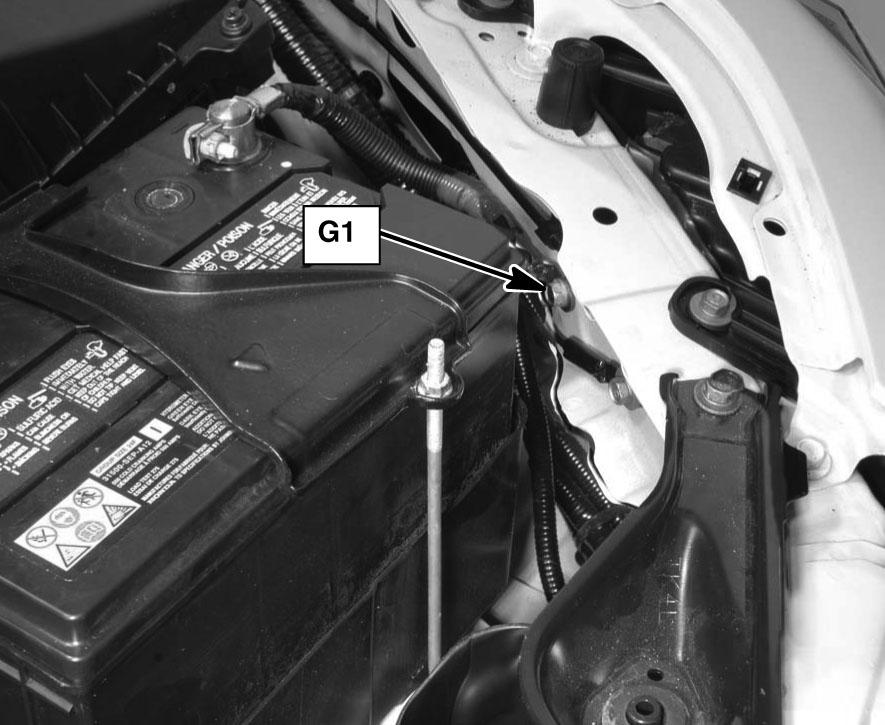

Fig 29: Left Front Of Engine Compartment

G00472755

Courtesy of AMERICAN HONDA MOTOR CO., INC.

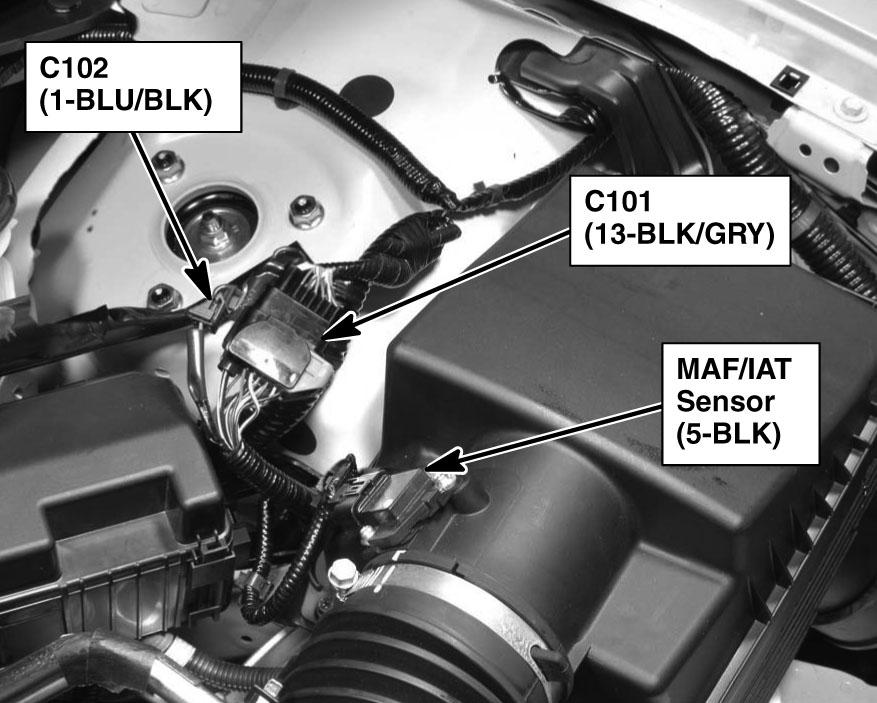

Fig 30: Left Side Of Engine Compartment

G00472756

Courtesy of AMERICAN HONDA MOTOR CO., INC.

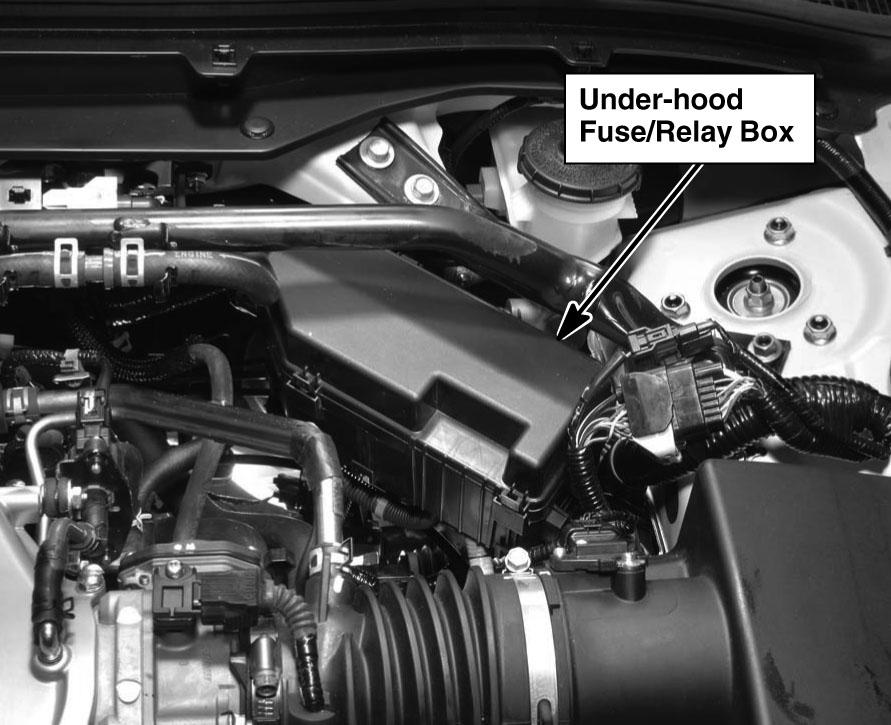

Fig 31: Left Rear Of Engine Compartment

G00472757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

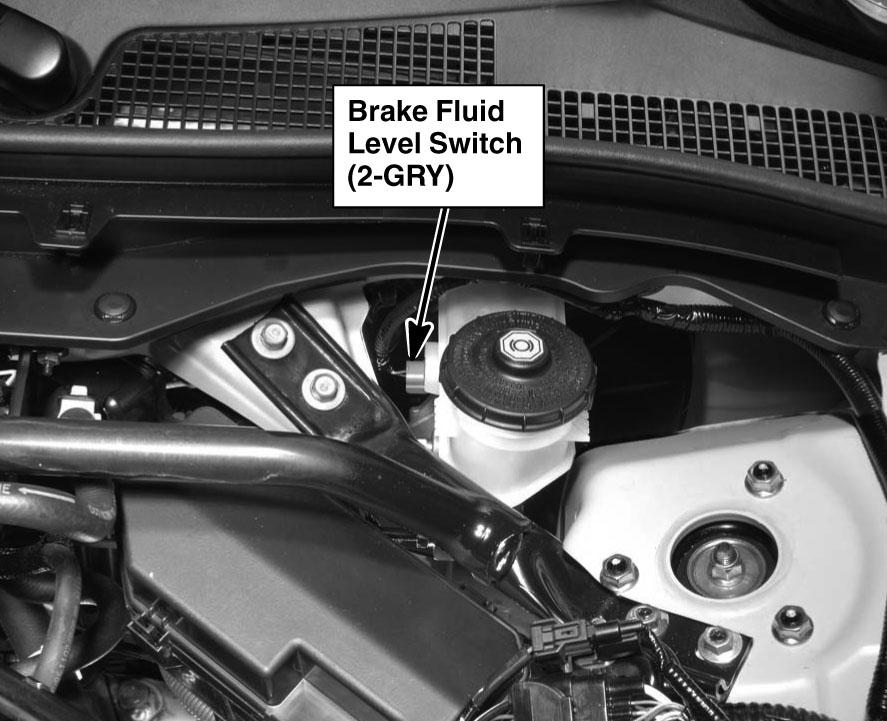

Fig 32: Left Rear Of Engine Compartment

G00472758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

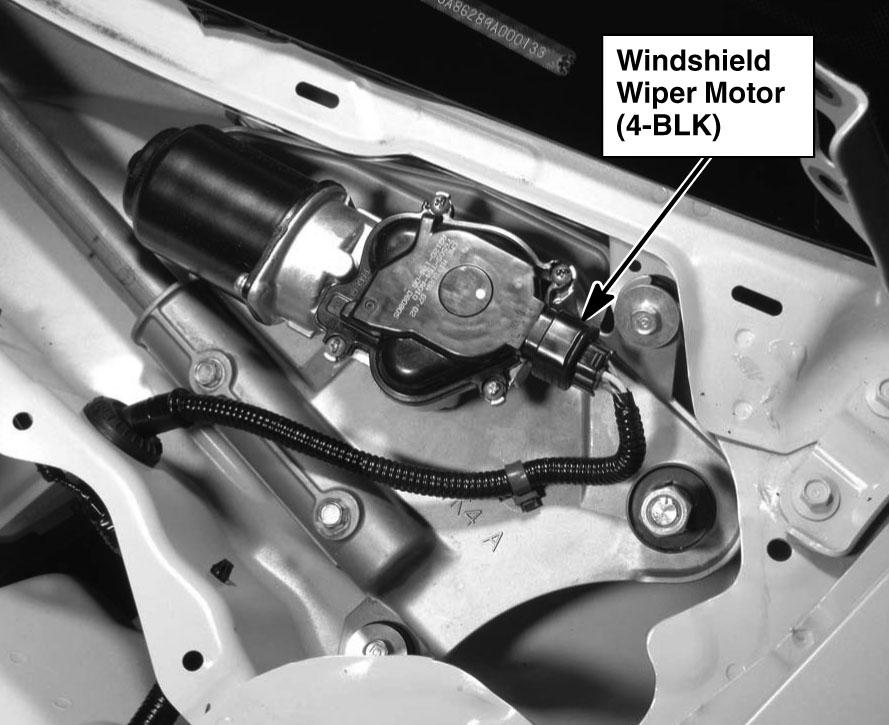

Fig 33: Under Left Side Of Cowl Cover

G00472759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

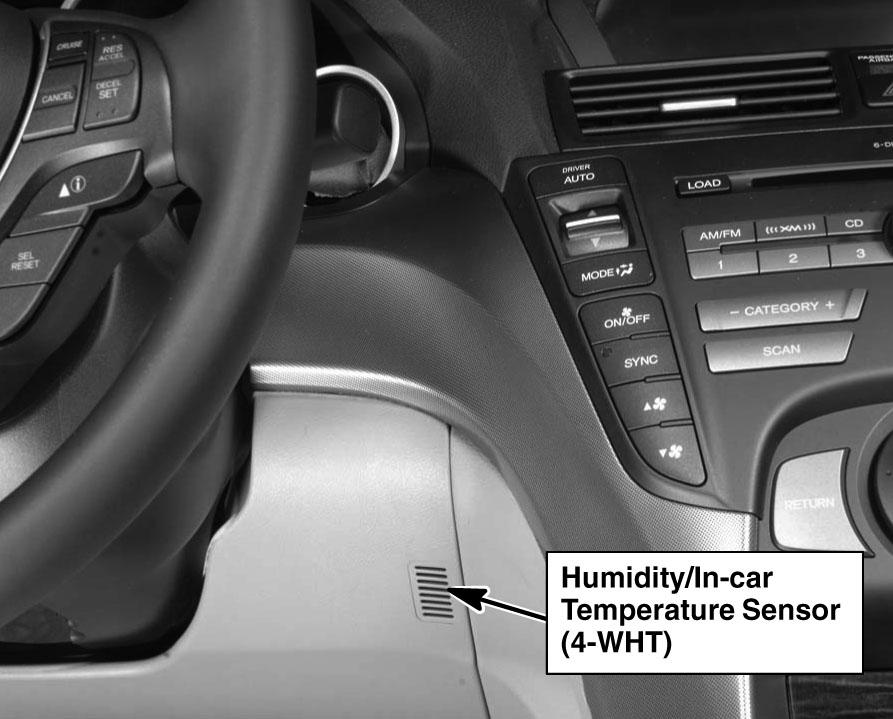

Fig 34: Left Side Of Dash

G00472760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

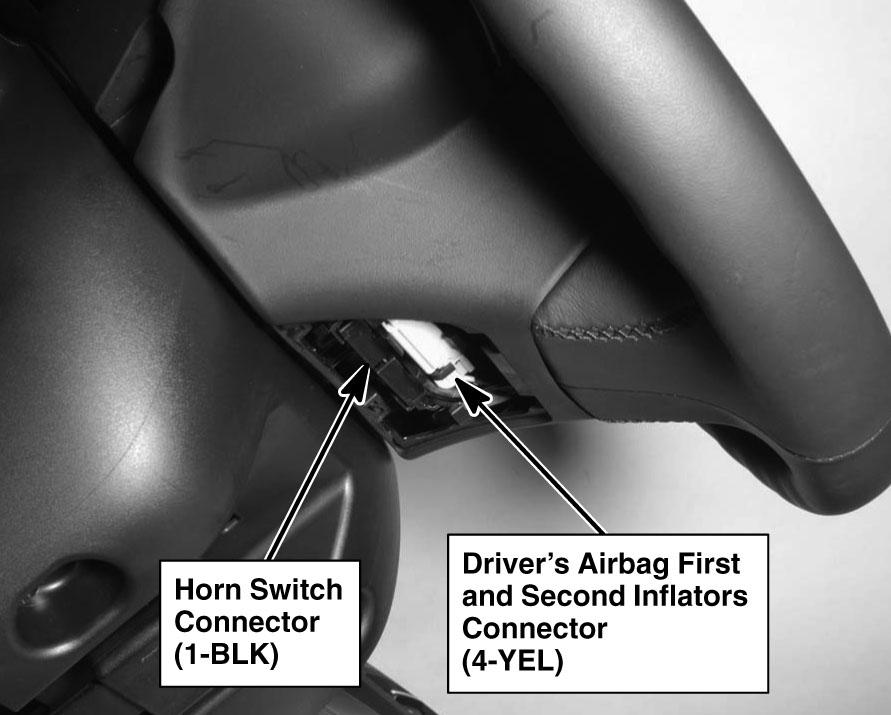

Fig 35: Steering Wheel

G00472761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

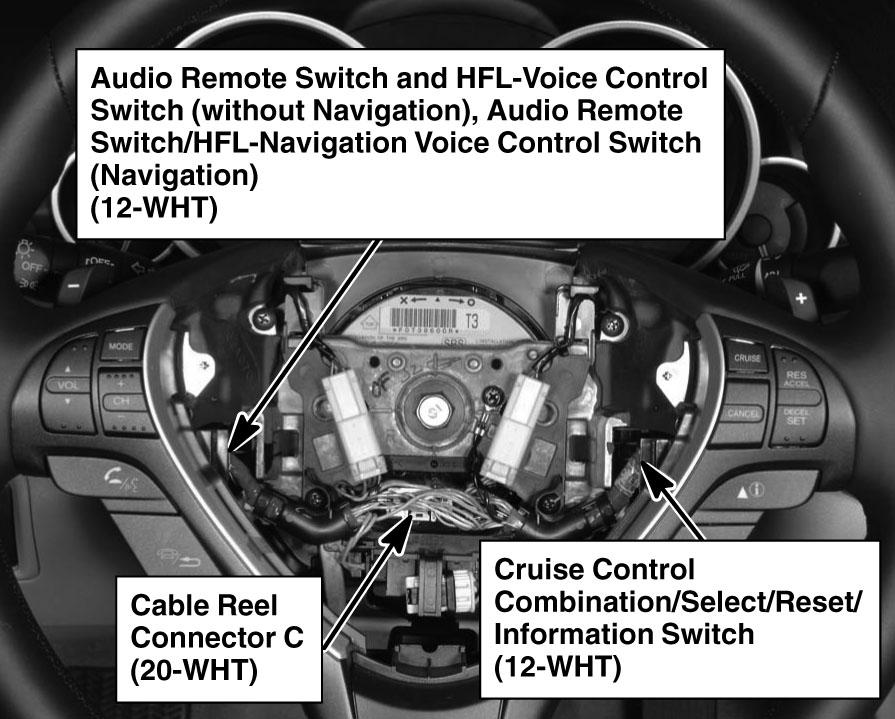

Fig 36: Steering Wheel

G00472762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

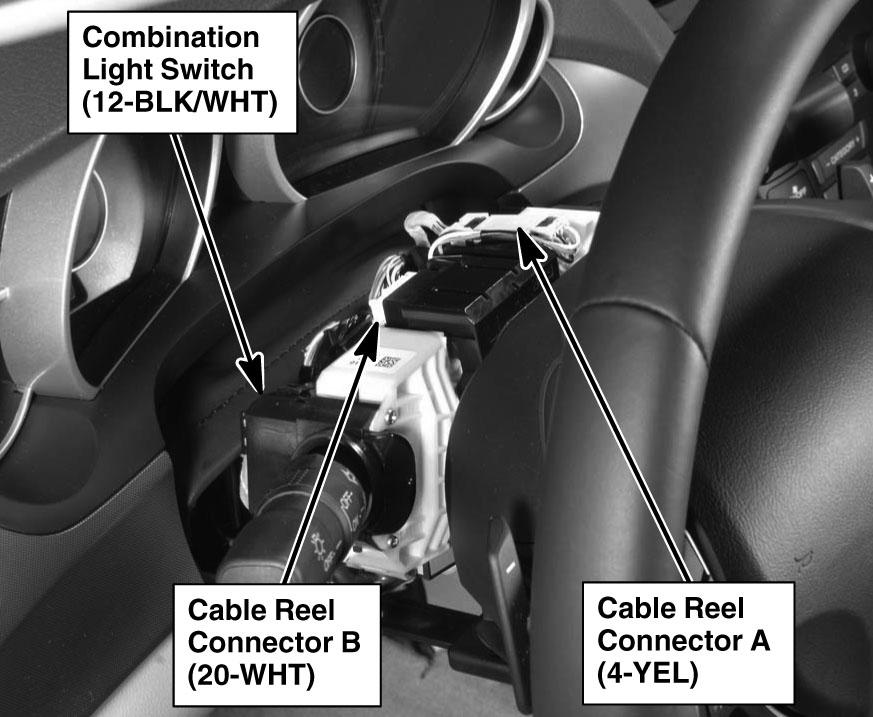

Fig 37: Steering Column

G00472763

Courtesy of AMERICAN HONDA MOTOR CO., INC.

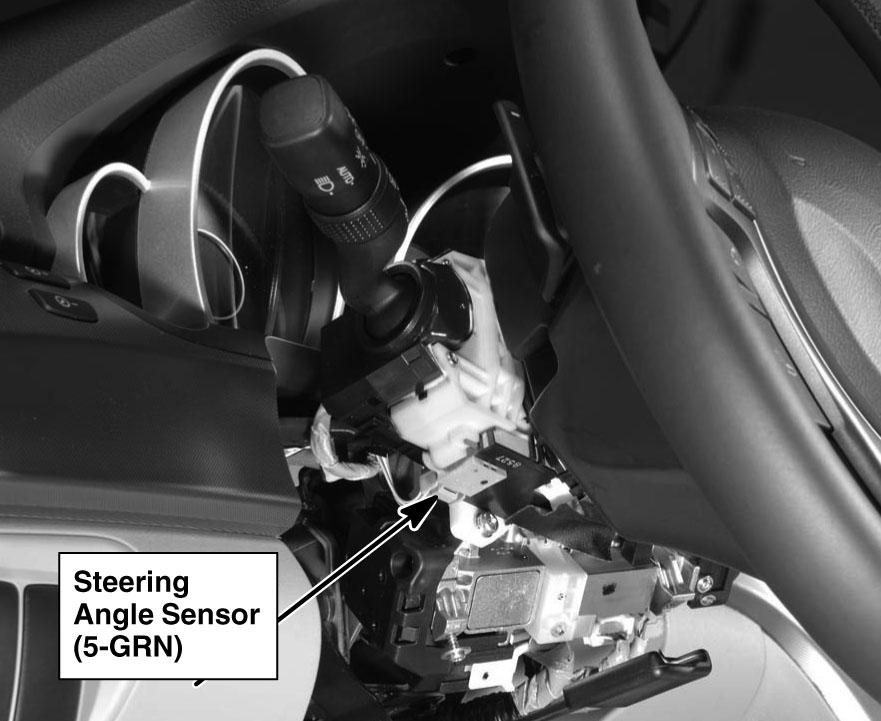

Fig 38: Steering Column

G00472764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

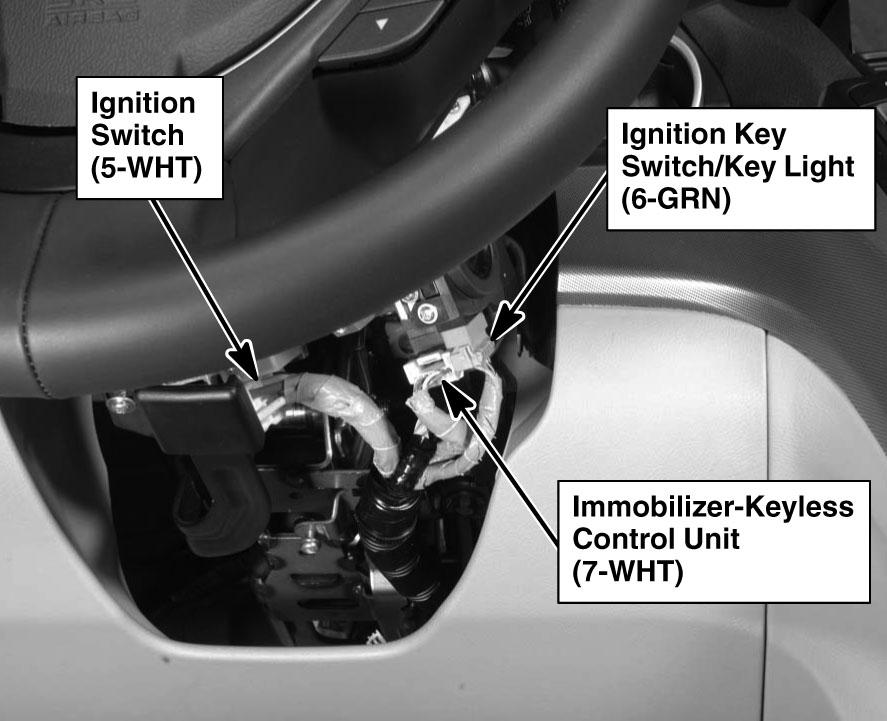

Fig 39: Steering Column

G00472765

Courtesy of AMERICAN HONDA MOTOR CO., INC.

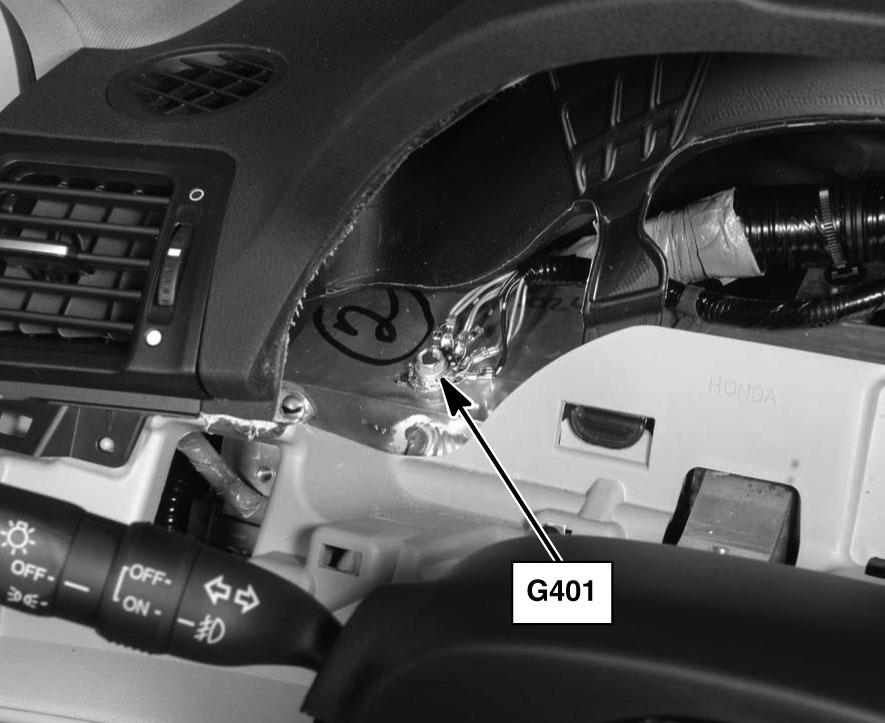

Fig 40: Behind Left Side Of Dash

G00472766

Courtesy of AMERICAN HONDA MOTOR CO., INC.

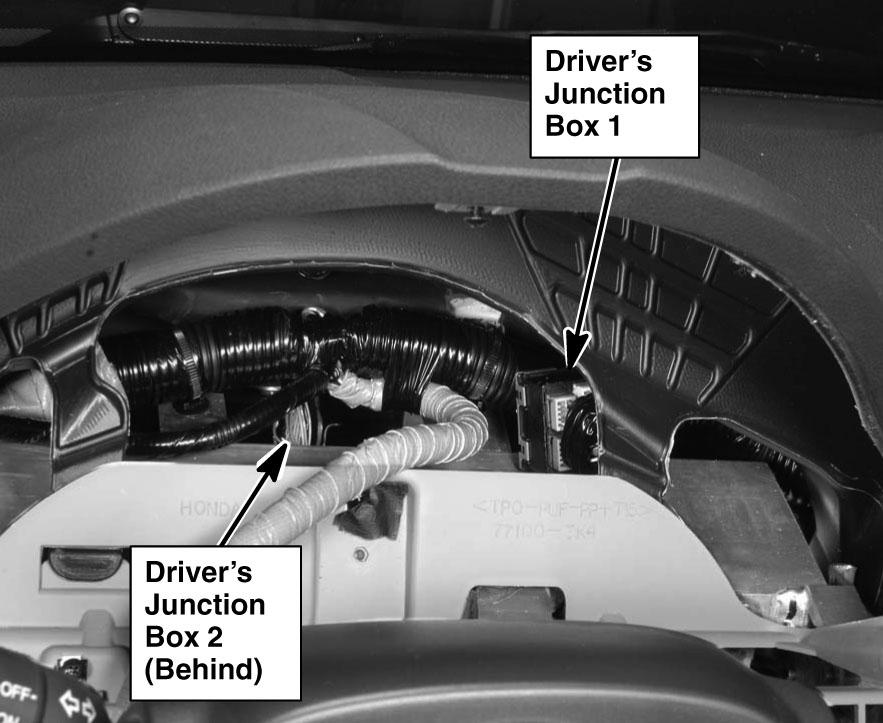

Fig 41: Behind Left Side Of Dash

G00472767

Courtesy of AMERICAN HONDA MOTOR CO., INC.

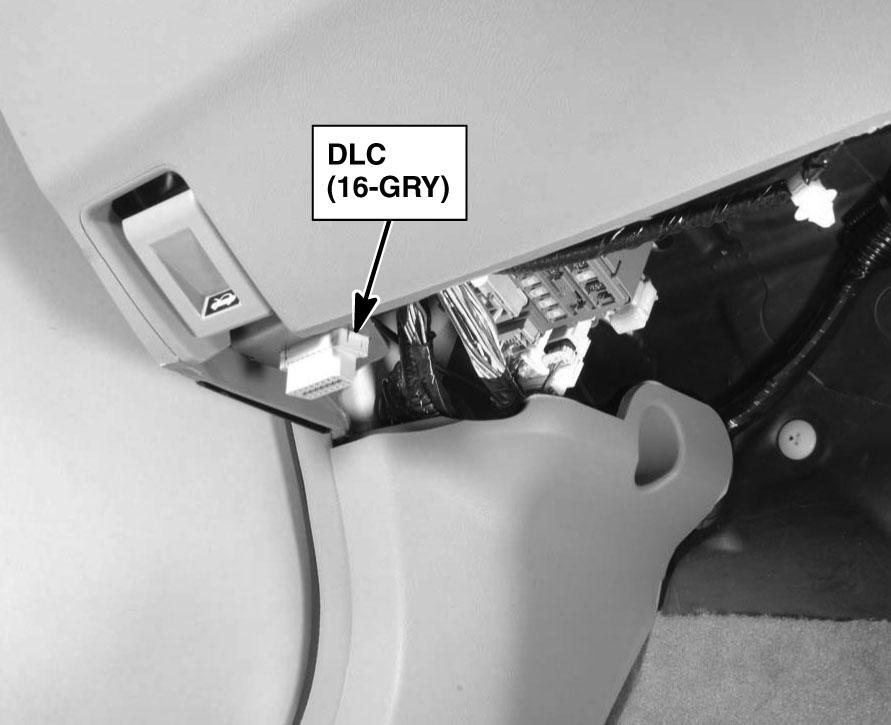

Fig 42: Under Left Side Of Dash

G00472768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

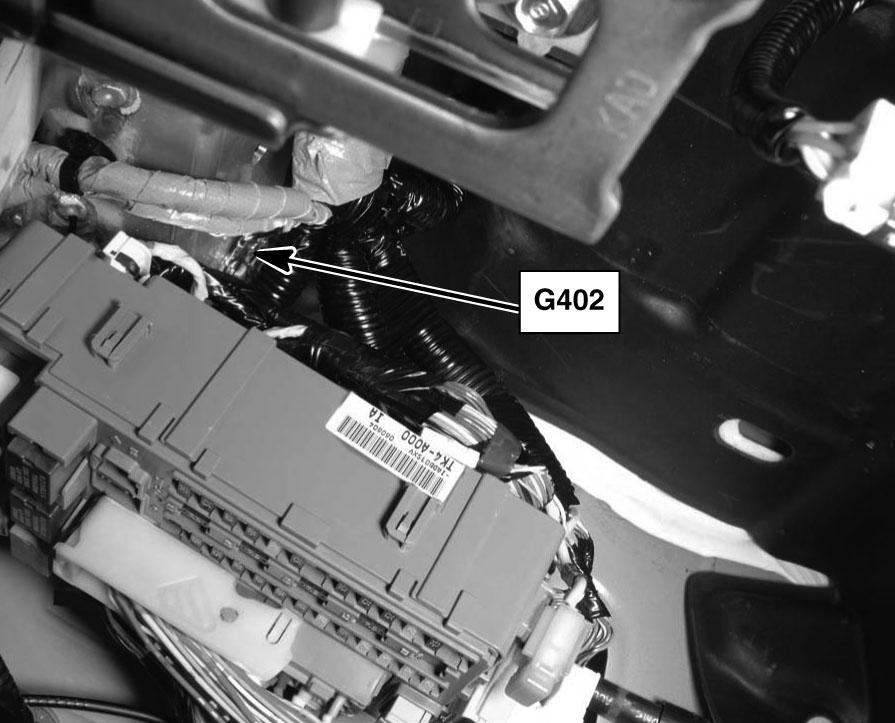

Fig 43: Under Left Side Of Dash

G00472769

Courtesy of AMERICAN HONDA MOTOR CO., INC.

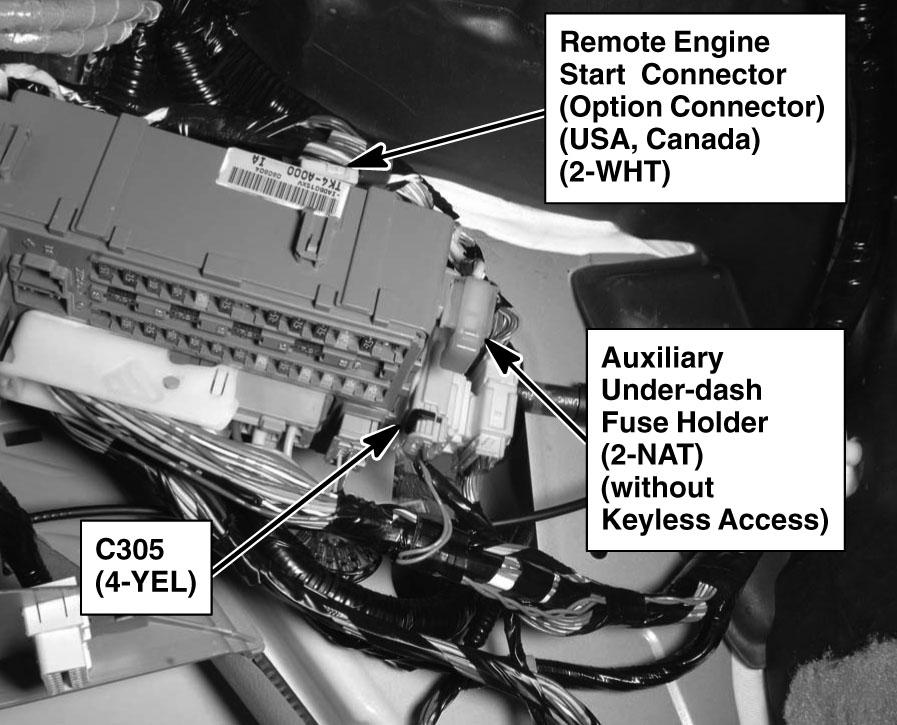

Fig 44: Under Left Side Of Dash

G00472770

Courtesy of AMERICAN HONDA MOTOR CO., INC.

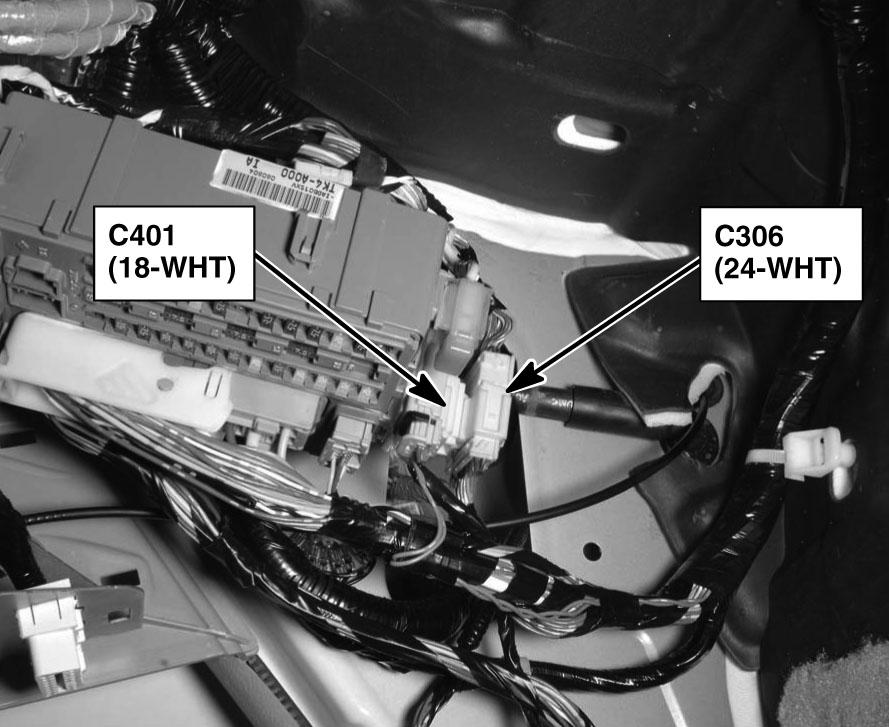

Fig 45: Under Left Side Of Dash

G00472771

Courtesy of AMERICAN HONDA MOTOR CO., INC.

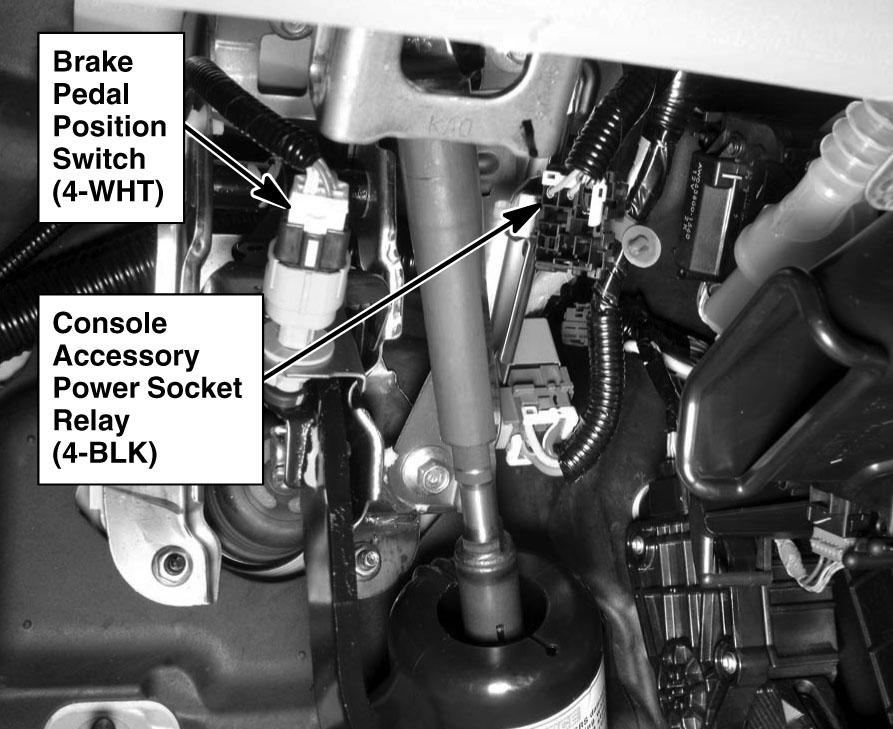

Fig 46: Under Left Side Of Dash

G00472772

Courtesy of AMERICAN HONDA MOTOR CO., INC.

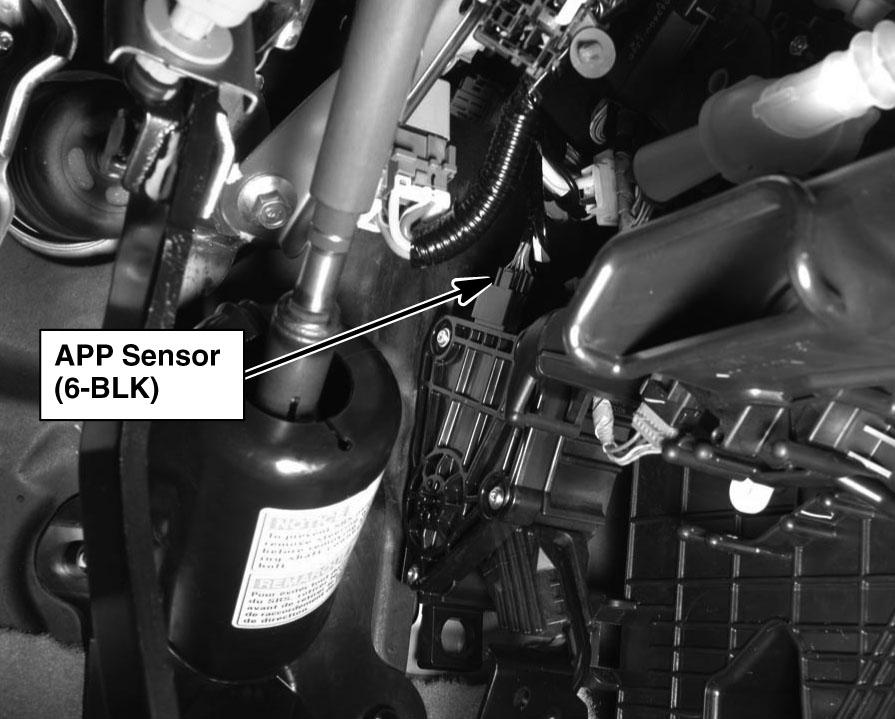

Fig 47: Under Left Side Of Dash

G00472773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

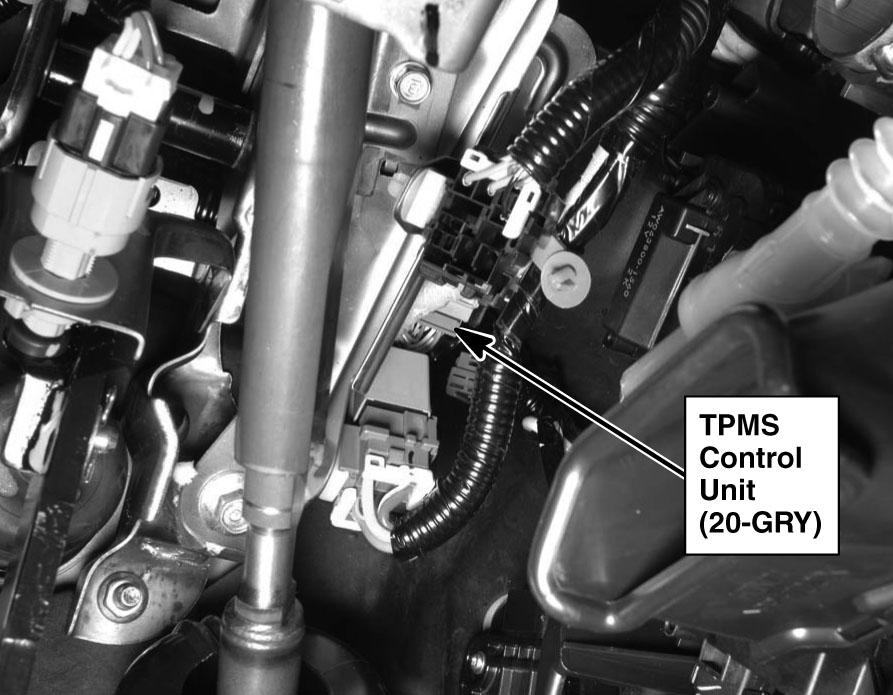

Fig 48: Under Left Side Of Dash

G00472774

Courtesy of AMERICAN HONDA MOTOR CO., INC.

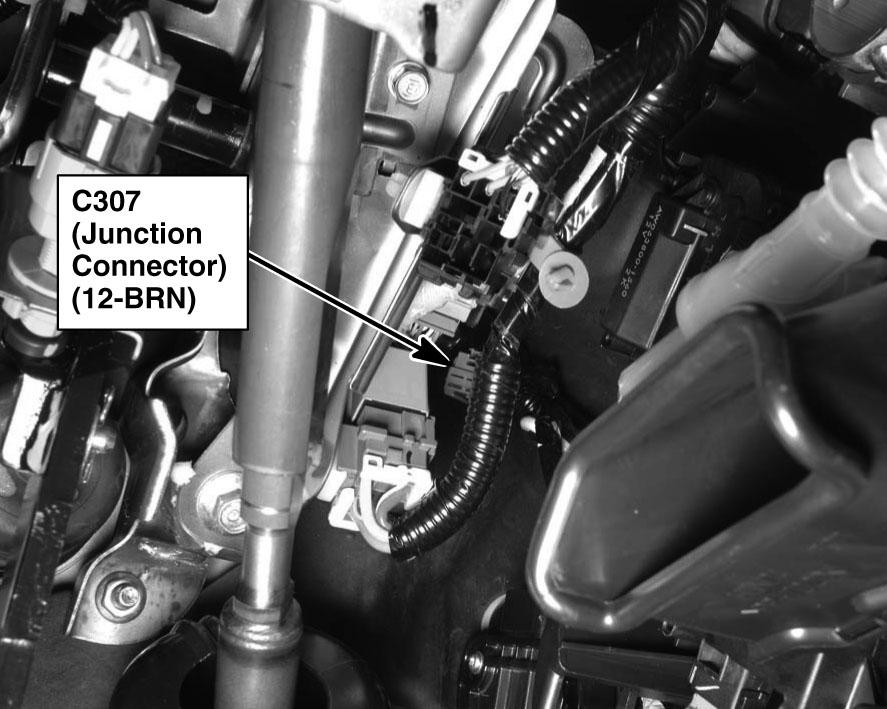

Fig 49: Under Left Side Of Dash

G00472775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

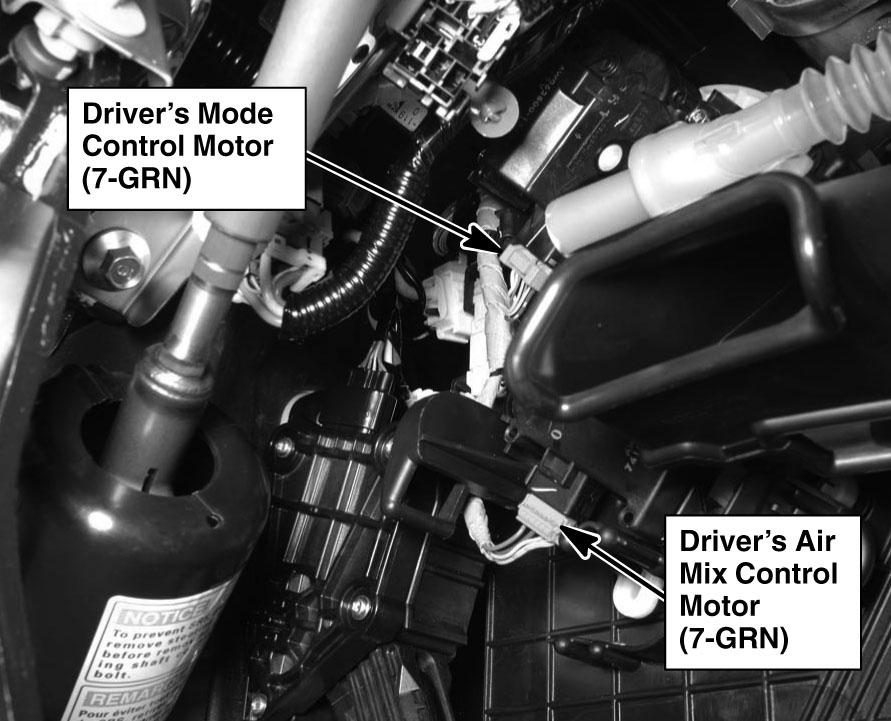

Fig 50: Under Left Side Of Dash

G00472776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

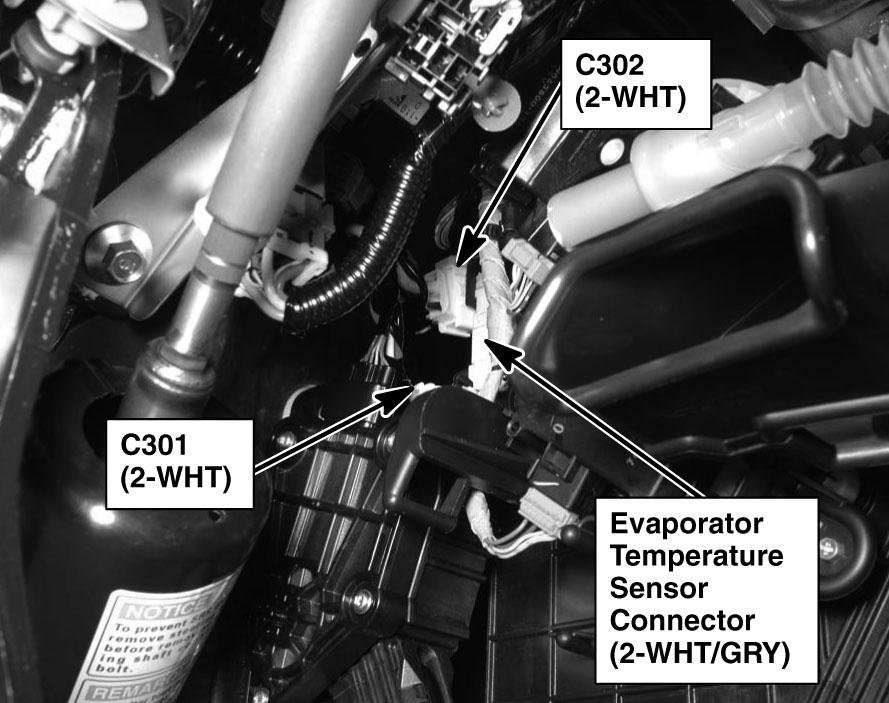

Fig 51: Under Left Side Of Dash

G00472777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

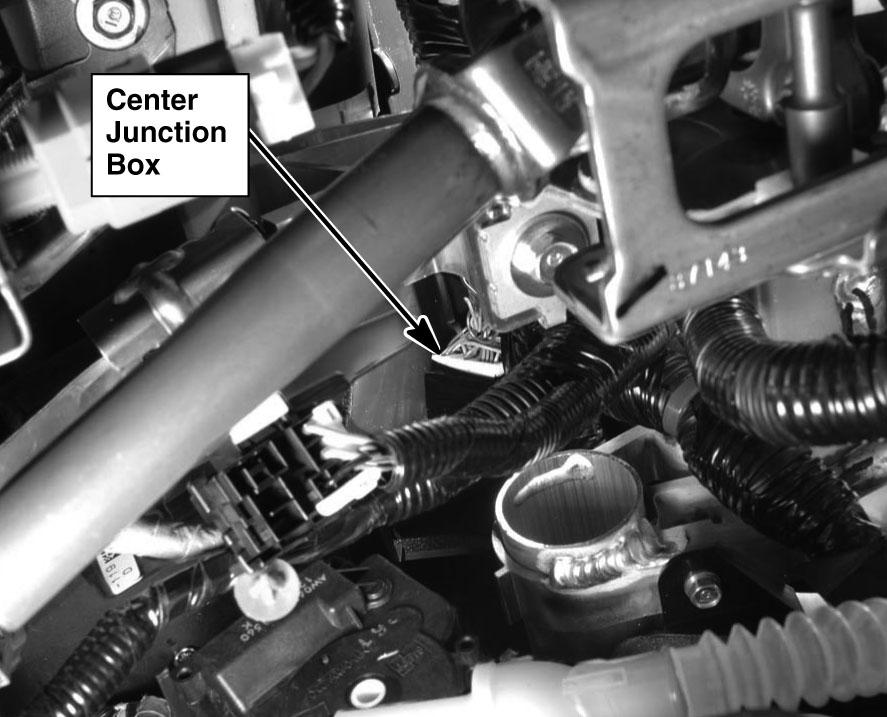

Fig 52: Under Left Side Of Dash

G00472778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

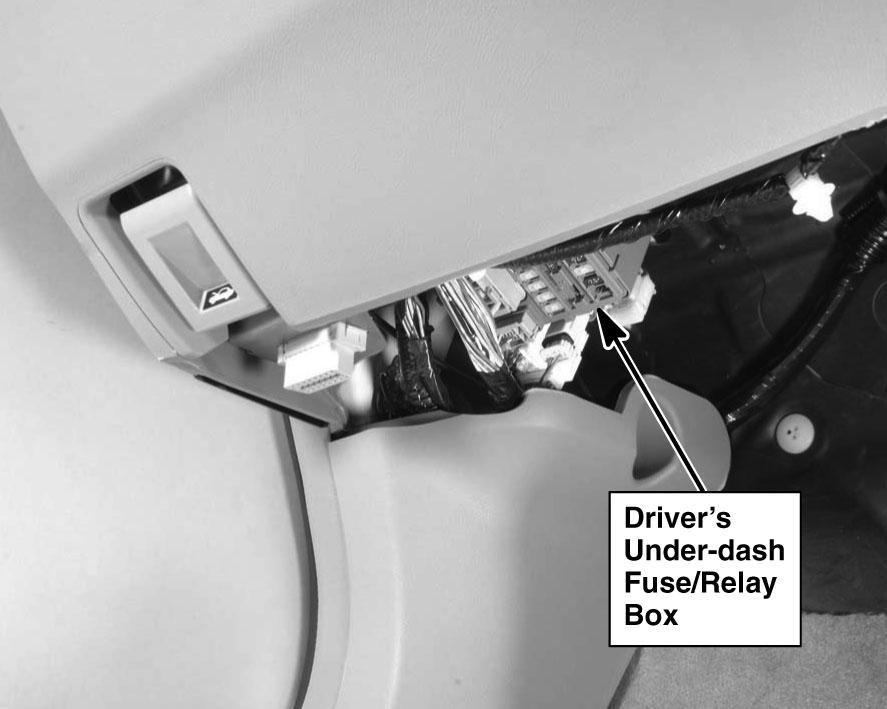

Fig 53: Under Left End Of Dash

G00472779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

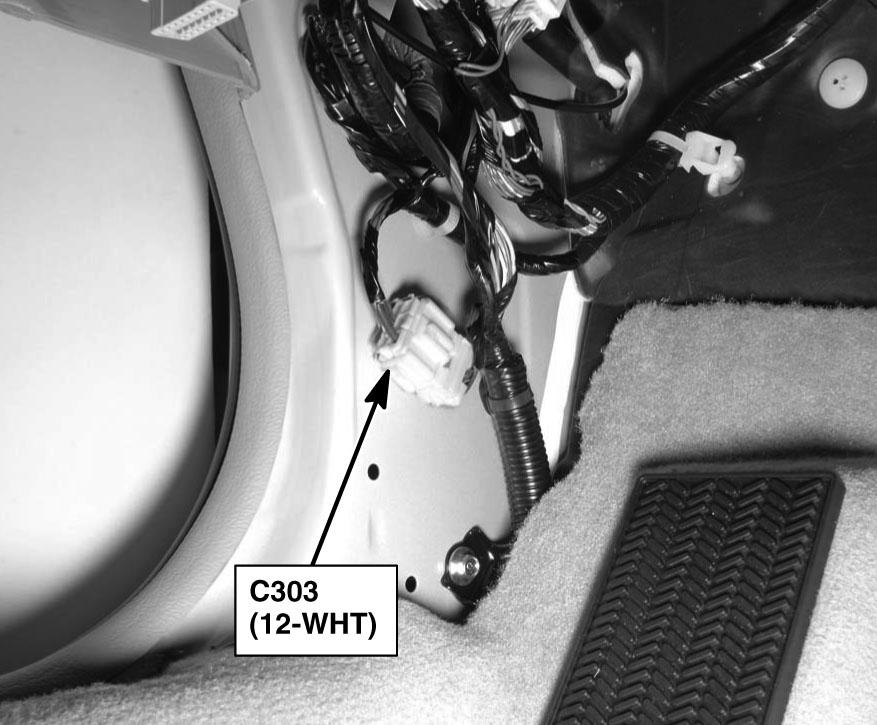

Fig 54: Behind Left Kick Panel

G00472780

Courtesy of AMERICAN HONDA MOTOR CO., INC.

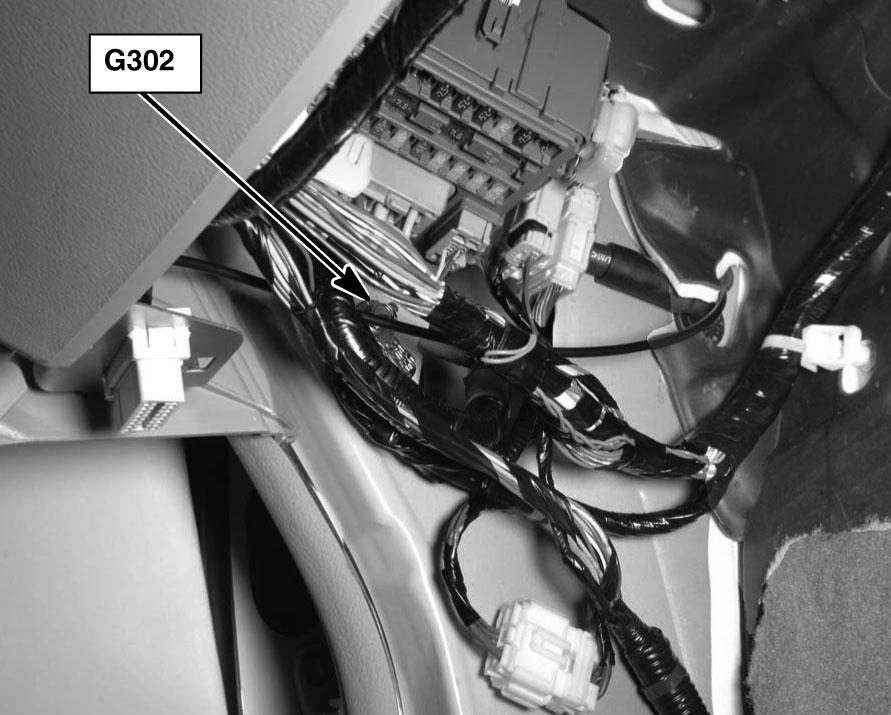

Fig 55: Behind Left Kick Panel

G00472781

Courtesy of AMERICAN HONDA MOTOR CO., INC.

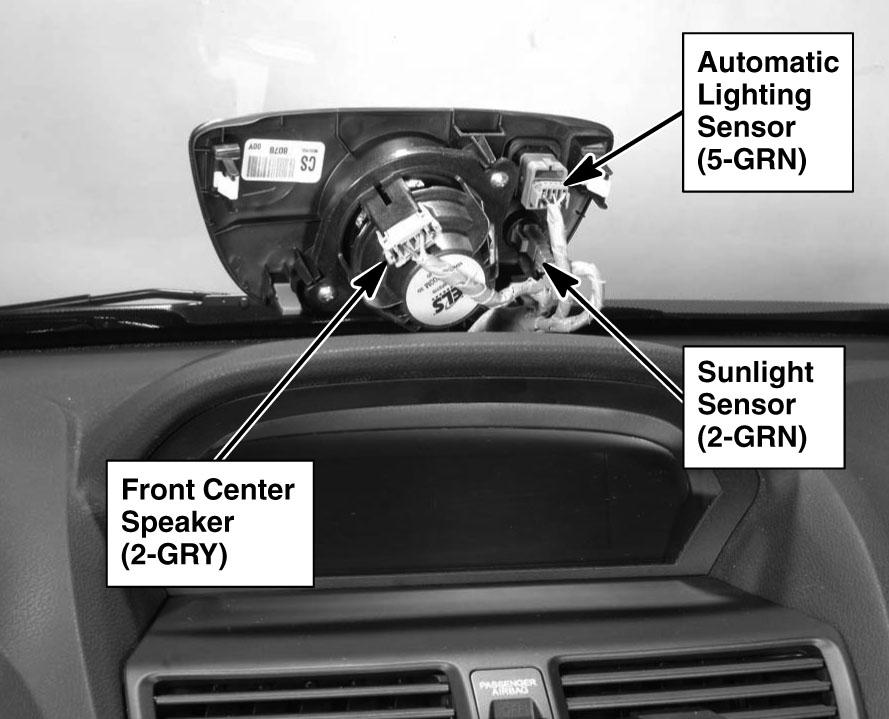

Fig 56: Center Of Dash

G00472782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

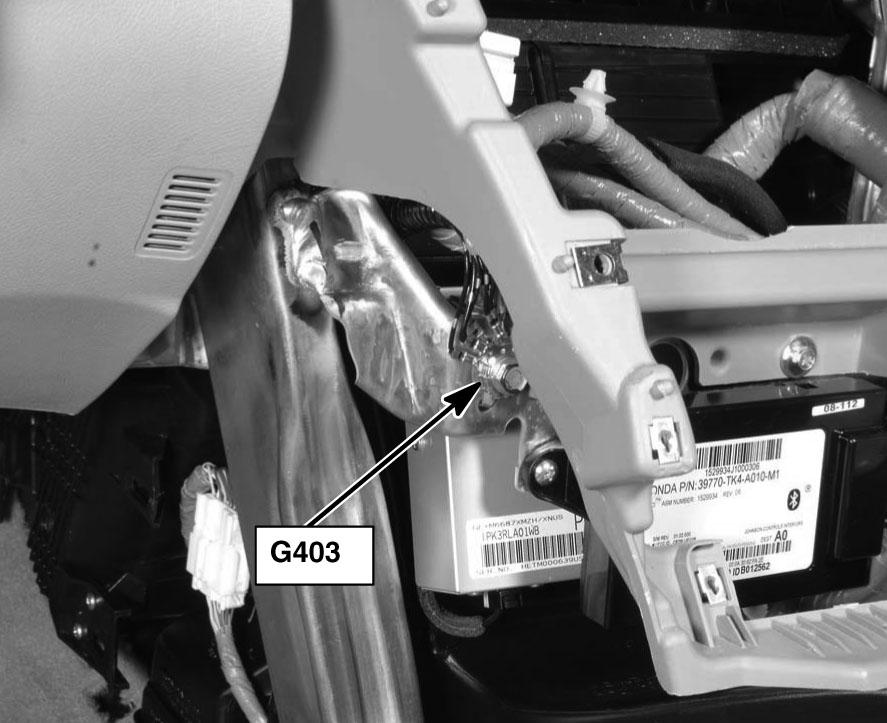

Fig 57: Behind Middle Of Dash

G00472783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

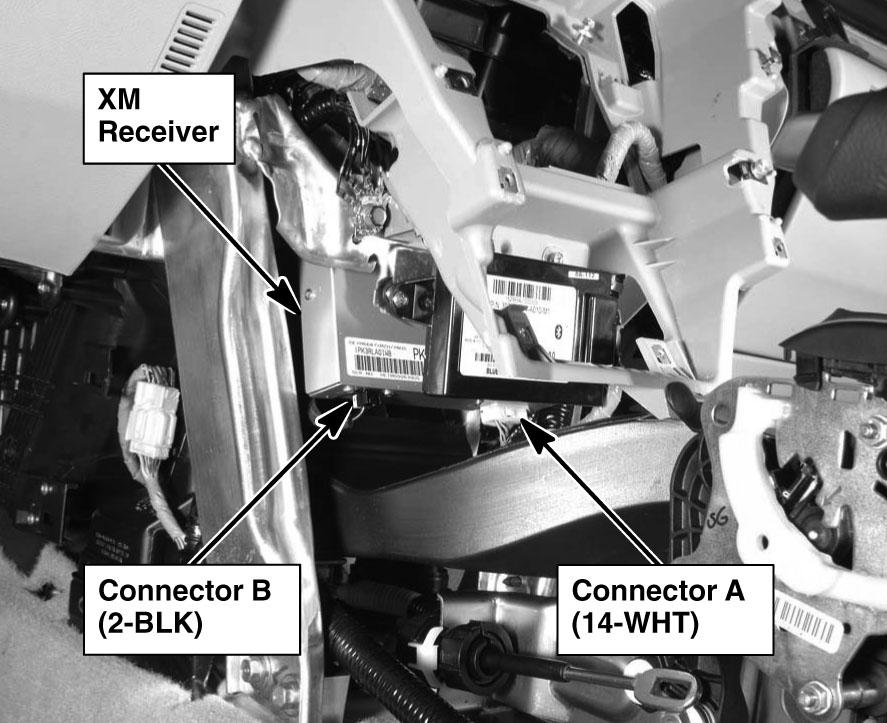

Fig 58: Behind Middle Of Dash

G00472784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

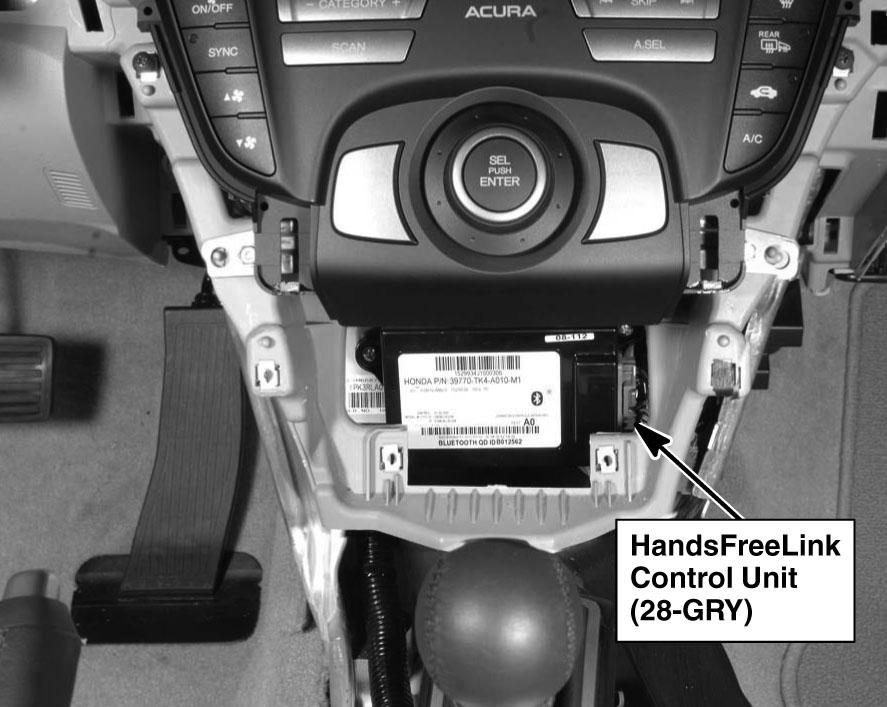

Fig 59: Behind Middle Of Dash

G00472785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

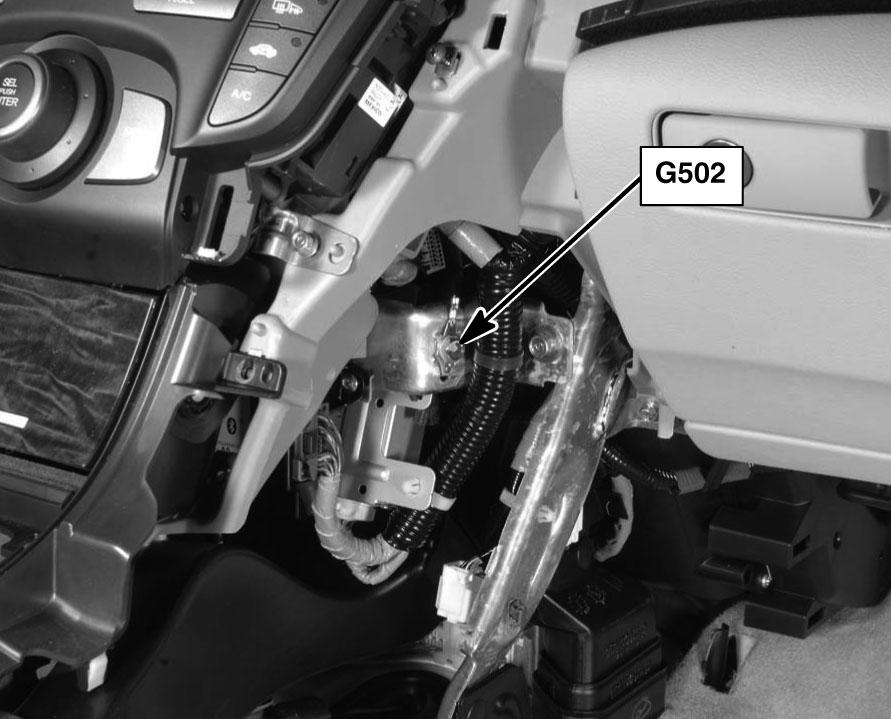

Fig 60: Behind Middle Of Dash

G00472786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

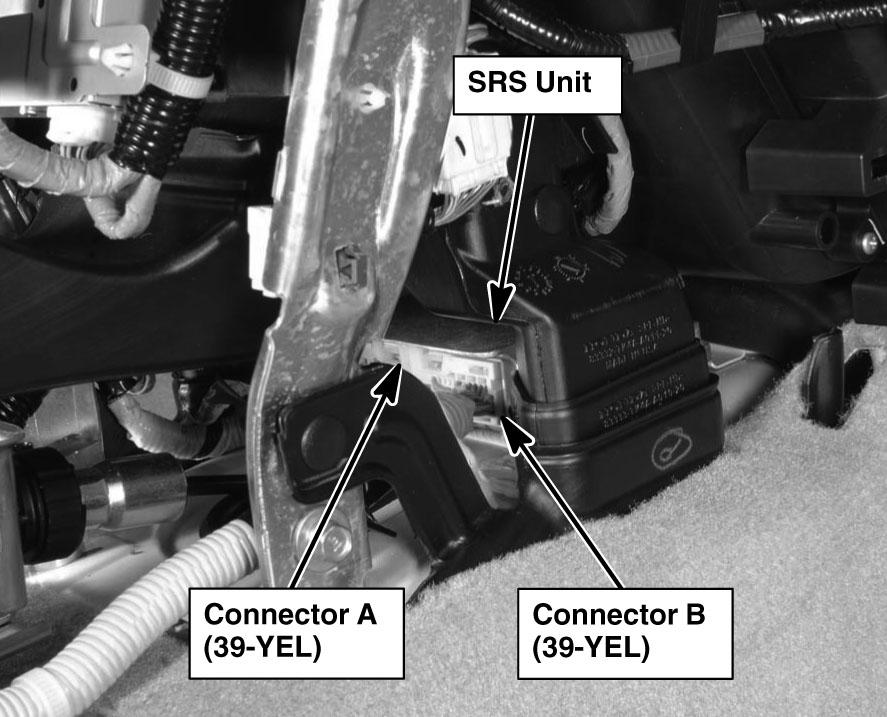

Fig 61: Behind Middle Of Dash

G00472787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

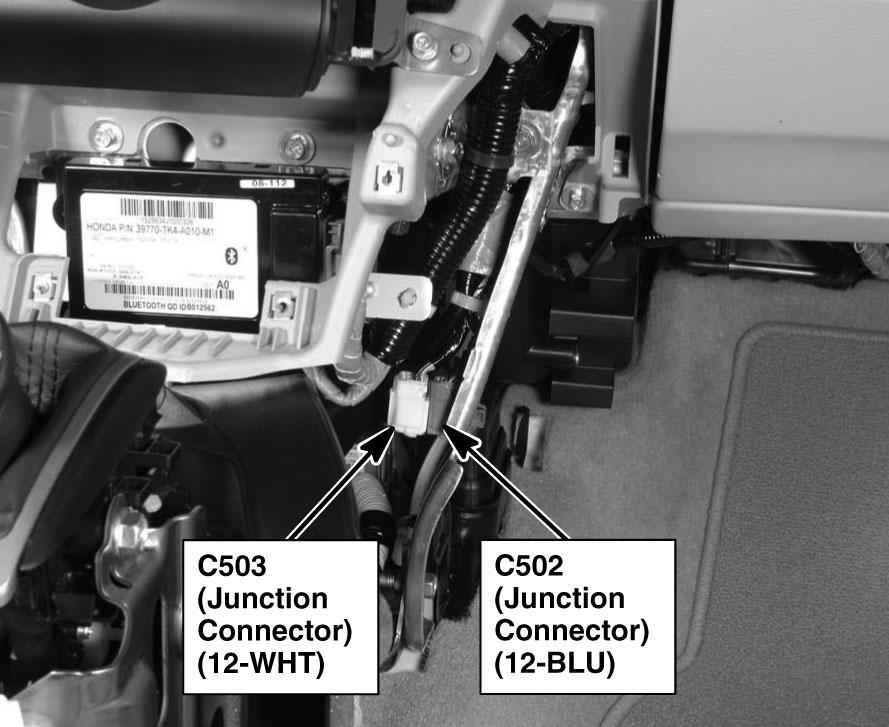

Fig 62: Behind Middle Of Dash

G00472788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

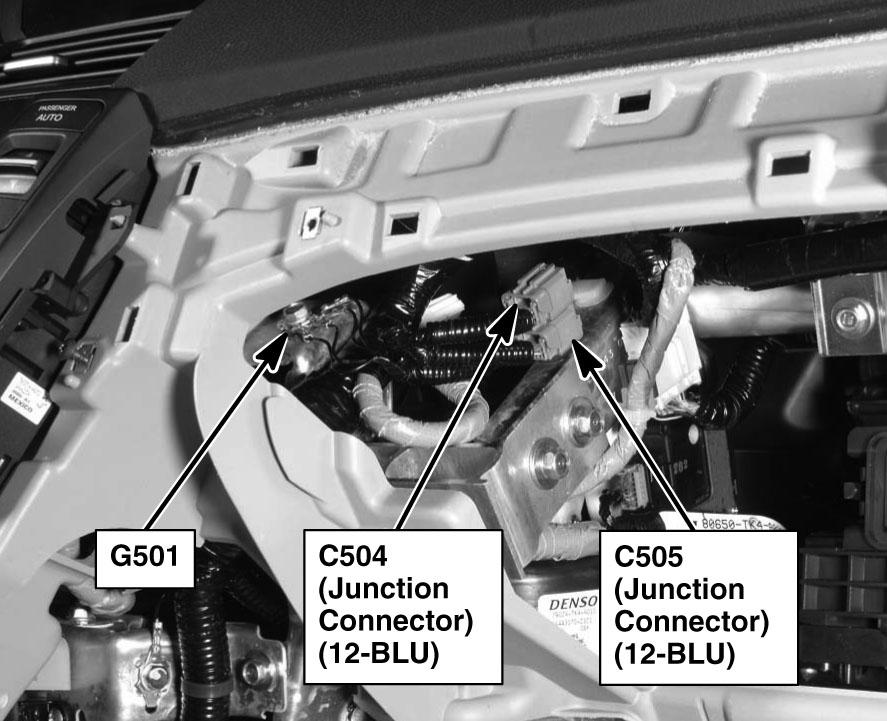

Fig 63: Behind Middle Of Dash

G00472789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

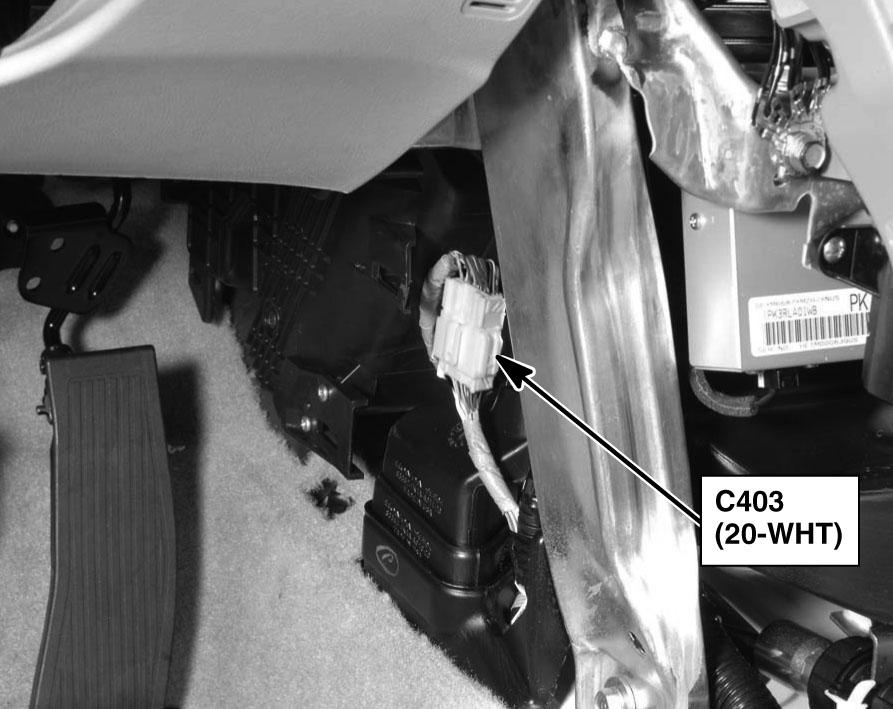

Fig 64: Under Middle Of Dash

G00472790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

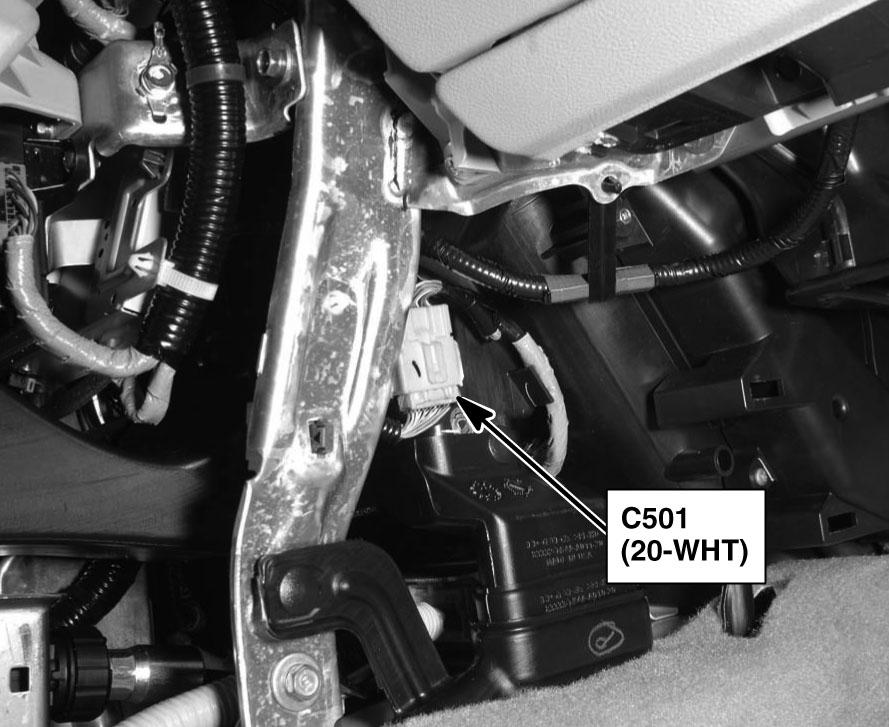

Fig 65: Under Middle Of Dash

G00472791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

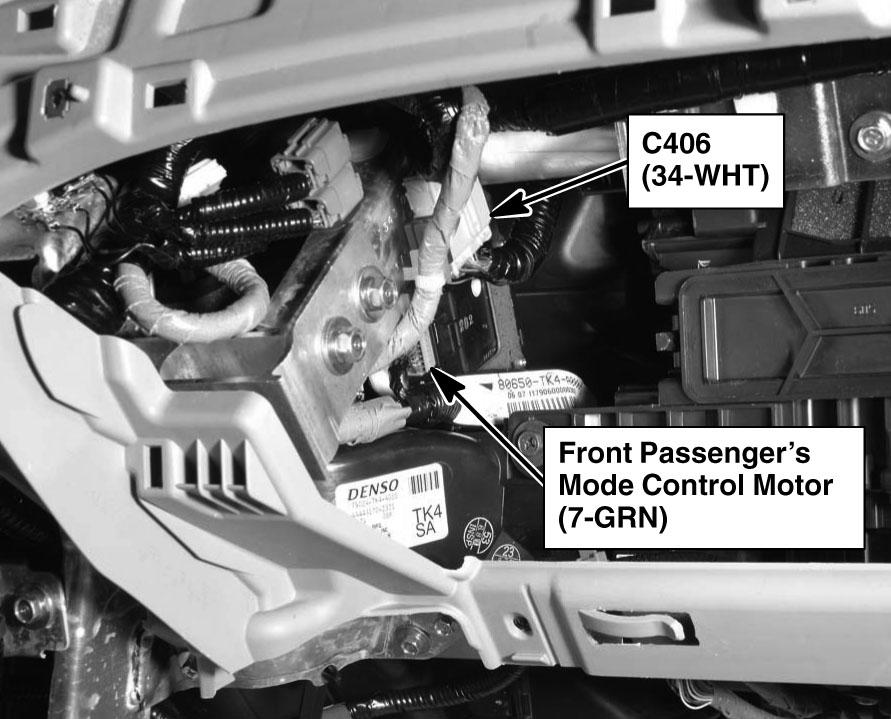

Fig 66: Behind Glove Box

G00472792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

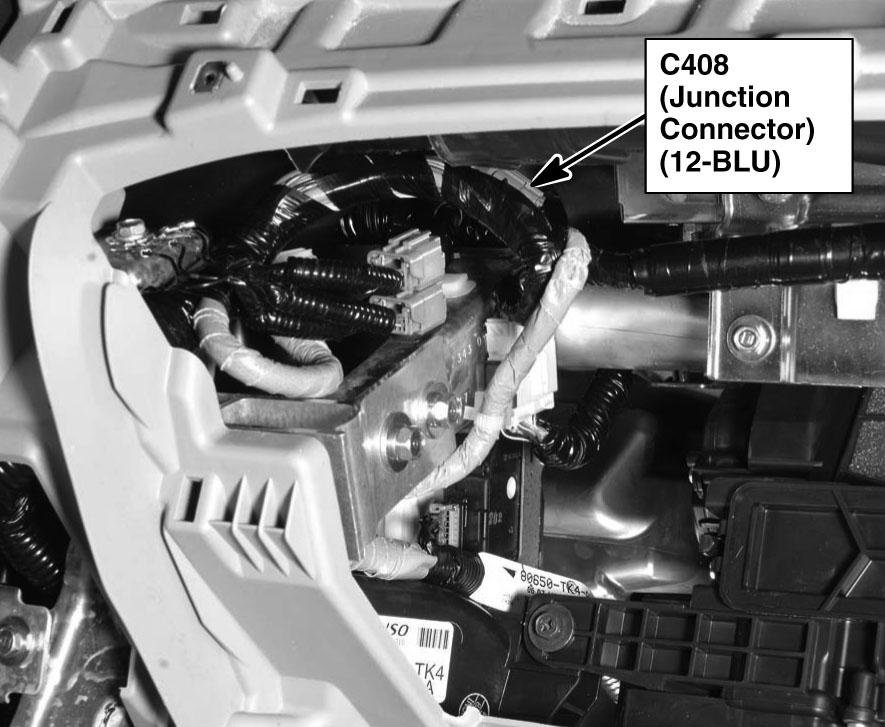

Fig 67: Behind Glove Box

G00472793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

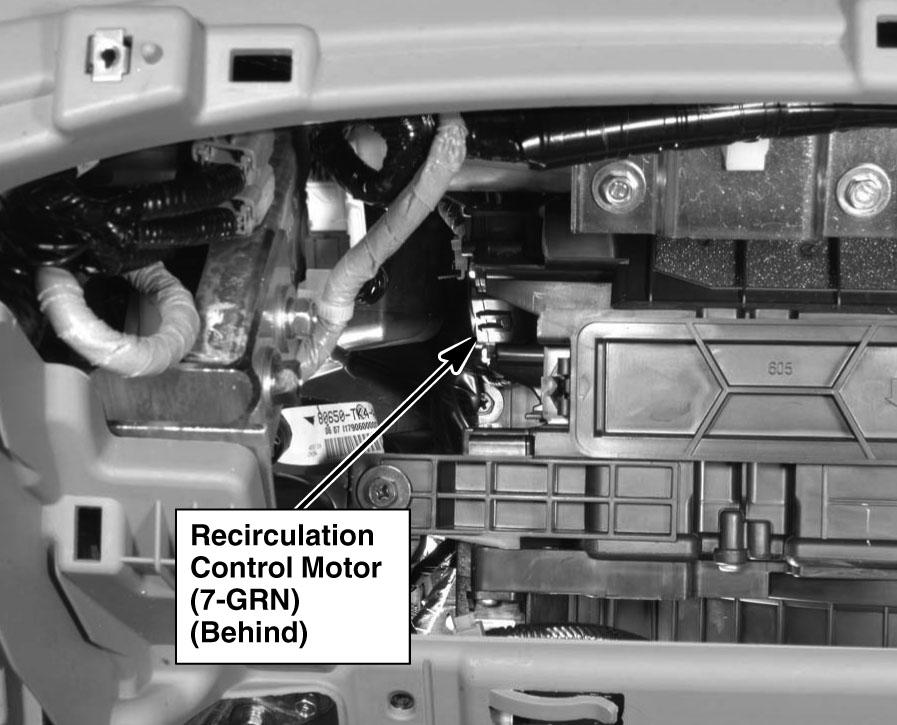

Fig 68: Behind Glove Box

G00472794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

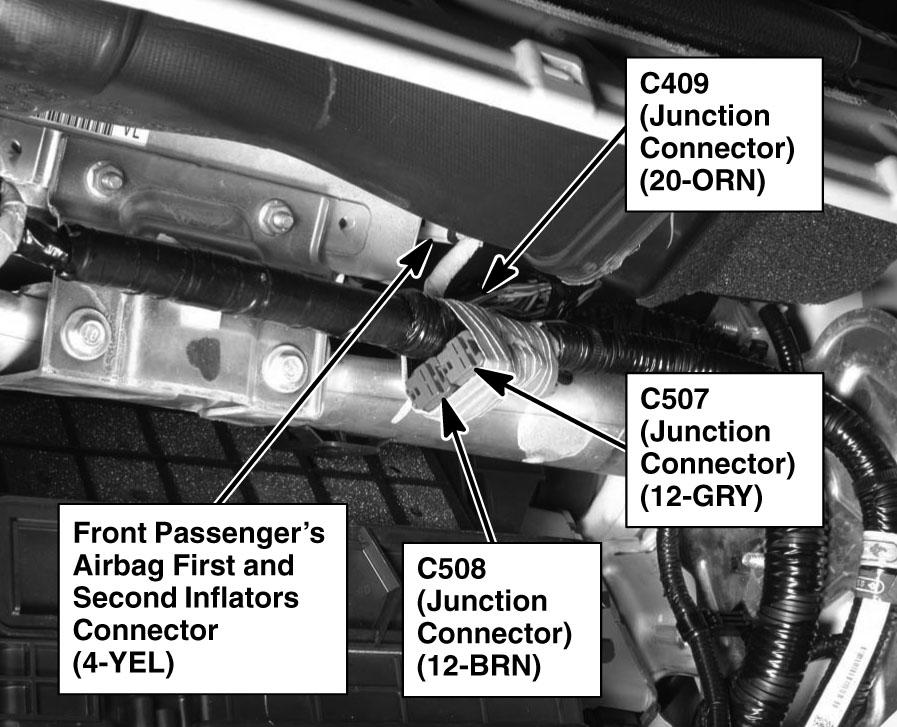

Fig 69: Behind Glove Box

G00472795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

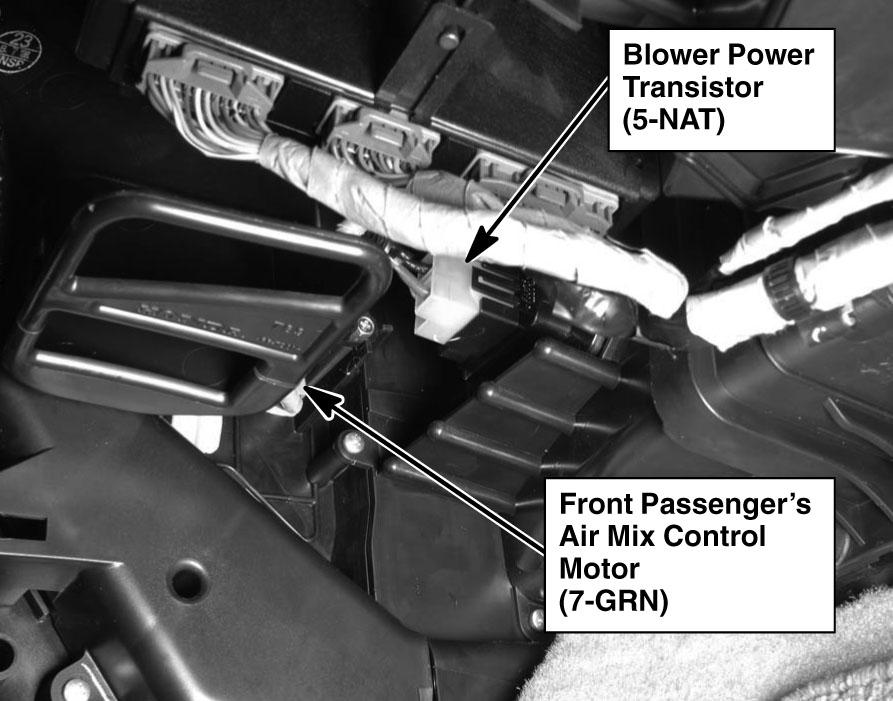

Fig 70: Under Right Side Of Dash

G00472796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Under Right Side Of Dash

G00472797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

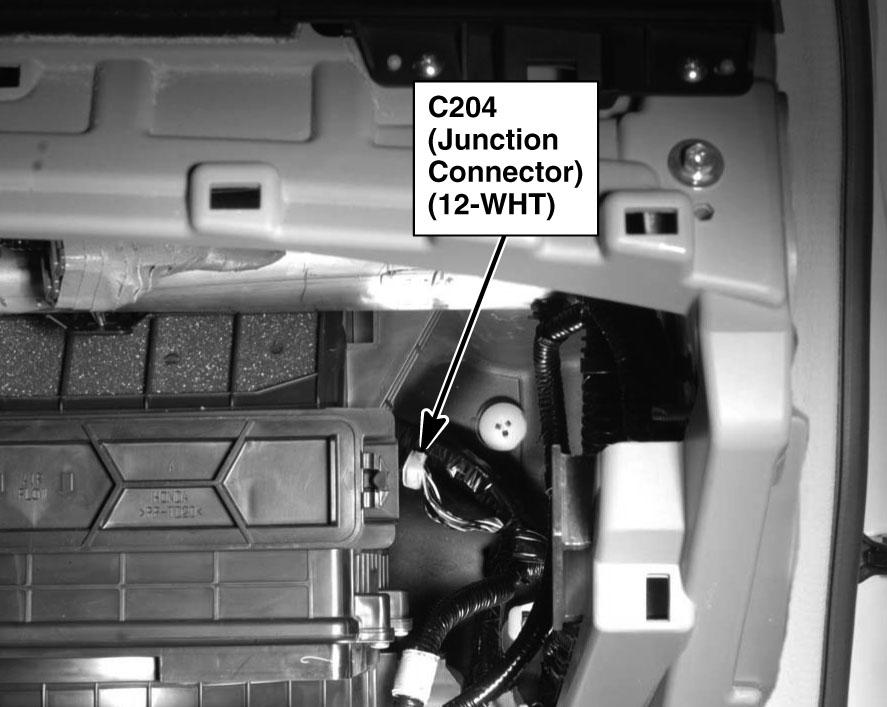

Fig 72: Under Right Side Of Dash

G00472798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

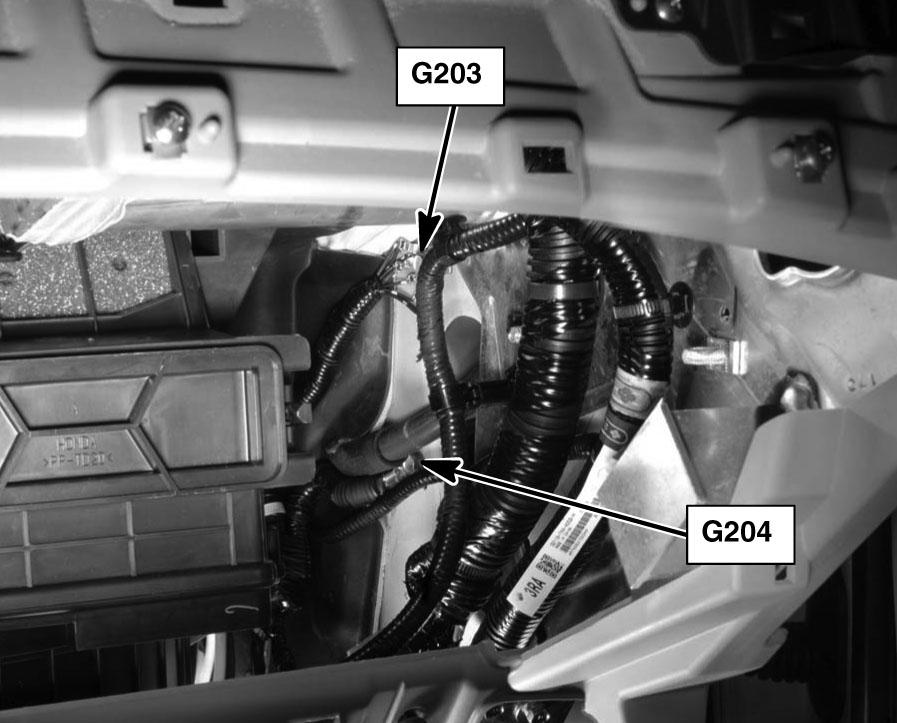

Fig 73: Behind Right Side Of Dash

G00472799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

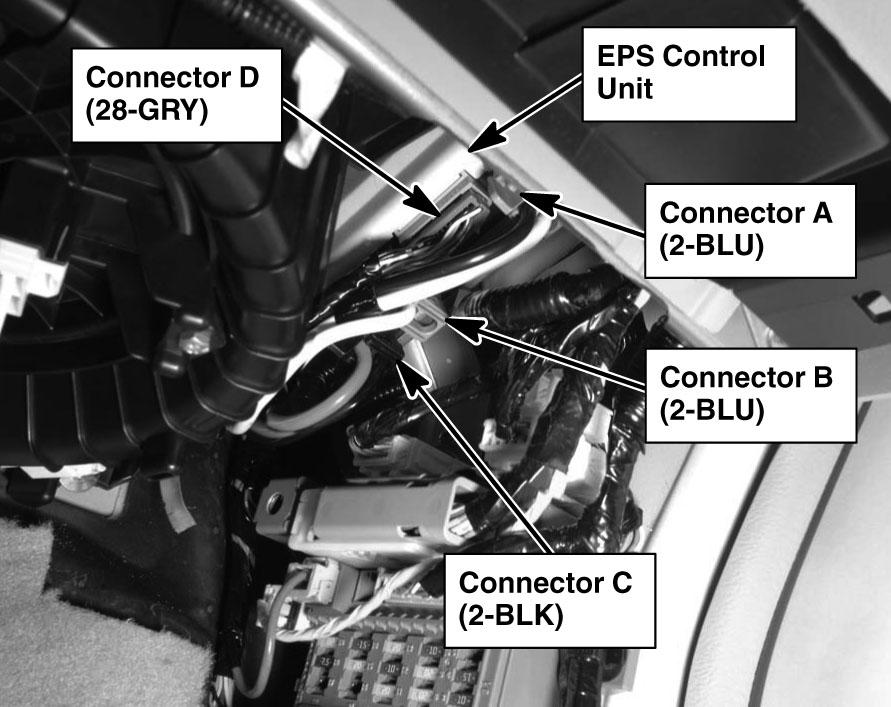

Fig 74: Under Right Side Of Dash

G00472800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

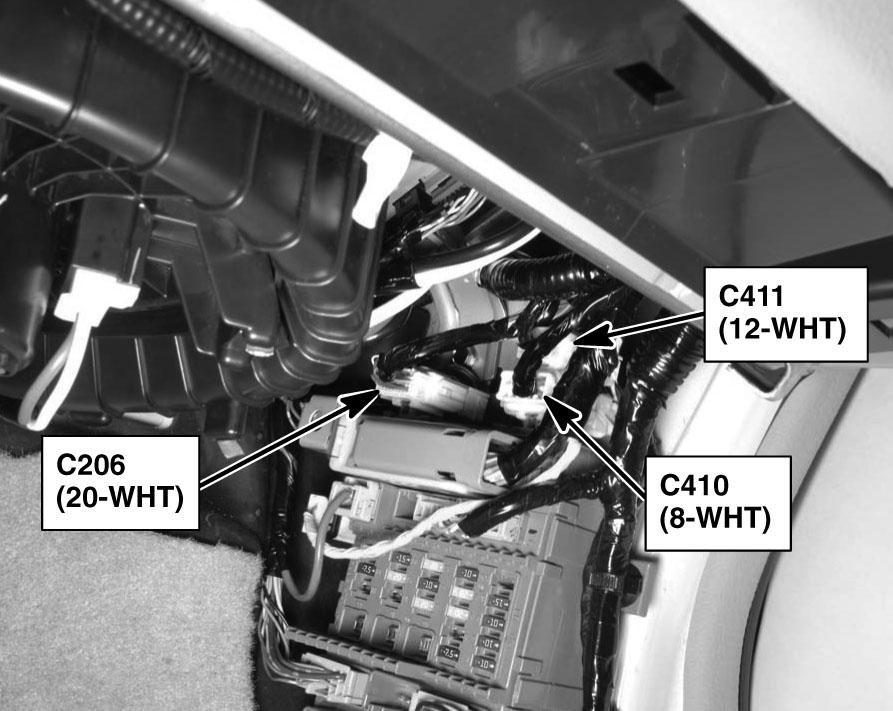

Fig 75: Under Right Side Of Dash

G00472801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

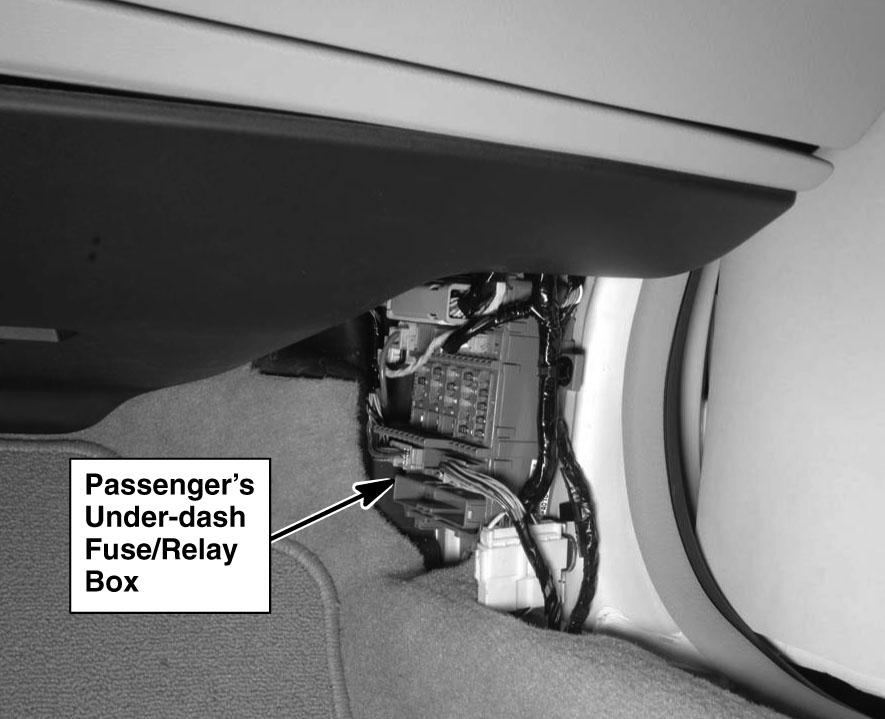

Fig 76: Behind Right Kick Panel

G00472802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

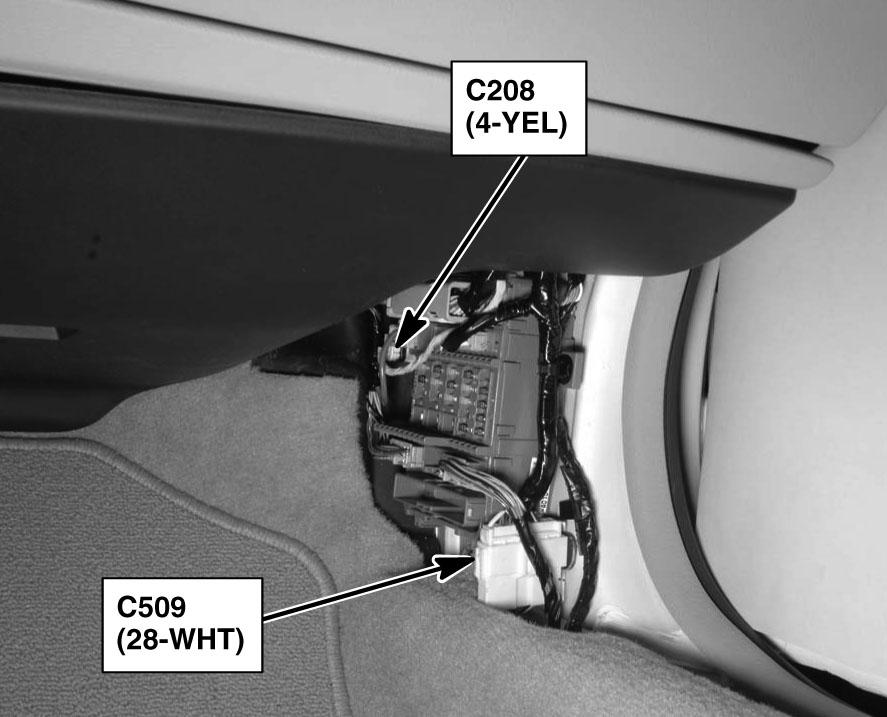

Fig 77: Behind Right Kick Panel

G00472803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

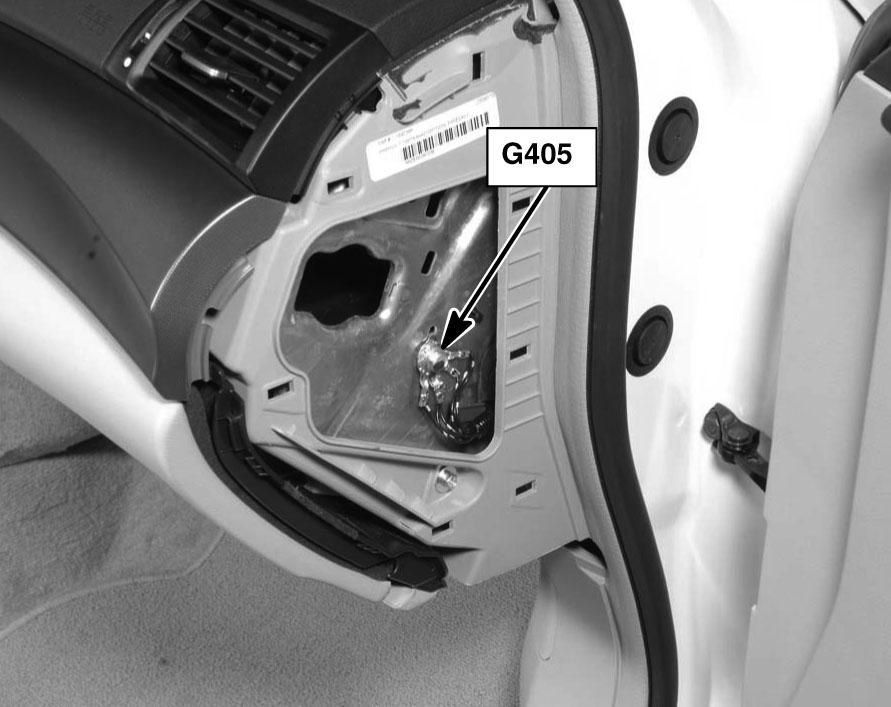

Fig 78: Right End Of Dash

G00472804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

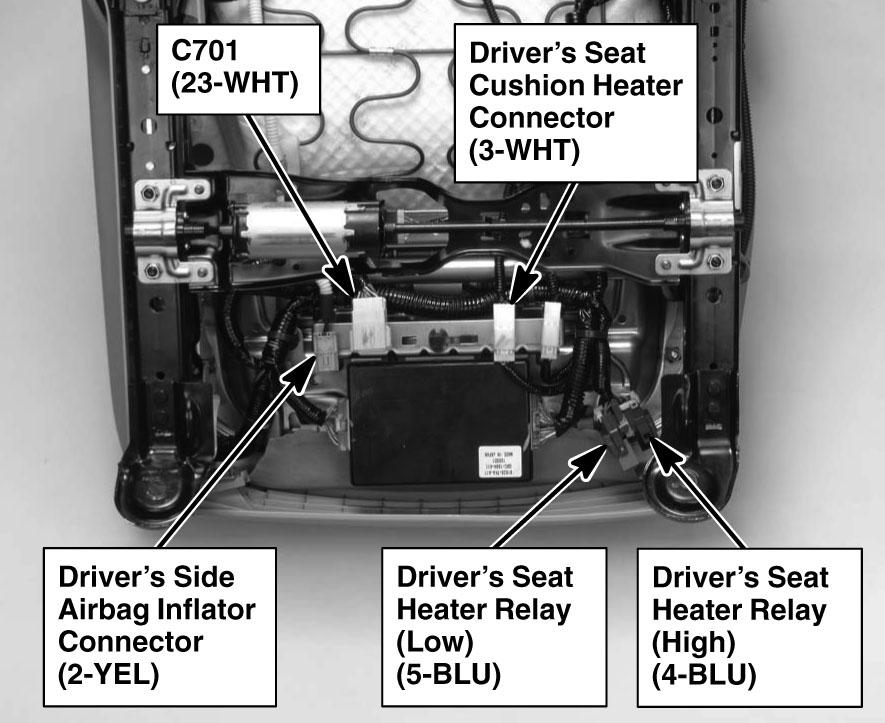

Fig 79: Under Driver's Seat

G00472805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

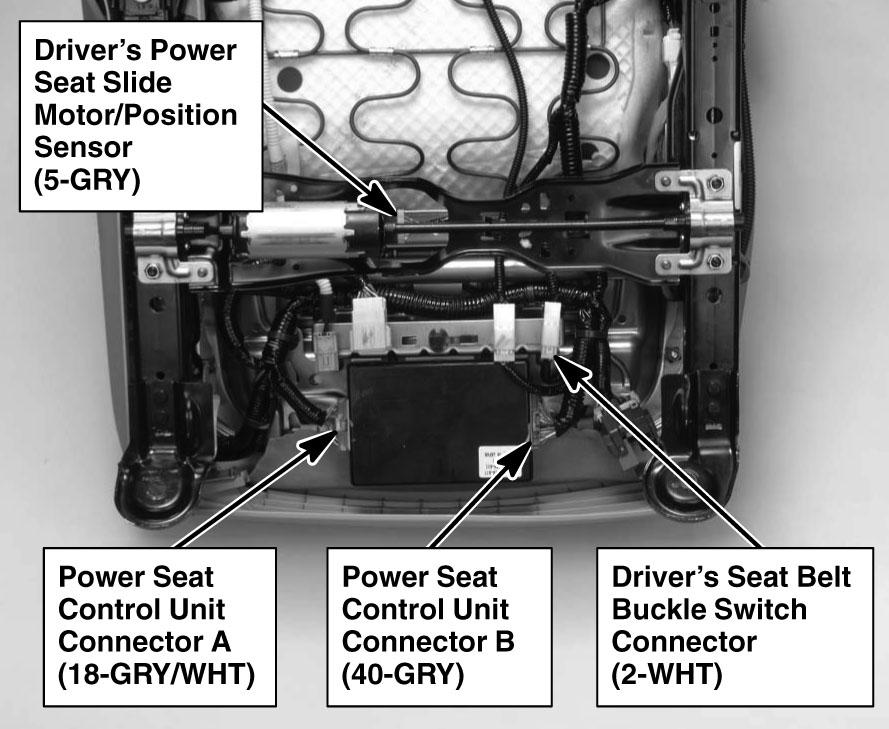

Fig 80: Under Driver's Seat

G00472806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

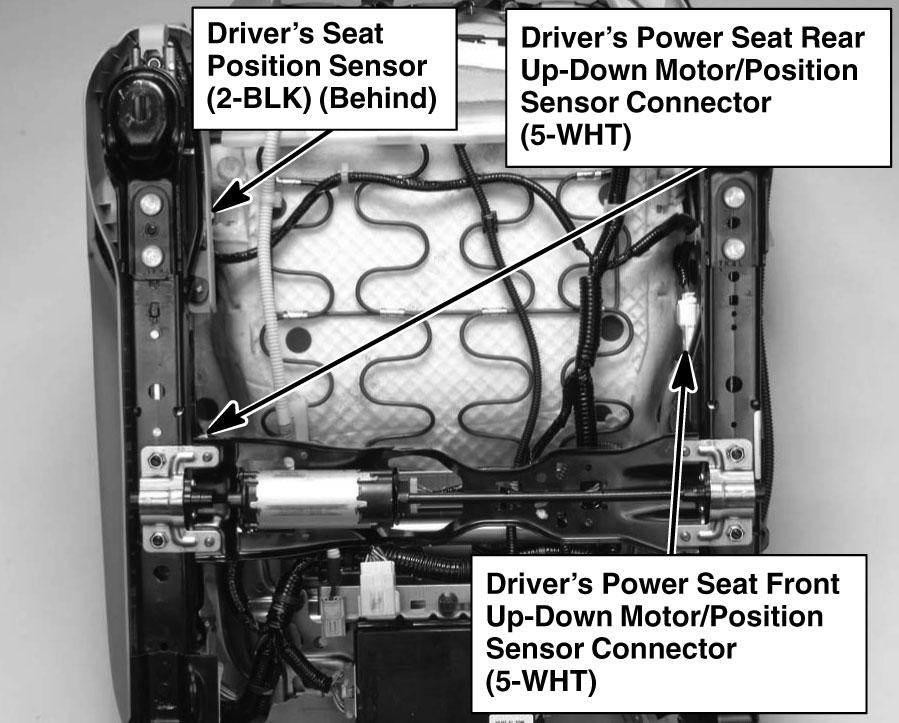

Fig 81: Under Driver's Seat

G00472807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

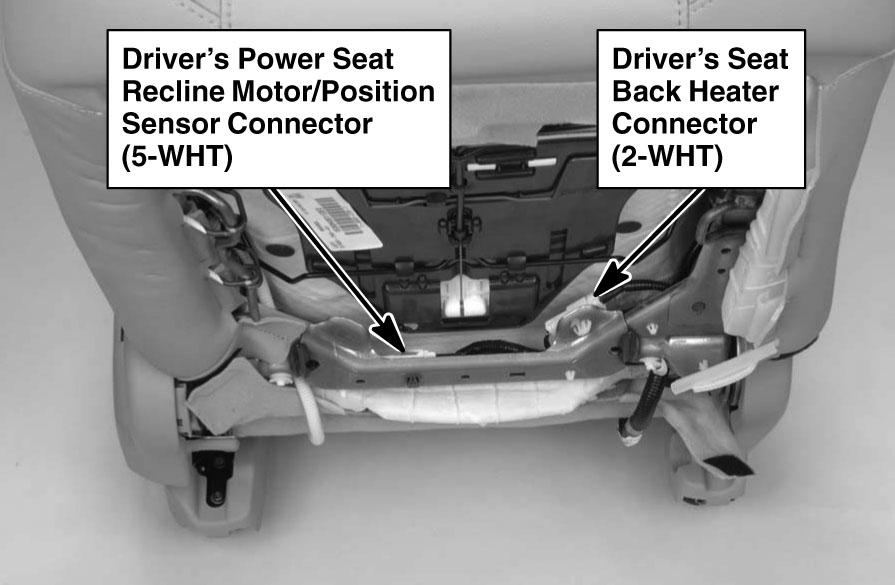

Fig 82: Driver's Seat Back

G00472808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

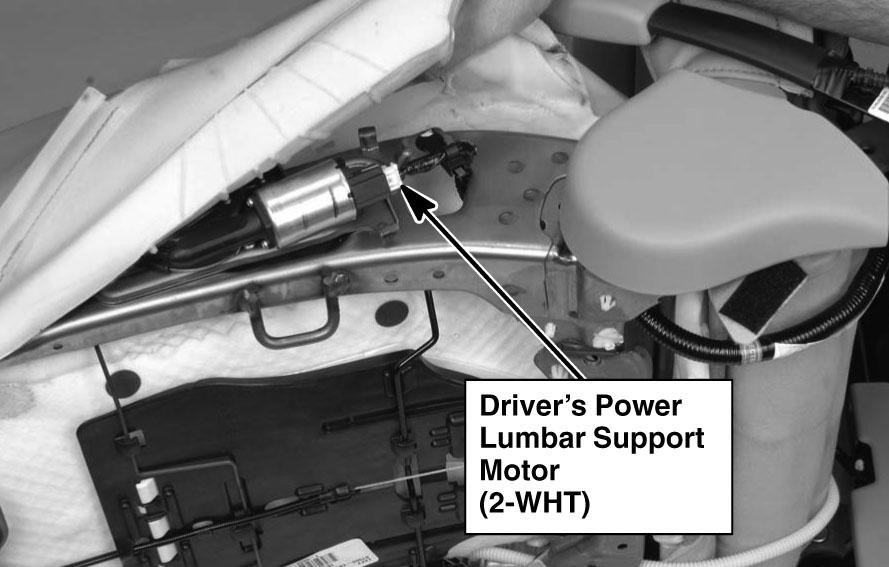

Fig 83: Driver's Seat Back

G00472809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

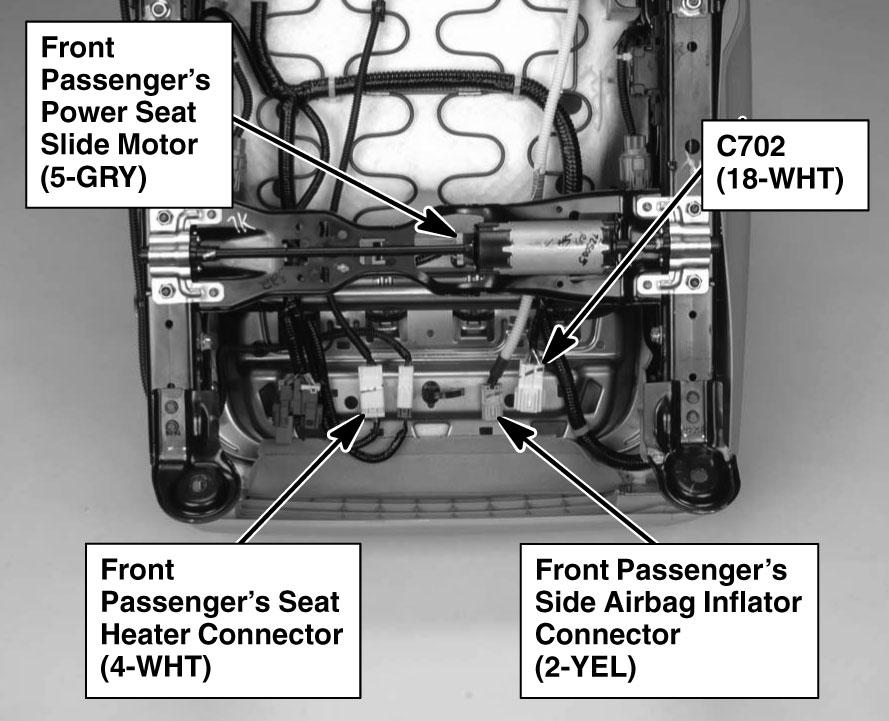

Fig 84: Under Front Passenger's Seat

G00472810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

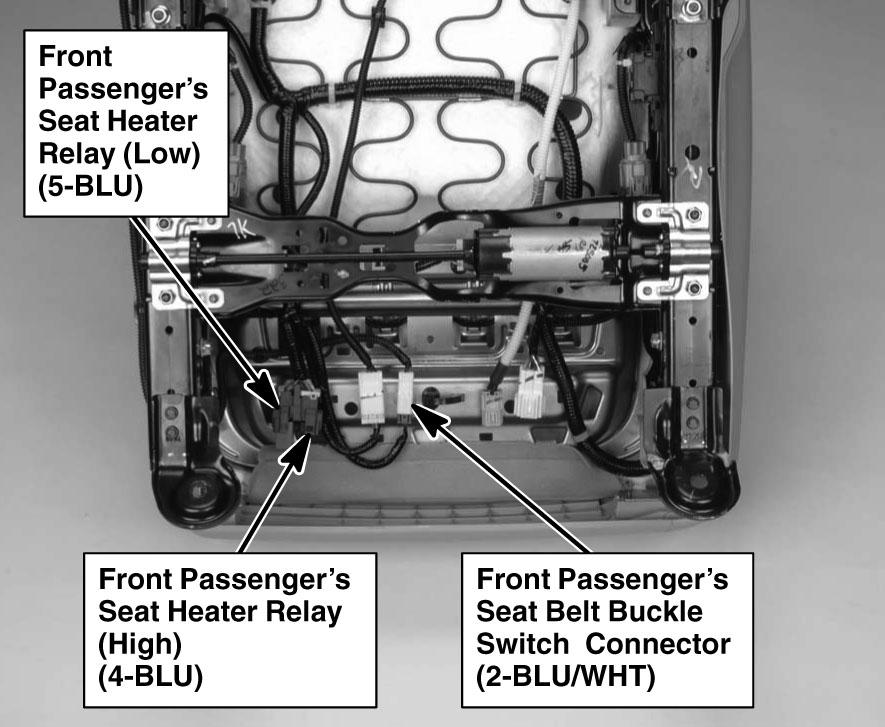

Fig 85: Under Front Passenger's Seat

G00472811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

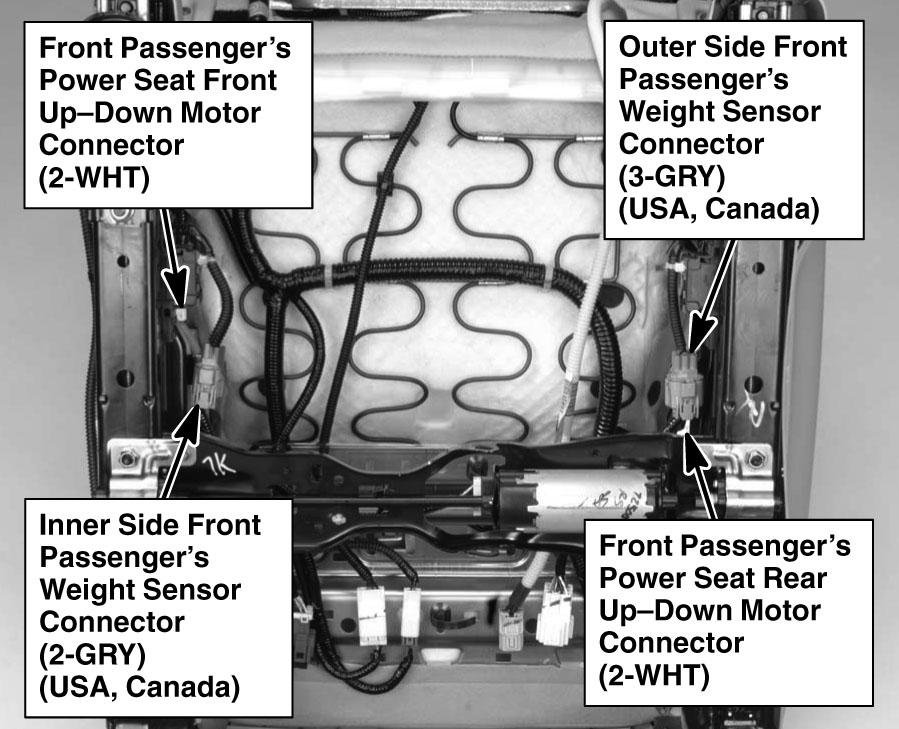

Fig 86: Under Front Passenger's Seat

G00472812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

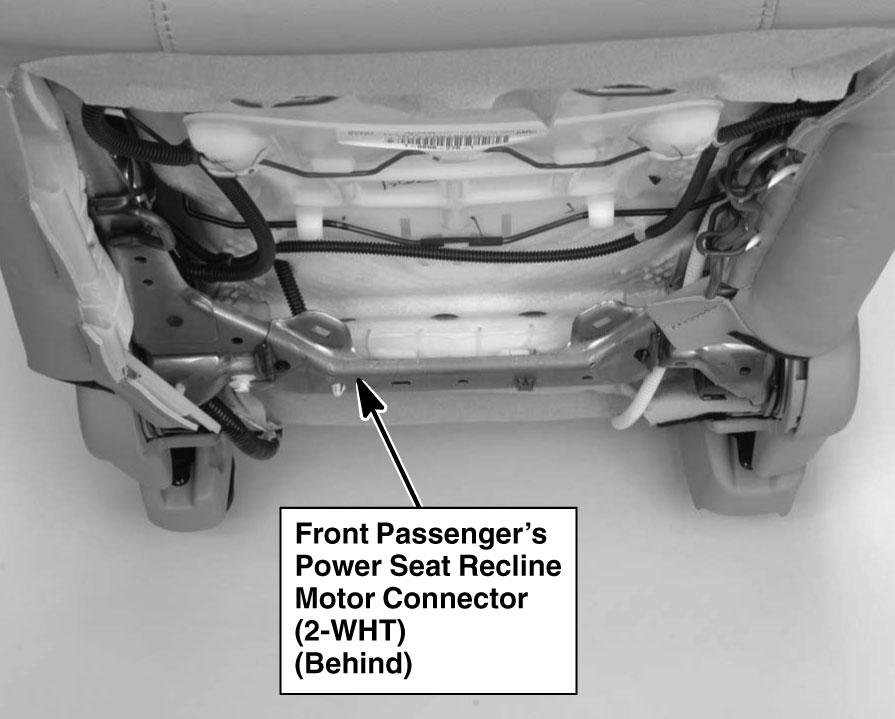

Fig 87: Front Passenger's Seat Back

G00472813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

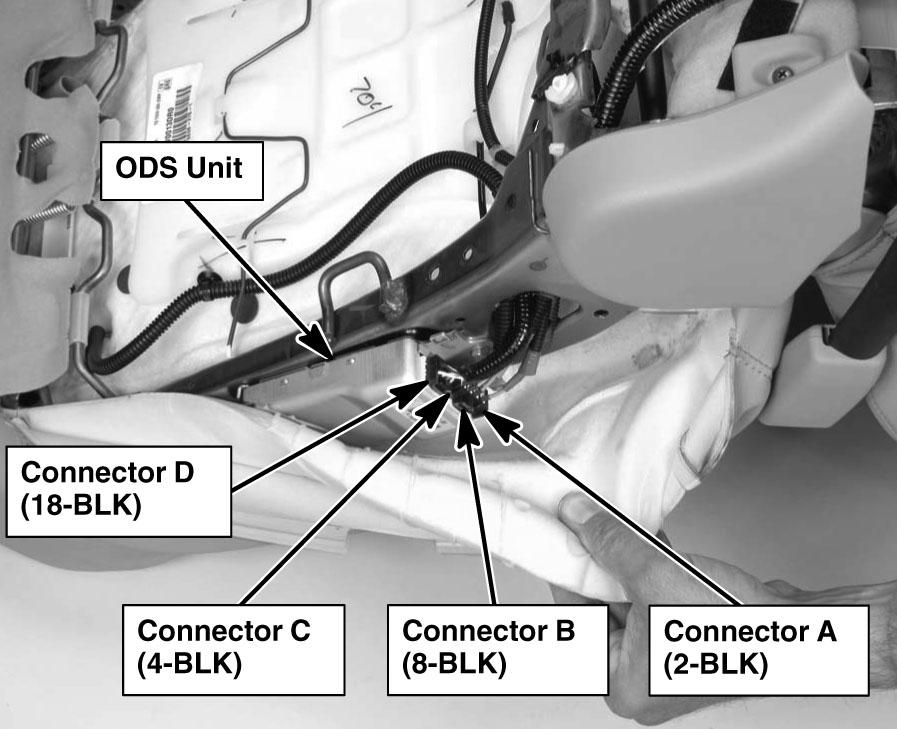

Fig 88: Front Passenger's Seat Back

G00472814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

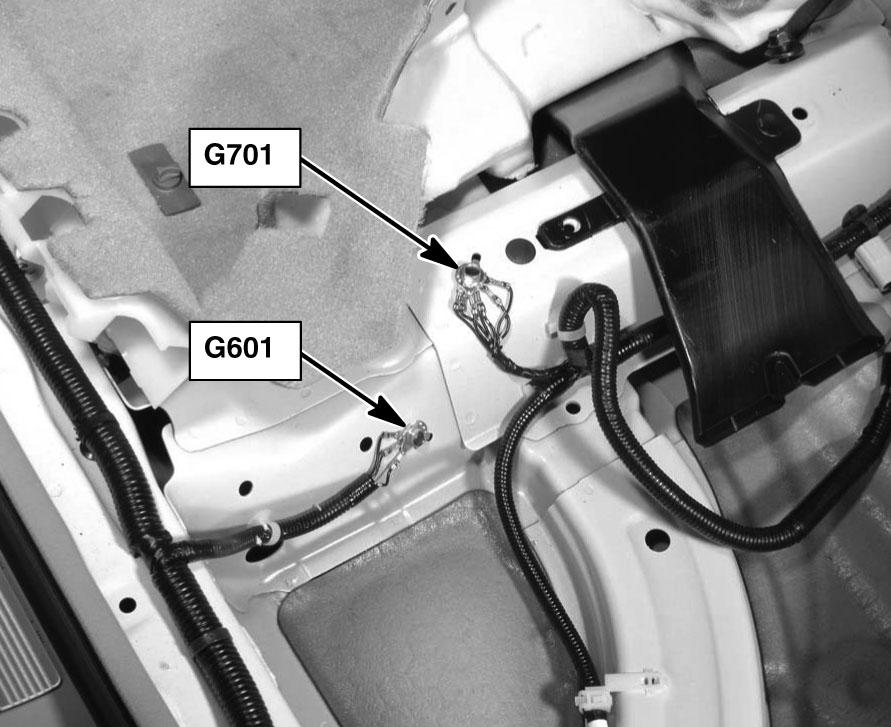

Fig 89: Left Side Of Floor

G00472815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

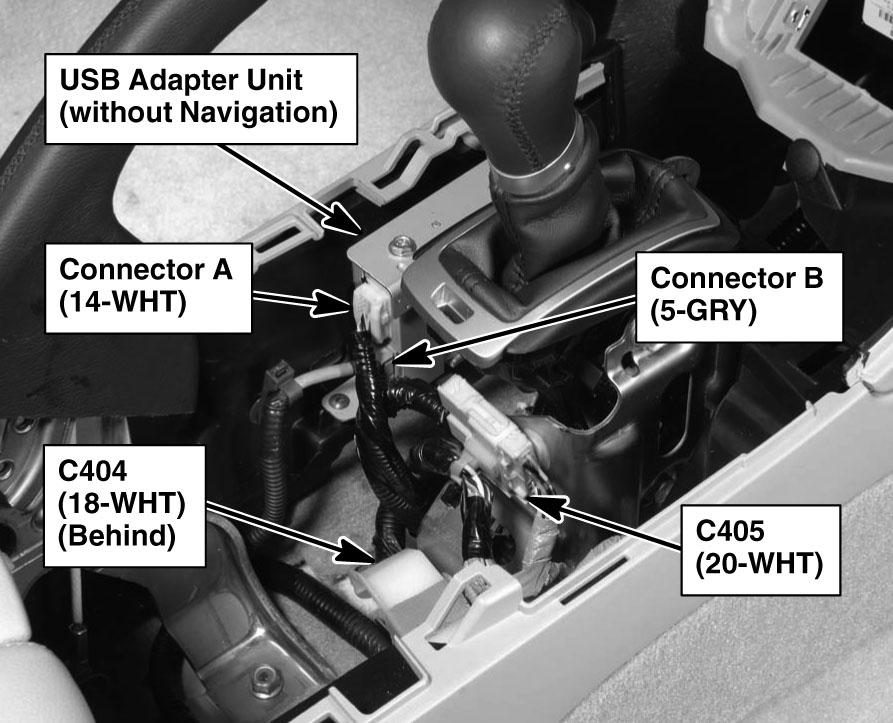

Fig 90: Under Center Console

G00472816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

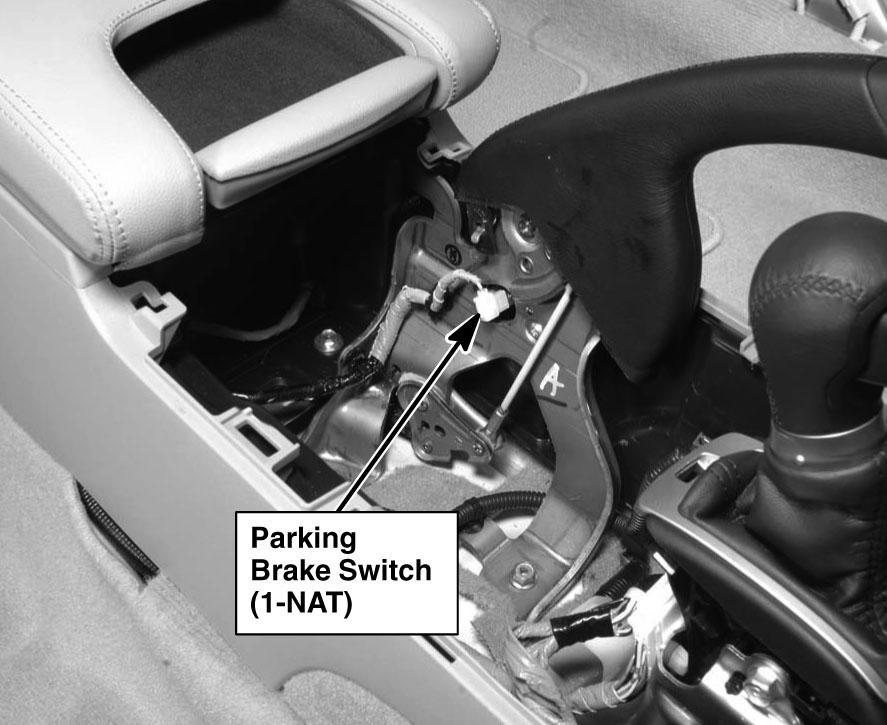

Fig 91: Under Center Console

G00472817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

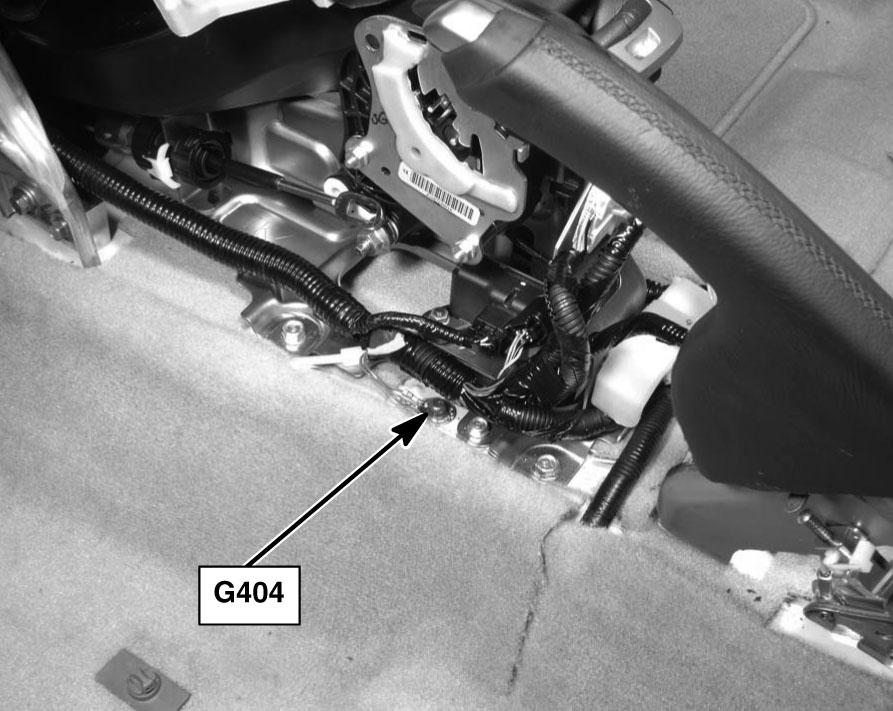

Fig 92: Under Center Console

G00472818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

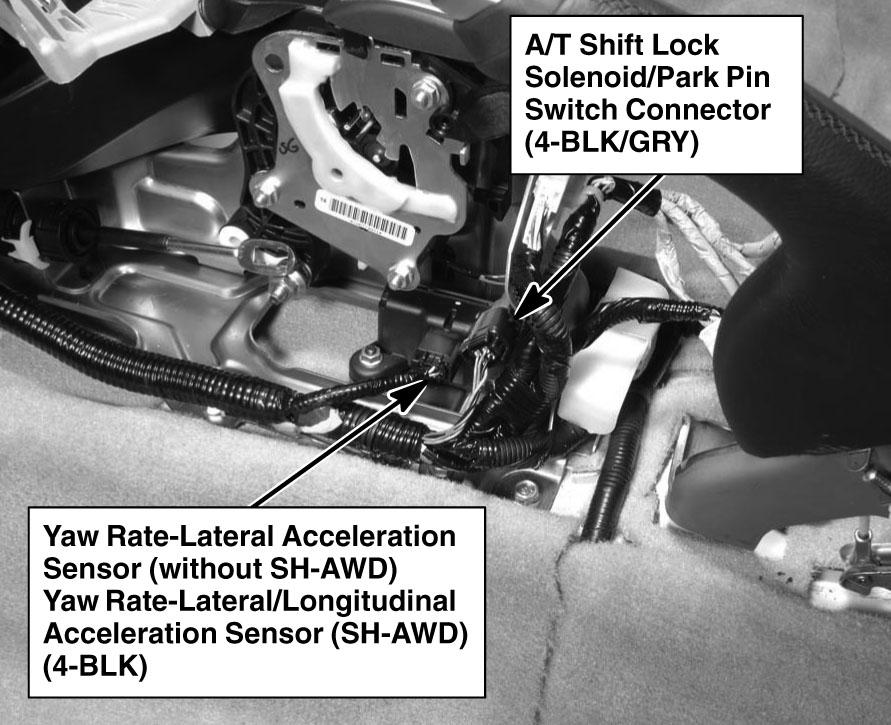

Fig 93: Under Center Console

G00472819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

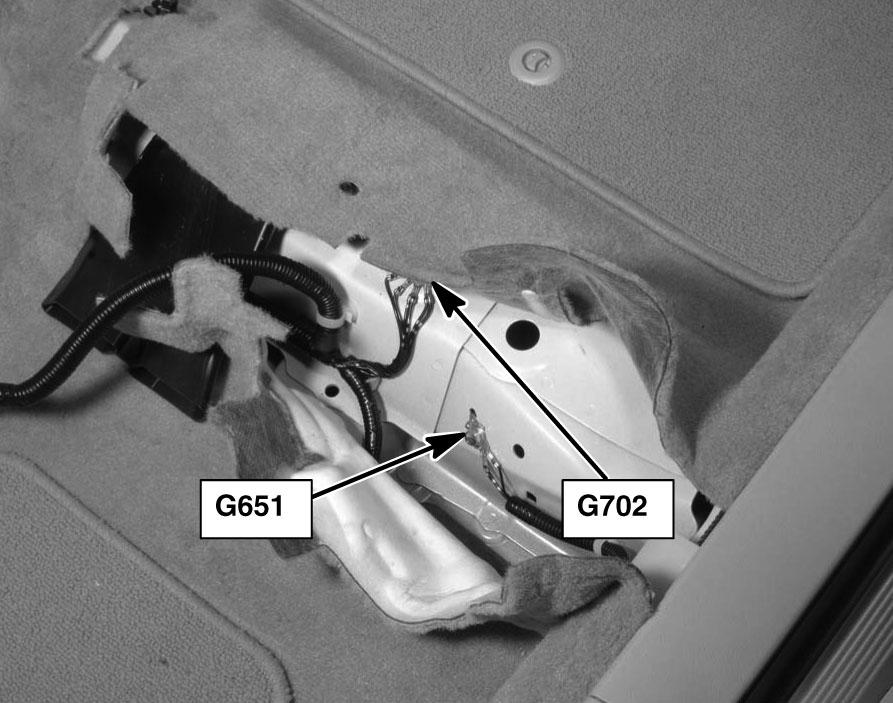

Fig 94: Right Side Of Floor

G00472820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

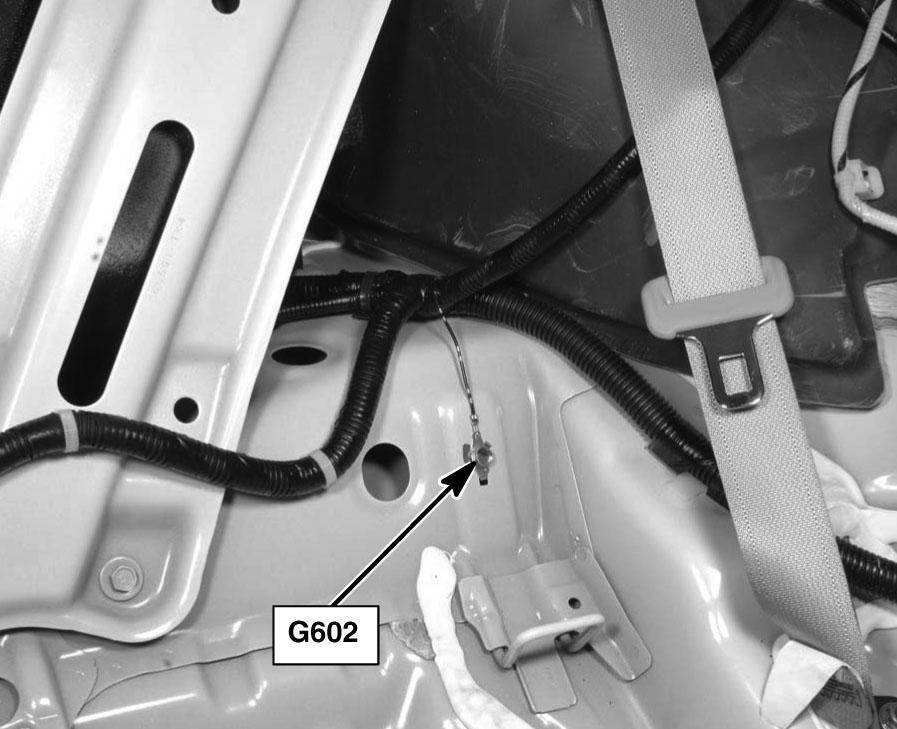

Fig 95: Left Rear Of Floor

G00472821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

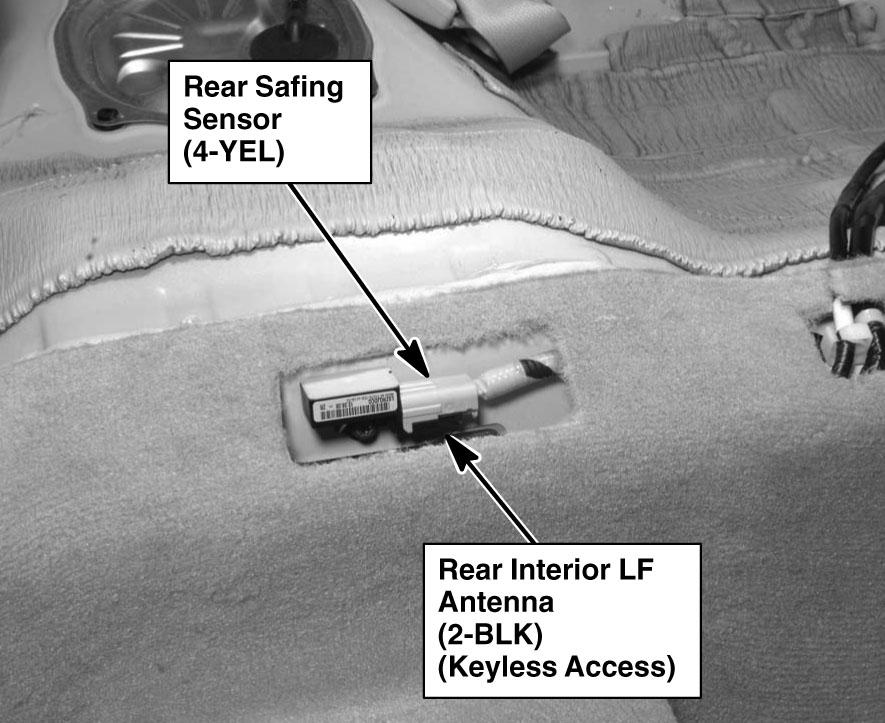

Fig 96: Rear Floor

G00472822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

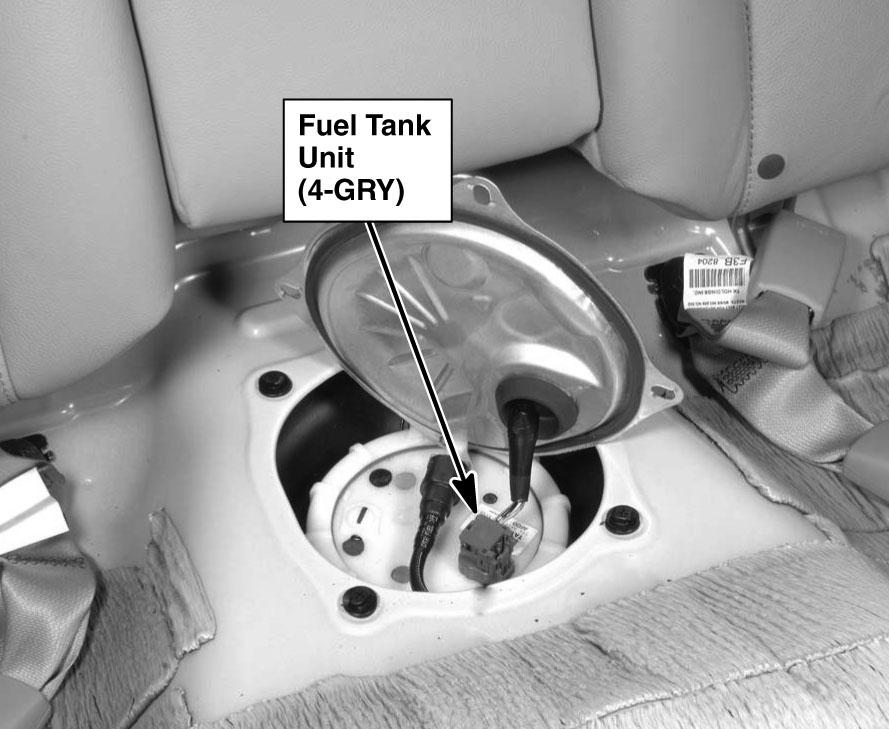

Fig 97: Center Of Rear Floor

G00472823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

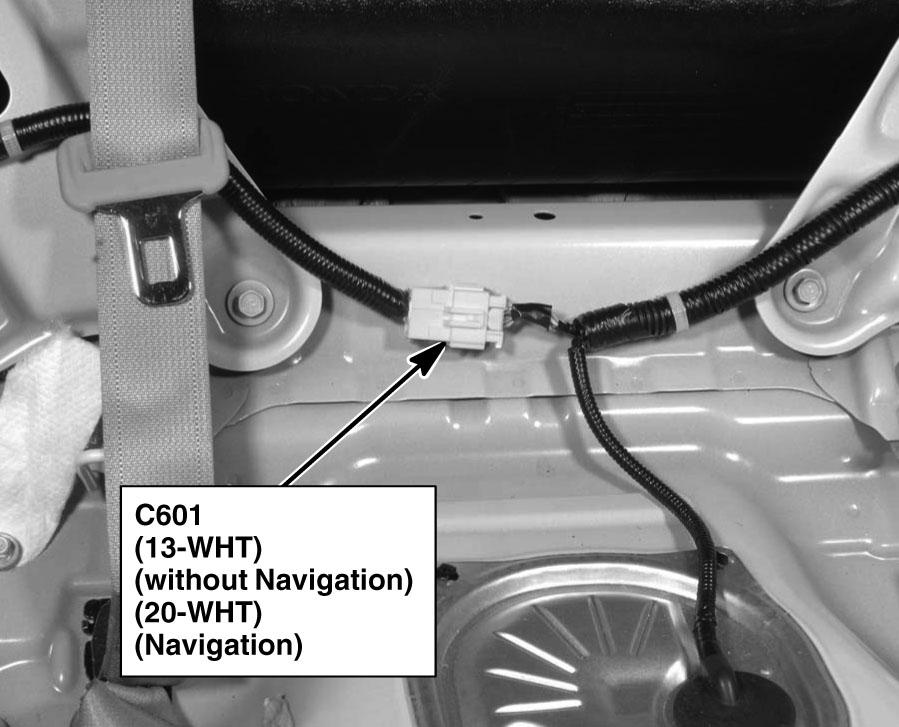

Fig 98: Rear Floor

G00472824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

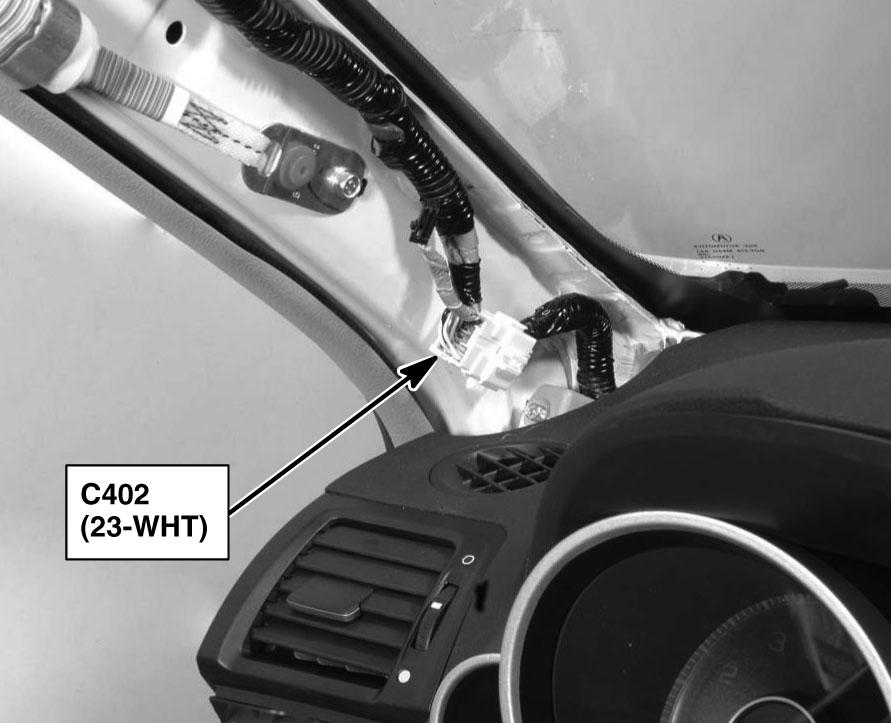

Fig 99: Left "A" Pillar

G00472825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

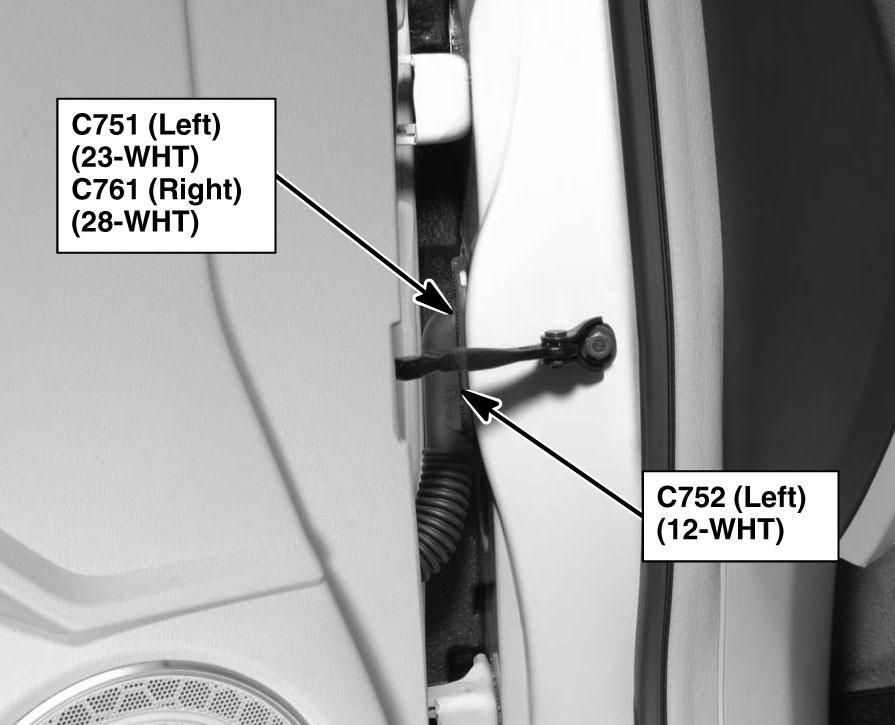

Fig 100: Behind Left Kick Panel (Right Similar)

G00472826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

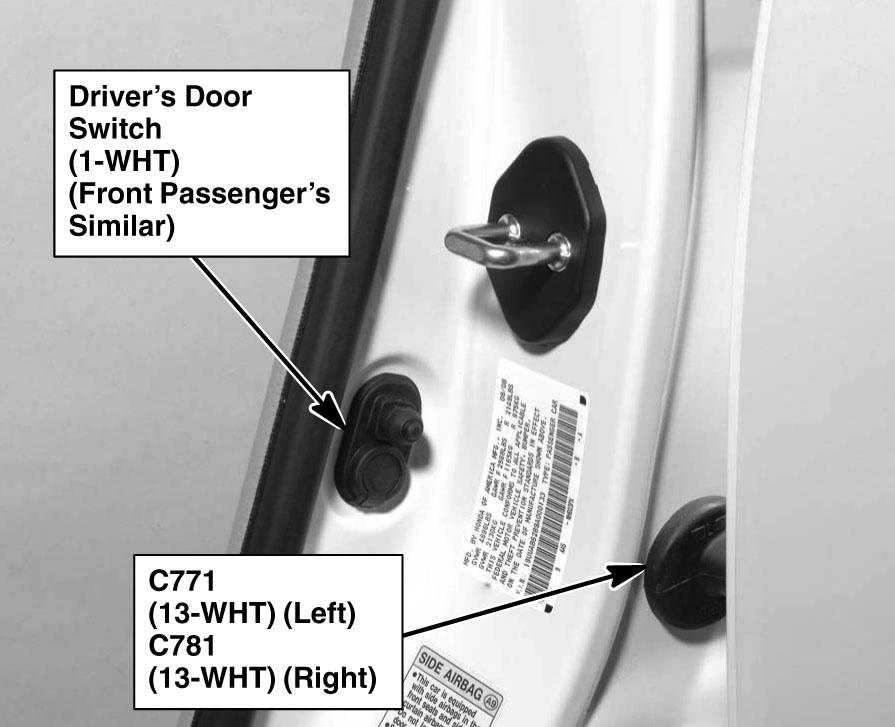

Fig 101: Left "B" Pillar (Right Similar)

G00472827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

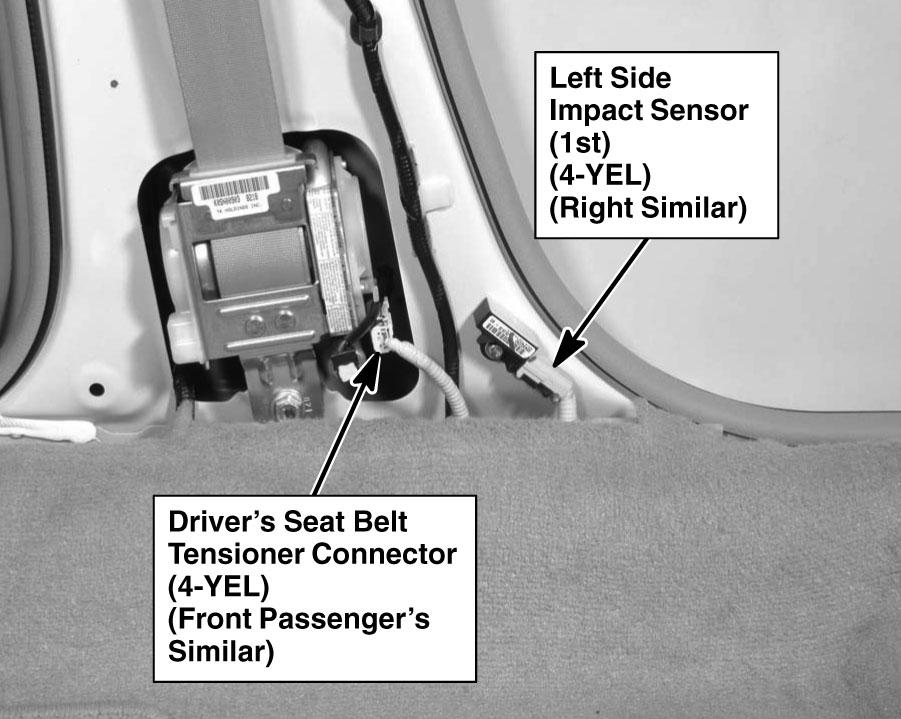

Fig 102: Left "B" Pillar (Right Similar)

G00472828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

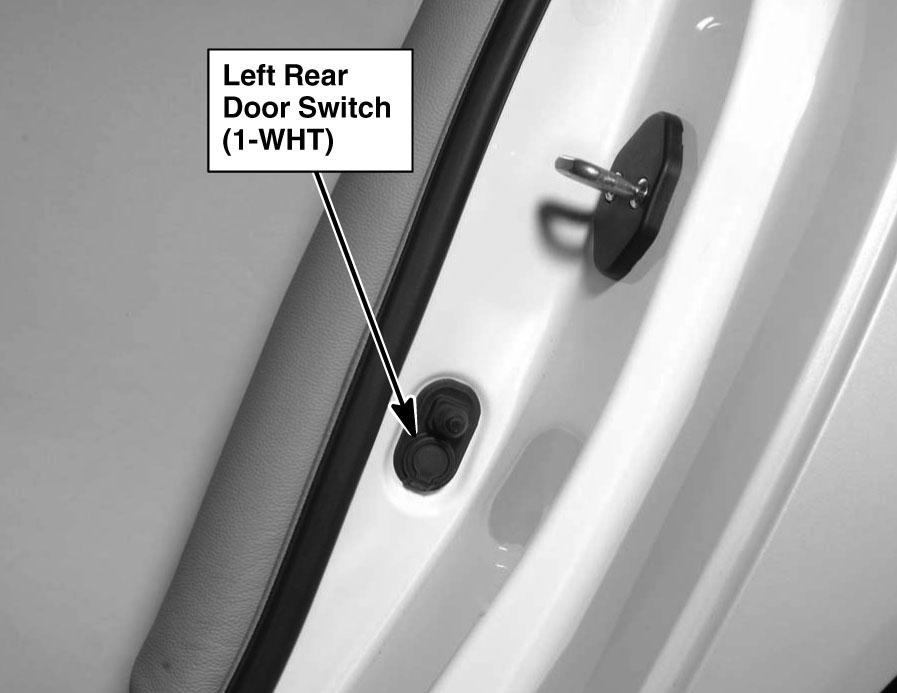

Fig 103: Left "C" Pillar (Right Similar)

G00472829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

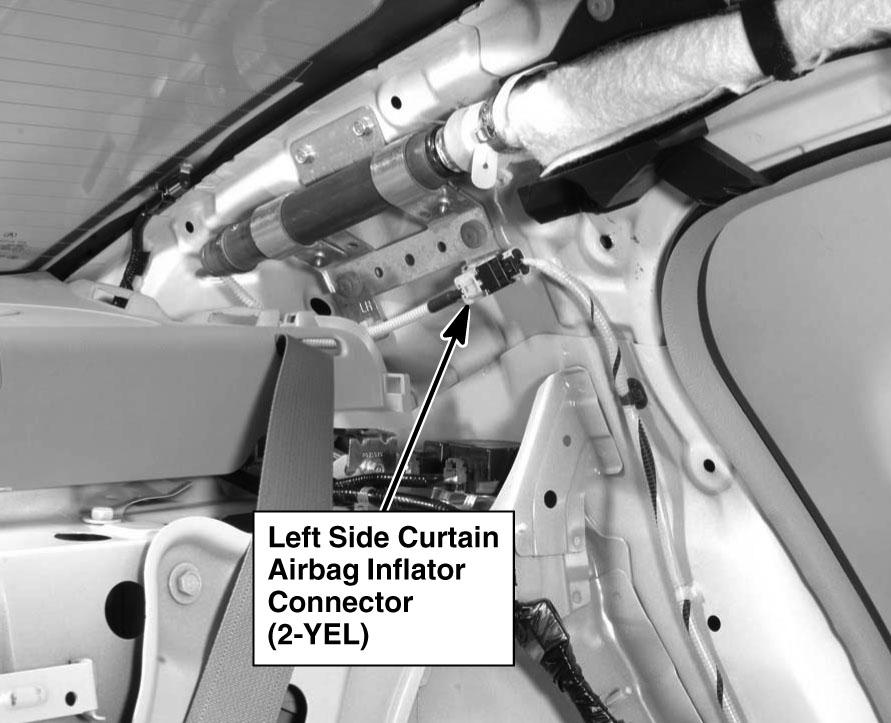

Fig 104: Left "C" Pillar

G00472830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

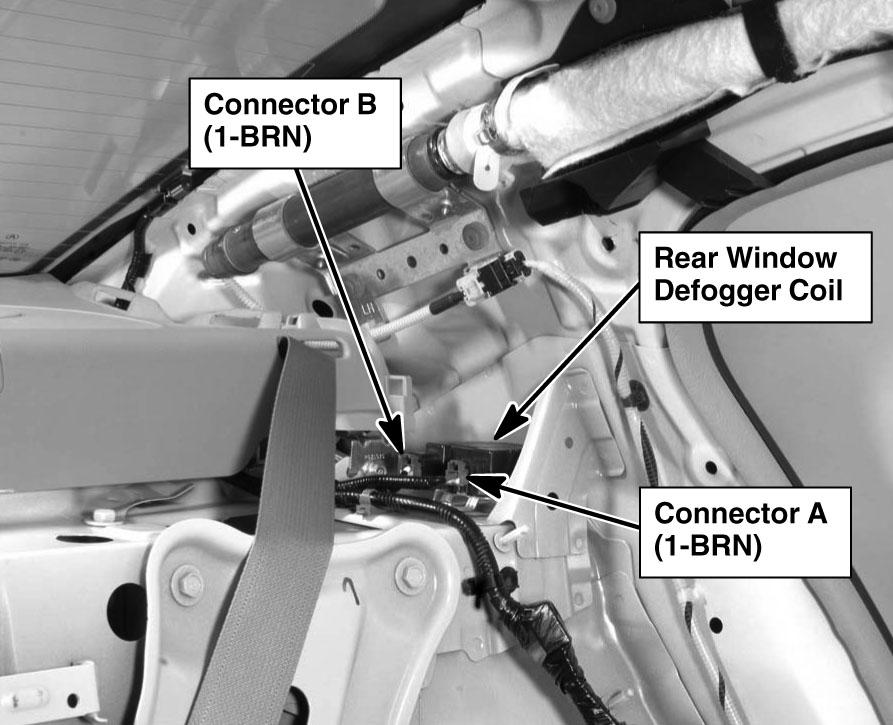

Fig 105: Left "C" Pillar

G00472831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

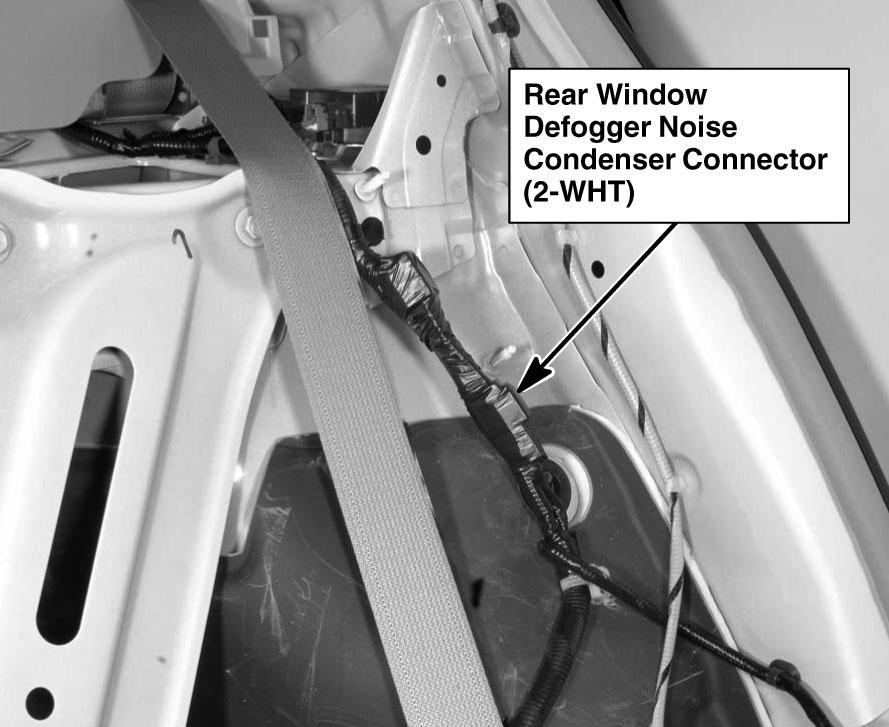

Fig 106: Left "C" Pillar

G00472832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

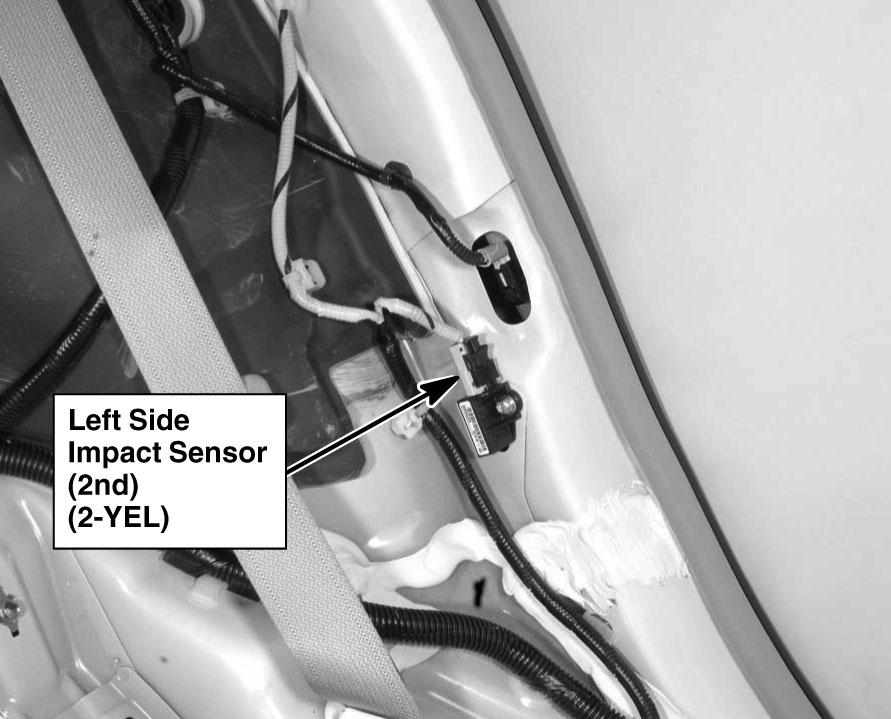

Fig 107: Left "C" Pillar

G00472833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

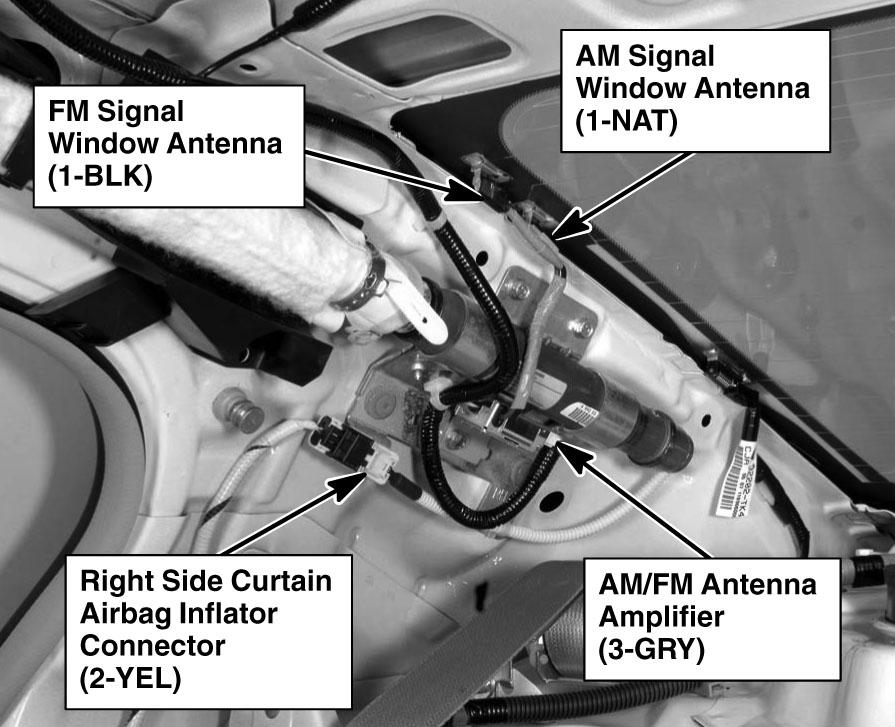

Fig 108: Right "C" Pillar

G00472834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

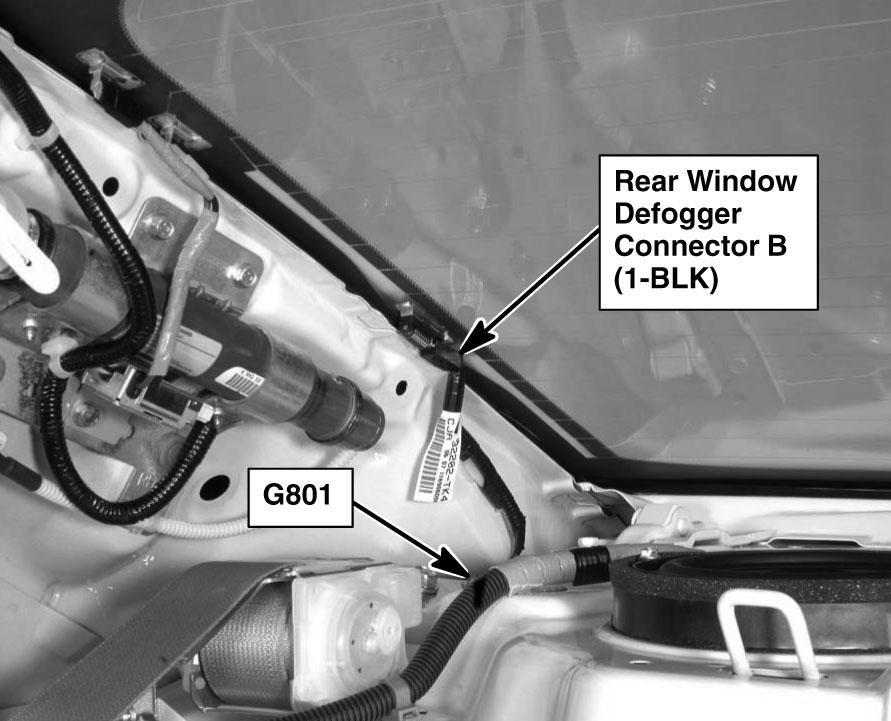

Fig 109: Right "C" Pillar

G00472835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

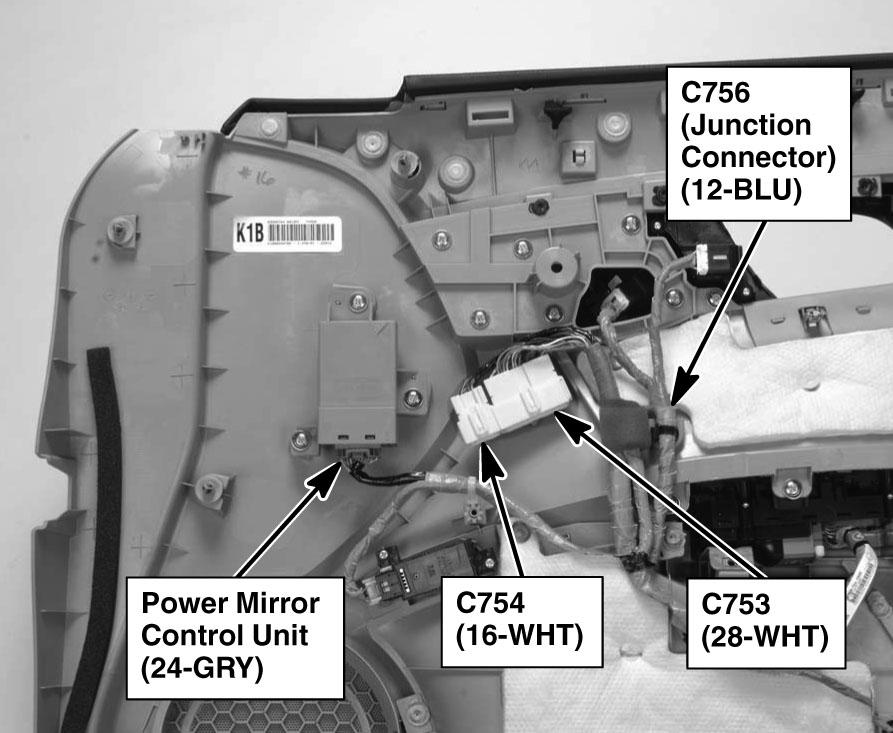

Fig 110: Driver's Door

G00472836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

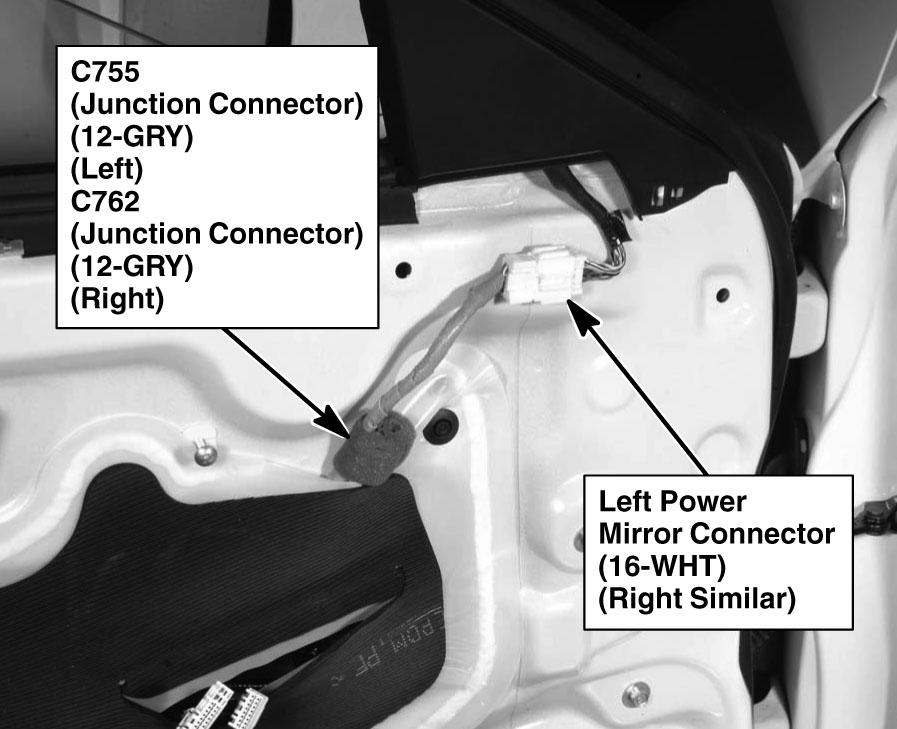

Fig 111: Driver's Door (Front Passenger's Similar)

G00472837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

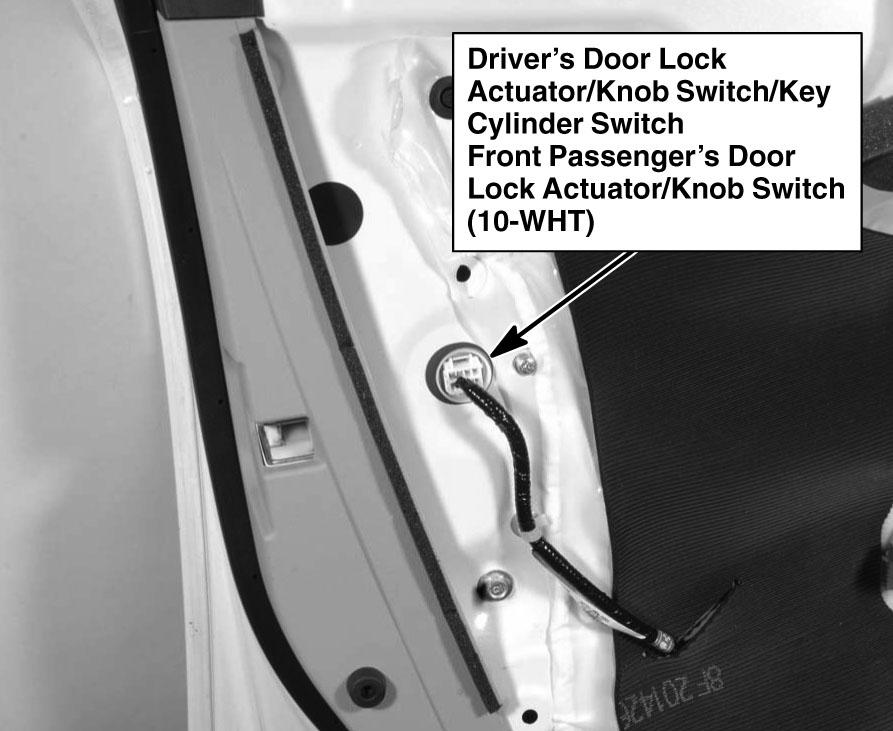

Fig 112: Driver's Door (Front Passenger's Similar)

G00472838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

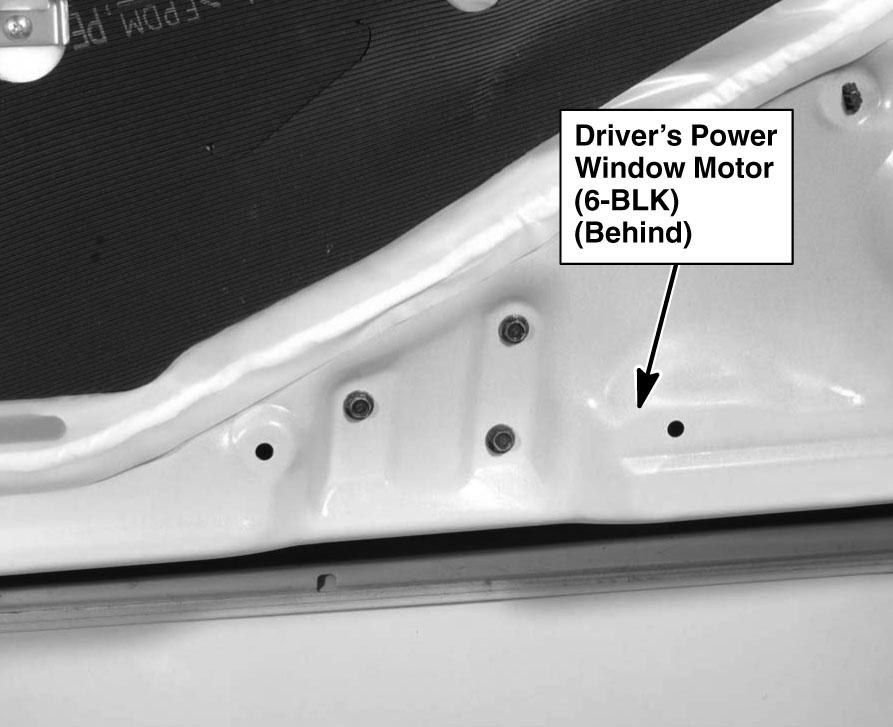

Fig 113: Driver's Door

G00472839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

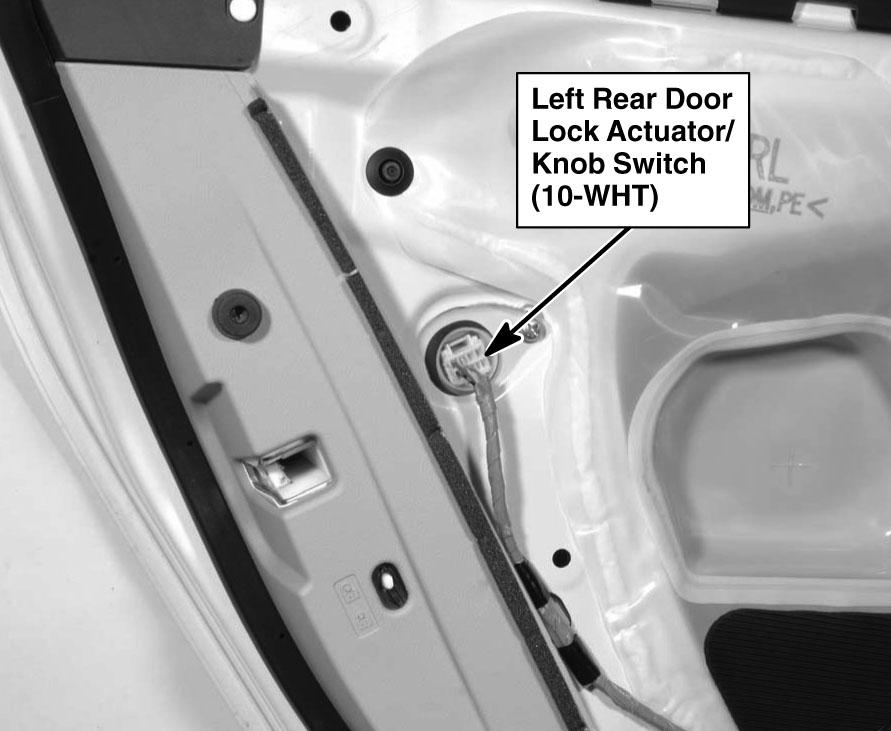

Fig 114: Left Rear Door

G00472840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

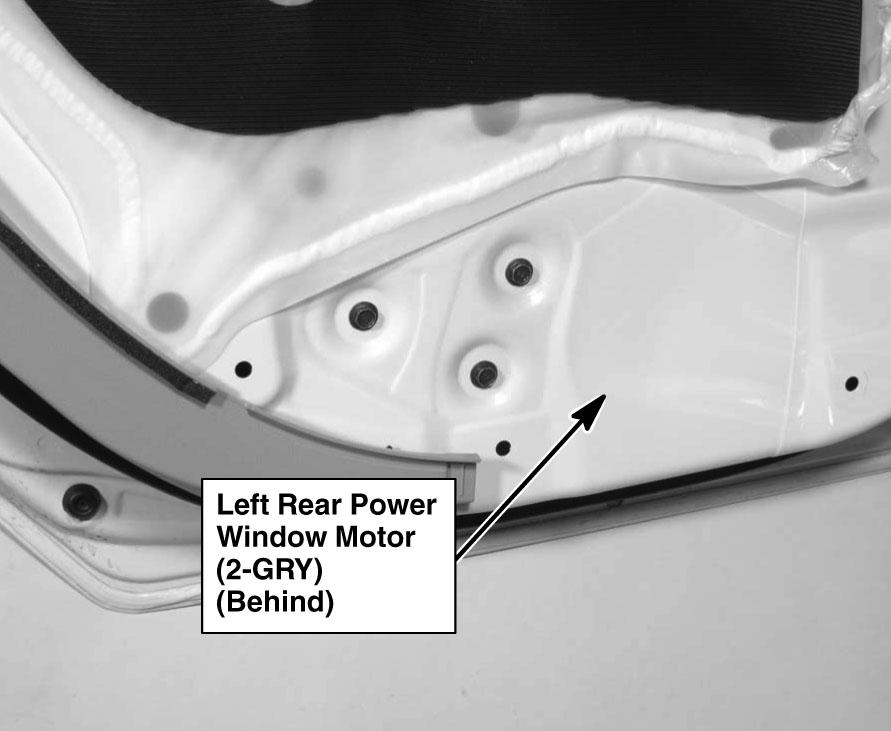

Fig 115: Left Rear Door

G00472841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

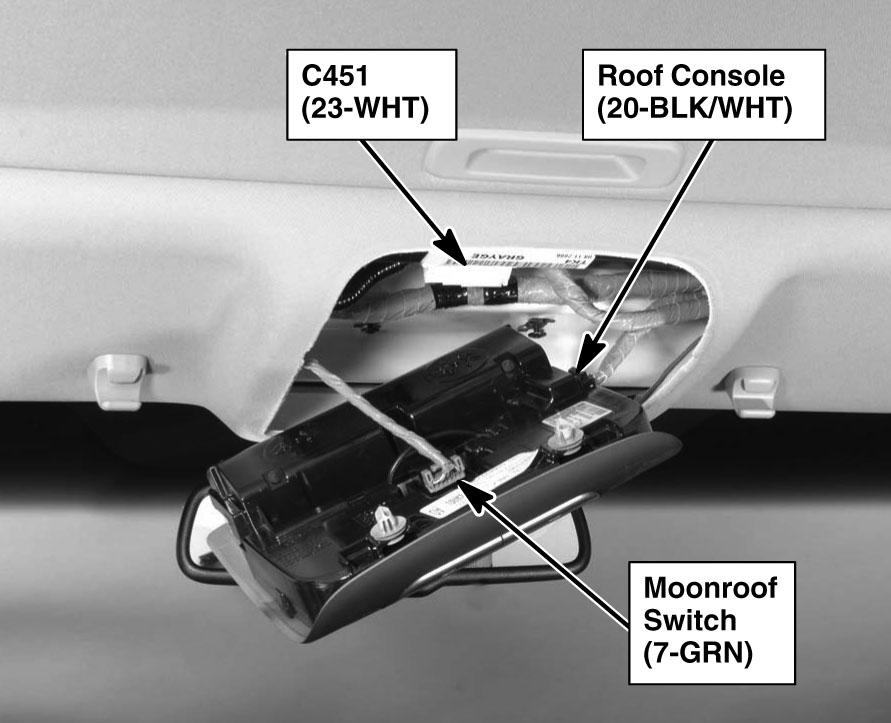

Fig 116: Center Front Of Roof

G00472842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

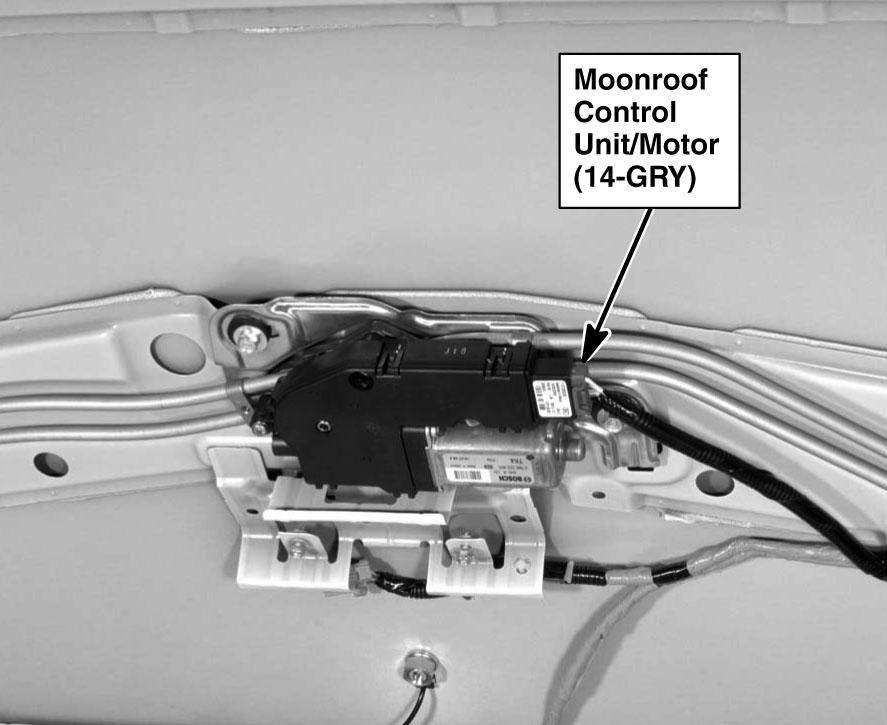

Fig 117: Middle Of Roof

G00472843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Center Rear Of Roof

G00472844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

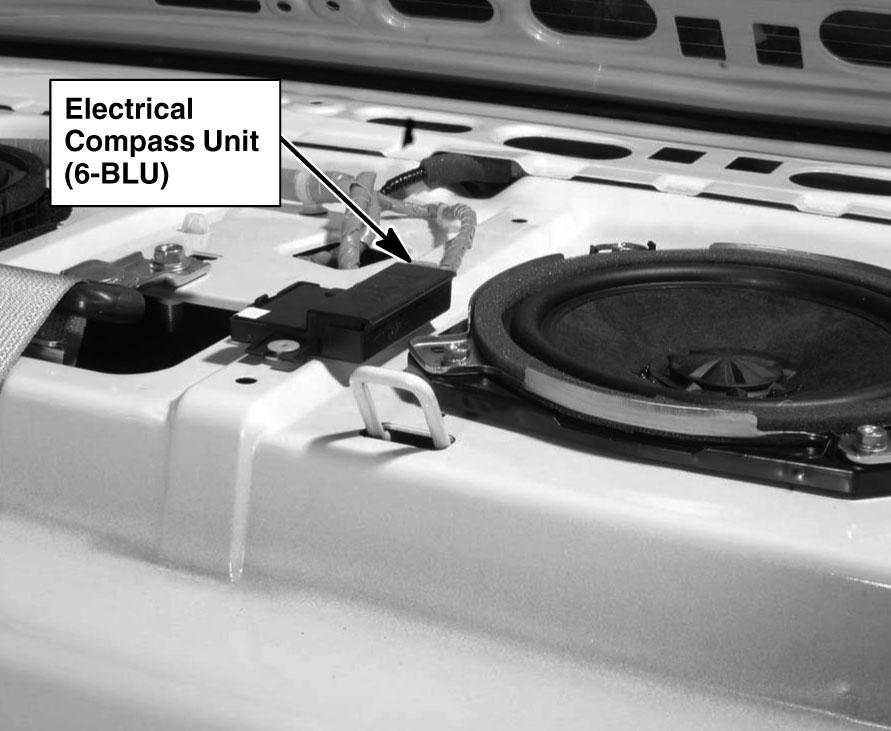

Fig 119: Middle Of Rear Shelf

G00472845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

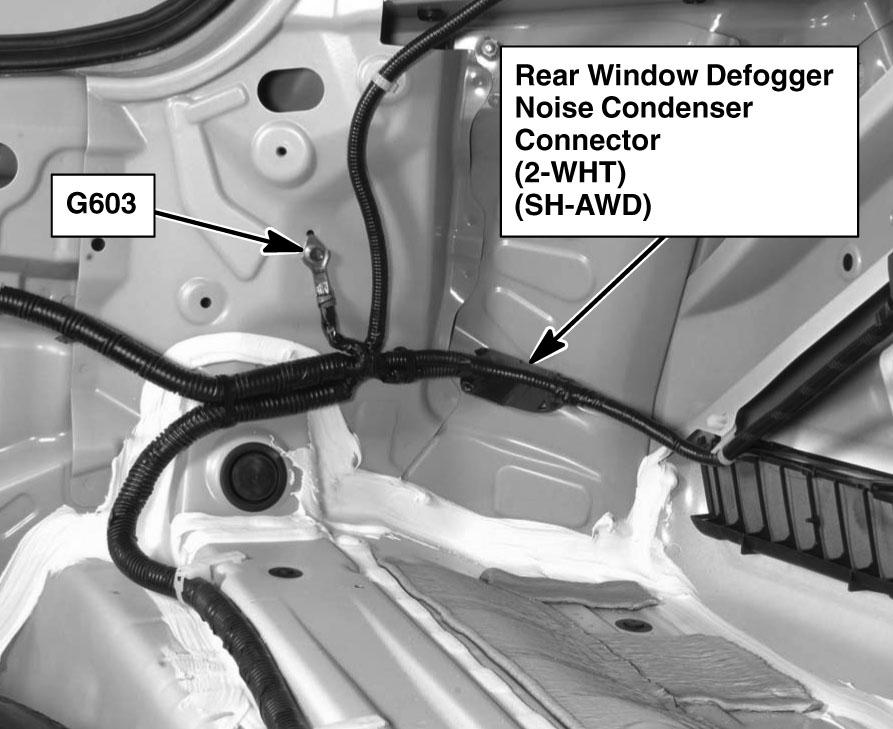

Fig 120: Left Rear Of Trunk

G00472846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

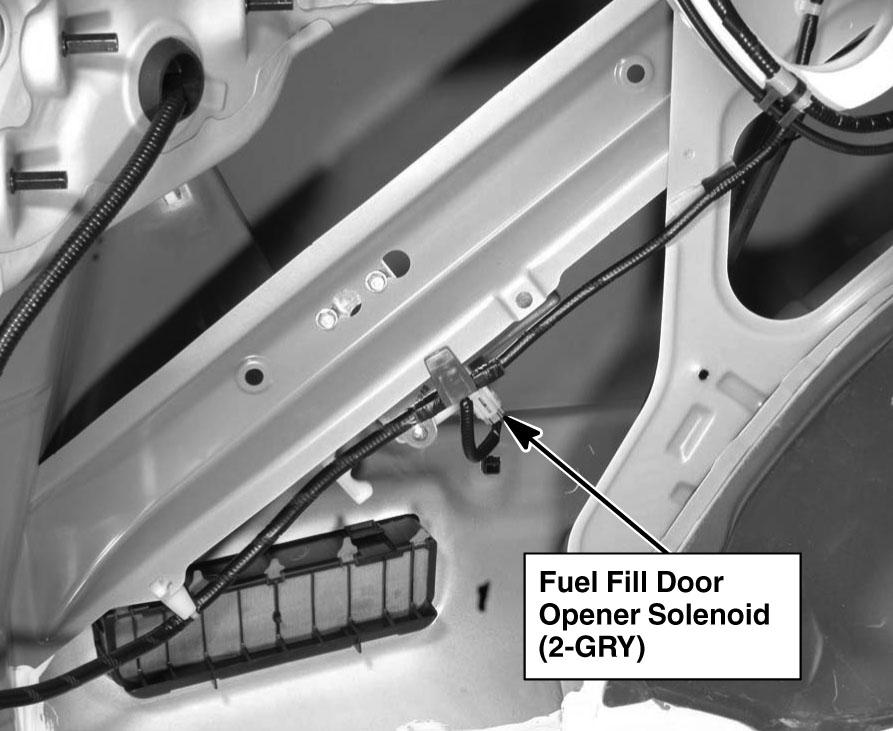

Fig 121: Left Side Of Trunk

G00472847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

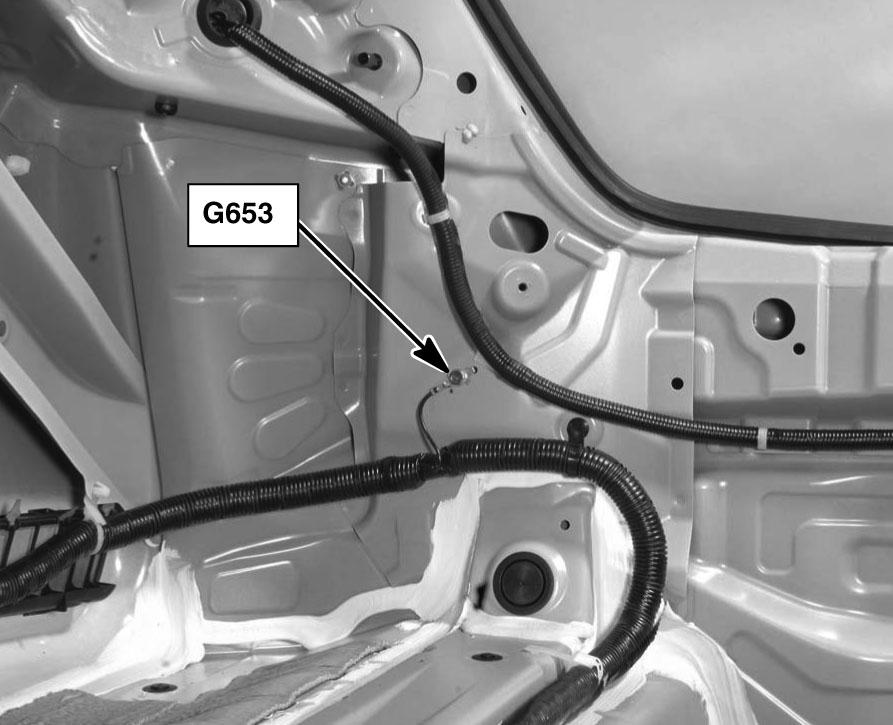

Fig 122: Right Side Of Trunk

G00472848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

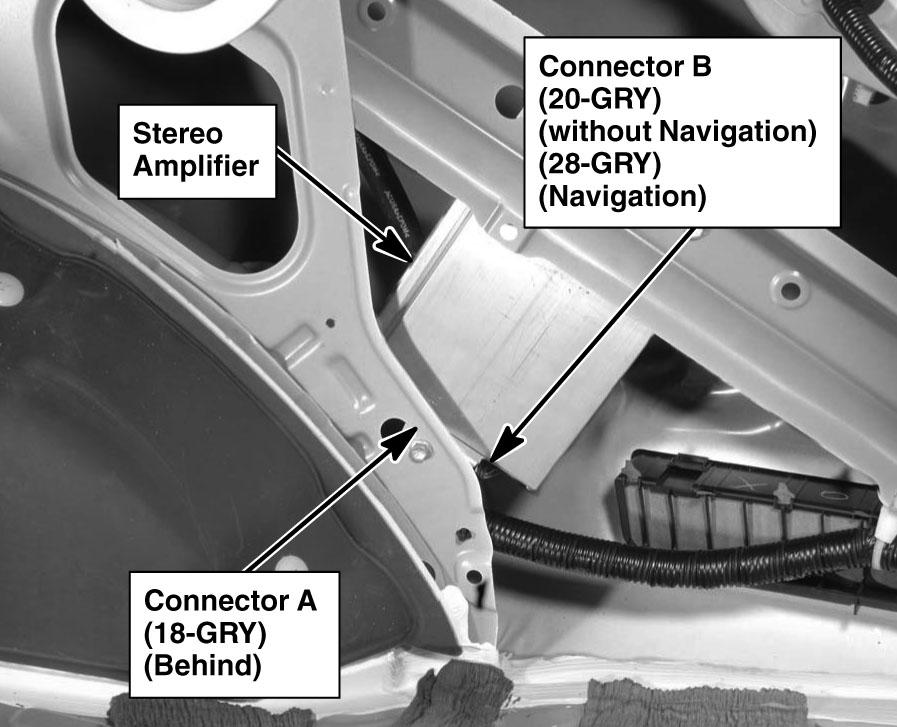

Fig 123: Right Side Of Trunk

G00472849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

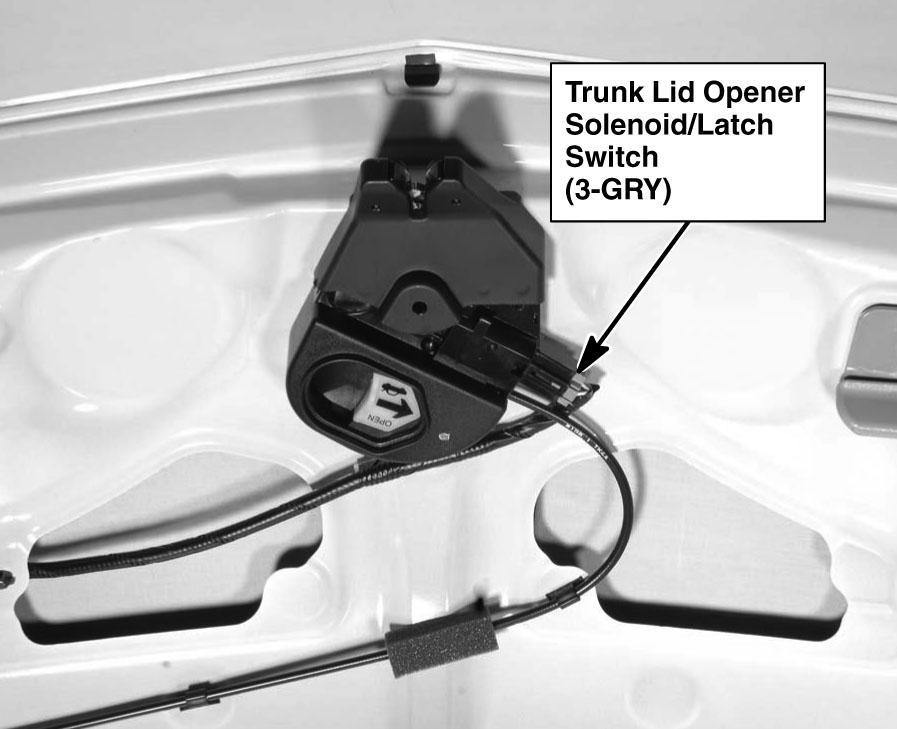

Fig 124: Middle Of Trunk Lid

G00472850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

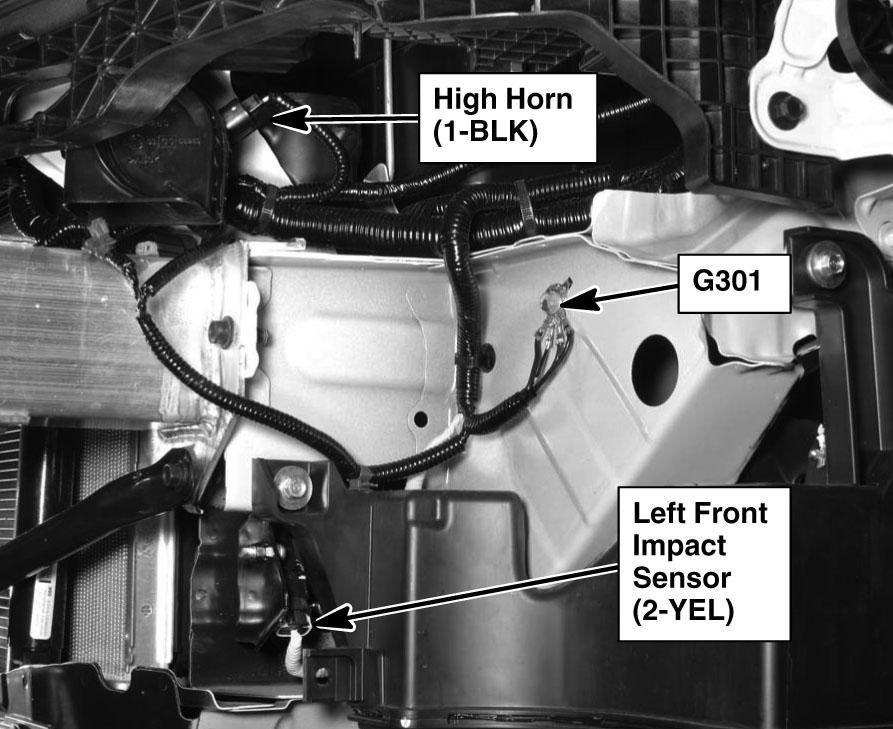

Fig 125: Behind Left Side Of Front Bumper

G00472851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Behind Left Side Of Front Bumper

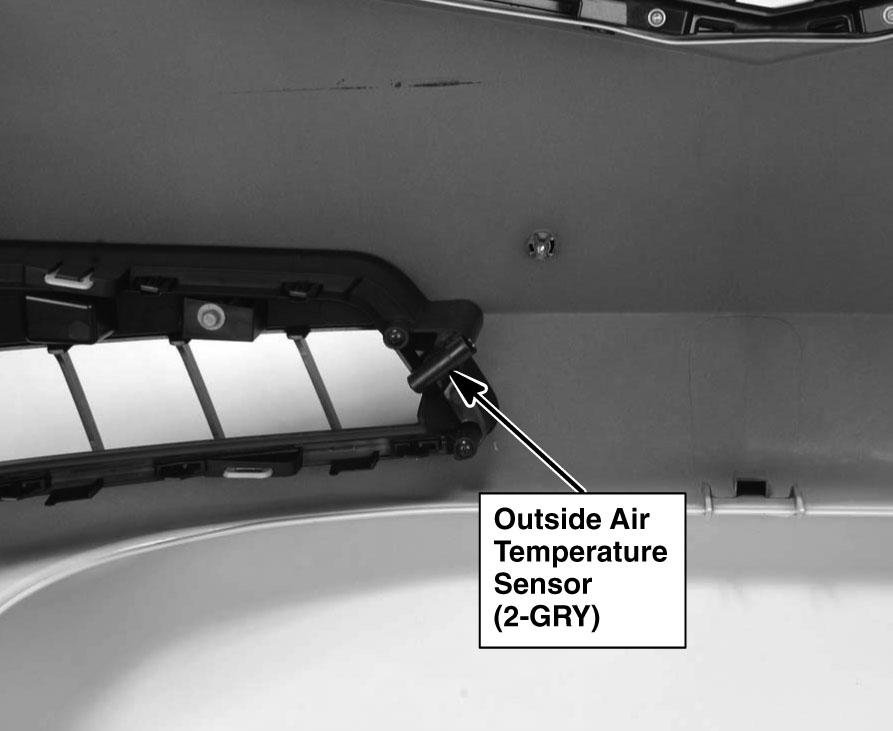

G00472852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

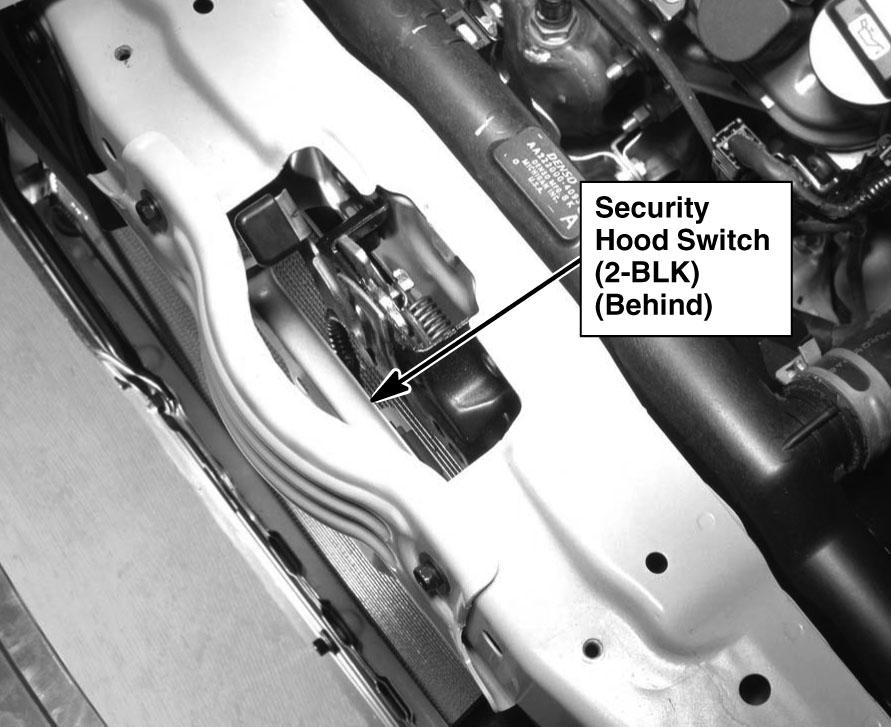

Fig 127: Behind Middle Of Front Grille

G00472853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

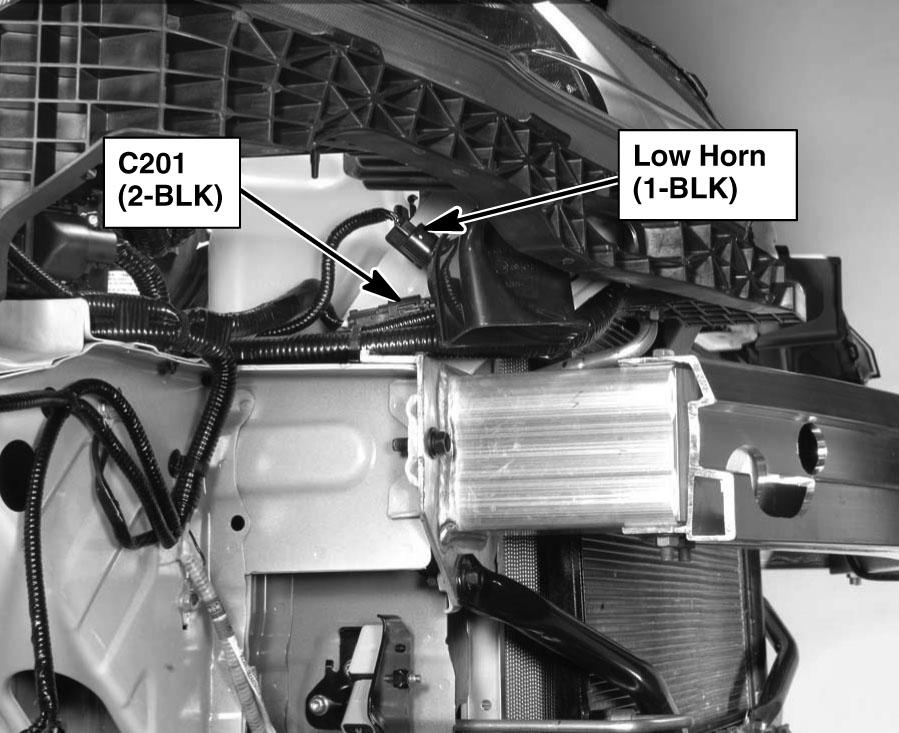

Fig 128: Behind Right Side Of Front Bumper

G00472854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

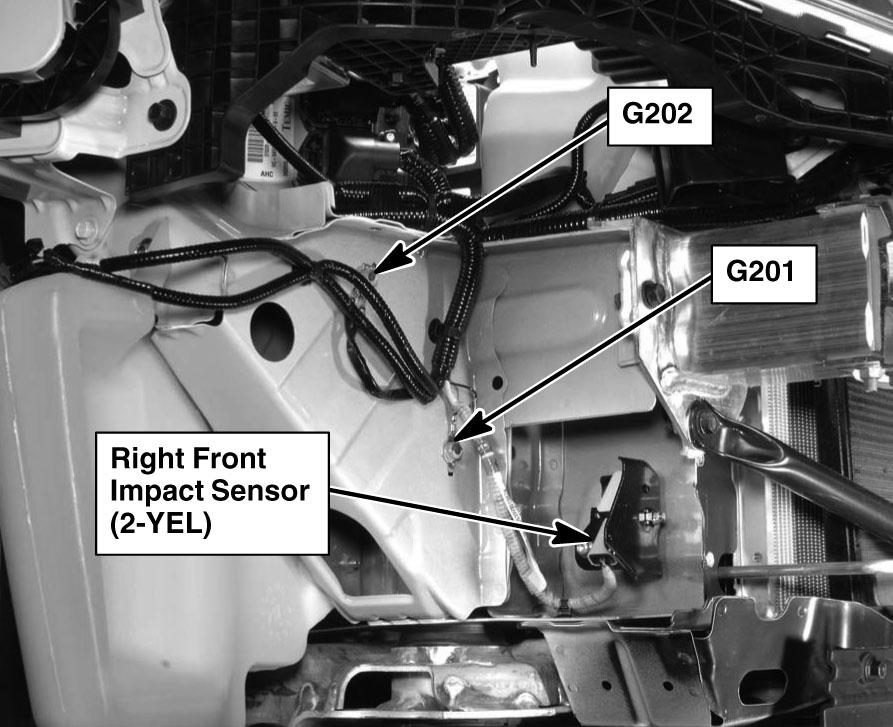

Fig 129: Behind Right Side Of Front Bumper

G00472855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

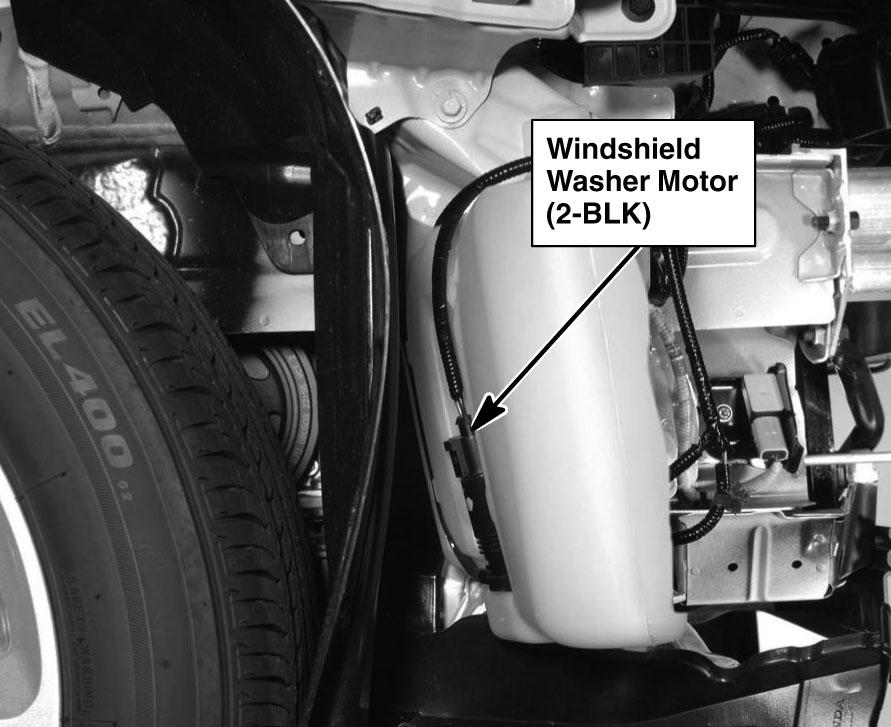

Fig 130: Behind Right Side Of Front Bumper

G00472856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

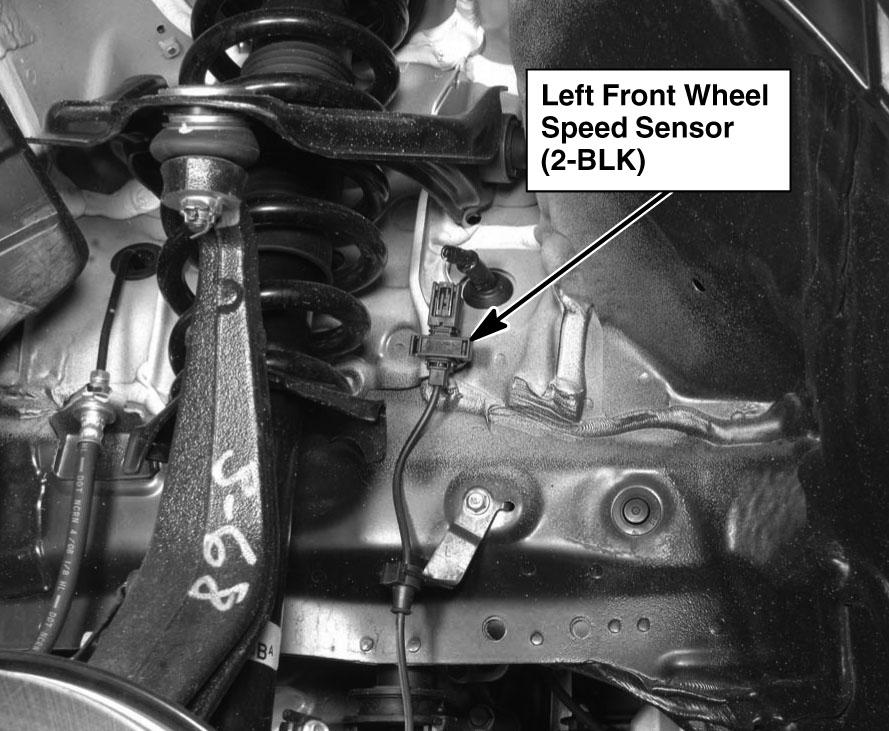

Fig 131: Left Front Wheelwell

G00472857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

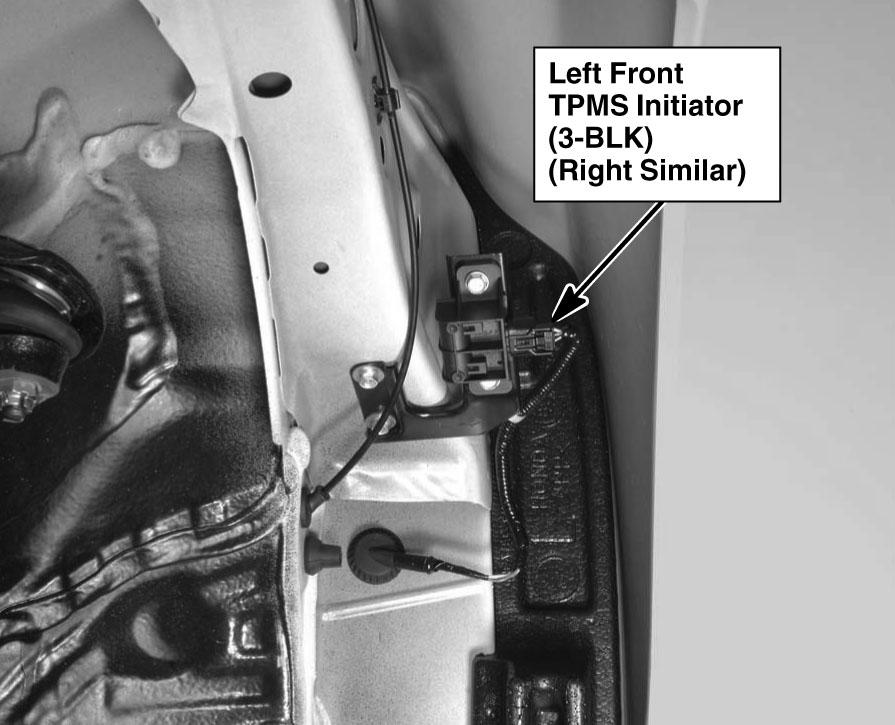

Fig 132: Left Front Wheelwell (Right Similar)

G00472858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

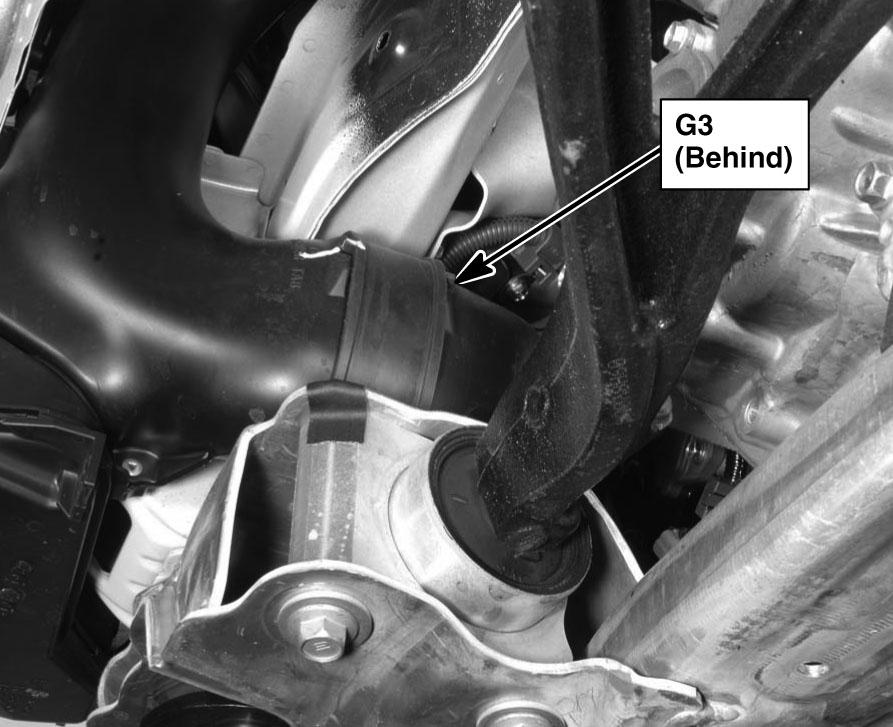

Fig 133: Lower Left Front Of Engine Compartment

G00472859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

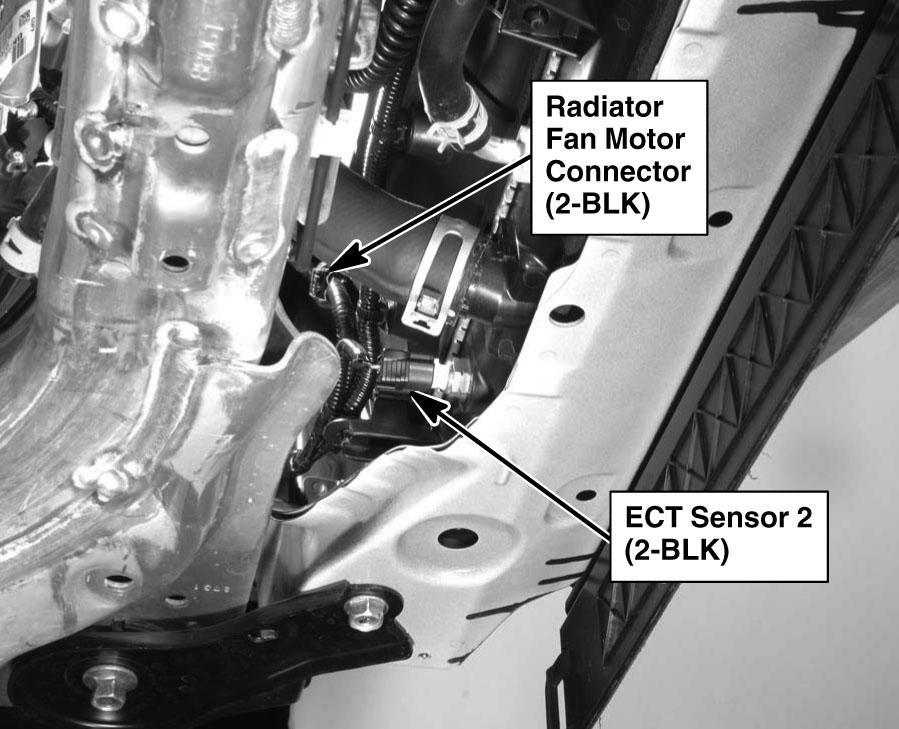

Fig 134: Lower Left Front Of Engine Compartment

G00472860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

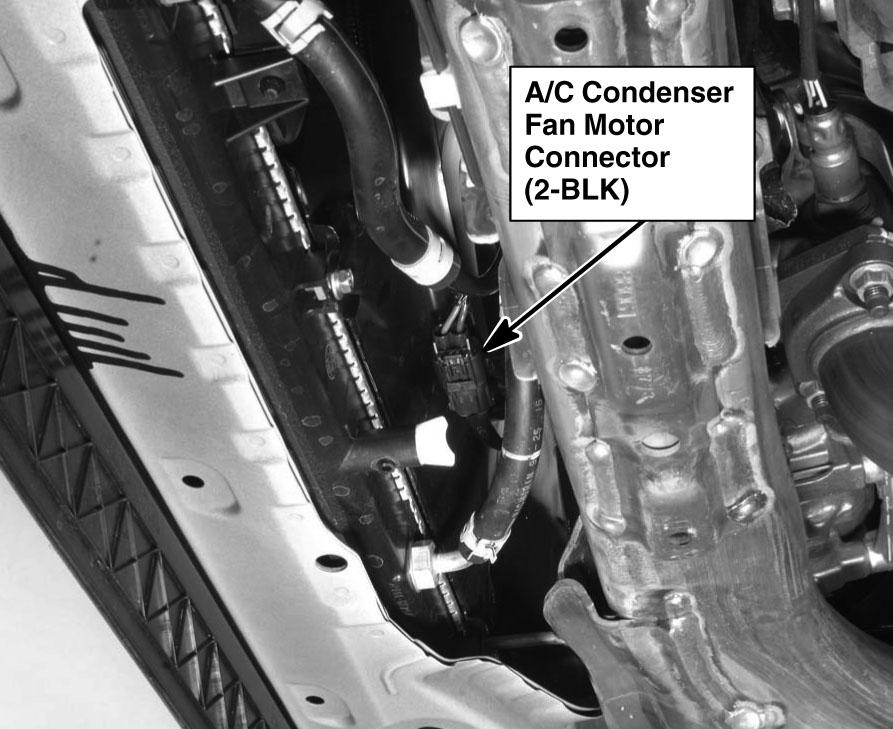

Fig 135: Lower Middle Front Of Engine Compartment

G00472861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

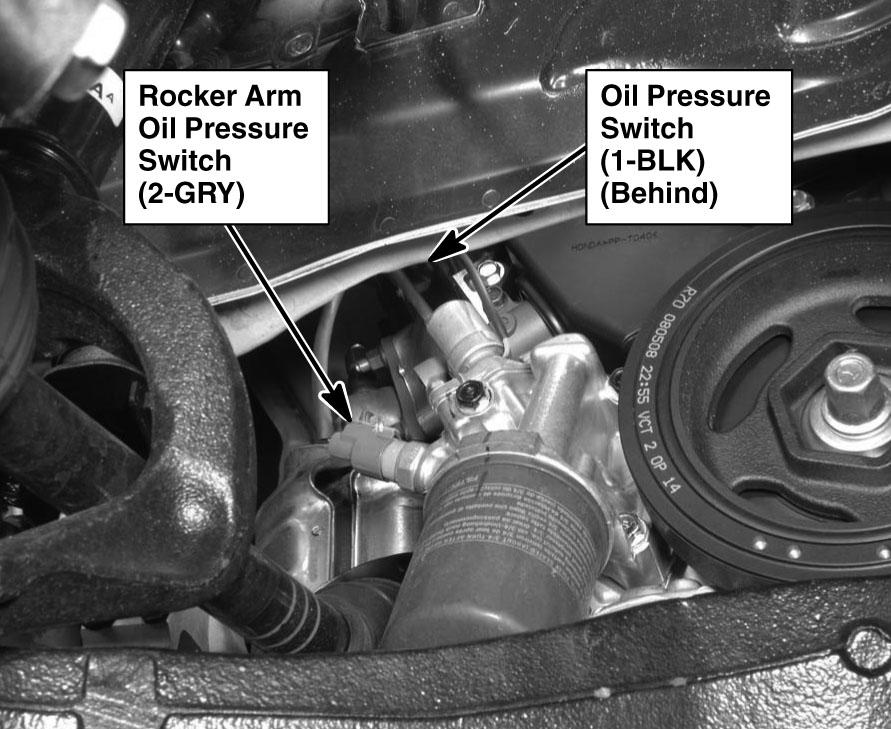

Fig 136: Under Front Of Engine

G00472862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

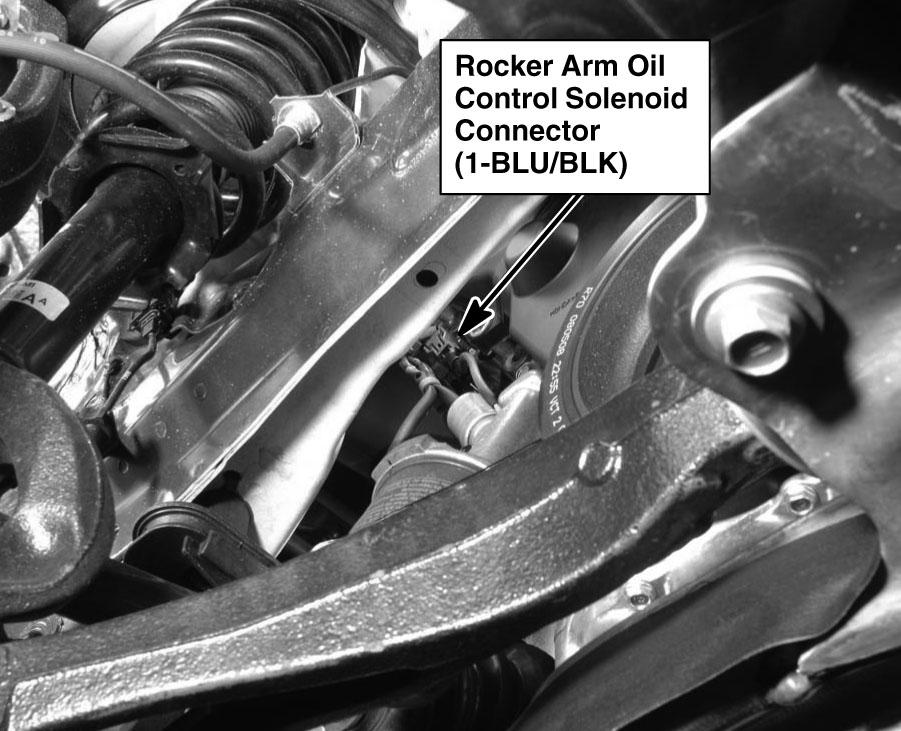

Fig 137: Lower Front Of Engine

G00472863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

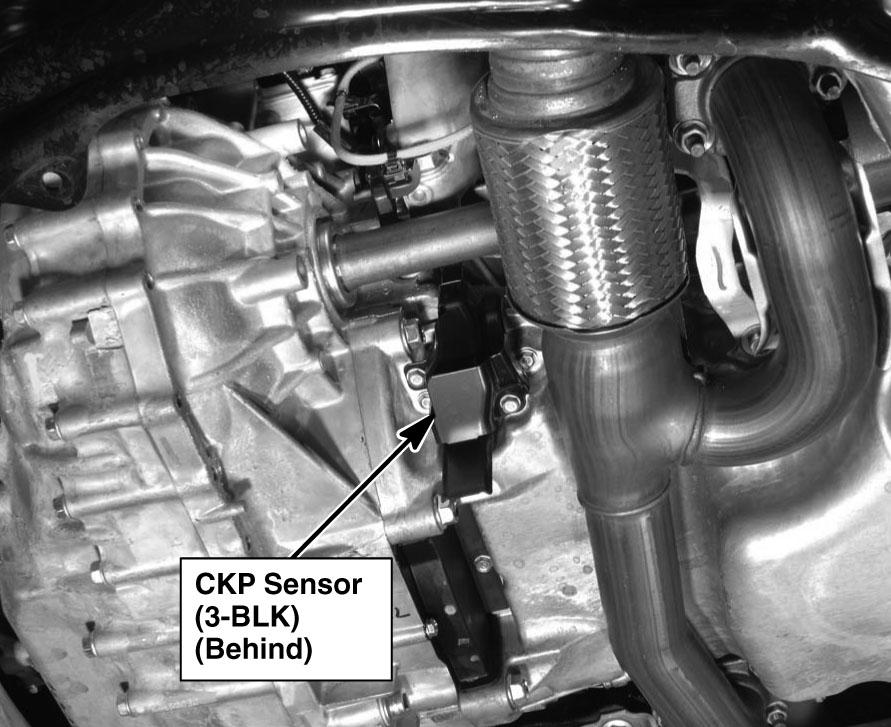

Fig 138: Lower Front Of Engine

G00472864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

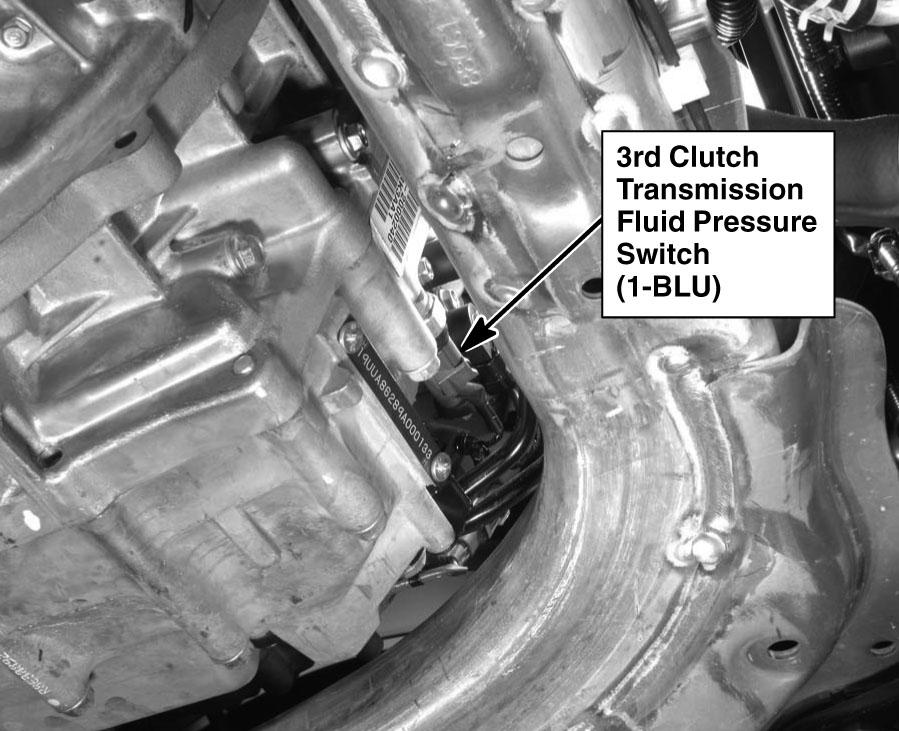

Fig 139: Under Transmission Housing

G00472865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

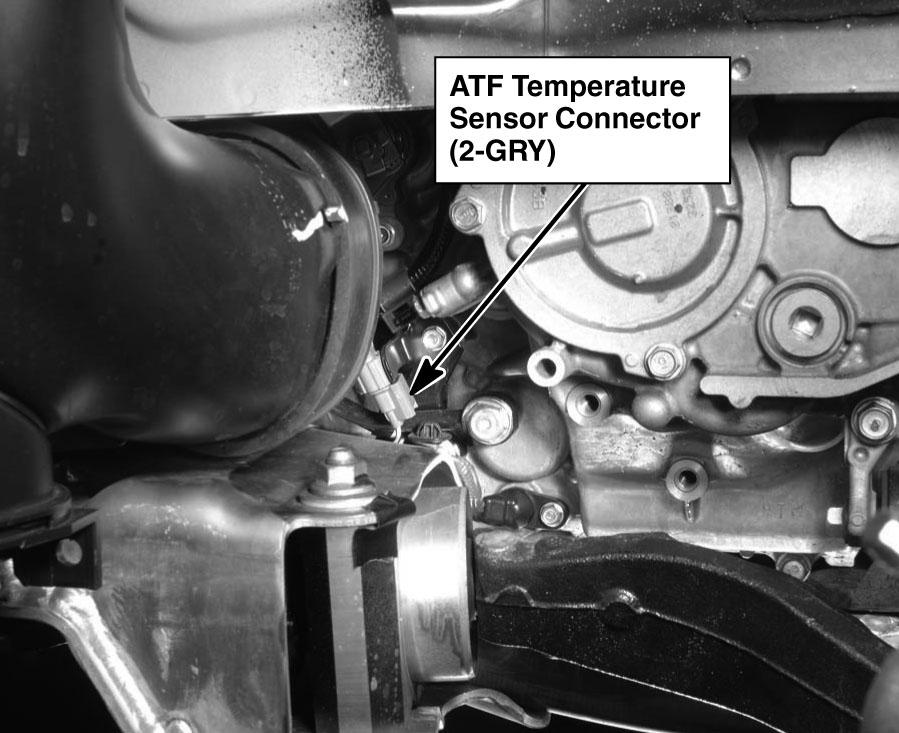

Fig 140: Under Transmission Housing

G00472866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

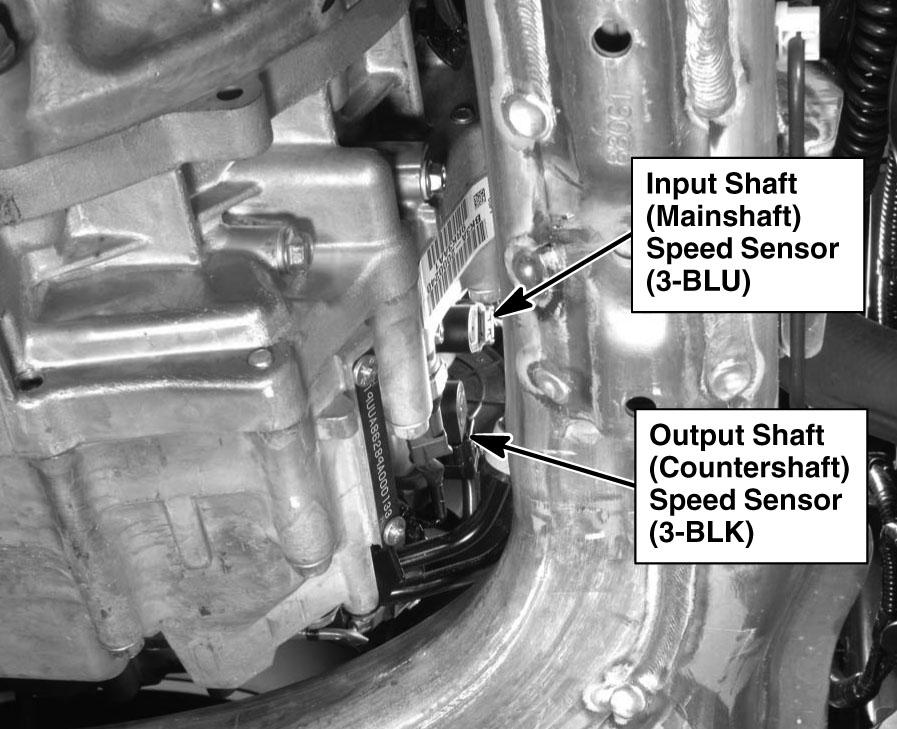

Fig 141: Under Transmission Housing

G00472867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

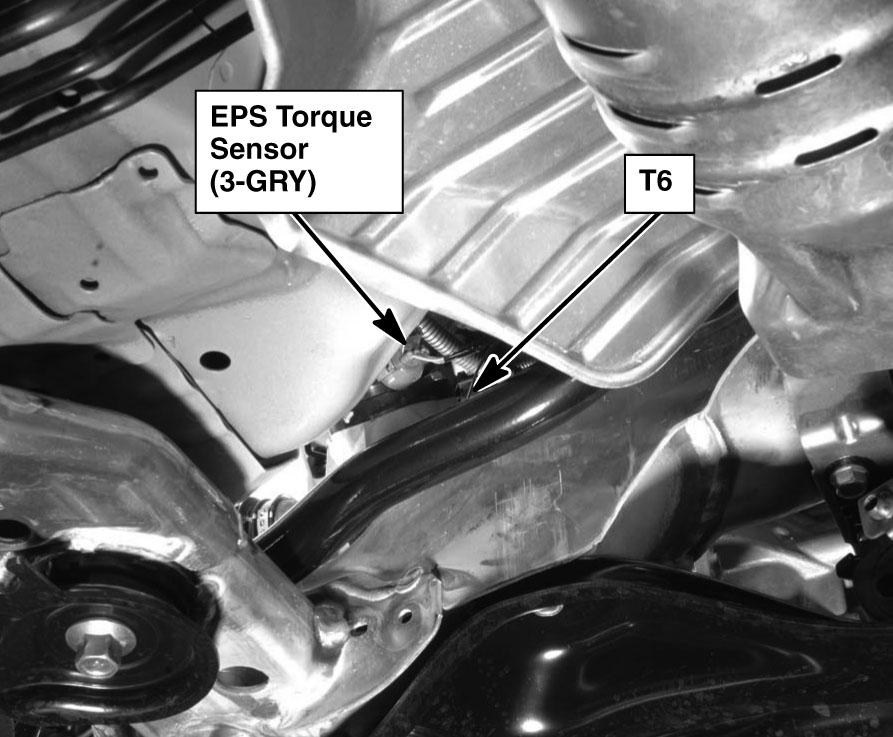

Fig 142: Lower Left Rear Of Engine Compartment

G00472868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

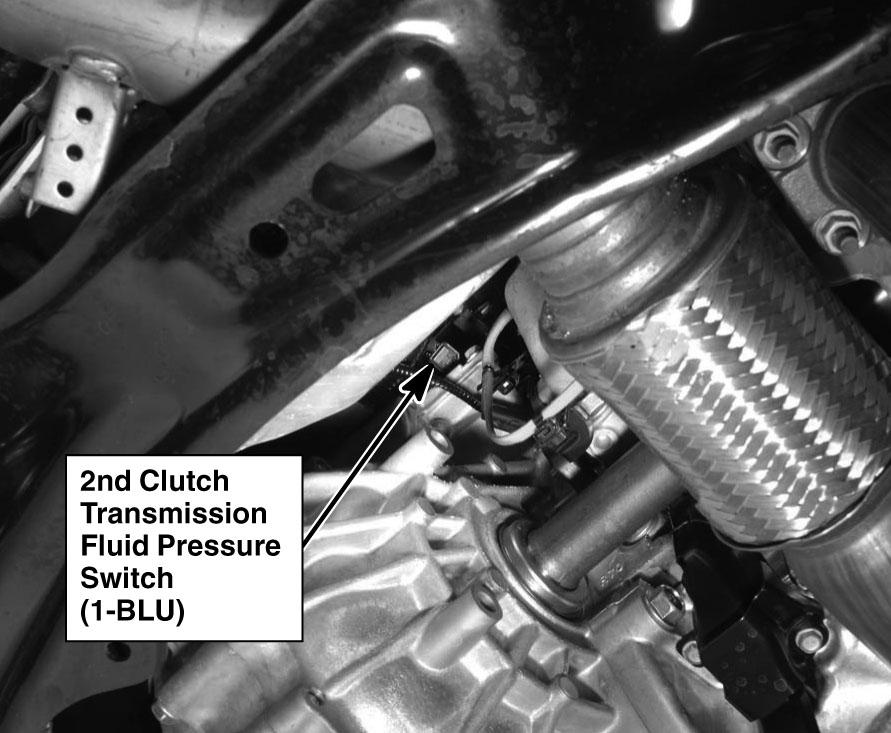

Fig 143: Under Rear Of Transmission Housing

G00472869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

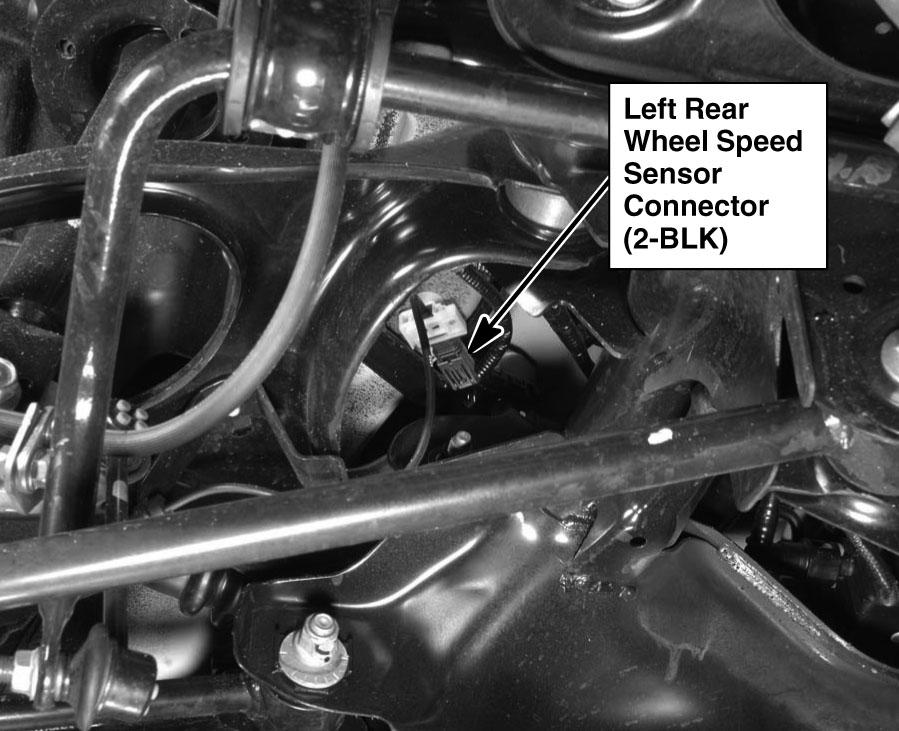

Fig 144: Under Left Rear Of Vehicle

G00472870

Courtesy of AMERICAN HONDA MOTOR CO., INC.

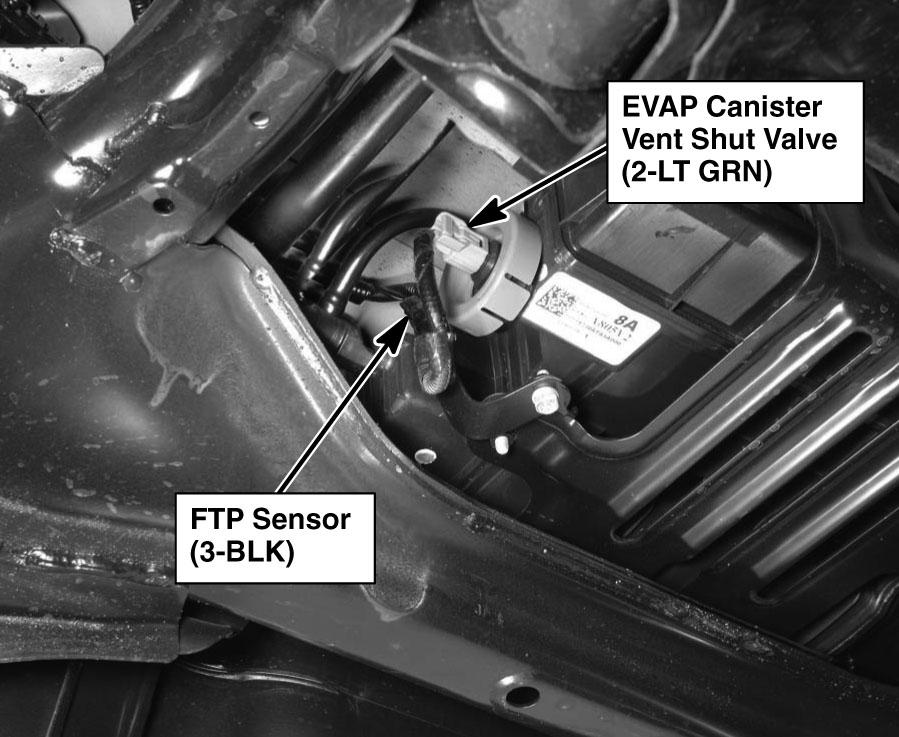

Fig 145: Under Middle Rear Of Vehicle (W/O SH-AWD)

G00472871

Courtesy of AMERICAN HONDA MOTOR CO., INC.

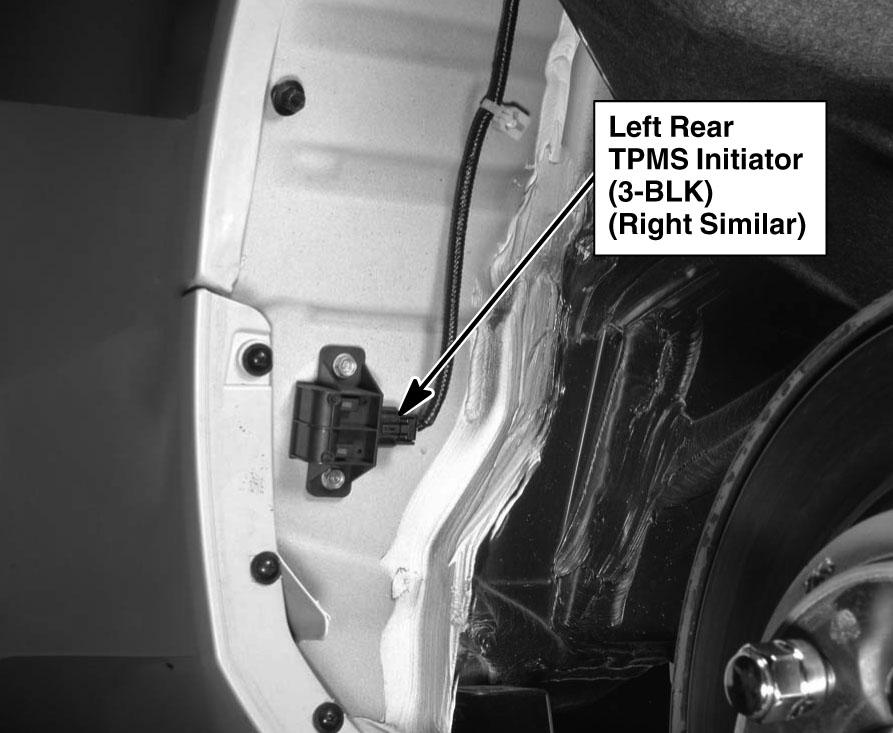

Fig 146: Left Rear Wheelwell (Right Similar)

G00472872

Courtesy of AMERICAN HONDA MOTOR CO., INC.

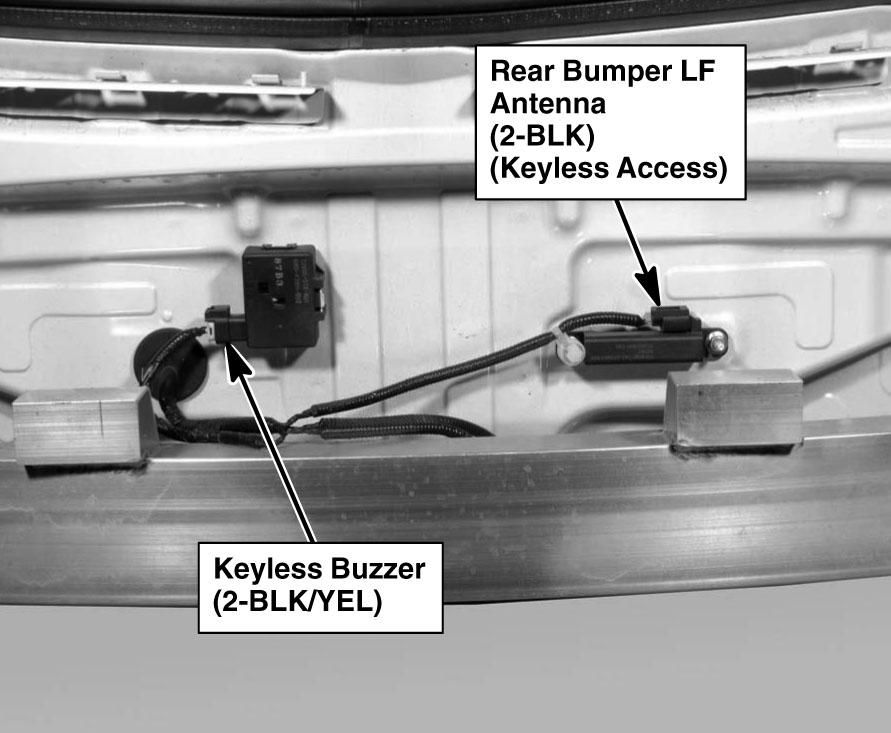

Fig 147: Behind Middle Of Rear Bumper

G00472873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

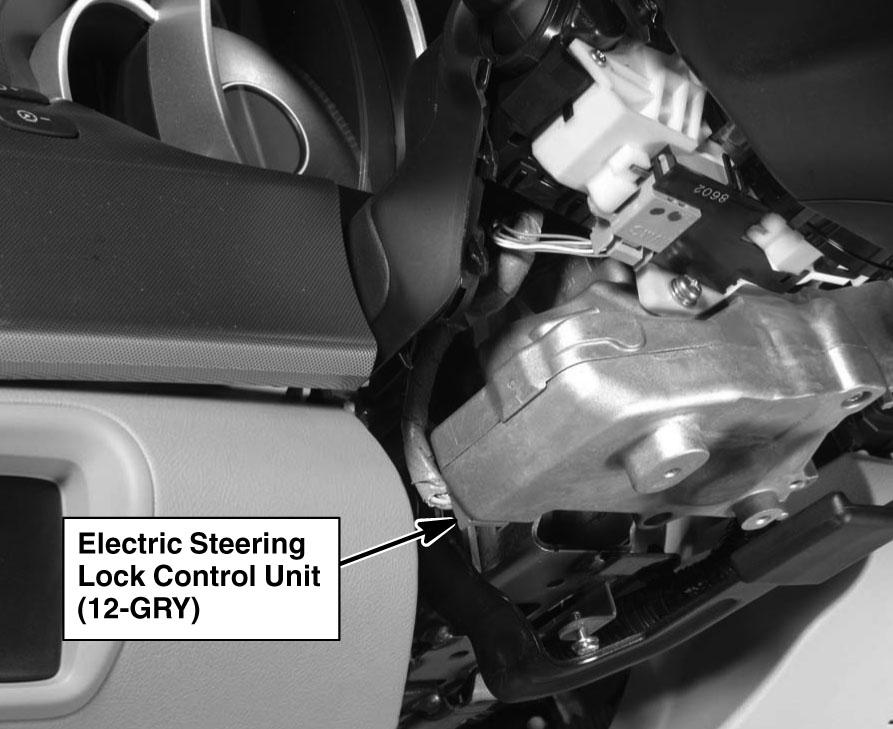

Fig 148: Steering Column

G00472874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

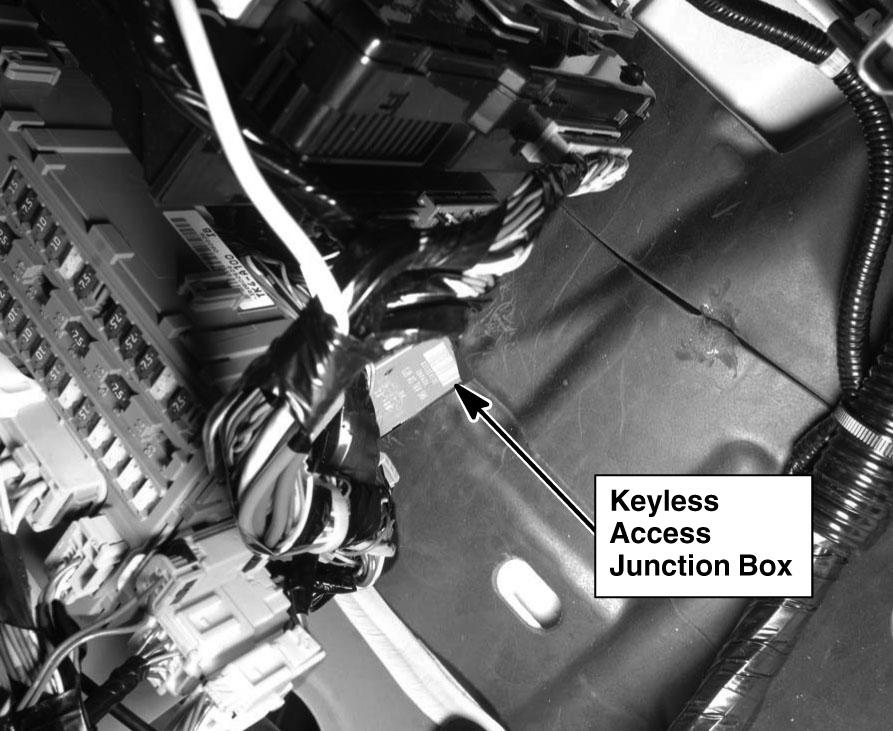

Fig 149: Under Left Side Of Dash

G00472875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

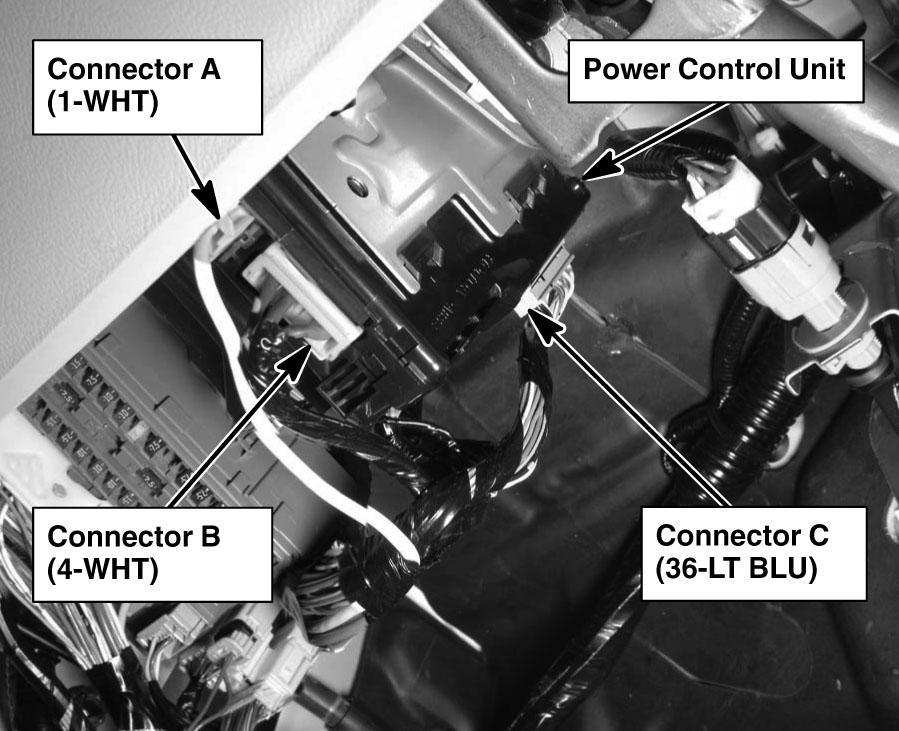

Fig 150: Under Left Side Of Dash

G00472876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

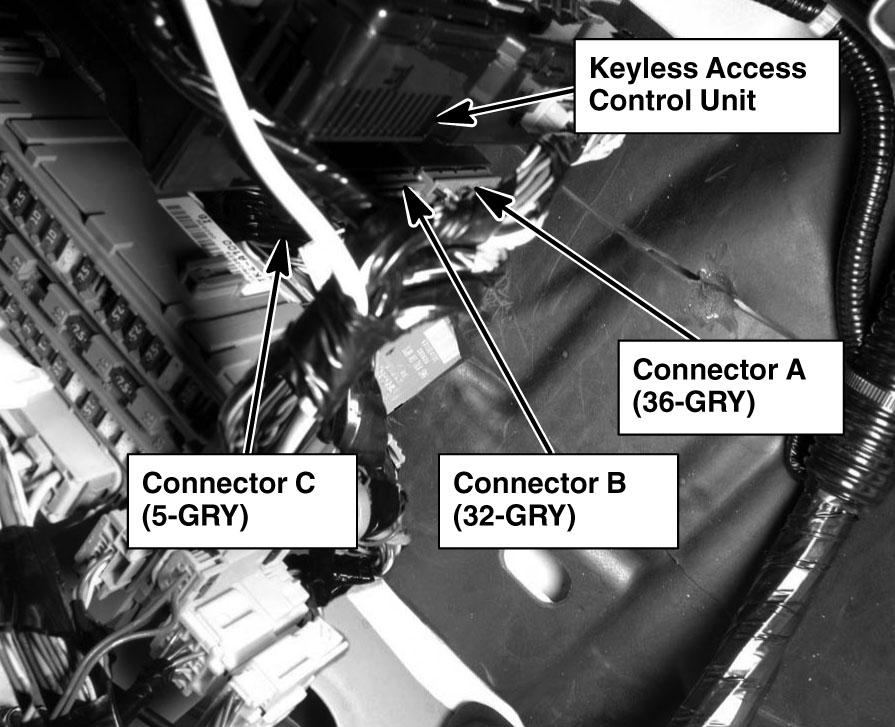

Fig 151: Under Left Side Of Dash

G00472877

Courtesy of AMERICAN HONDA MOTOR CO., INC.

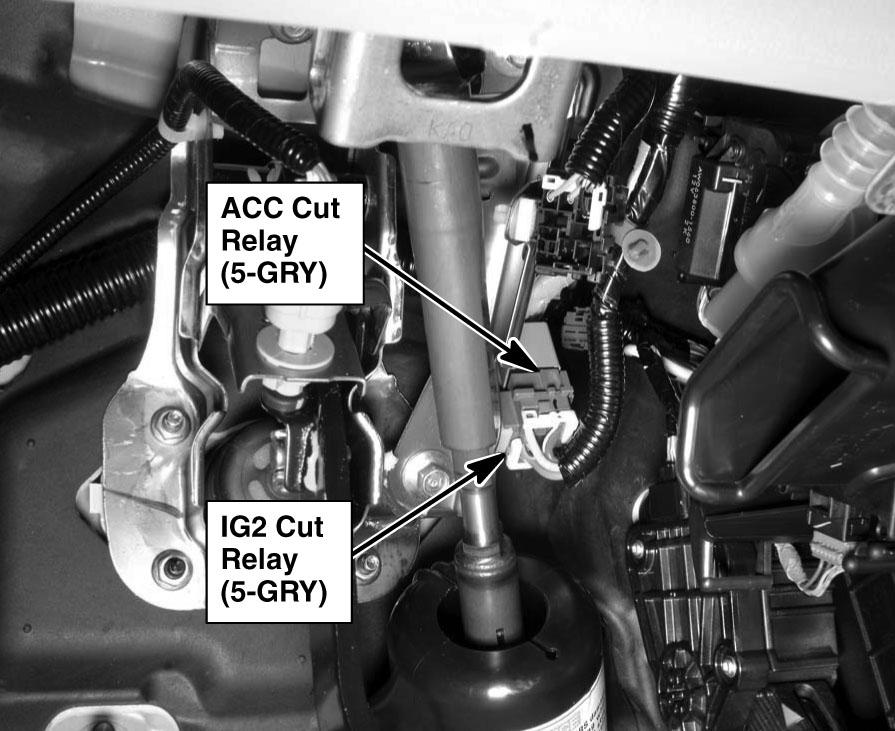

Fig 152: Under Left Side Of Dash

G00472878

Courtesy of AMERICAN HONDA MOTOR CO., INC.

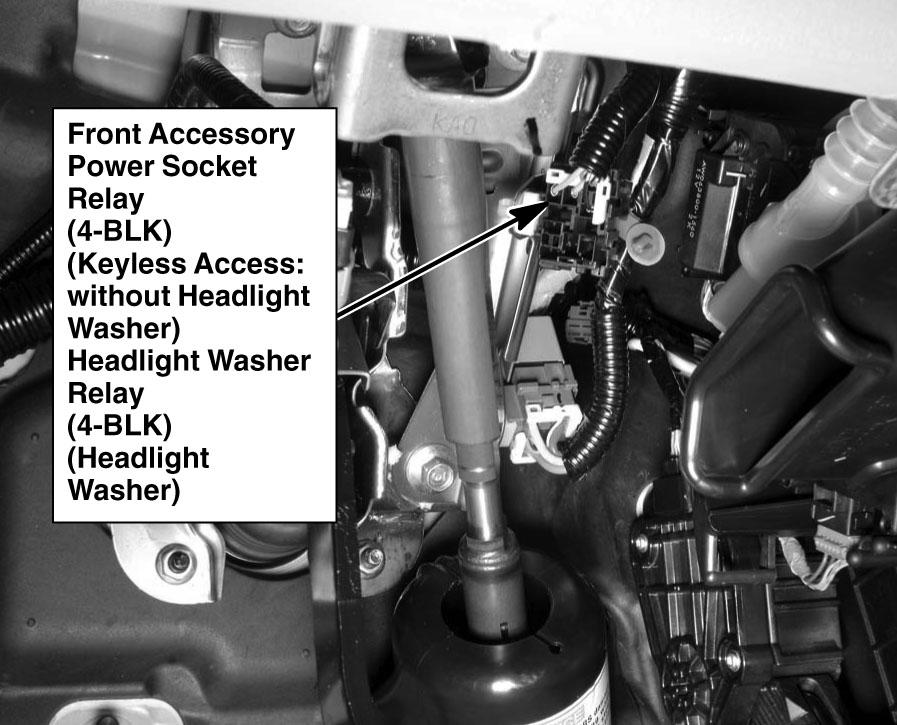

Fig 153: Under Left Side Of Dash

G00472879

Courtesy of AMERICAN HONDA MOTOR CO., INC.

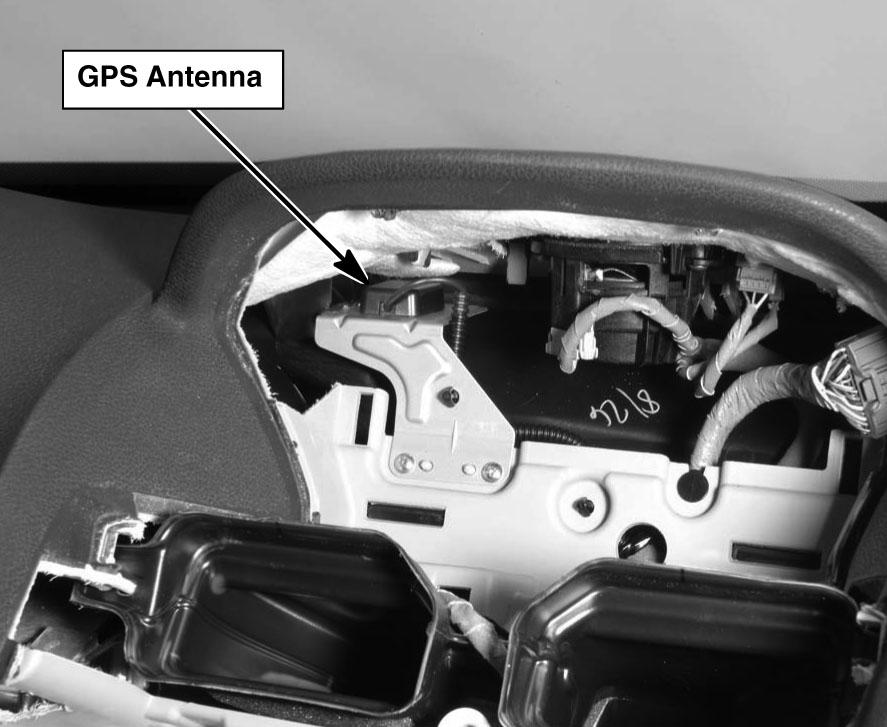

Fig 154: Behind Middle Of Dash

G00472880

Courtesy of AMERICAN HONDA MOTOR CO., INC.

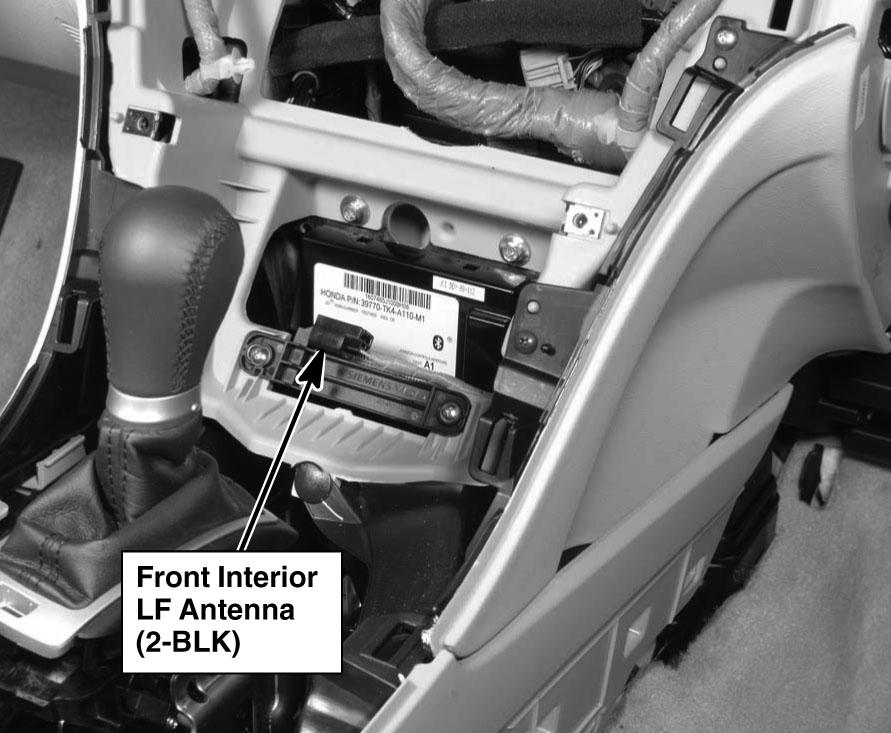

Fig 155: Behind Middle Of Dash

G00472881

Courtesy of AMERICAN HONDA MOTOR CO., INC.

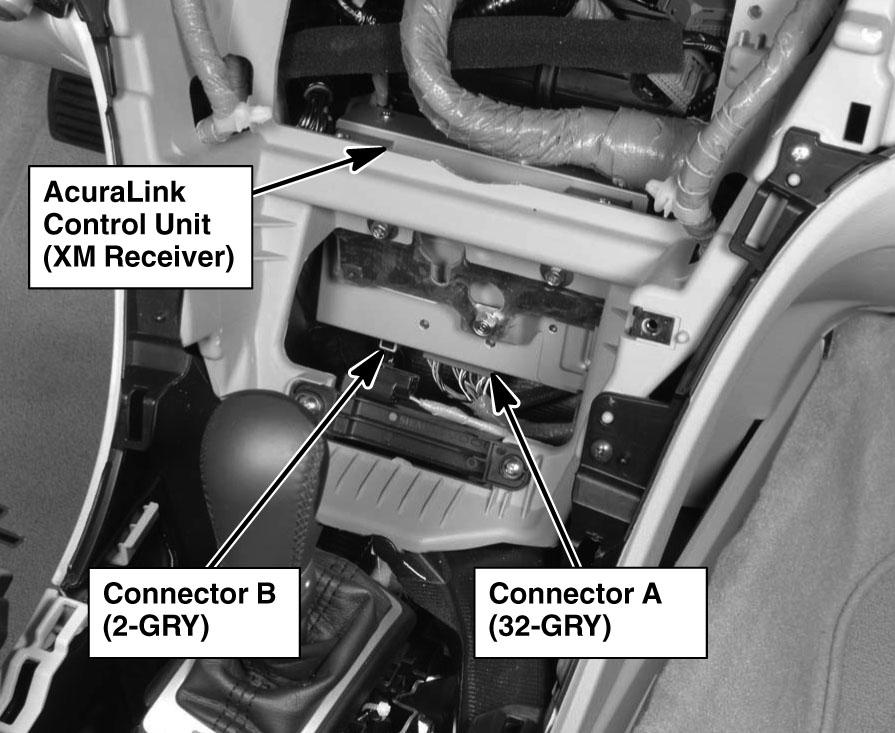

Fig 156: Behind Middle Of Dash

G00472882

Courtesy of AMERICAN HONDA MOTOR CO., INC.

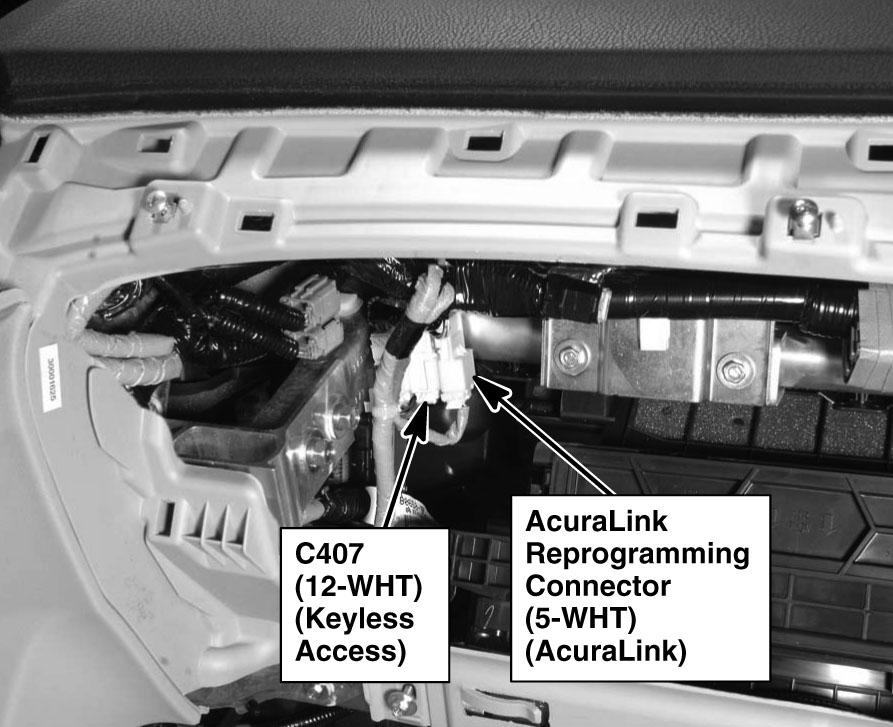

Fig 157: Behind Glove Box

G00472883

Courtesy of AMERICAN HONDA MOTOR CO., INC.

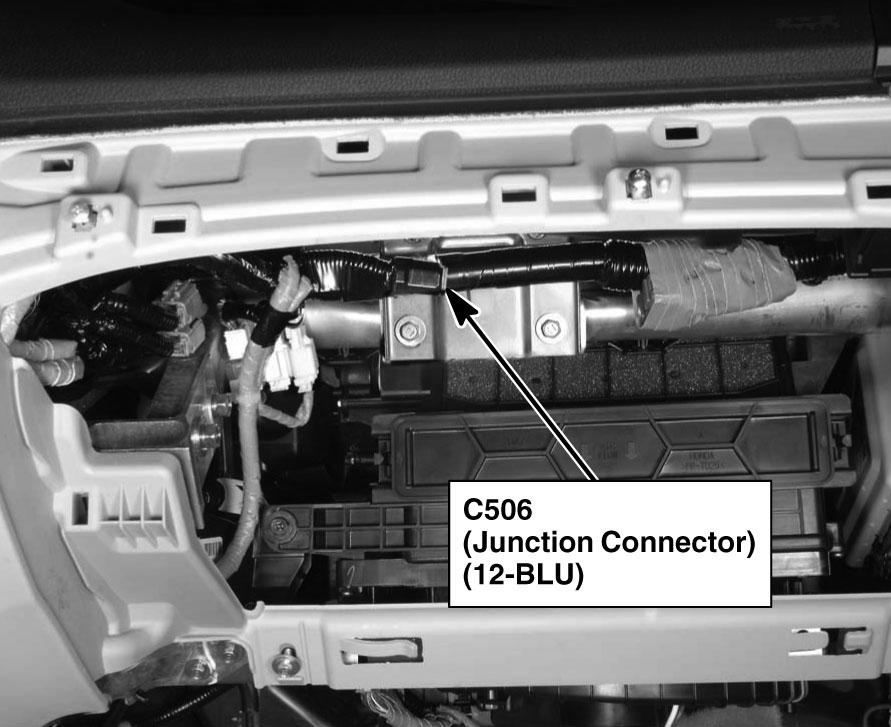

Fig 158: Behind Glove Box

G00472884

Courtesy of AMERICAN HONDA MOTOR CO., INC.

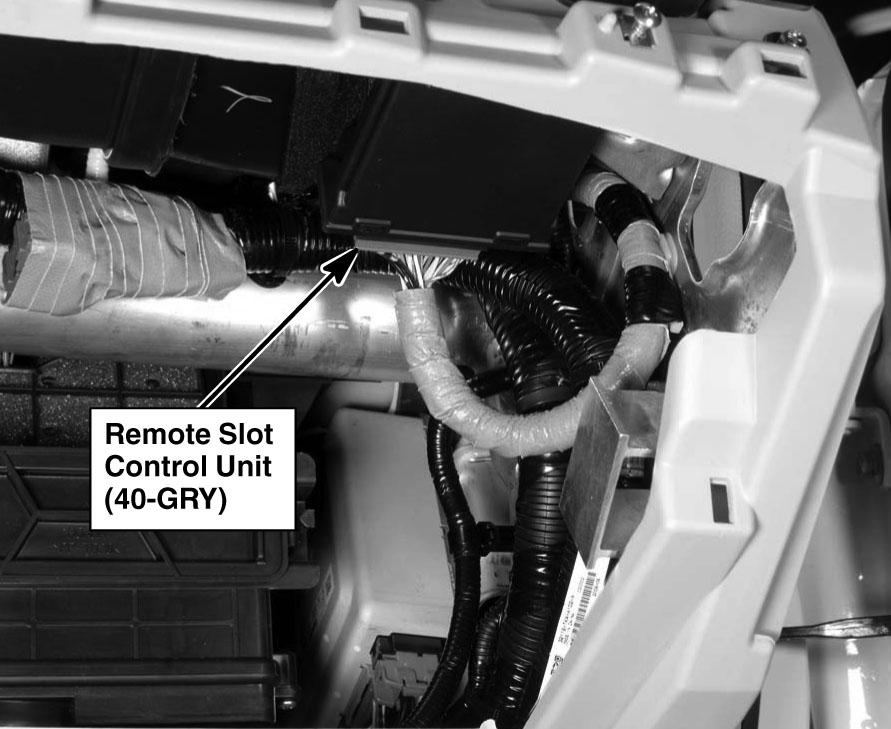

Fig 159: Behind Glove Box

G00472885

Courtesy of AMERICAN HONDA MOTOR CO., INC.

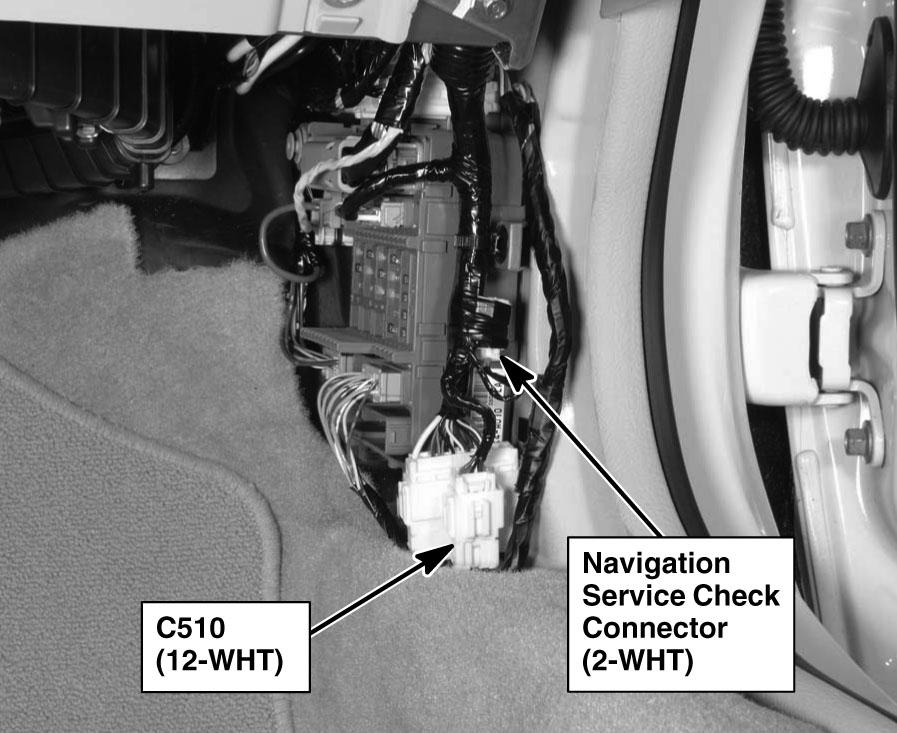

Fig 160: Behind Right Kick Panel

G00472886

Courtesy of AMERICAN HONDA MOTOR CO., INC.

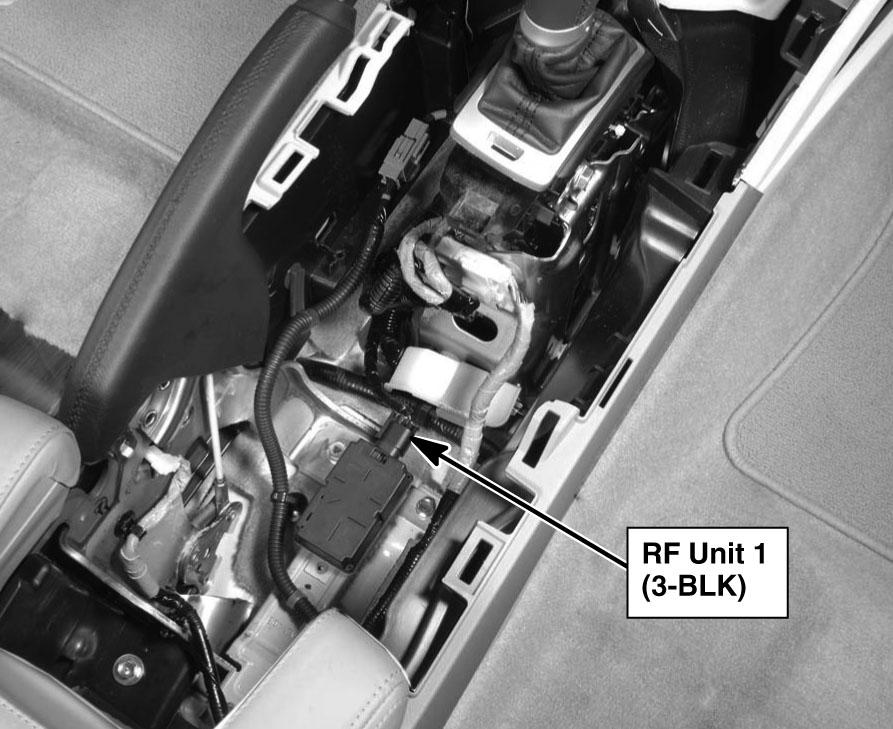

Fig 161: Under Center Console

G00472887

Courtesy of AMERICAN HONDA MOTOR CO., INC.

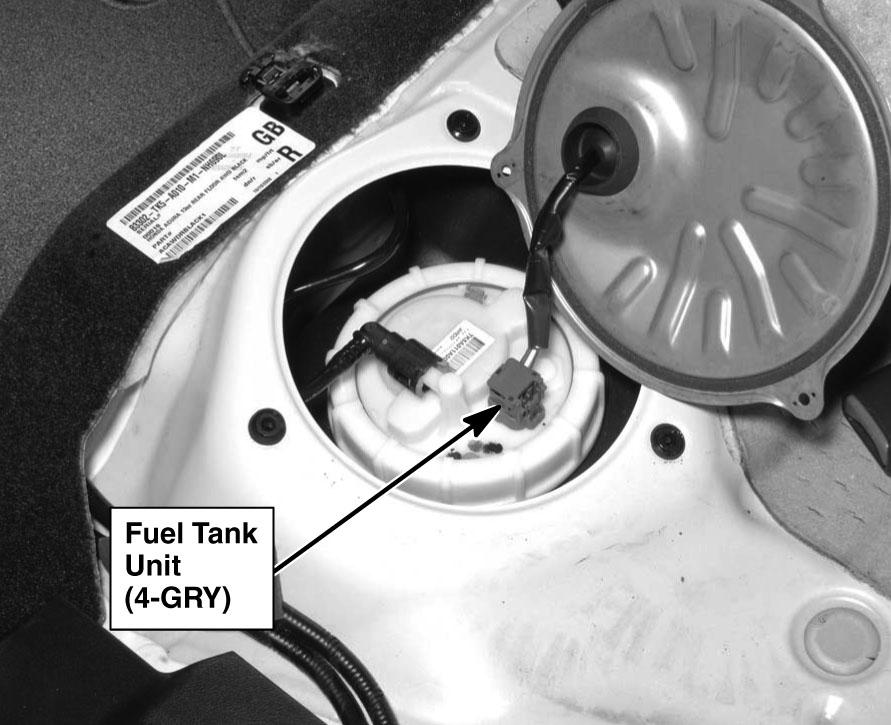

Fig 162: Left Rear Floor

G00472888

Courtesy of AMERICAN HONDA MOTOR CO., INC.

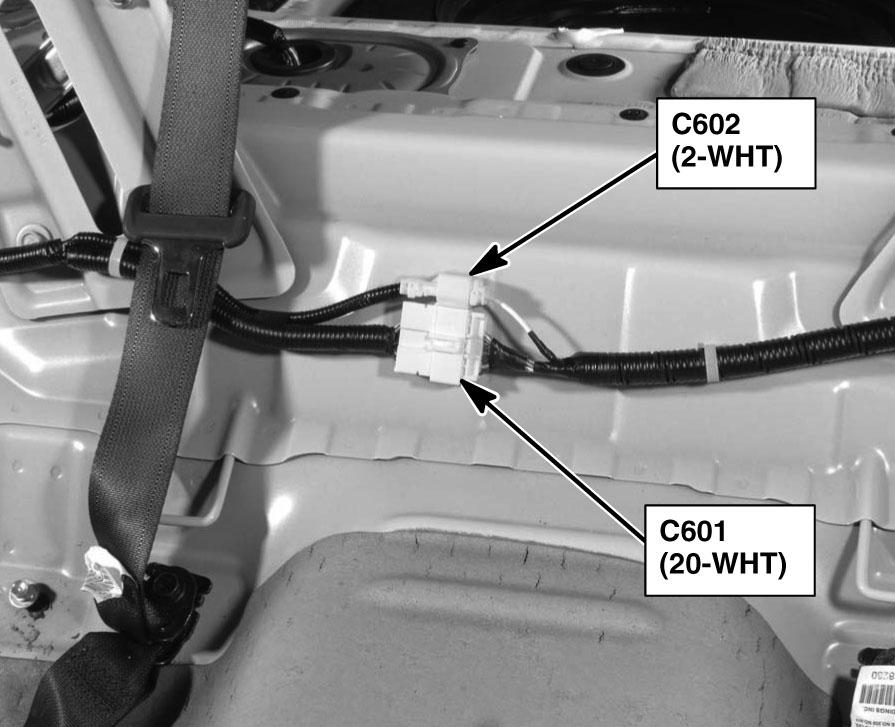

Fig 163: Center Of Rear Floor

G00472889

Courtesy of AMERICAN HONDA MOTOR CO., INC.

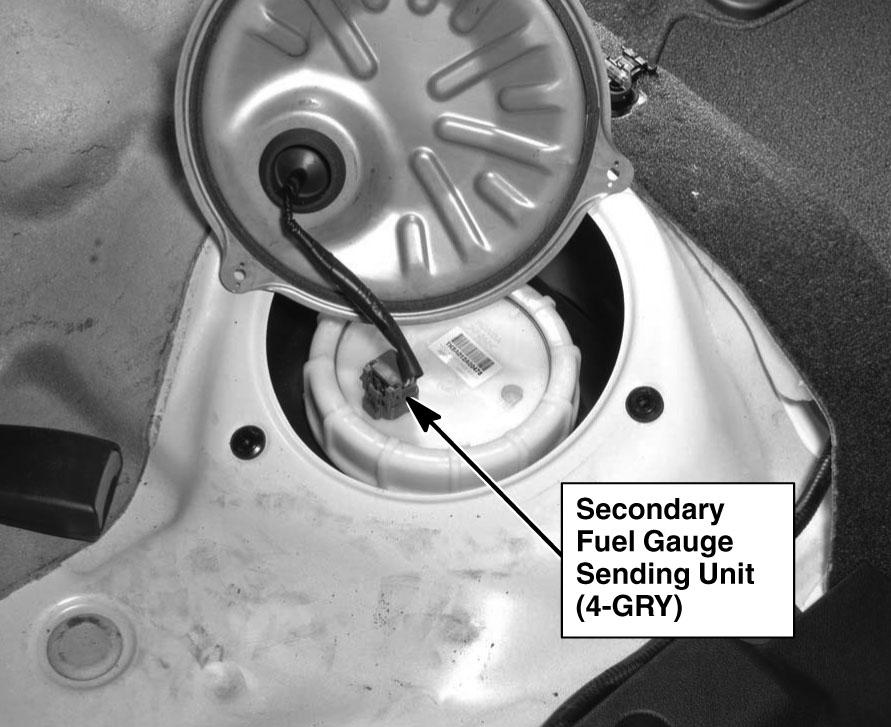

Fig 164: Right Rear Of Floor (SH-AWD)

G00472890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

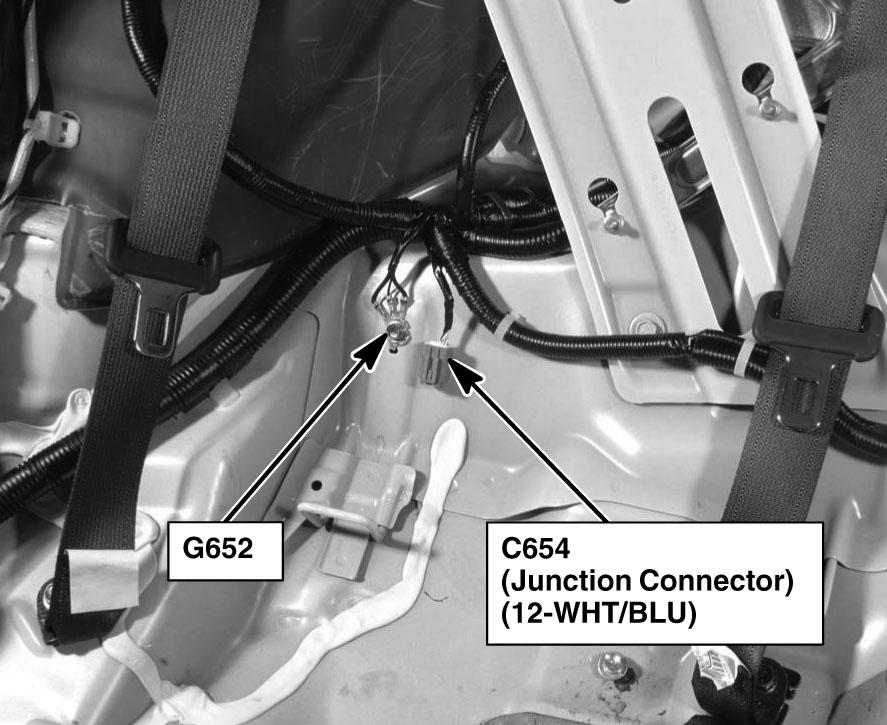

Fig 165: Right Rear Of Floor

G00472891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

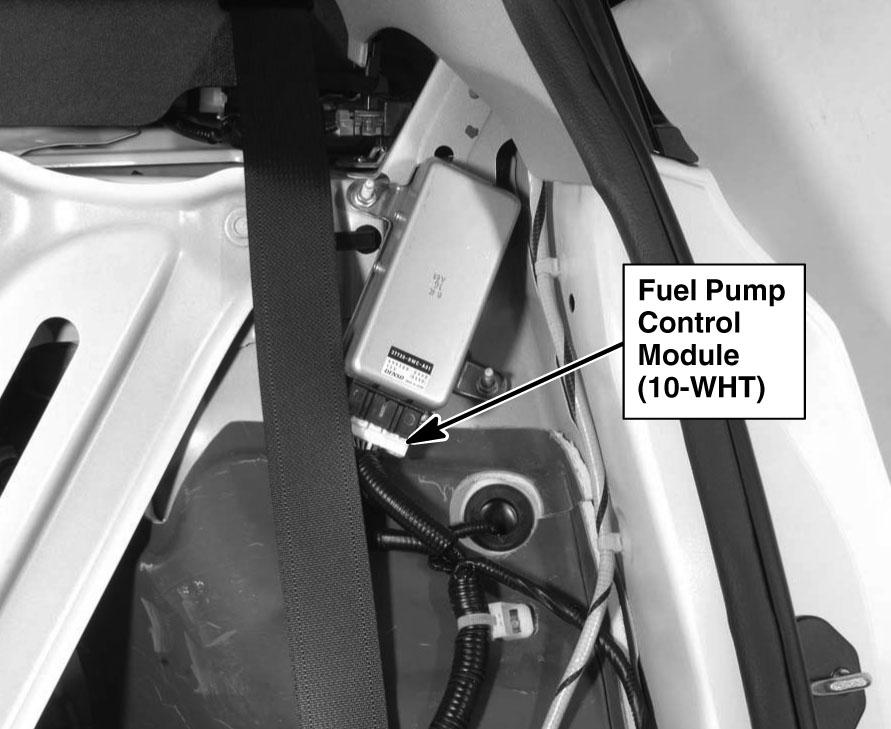

Fig 166: Left "C" Pillar

G00472892

Courtesy of AMERICAN HONDA MOTOR CO., INC.

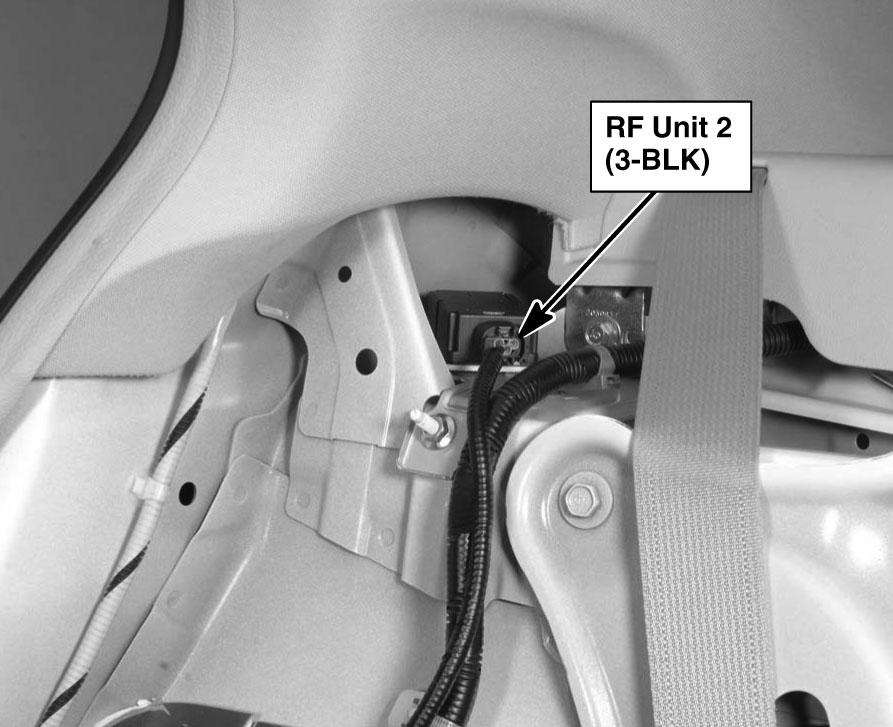

Fig 167: Right "C" Pillar

G00472893

Courtesy of AMERICAN HONDA MOTOR CO., INC.

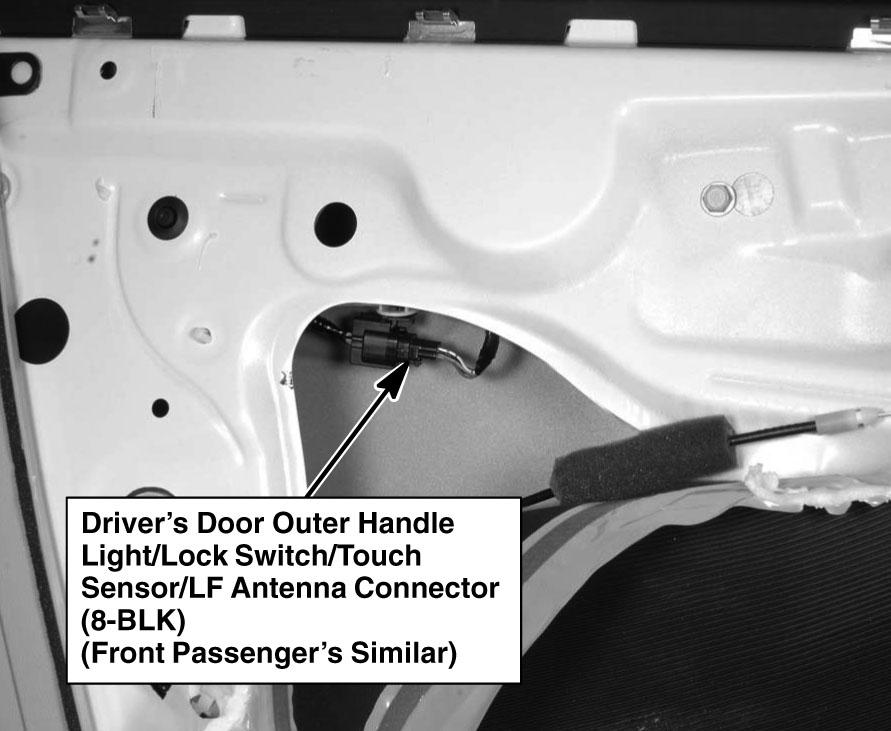

Fig 168: Driver's Door (Front Passenger's Similar)

G00472894

Courtesy of AMERICAN HONDA MOTOR CO., INC.

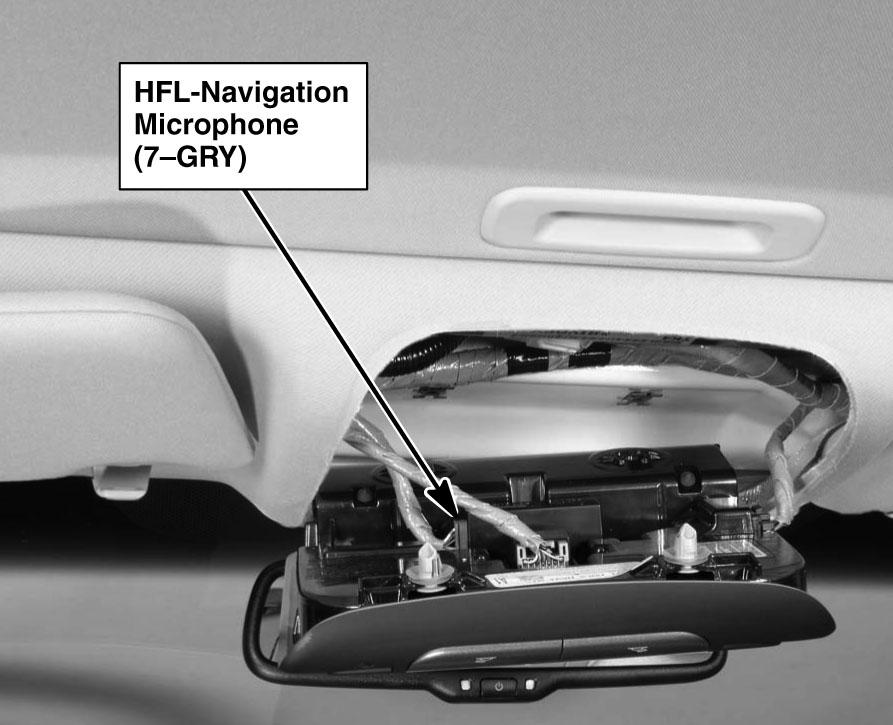

Fig 169: Center Front Of Roof

G00472895

Courtesy of AMERICAN HONDA MOTOR CO., INC.

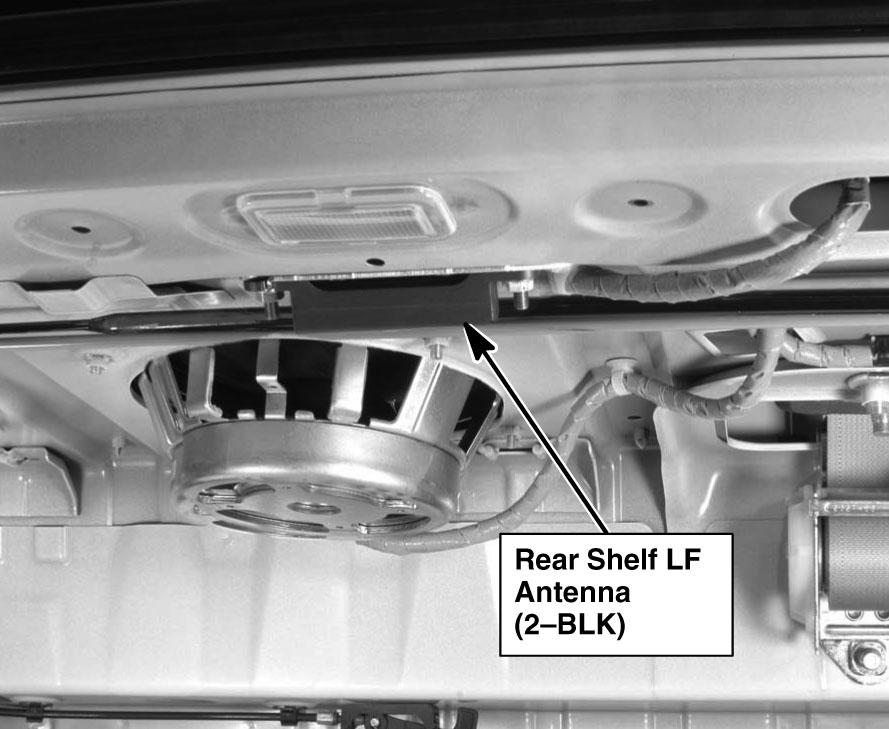

Fig 170: Under Middle Of Rear Shelf

G00472896

Courtesy of AMERICAN HONDA MOTOR CO., INC.

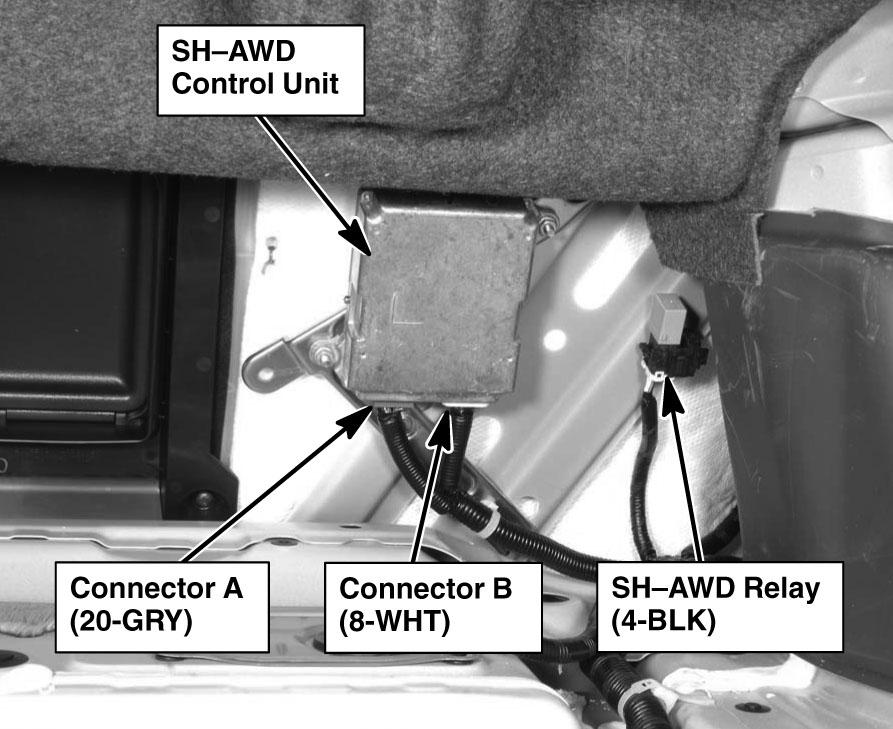

Fig 171: Right Side Of Trunk

G00472897

Courtesy of AMERICAN HONDA MOTOR CO., INC.

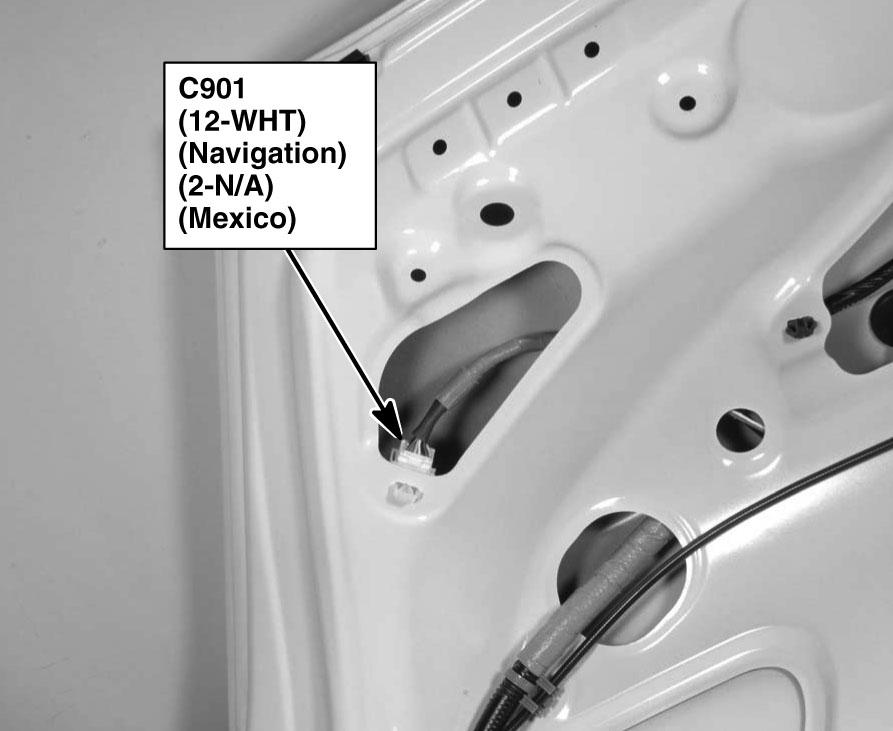

Fig 172: Left Side Of Trunk

G00472898

Courtesy of AMERICAN HONDA MOTOR CO., INC.

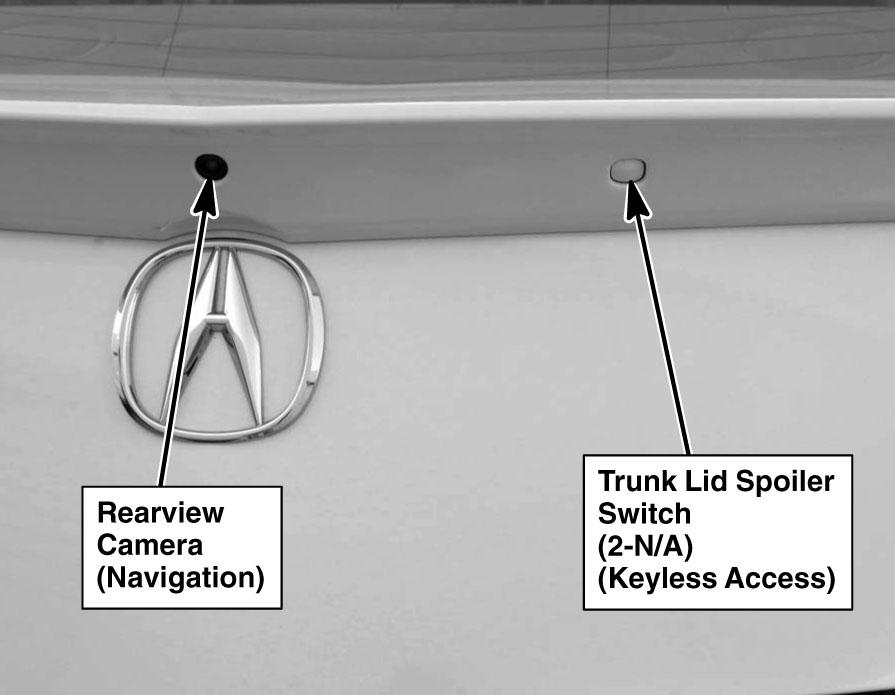

Fig 173: Middle Of Trunk Lid

G00472899

Courtesy of AMERICAN HONDA MOTOR CO., INC.

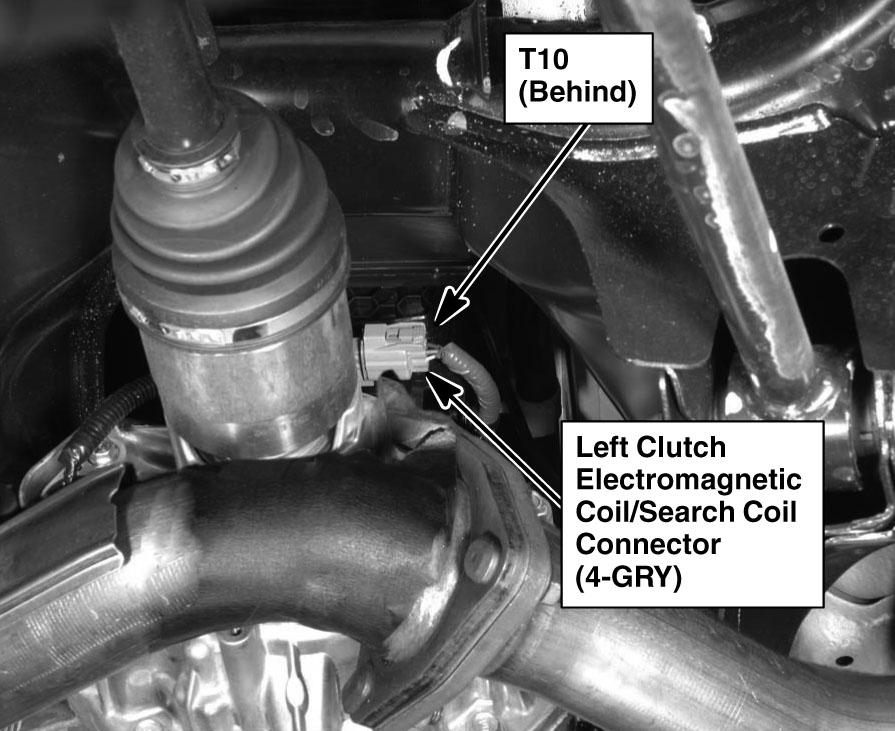

Fig 174: Left Side Of Rear Differential (SH-AWD)

G00472900

Courtesy of AMERICAN HONDA MOTOR CO., INC.

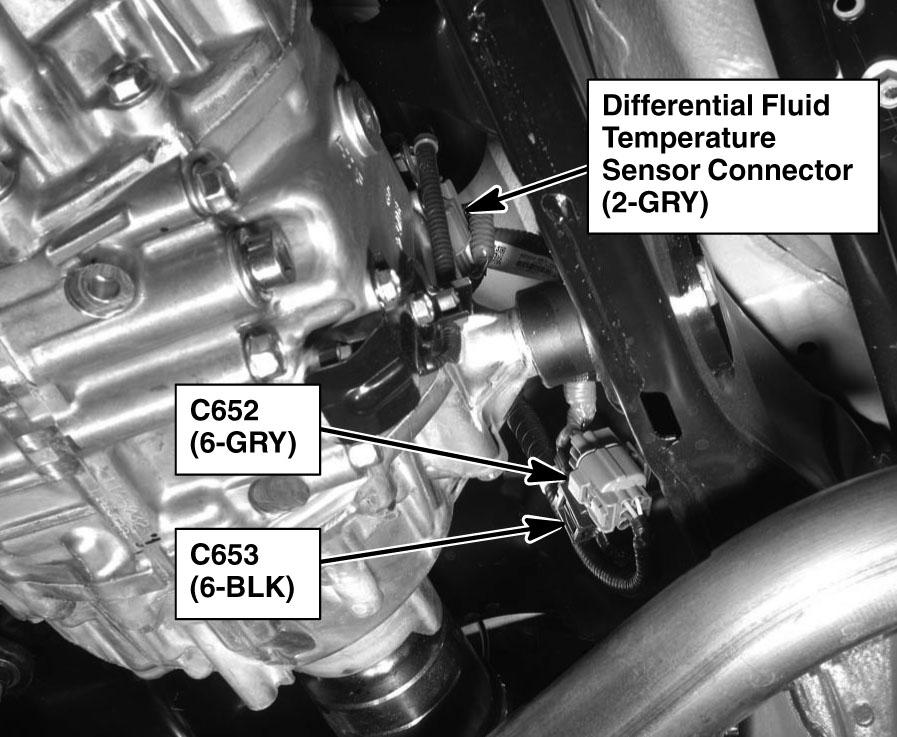

Fig 175: Middle Of Rear Differential (SH-AWD)

G00472901

Courtesy of AMERICAN HONDA MOTOR CO., INC.

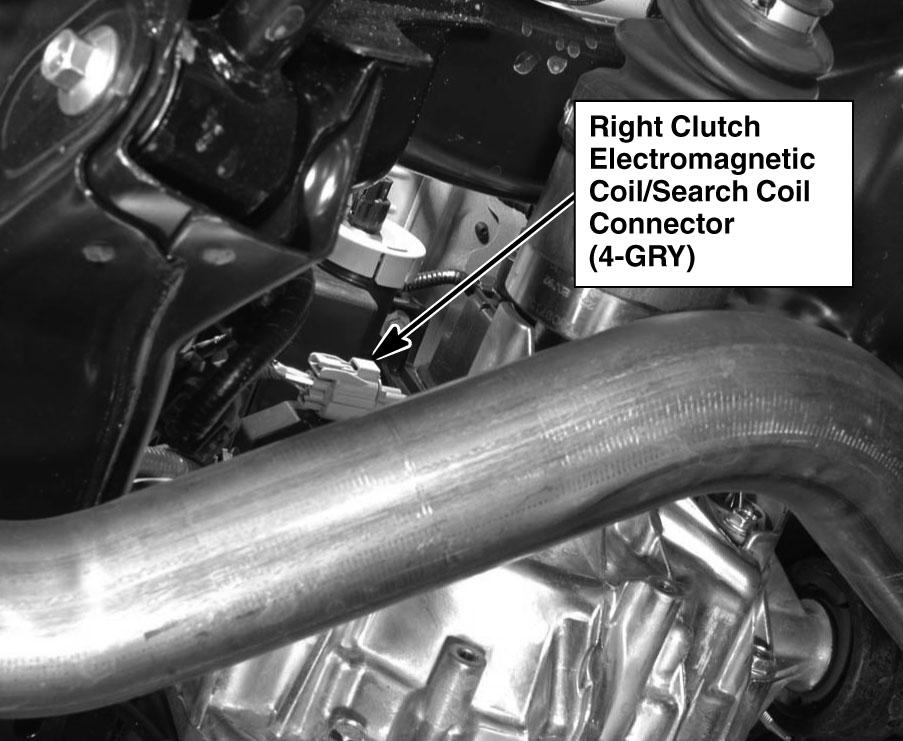

Fig 176: Right Side Of Rear Differential (SH-AWD)

G00472902

Courtesy of AMERICAN HONDA MOTOR CO., INC.

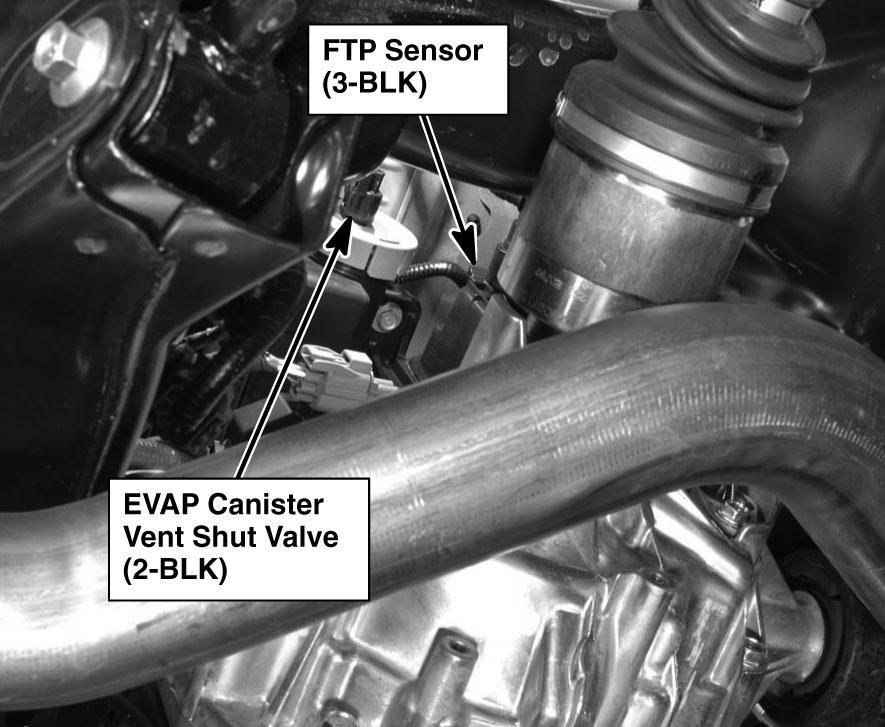

Fig 177: Under Right Rear Of Vehicle (SH-AWD)

G00472903

Courtesy of AMERICAN HONDA MOTOR CO., INC.
